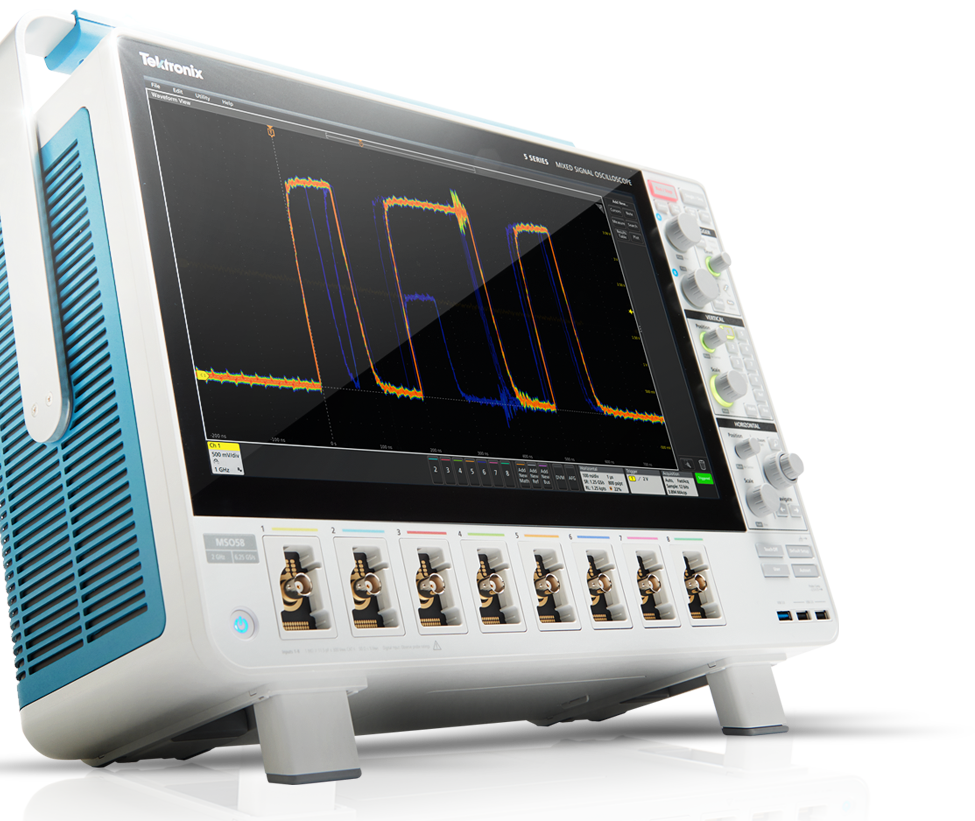

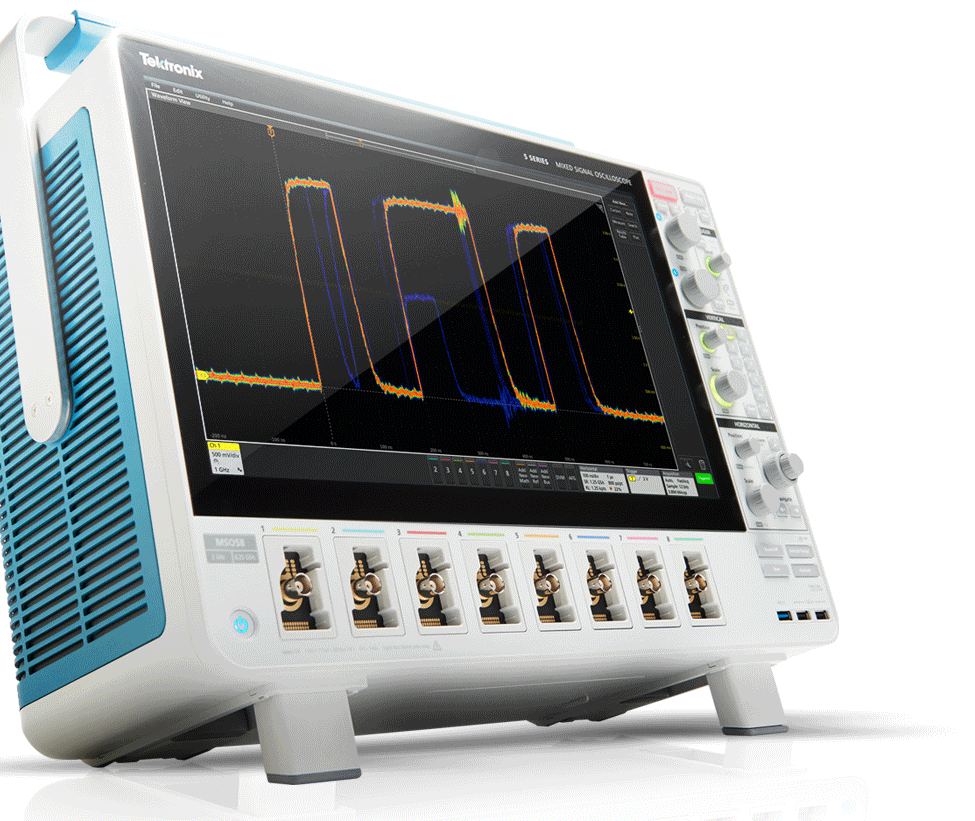

The 5 Series MSO

The largest display. The most channels. The greatest experience. See what engineers are saying.


Thumbnail
Ready for today’s toughest challenges
Thumbnail
15.6"
HD display
Thumbnail
Pinch-swipe-zoom
touchscreen
Thumbnail
4, 6, or 8
FlexChannel™ inputs
Thumbnail
12-bit analog to
digital converters
Thumbnail
350 MHz to 2 GHz
bandwidth
Thumbnail
Starting
at $12k
More than a remarkably intuitive user interface: a delightful experience.

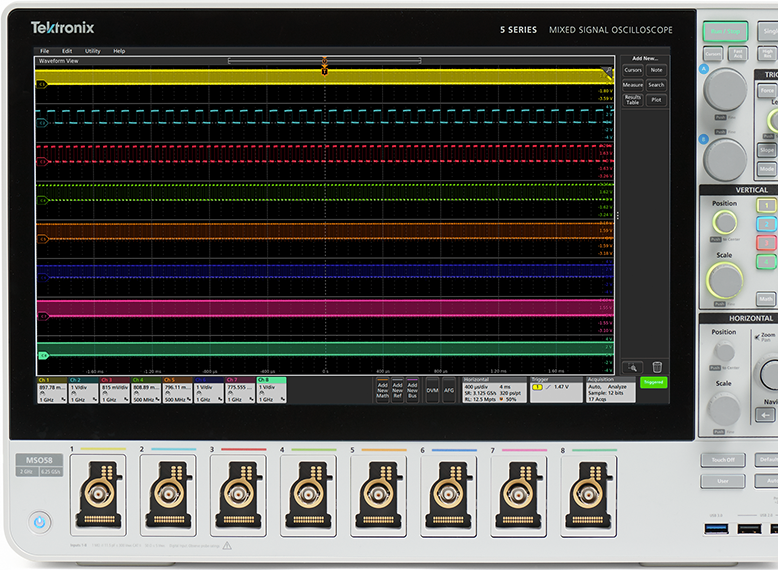

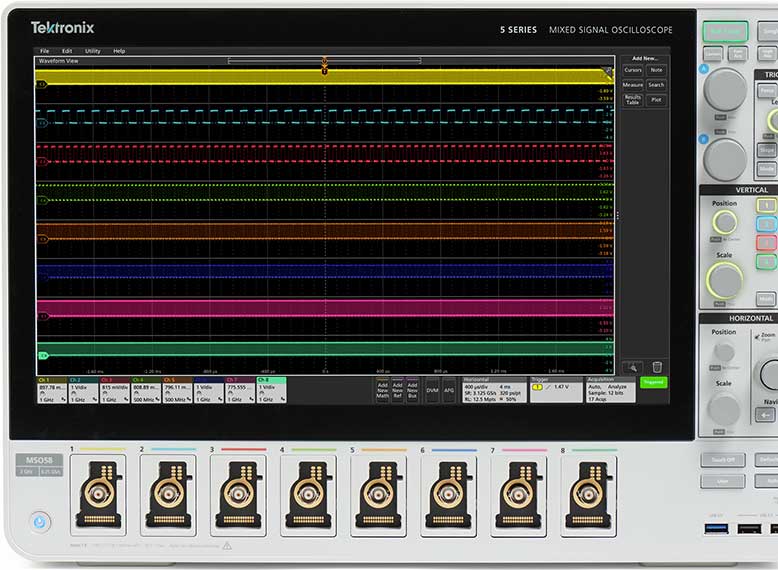

Get the big picture and take total control, with the 15.6-inch HD touchscreen display. Use the capacitive pinch-zoom-swipe touchscreen, front panel controls, or mouse to analyze and manage multiple signals without fighting through menus.

 Swipe to navigate signals
 Zoom signals for increased visibility
 Drag-and-drop cursors and measurements
Thumbnail
 Swipe to navigate signals
 Zoom signals for increased visibility
 Drag-and-drop cursors and measurements
Thumbnail
Don’t run out of channels.

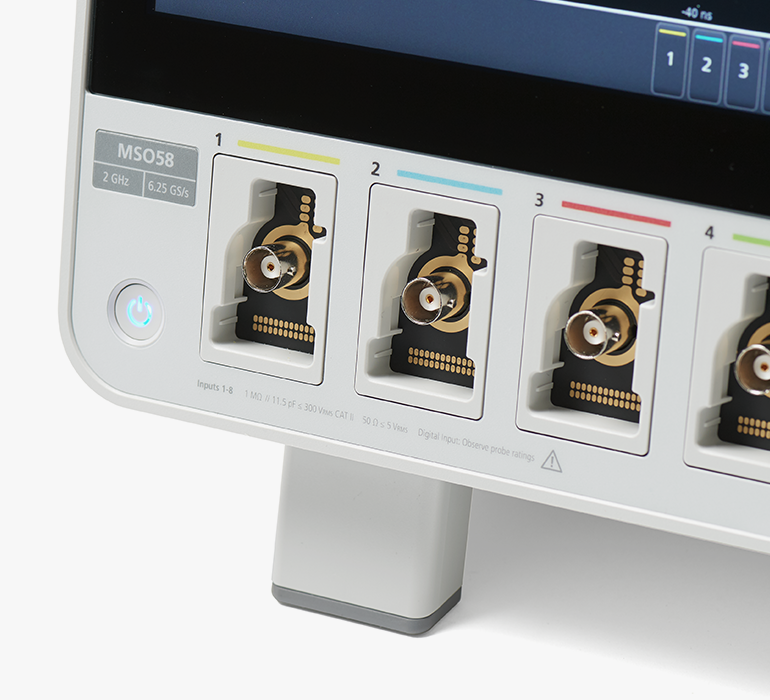

Available with 4, 6, or 8 FlexChannel inputs. Each can be used to look at 1 high-resolution analog waveform or 8 digital logic waveforms, just by changing the probe.

FlexChannel Input

1 high resolution analog input

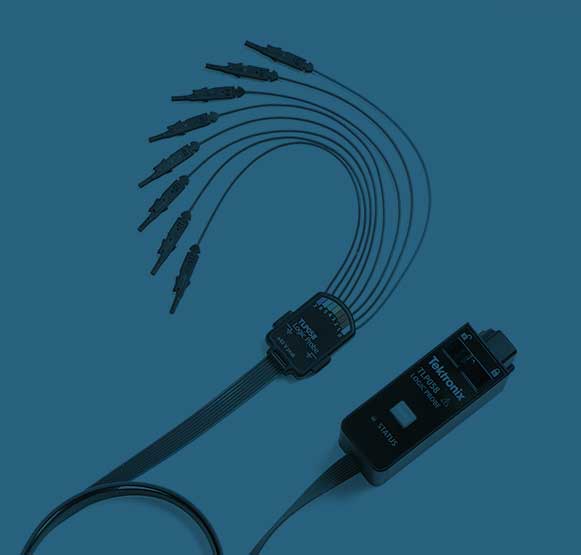

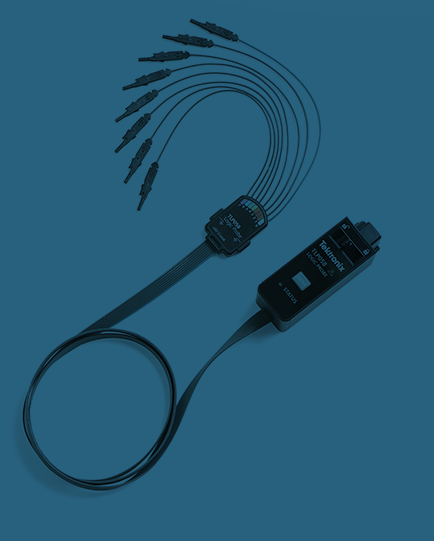

8 digital logic inputs per channel

Thumbnail
See it in action
Thumbnail

I like the fact that it’s beautiful to look at!

Jean T.

Test Engineer

Thumbnail
Watch first Impressions
Thumbnail

When you need all that data, there is no other thing you can do except gather it all and that big screen helps to manage the fact that you need all that data up there at the same time.

David O.

Embedded Software Engineer

Thumbnail
Watch first Impressions
Thumbnail

Just about everything I can think of that I would want in a Scope

Habib H.

Design Engineer

Thumbnail
Watch first Impressions
Thumbnail

I was learning faster on this scope than I usually learn a new scope. The touch screen definitely makes it easier to use this scope.

Greg P.

Design Engineer

Thumbnail
Watch first Impressions
Let no detail go unseen, with up to 16 bits of vertical resolution.

12-bit analog to digital converters deliver up to 16 bits of vertical resolution using advanced digital signal processing. See and measure small signal details, even if they’re riding on large signals.

See it in action

Thumbnail
Strength in numbers.
Physical Dimensions
Thumbnail
Thumbnail
Download the data sheet
Input Channels

4, 6, or 8 FlexChannel inputs
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 logic probe

Bandwidth1

350 MHz, 500 MHz, 1 GHz, 2 GHz

Sample Rate

6.25 GS/s on all analog/digital channels

Record Length

62.5 Mpoints on all analog/digital channels
125 Mpoints optional on all analog/digital channels1



Vertical Resolution

12-bit standard, up to 16-bits in High Res mode

Trigger Types

Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Sequence, I2C1, SPI1, USB1, Ethernet1, CAN1, CAN FD1, LIN1, FlexRay1, RS-232/422/485/UART1, MIL-STD-15531, ARINC 4291, I2S/LJ/RJ/ TDM1, Parallel

Standard Analysis

Cursors: Waveform, V Bars, H Bars, V&H Bars, Split
Measurements: 36 standard along with Trend, Histogram and Spectrum Plots of measurement results.
Math: Basic Waveform Arithmetic, FFT and Advanced Equation Editor
Search: Search on any trigger criteria
Jitter: TIE and Phase Noise

Signal Generator1

Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital Voltmeter2

4 digit

Trigger Frequency Counter2

8 digit

Display

15.6-inch (385 mm)
TFT color HD (1,920 x 1,080) resolution
Capacitive (multi-touch) touchscreen

Connectivity

USB Host (x7), USB Device, LAN (10/100/1000 Base-T Ethernet; LXI Compliant), Display Port, DVI-D, Video Out

Optional Serial Bus Decode and Analysis1

I2C, SPI
RS-232/422/485/UART
USB 2.0
Ethernet
CAN, CAN FD, LIN, FlexRay
MIL-STD-1553, ARINC 429
I 2S, LJ, RJ, TDM

Optional Analysis1

Advanced Jitter and Eye Diagram Analysis

Advanced Power Measurement and Analysis

Automated Compliance Testing for Automotive Ethernet

Buy what you need now.
Add on as your needs change.
Performance

Bandwidth up to 2 GHz
Record Length up to 125 Mpoints

Digital Inputs

TLP058 Logic Probes each provide 8 digital channels

Operating System

Add Windows OS to run PC software on the scope

Signal Generation

Add a built-in Arbitrary/Function Generator

Advanced Analysis

Serial Decode/Trigger support for key buses like I2C, SPI, USB 2, Ethernet, CAN, LIN, and many others

Advanced Jitter Analysis

Comprehensive jitter decomposition and eye-diagram analysis
