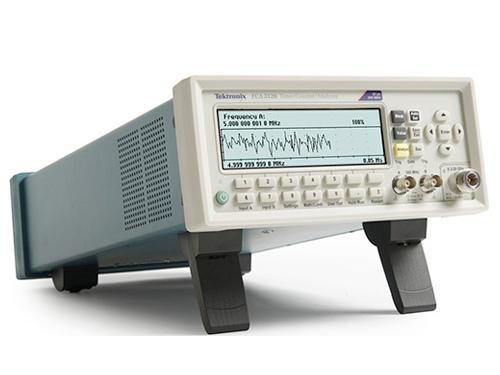

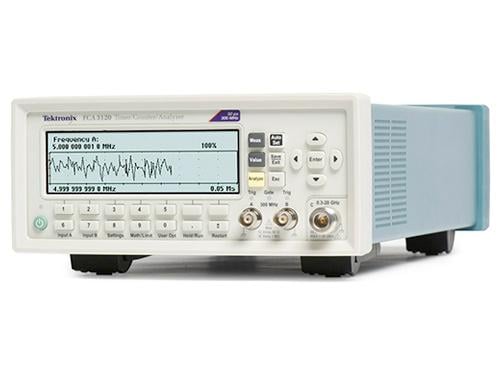

FCA3000/3100

Offering up to 20 GHz measurements, the Tektronix FCA3000 and FCA3100 Frequency Counter Series pack many different functions into one feature-rich instrument. With unprecedented resolution, you can capture very small frequency and time changes. And with the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.

Base Price

US $4,870 +

Select Model to Configure/Quote

Datasheet Manual Downloads

FCA3000/3100

Features	Benefits
12 digit/s frequency resolution	See small changes in frequency with industry-leading frequency resolution.
Down to 50 ps time resolution	Accurately capture signal details with industry-leading single-shot time resolution.
Multi-parameter display	Read critical auxiliary measurement values displayed with your main frequency, time, or phase measurement to quickly asses your device's performance.
Trend Plot mode	Plot measurement trends and graphically identify the extent of drift and intermittent events.
Histogram mode	Discover stability or noise problems by viewing results as a histogram.
Statistics mode	View multiple statistical values such as average, min, max, standard and Allan deviation to see how your signal is changing.
Optional TimeView™ software	Transform your timer/counter into a modulation domain analyzer and see frequency changes over time to truly characterize your device's performance.
USB and GPIB ports	Easily connect to a personal computer for further analysis or into an ATE system with the back-panel USB and GPIB ports; an emulation mode for legacy timer/counters further simplifies integrating into an existing ATE system.
PC Connectivity	Control your timer/counter, log data, and simply transfer and document your results with the included copy of NI LabVIEW SignalExpress software.

Model	Max Frequency	Time Resolution	Frequency Resolution	List Price	Configure And Quote
FCA3000	300 MHz	100 ps	12 digit	US $4,870	Configure & Quote
FCA3003	3 GHz	100 ps	12 digit	US $7,030	Configure & Quote
FCA3100	300 MHz	50 ps	12 digit	US $7,530	Configure & Quote
FCA3103	3 GHz	50 ps	12 digit	US $9,780	Configure & Quote
FCA3020	20 GHz	100 ps	12 digit	US $14,700	Configure & Quote
FCA3120	20 GHz	50 ps	12 digit	US $17,200	Configure & Quote

Model	Max Frequency	Time Resolution	Frequency Resolution	List Price	Configure And Quote
FCA3000	300 MHz	100 ps	12 digit	US $4,870	Configure & Quote
FCA3003	3 GHz	100 ps	12 digit	US $7,030	Configure & Quote
FCA3100	300 MHz	50 ps	12 digit	US $7,530	Configure & Quote
FCA3103	3 GHz	50 ps	12 digit	US $9,780	Configure & Quote
FCA3020	20 GHz	100 ps	12 digit	US $14,700	Configure & Quote
FCA3120	20 GHz	50 ps	12 digit	US $17,200	Configure & Quote

Instrument Options
MS	Medium stability OCXO timebase, 2 X10^-7
HS	High stability OCXO timebase, 5 X10^-8
RP	Rear panel connectors

Data Sheet	Software Package / Software Option	Description	Configure and Quote

Accessory 237-ALG-2
