TBS1000C bench oscilloscope

TBS1000C Digital Storage Oscilloscope

  • Bandwidth 50 MHz - 200 MHz
  • Analog Channels 2
  • Digital Channels -
  • Sample Rate 1 GS/s
  • Starting Price US $563
TBS2000B - Tech Briefs Product of Year

TBS2000B Digital Storage Oscilloscope

  • Bandwidth 70 MHz - 200 MHz
  • Analog Channels 2-4
  • Digital Channels -
  • Sample Rate 1 GS/s to 2 GS/s
  • Starting Price US $1,560
2 series MDO Mixed domain benchtop oscilloscope

2 Series MSO Mixed Signal Oscilloscope

  • Bandwidth 70 MHz - 500 MHz
  • Analog Channels 2 or 4
  • Digital Channels 16 (optional)
  • Sample Rate 1.25 GS/s - 2.5 GS/s
  • Starting Price US $1,800
3 Series MDO Mixed Domain oscilloscope

3 Series MDO Mixed Domain Oscilloscope

  • Bandwidth 100 MHz - 1 GHz
  • Analog Channels 2 or 4
  • Digital Channels 16 (optional)
  • Sample Rate 2.5 GS/s - 5 GS/s
  • Starting Price US $4,320
4 Series MSO Mixed Signal oscilloscope

4 Series MSO Mixed Signal Oscilloscope

  • Bandwidth 200 MHz to 1.5 GHz
  • Analog Channels 4 or 6
  • Digital Channels Up to 48 (optional)
  • Sample Rate 6.25 GS/s
  • Starting Price US $8,420
5 series B MSO - MSO58B

5 Series B MSO Mixed Signal Oscilloscope

  • Bandwidth 350 MHz - 2 GHz
  • Analog Channels 4, 6 or 8
  • Digital Channels Up to 64 (optional)
  • Sample Rate 6.25 GS/s
  • Starting Price US $17,100
5 Series MSO Mixed Signal oscilloscope low profile oscilloscope

5 Series MSO Low Profile

  • Bandwidth 1 GHz
  • Analog Channels 8
  • Digital Channels Up to 64 (optional)
  • Sample Rate 6.25 GS/s
  • Starting Price Contact Us
6 Series B MSO Mixed Signal oscilloscope

6 Series B MSO Mixed Signal Oscilloscope

  • Bandwidth 1 GHz - 10 GHz
  • Analog Channels 8
  • Digital Channels Up to 64 (optional)
  • Sample Rate 50 GS/s
  • Starting Price US $31,100
6 Series low profile digitizer

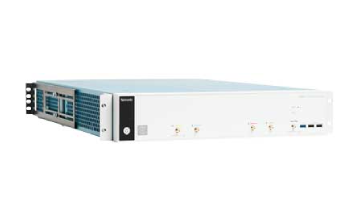

6 Series Low Profile Digitizer

  • Bandwidth 1 GHz - 8 GHz
  • Analog Channels 4 (SMA)
  • Digital Channels -
  • Sample Rate 25 GS/s
  • Starting Price Contact Us
MSO/DPO70000 MSO Mixed Signal oscilloscope

MSO / DPO70000 Mixed Signal Oscilloscope

  • Bandwidth 8 GHz - 33 GHz
  • Analog Channels 4
  • Digital Channels 16 (optional)
  • Sample Rate 25 GS/s - 100 GS/s
  • Starting Price Contact Us
DPO70000SZX ATI performance oscilloscope

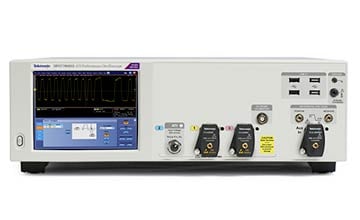

DPO70000SX ATI Performance Oscilloscope

  • Bandwidth 13 GHz - 70 GHz
  • Analog Channels 1-4
  • Digital Channels -
  • Sample Rate 50 GS/s - 200 GS/s
  • Starting Price Contact Us
Tektronix 8 Series Sampling Oscilloscope

8 Series Sampling Oscilloscope

  • Bandwidth 30 GHz
  • Analog Channels 4
  • Digital Channels -
  • Sample Rate 300 kS/s
  • Starting Price Contact Us
MSO/DPO2000B Mixed Signal oscilloscope

MSO/DPO2000B Mixed Signal Oscilloscope

  • Bandwidth 70 MHz - 200 MHz
  • Analog Channels 2-4
  • Digital Channels 16 (optional)
  • Sample Rate 1 GS/s
  • Starting Price US $4,300
MDO3000 Mixed Domain oscilloscope

MDO3000 Mixed Domain Oscilloscope

  • Bandwidth 100 MHz - 1 GHz
  • Analog Channels 2 or 4
  • Digital Channels 16 (optional)
  • Sample Rate 2.5 GS/s - 5 GS/s
  • Starting Price US $5,460
MDO4000C Mixed Domain oscilloscope

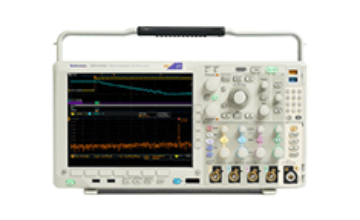

MDO4000C Mixed Domain Oscilloscope

  • Bandwidth 200 MHz - 1 GHz
  • Analog Channels 4
  • Digital Channels 16 (optional)
  • Sample Rate 2.5 GS/s - 5 GS/s
  • Starting Price US $10,800
MSO/DPO5000B Mixed Signal Oscilloscope

MSO/DPO5000B Mixed Signal Oscilloscope

  • Bandwidth 350 MHz - 2 GHz
  • Analog Channels 4
  • Digital Channels 16 (optional)
  • Sample Rate 5 GS/s - 10 GS/s
  • Starting Price US $25,200


Oscilloscope Probes and Accessories

Choose from a broad portfolio of Tektronix probes and accessories, all perfectly matched to our industry-leading oscilloscopes. With over 100 choices available, select the oscilloscope probe you need for your specific testing application.
Current probes for oscilloscopes

Current Probes

Best-in-class bandwidth and sensitivity. Safety Certified.

Low voltage differential probes for oscilloscopes

Low Voltage Differential Probes

Signal fidelity for serial bus PHY measurements.

High voltage differential probes for oscilloscopes

High Voltage Differential Probes

Industry leading performance up to 6000V. Safety Certified.

IsoVu Isolated probe for oscilloscopes

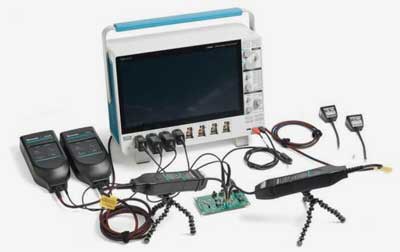

IsoVu Isolated Probes

Probing systems make high-resolution measurements in the presence of common mode signals or noise.

Passive probes for oscilloscopes

Passive Probes

Highest bandwidth, lowest probe loading.

Power rail probes for oscilloscopes

Power Rail Probes

Power rail probes offer low noise, low loading, high bandwidth, and high DC offset specifically for power integrity measurements.

Software for your Oscilloscope

Analyze your most challenging system designs by adding one of our oscilloscope software packages to your scope.
Oscilloscope software

TekScope™ oscilloscope software

Analyze waveforms anytime from anywhere by turning your PC into an oscilloscope with TekScope.

Keithley KickStart Software for I-V Characterization measurements

Keithley KickStart Software

Start measuring in minutes without complex programming. Perform I-V characterization and more.

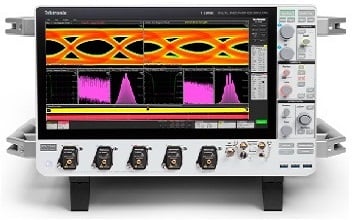

DPO70000SX ATI performance oscilloscope

Oscilloscope Learning Center

Learn how to use oscilloscopes, spectrum analyzers, source measure units, and other instruments to troubleshoot system anomalies, provide measurement insights, debug EMI, and more.
Primer

Oscilloscope Basics and Fundamentals

In this comprehensive primer, you can learn everything you need to know about oscilloscope fundamentals, types, systems, setup, and use.

SOLUTION BRIEF

Capacitance and Inductance Measurements Using an Oscilloscope and a Function Generator

Learn about impedance, impedance measurement methods, measurement ranges, and more with real-world examples.

APPLICATION NOTE

Spectrum View: A New Approach to Frequency Domain Analysis on Oscilloscopes

Learn about how Spectrum View analysis allows optimization of both time domain and frequency domain displays independently to offer important insights.

APPLICATION NOTE

How Oscilloscope Probes Affect Your Measurement

Learn how an oscilloscope probe changes the signal you’re measuring at the test point and what probing specifications to look for to minimize probing effects.

Oscilloscope FAQs

What is an oscilloscope?

An oscilloscope, formerly known as an oscillograph, graphically displays electrical signals and shows how they change over time. Learn more about how an oscilloscope works, what they're used for and the types of oscilloscopes.

What is an oscilloscope used for?

Engineers use oscilloscopes to design, manufacture or repair electronic equipment to verify that a device is working properly.

How does an oscilloscope work?

An oscilloscope reconstructs electrical signals using three systems—vertical, horizontal and trigger—which work together to gather information about the electrical signal, so the oscilloscope can graphically display those signals.

How does an oscilloscope measure voltage?

An oscilloscope measures voltage waves by capturing physical phenomena such as vibrations or temperature, or electrical phenomena such as current or power with a sensor. The oscilloscope then converts that signal into a waveform and graphically displays it where the horizontal axis represents time and the vertical axis represents voltage.

What does an oscilloscope measure?

An oscilloscope measures voltage waves, but it can also be used to measure current, resistance, sound, capacitance, frequency and more.

How does an oscilloscope measure frequency?

Most oscilloscopes measure frequency automatically, but you can also use a simple equation (frequency=1/period) and the horizontal scale on your oscilloscope to measure frequency manually.

How can an oscilloscope measure current?

You can use an oscilloscope to measure current by measuring the voltage dropped across a shunt resistor or by using a current probe.

What are the different types of oscilloscopes?

There are two main types of oscilloscopes: analog and digital. Most engineers today use digital oscilloscopes, which fall into five categories: digital storage oscilloscopes, digital phosphor oscilloscopes, mixed signal oscilloscopes, mixed domain oscilloscopes, and digital sampling oscilloscopes.

What is a mixed signal oscilloscope?

A mixed signal oscilloscope is a type of digital storage oscilloscope designed to capture, display, and compare both analog and digital signals.

What is a mixed domain oscilloscope?

Like a mixed signal oscilloscope, a mixed domain oscilloscope measures analog and digital signals, but has built-in spectrum analyzer, allowing engineers to make radio frequency (RF) measurements as well.

How to use an oscilloscope

Learn the basics of how to set up and how to use an oscilloscope as well as basic measurement techniques with our Oscilloscope How-To Guide.

How to choose an oscilloscope

There are many factors to consider when buying an oscilloscope. Learn more in our guide on how to choose the best oscilloscope for your application.

Who uses an oscilloscope?

Scientists, engineers, physicists, medical researchers, automotive mechanics, repair technicians and educators use oscilloscopes to see signals change over time. There is no shortage of applications for this powerful instrument.

How much does an oscilloscope cost?

Oscilloscope pricing can range greatly depending on whether you’re a hobbyist looking for a simple setup or an electrical engineer using an oscilloscope in a lab setting. How you choose to configure your oscilloscope, its bandwidth and the number of channels are big factors in determining oscilloscope price. Tektronix oscilloscopes, for example, can range from around $500 to tens of thousands of dollars for more sophisticated instruments and advanced configurations. For guidance on finding the oscilloscope that best meets your needs, contact the experts at Tektronix.

How do I determine the oscilloscope price?

Because our oscilloscopes are highly configurable, pricing can vary for each oscilloscope. For an exact oscilloscope price and to learn about any ongoing promotions, fill out the quote request form and a representative will reach out to determine the oscilloscope price based on your configuration and needs.
