Automotive Ethernet Architecture


Today’s vehicles are generating and transmitting vast amounts of data in order to implement advanced driver assistance systems (ADAS), on-board diagnostics, cameras and sensors, in-vehicle-infotainment systems, and smart safety systems. These in-vehicle networks require much faster speeds than the what has historically been possible using bus like CAN/CAN-FD, LIN, FlexRay, SENT, PSI5, and CXPI networks.

Furthermore, requirements for greater integration between vehicle subsystems are driving fundamental architectural changes with an emphasis on scalable architectures and complex topologies, including gateways connected to a backbone.

Beyond the technical requirements, these in-vehicle networks also need to be lightweight, cost-efficient, and operate in rugged conditions and wide temperature ranges. They also need to be extremely reliable, especially for systems designed to protect the safety of the passengers.

And automotive Ethernet answers all of these demands.

What is Automotive Ethernet?

Automotive Ethernet is a high-speed, low-latency network physical layer. Automotive Ethernet is based on established Ethernet standards, adapted for use in vehicles.  It uses a single pair of unshielded twisted wires for light weight and low cost. It is designed to enable the transfer of high volumes of data between in-vehicle modules to support modern powertrain, ADAS, infotainment and comfort systems. There are several different Automotive Ethernet standards, including 100BASE-T1, 1000BASE-T1, and multi-gig automotive ethernet 10GBASE-T1, which can transfer data at speeds from 100 Mb/s to 10 Gb/s.

Benefits of Automotive Ethernet

In vehicles, automotive ethernet components offer many benefits, including:

  • High data rates enables high-speed, high-volume data communications
  • Low latency provides minimal delay for real-time systems like ADAS
  • High reliability with good noise immunity
  • Lightweight, space-efficient and cost-effective cabling
  • Based on well-established standards from reputable standards bodies

In addition, automotive ethernet is a proven technology that serves the needs for both capacity and integration. Unlike in non-automotive Ethernet, the cables for automotive ethernet use PAM3/PAM4 modulation to achieve high data rates and reliability. While CAN, CAN-FD, LIN and other networks may continue to be relevant in the near future, automotive Ethernet can transport data roughly 100 times faster than a CAN bus and is better suited to meeting the needs of future automotive networks.

Automotive Ethernet Standards

As new applications for automotive Ethernet emerge and speeds become faster, standards organizations release new test and compliance requirements that automotive manufacturers and their suppliers must meet.

The Institute of Electrical and Electronics Engineers (IEEE) has introduced IP-based automotive Ethernet 100BASE-T1 (P802.3bw), Multi-Gigabit Ethernet (IEEE 802.3ch), 1000BASE-T1 (802.3bp) and 10BASE-T1S (IEEE 802.3cg) standards. Most recently, the IEEE introduced the Multi-Gigabit Ethernet (IEEE 802.3ch) standard, which can operate at 2.5Gbps, 5Gbps and 10Gbps with PAM4 encoding scheme.

To ensure the interoperability of hardware and the safe, predictable operation of the vehicle in diverse environments and operating conditions, strict constraints are placed on signal levels, noise, and clock characteristics. The testing techniques specified by the standards, although well-established for stationary Ethernet networks, have created new design challenges for many automotive engineers accustomed to working with slower serial buses like CAN and LIN.

Tektronix can offer vast experience in supporting high speed serial design implementation and troubleshooting, with a variety of instruments and solutions to help engineers test and validate their design, and ensure it is standard compliant.

Validating your automotive Ethernet design

Once a prototype device is built up, it’s time to test its integration with the system and characterize it to make sure it’s within specification.

Tektronix oscilloscopes are an invaluable tool for bringing up and characterizing your automotive Ethernet design.

  • Complete characterization under different use cases with advanced measurements and analysis tools
  • Automated measurements such as amplitude and time measurements, along with statistical analysis and histograms, are a good place to start to check signal quality
  • Eye diagrams are the fastest way to evaluate PAM3 signaling for noise and signal integrity issues
  • Jitter analysis tools provide complete profiles of master/slave clock jitter including Time Interval Error (TIE), and cycle-to-cycle, Rj/Dj measurements and isolate the potential source of errors
eye diagram automotive Ethernet testing

Eye diagrams are the best way to view complex PAM3 waveforms

Speed debugging and troubleshooting your automotive Ethernet design

It’s to be expected that in complex networks systems or components sometimes fail, requiring speedy debug to root cause. Automotive Ethernet’s higher data rates and embedded clocking are sensitive to noise and power variations.

Engineers, used to evaluating waveforms as part of their troubleshooting procedure, often find the PAM3 signals more difficult to debug. Also, since automotive Ethernet is a bi-directional bus it can be more challenging to capture the exact signal of interest.

Tektronix oscilloscopes configured with advanced analysis software provide the tools required for quick and effective troubleshooting if you miss the mark on a spec.

  • TIE and histograms to troubleshoot clock recovery problems
  • Eye diagrams to quickly evaluate PAM3 signals
  • Advanced jitter analysis to identify noise sources by determining whether the jitter is random or deterministic
  • Extended triggering functionality
  • FFT analysis to isolate sources of interference
troubleshooting automotive Ethernet design

Troubleshooting complex systems requires multi-channel measurements and capable signal integrity tools such as FFTs and jitter analysis.

automotive Ethernet compliance Automotive Ethernet Compliance Solutions

Automated tests such as this Power Spectral Density test, confirm compliance with the standard by comparing results to test limits.

Feel confident your designs are compliant

With greater integration of subsystems into networked environments engineers have to provide verifiable, objective evidence that every device is interoperable; that an individual Electronic Control Unit (or ECU) will reliably communicate with any other ECU. Requirements also extend to ESD and EMC/EMI testing.

However, the adoption of more complex, high-speed Mbps and Gbps serial technologies can be more challenging to test.

Tektronix has been involved in high-speed compliance testing for many years and is applying this expertise to testing newer technologies in automotive. Compliance solutions include support for 100BASE-T1 (802.3bpTM) and as well as BroadR-Reach or 100BASE-T1 (802.3bwTM). The latest compliance solution is for Multi-Gigabit Ethernet (IEEE 802.3ch) and 10BASE-T1S (802.3cg). All adhere to the testing requirements defined by the OPEN Alliance. Tektronix oscilloscopes and spectrum/signal analyzers can also be applied for ESD and EMC testing.

Introducing signal separation for automotive Ethernet testing

Signal characterization and protocol testing can create challenges from design to validation to maintenance. Seeing actual data between ECU#1 and ECU#2, assessing signal integrity in Full Duplex mode and examining Protocol data at the system level without breaking the automotive Ethernet cable add test complications, time and expense. Tektronix’ unique, patent pending, Signal Separation solution overcomes the shortcomings of current offerings in the market, enabling customers to:

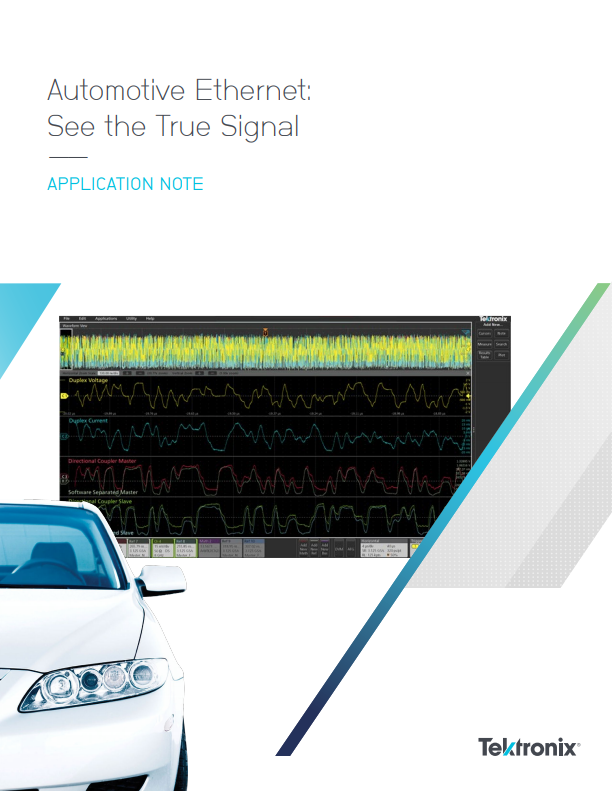

automotive Ethernet signal separation
Automotive Ethernet 100BASE-T1 Signal Separation and Protocol Decoding Demo

Automotive Ethernet testing solutions

Testing an automotive Ethernet design often requires an automotive oscilloscope, appropriate probes, a signal source, software and appropriate test fixtures. To meet your needs, Tektronix offers a full line of test solutions for Signal Quality and Compliance.

Automotive Ethernet Test Oscilloscope Software Probes Signal Source Fixture
Signal Quality Testing
(Signal Separation, Protocol Decode, Signal Quality & Debug)
5 series MSO mixed signal oscilloscope

5 Series MSO (Windows only)

6 series MSO mixed signal oscilloscope

6 Series B MSO (Windows only)

Option 5/6 -AUTOEN-SS: Signal Separation
Option 5/6 -PAM3 (Automotive Ethernet Signal Analysis)
Option 5/6 -SRAUTOEN1 (100BASE-T1 Protocol decode)
Opt. 5/6 -DJA (Jitter Analysis)

TDP1500 low voltage differential oscilloscope probe

TDP3500 low voltage differential oscilloscope probe


TCP0030 current oscilloscope probe

TCP0030A / P6022

  ECU Dependent
Contact Tektronix for information
Open Alliance/IEEE PMA Tx Compliance test 5 series MSO mixed signal oscilloscope

5 Series MSO (Windows only)

6 series MSO mixed signal oscilloscope

6 Series B MSO (Windows only)

Opt. 5/6-CMAUTOEN10 (10BASE-T1S compliance)

TDP1500 low voltage differential oscilloscope probe


AFG31000 series (Return loss) TF-XGBT
Opt. 5/6-CMAUTOEN (100BASE-T1/1000BASE-T1 compliance)

TDP1500 low voltage differential oscilloscope probe

TDP3500 low voltage differential oscilloscope probe

TDP1500, TDP3500

AFG31000 or AWG5200 series (Distortion and Return loss) TF-XGBT, TF-BRR-CFD

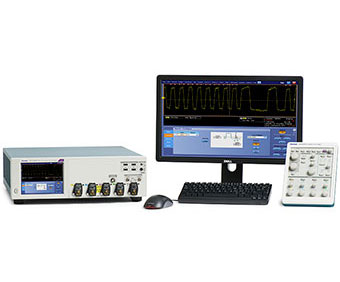

MSO / DPO70000 Mixed Signal Oscilloscope

DPO70000SX ATI Performance Oscilloscope


Opt. BRR (100BASE-T1/1000BASE-T1 Compliance)

TDP1500 low voltage differential oscilloscope probe

TDP3500 low voltage differential oscilloscope probe

TDP1500, TDP3500

AFG31000 or AWG5200 series (Distortion and Return loss) TF-XGBT, TF-BRR-CFD
MSO / DPO70000 Mixed Signal Oscilloscope


DPO70000SX ATI Performance Oscilloscope


Opt. AUTOEN10G (Multigigabit Ethernet Compliance)

P7720 low voltage differential oscilloscope probe

P7700 series (optional)

NA PCB S3401 SB 396373*1
Contact Tektronix for more information

Automated testing software may be installed on a new instrument, added to an existing instrument, or shared among a fleet of scopes in the same series. Contact Tektronix for more information.

Automotive Ethernet Resources

Automotive Ethernet test instruments

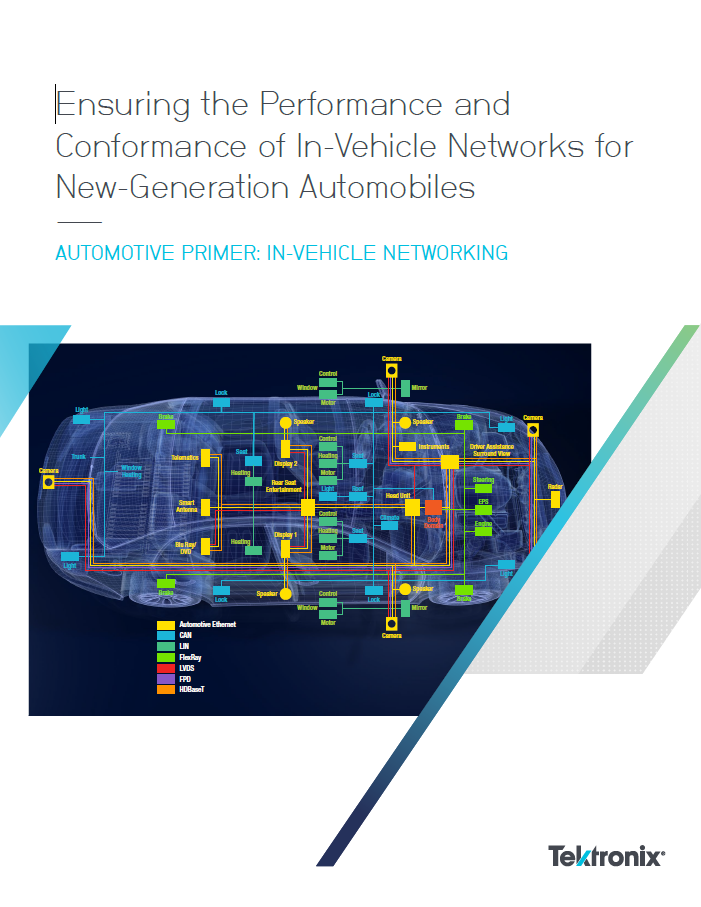

Facing challenges in other connected car applications?

Automotive Ethernet FAQs

Why is Ethernet used in automotive?

Because today’s vehicles are transmitting more data than ever before, they require faster speeds, greater integrations between subsystems, and more complex topologies than in the past. Ethernet meets these technical requirements while remaining cost-efficient and lightweight, and it can endure the rugged conditions vehicles operate under.

Which is best for automotive applications: CAN or Ethernet?

Though CAN and Ethernet are both used in automotive applications, Ethernet is quickly emerging as the preferred network because it can provide speeds that are 100 times faster than CAN. It also allows for more integrations across subsystems.

What is the future of automotive networks?

With on-board diagnostics, cameras, sensors, and advanced driver assistance, infotainment, and smart safety systems, vehicles will continue to require more and more data to be transferred faster and more reliably than ever before. And automotive Ethernet is emerging as the network of choice for cars of the future.

What is automotive Ethernet used for?

Automotive Ethernet is a form of Ethernet network standard that is used to connect sub-systems and components over an unshielded twisted pair (UTP) within an automotive. It is designed to meet the needs of the automotive market, including meeting electrical requirements (including EMI/RFI emissions), bandwidth requirements, latency requirements, and synchronization requirements.

What is the difference between automotive Ethernet and Ethernet?

The differences between Ethernet and automotive Ethernet are in the physical layer, which has been optimized around the automotive use cases.The Phy transceivers and cables are adapted to use lower cost single twisted pair with full duplex communication, rather than dual twisted pair.

What is the speed of automotive Ethernet?

10Base-T1S is a 10Mb/s Automotive Ethernet described in the standard.

100Base-T1 is a 100Mb/s Ethernet standard described in IEEE802.3bw standard.

1000Base-T1 is 1Gb/s Automotive Ethernet described in IEEE802.3bp. IEEE 802.3ch for three data rates: 2.5GBase-T1 at 2.5Gb/s, 5GBase-T1 at 5Gb/s, and 10GBase-T1 at 10Gb/s.

In future, IEEE 802.3cy, 25 and 50 Gb/s
