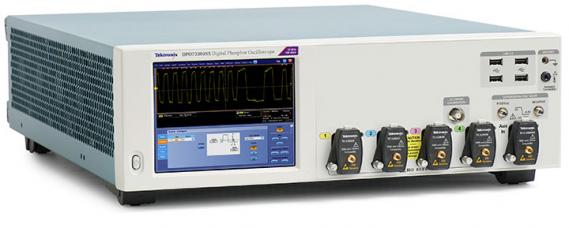

DPO70000SX ATI Performance Oscilloscope
DPO70000SX ATI Performance Oscilloscopes deliver the industry’s most accurate capture of high-speed signal behavior to verify, validate and characterize your next generation designs. Capture up to 70 GHz signals with the lowest noise and highest fidelity, ensuring the most accurate measurements of your signal’s true characteristics.
Bandwidth
13 GHz - 70 GHz
Record Length
Up to 1G points
Analog Channels
1 to 16
Sample Rate
Up to 200 GS/s
Highest signal integrity.
![dpo70000sx-oscilloscope-signal-integrity.jpg Thumbnail](/sites/default/files/images/dpo70000sx-oscilloscope-signal-integrity.jpg)

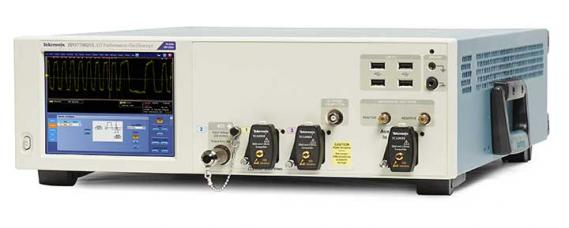

ATI technology is at the leading edge of signal fidelity, minimizing noise to give the most accurate measurement results on your next generation designs.
Highlights
- Low-noise ATI architecture
- High performance trigger system to isolate signal flaws
- Tightest timing accuracy
- Precision time base accuracy
- Channel-to-channel skew/timing
- Multi-unit system timing accuracy and stability
- Low-noise optical measurements with the DPO7OE1/DPO7OE2 optical probes
Flexible. Versatile. Scalable.
![dpo70000sx-oscilloscope-stack.png Thumbnail](/sites/default/files/images/dpo70000sx-oscilloscope-stack.png)

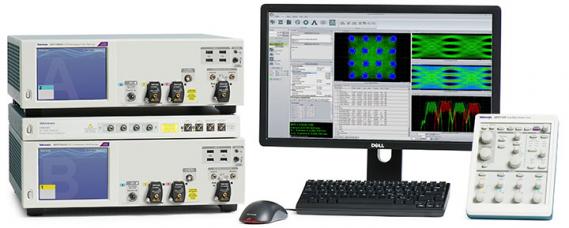

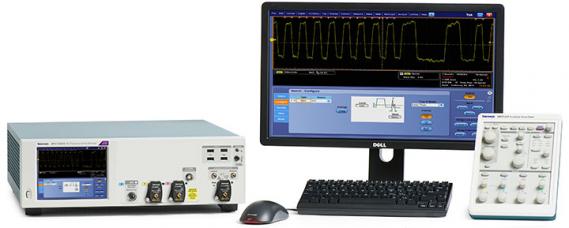

Innovative UltraSync architecture provides configuration flexibility, allowing you to easily add acquisition channels and maintain channel-to-channel timing accuracy.
Room to Grow Boosting Oscilloscope Scalability
Highlights
- Deploy units individually
- Easily aggregate into a multi-unit system
- Quickly reconfigure system
- Configure up to 16 synchronized optical acquisition channels with the DPO7OE1/DPO7OE2 probes
- Automate testing with our Python Driver Package
Measurement and analysis tools that keep you on track.
![real-time-oscilloscope-with-DPOJET.jpg Thumbnail](/sites/default/files/images/real-time-oscilloscope-with-DPOJET.jpg)
Application support packages for the DPO70000SX provide automated compliance testing, insightful debugging tools and the extensive signal connection options you need to verify and certify your latest design.
Accurate Jitter & Timing Analysis with DPOJET
Highlights
- DPOJET: the most comprehensive, flexible measurement tool available
- SDLA: the most powerful, complete tool for analyzing and compensating for signal affects in serial data links
- Simple, extensive PAM4 analysis – without needing external CR
- Support for full suite of Gen1-6+ high-speed serial standards
- Automated compliance testing for complete, reliable, repeatable results
- Powerful debugging tools to quickly uncover/fix design challenges
Know-how. Right now.
![dpo70000sx-oscilloscope-expert-support.jpg Thumbnail](/sites/default/files/images/dpo70000sx-oscilloscope-expert-support.jpg)

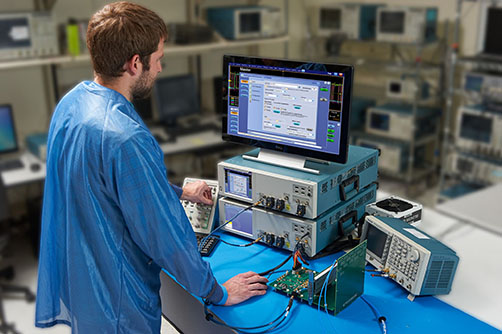

The Tektronix application engineering team goes onsite, providing expert-level support for measurement connectivity, oscilloscope operation and analysis tool insights. From introduction to adoption to integration of highly complex measurement processes in your lab or manufacturing operation, we’re here for you.
Select Your DPO70000SX Service Plan
DPO70000SX Online Product Support Center
Highlights
- Multiple levels of service, including Gold Care for the most comprehensive protection
- Get installation help, training and problem solving support
- Worldwide Technical Support Center provides real-time access to a central knowledge pool
Model | Description | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | List Price | Configure And Quote |
---|---|---|---|---|---|---|---|
DPS75904SX | Two-unit system |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 59 GHz, 4 at 33 GHz | - | Configure & Quote |
DPS75004SX | Two-unit system |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 50 GHz, 4 at 33 GHz | - | Configure & Quote |
DPO71604SX | Single-unit |
16 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 16 GHz, 4 at 16 GHz |
- | Configure & Quote |
DPS73308SX | Two-unit system |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 4 at 33 GHz, 8 at 23 GHz (Max 4 displayed on-screen, additional data through program interface) | - | Configure & Quote |
DPS77004SX | Two-unit system |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 2 at 70 GHz, 4 at 33 GHz | - | Configure & Quote |
DPO71304SX | Single-unit |
13 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 13 GHz, 4 at 13 GHz |
- | Configure & Quote |
DPO72504SX | Single-unit |
25 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 25 GHz, 4 at 23 GHz |
- | Configure & Quote |
DPO75902SX | Single-unit |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 59 GHz, 2 at 33 GHz | - | Configure & Quote |
DPO72004SX | Single-unit |
20 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 20 GHz, 4 at 20 GHz |
- | Configure & Quote |
DPO75002SX | Single-unit |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 50 GHz, 2 at 33 GHz | - | Configure & Quote |
DPO77002SX | Single-unit |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 1 at 70 GHz, 2 at 33 GHz | - | Configure & Quote |
DPO73304SX | Single-unit |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 2 at 33 GHz, 4 at 23 GHz | - | Configure & Quote |
DPO72304SX | Single-unit |
23 GHz | 100 GS/s, 50 GS/s | 62.5M points - 1G points | 2 at 23 GHz, 4 at 23 GHz | - | Configure & Quote |
Model | Description | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | List Price | Configure And Quote |
---|---|---|---|---|---|---|---|
DPS75904SX | Two-unit system |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 59 GHz, 4 at 33 GHz | - | Configure & Quote |
DPS75004SX | Two-unit system |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 50 GHz, 4 at 33 GHz | - | Configure & Quote |
DPO71604SX | Single-unit |
16 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 16 GHz, 4 at 16 GHz |
- | Configure & Quote |
DPS73308SX | Two-unit system |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 4 at 33 GHz, 8 at 23 GHz (Max 4 displayed on-screen, additional data through program interface) | - | Configure & Quote |
DPS77004SX | Two-unit system |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 2 at 70 GHz, 4 at 33 GHz | - | Configure & Quote |
DPO71304SX | Single-unit |
13 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 13 GHz, 4 at 13 GHz |
- | Configure & Quote |
DPO72504SX | Single-unit |
25 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 25 GHz, 4 at 23 GHz |
- | Configure & Quote |
DPO75902SX | Single-unit |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 59 GHz, 2 at 33 GHz | - | Configure & Quote |
DPO72004SX | Single-unit |
20 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 20 GHz, 4 at 20 GHz |
- | Configure & Quote |
DPO75002SX | Single-unit |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 50 GHz, 2 at 33 GHz | - | Configure & Quote |
DPO77002SX | Single-unit |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 1 at 70 GHz, 2 at 33 GHz | - | Configure & Quote |
DPO73304SX | Single-unit |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 2 at 33 GHz, 4 at 23 GHz | - | Configure & Quote |
DPO72304SX | Single-unit |
23 GHz | 100 GS/s, 50 GS/s | 62.5M points - 1G points | 2 at 23 GHz, 4 at 23 GHz | - | Configure & Quote |
High Speed Serial Communications
![high-speed-serial-communications.jpg Thumbnail](/sites/default/files/images/high-speed-serial-communications.jpg)
Want to measure to current and emerging standards and reduce your time to market? We can help. With decades of experience on committees and a commitment to creating state-of-the-art software packages, Tektronix supports you through the introduction and adoption of cutting-edge standards.
High Speed Serial Standards Support
Highlights
- Compliance testing and debugging for PCIe, SATA/SAS, USB Type-C, Thunderbolt Type-C and DisplayPort Type-C, HDMI, DDR, LPDDR and MIPI
- Hardware serial trigger of 8b/10b and 64b/66b data and NRZ bit patterns to 14.1 Gbps for diagnostic and debug work
Data Communications
![data-communications.jpg Thumbnail](/sites/default/files/images/data-communications.jpg)
Comprehensive Tx and Rx testing support for 100G and 400G standards, plus testing guidance for both NRZ and PAM4 signaling – so your team can tackle the next wave of data comm technologies.
Solutions for Next Wave Data Comm Technologies
Highlights
- Debugging of complex 100G Link Training sequences
- Characterize PAM4 and NRZ signals
- Perform IEEE and OIF-CEI compliant measurements
- Both optical and electrical measurements available
Coherent Optical
![coherent-optical.png Thumbnail](/sites/default/files/images/coherent-optical.png)
Get ready to tackle 400G and 1 Terabit long haul communications system work with the scalable architecture and low noise performance of the DPO70000SX Series Oscilloscope.
Discover Coherent Optical Solutions
Highlights
- Coherent Optical Modulation: Easily modulate complex signals with support for dual polarization, multi-level signals and automatic bias control
- Coherent Optical Analysis: Make fast and repeatable complex modulation measurements with the industry’s most customizable analysis tools
- New ArmA,TrigB feature supports carefully controlled timing of acquisitions for Recirculating Loop testing
Wideband RF
![dpo70000sx-oscilloscope-rf.png Thumbnail](/sites/default/files/images/dpo70000sx-oscilloscope-rf.png)
Gather data faster for your wideband RF research with ultra-wide bandwidths, easier signal connectivity and the flexibility to perform open-ended online and offline analysis of RF signal behavior.
Highlights
- The only wideband oscilloscope on the market with an RF envelope trigger
- Robust pulse analysis and demodulation tools available with SignalVu spectral analysis package
