Spectrum Analyzers & Signal Frequency Analyzers

What is a spectrum analyzer?

A spectrum analyzer measures the amplitude of an input signal versus frequency within the full frequency range of the instrument. The primary use is to measure the power of the spectrum of known and unknown signals.

From portable USB spectrum analyzers to benchtop real time spectrum analyzers, Tektronix has the solution to meet your RF analysis needs. Tektronix spectrum analyzers can be used for:

Tektronix offers a suite of powerful Radio Frequency (RF) signal analysis solutions delivering high fidelity and low noise to provide the RF situational awareness you need.

History of signal and spectrum analyzers

Spectrum analyzer vs signal analyzer

A traditional spectrum analyzer searches for signals within a spectral bandwidth and provides snapshots of the signal in the frequency or modulation domain. However, this is often not enough information to confidently describe the dynamic nature of modern RF signals.

A signal analyzer, however, includes additional functionality like digital signal processing (DSP) that detects, characterizes, and analyzes signals with complex digital modulation. Signal analyzers can be used to perform more complicated measurements and deeper analysis of RF modulated signals.

What does a signal analyzer do?

A signal analyzer provides advanced demodulation and signal analysis capabilities for analyzing modern RF signals. A signal analyzer can measure any characteristic of the signal, including magnitude and phase information. Signal analyzers essentially help engineers detect and characterize RF signals that change over time.

Tektronix analyzers powered by SignalVu spectrum analyzer software, provide advanced signal analysis capabilities. Application-optimized software options are also available for vector signal analysis, pulsed measurements typical in the Radar application space, EMI/EMC pre-compliance testing, RADHAZ detection and more.

Compare all signal and spectrum analyzers

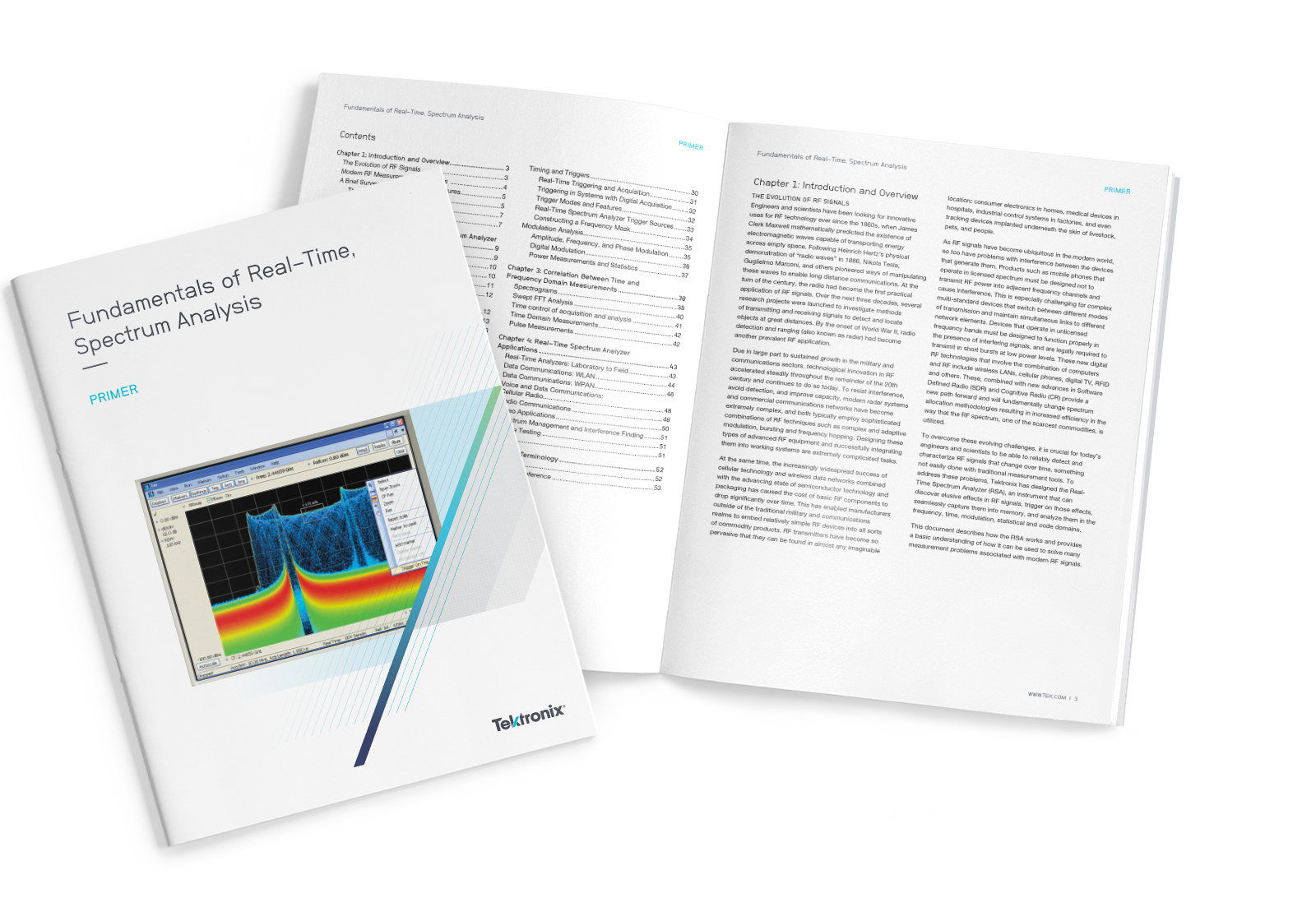

Read the Fundamentals of Spectrum Analyzers »

REQUEST A DEMO

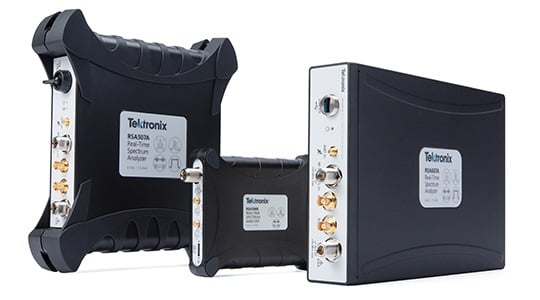

Tektronix RF Spectrum Analyzers & Signal Analyzers

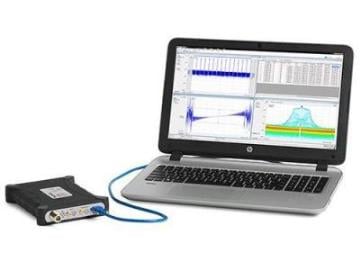

rsa306 spectrum analyzer connected to a laptop

RSA306B: Compact and Portable

Benchtop performance meets definitive portability with the industry’s highest fidelity, lowest noise real time spectrum analyzer, at an amazingly low price.

  • Up to 6.2 GHz frequency coverage
  • 40 MHz real-time signal acquisition bandwidth
  • Powered by USB3.0
  • 0.73 kg (1.6 lbs.)
Starting Price : US $5,100
3 Series MDO Mixed Domain oscilloscope

3 Series MDO Mixed Domain Oscilloscope

Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, you should have the 3 Series MDO readily available on your bench. Unlike other oscilloscopes that offer software processed FFT “spectrum analysis”, the 3 Series has a unique true hardware spectrum analyzer built right in with superior RF test performance and guaranteed RF specifications.

  • 1 GHz or 3 GHz built-in spectrum analyzer options
  • Industry’s only true integrated spectrum analyzer hardware on oscilloscopes
  • Ultra-wide capture bandwidth up to 3 GHz
Starting Price : US $4,180

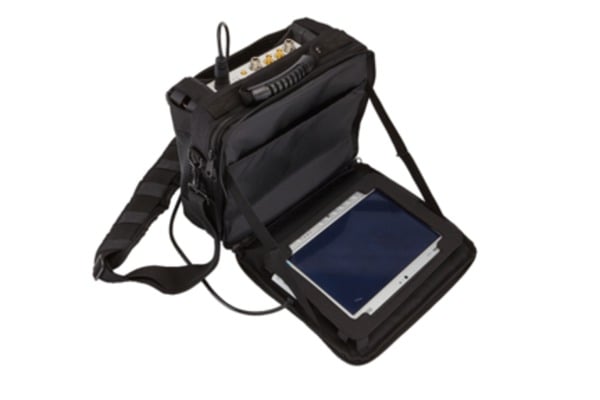

rsa500 spectrum analyzer connected to a small monitor

RSA500 Series: Ultimate in Rugged Portability

Real-time situational awareness in a rugged, portable form factor, the industry’s best for scanning, analyzing, and recording Radio Frequency signals when you need to, where you need to.

  • Up to 18 GHz frequency coverage
  • 40 MHz real-time signal acquisition bandwidth
  • Battery or line powered
  • 1.1 kg (2.43 lbs.)
  • Optional tracking generator
Starting Price : US $8,310

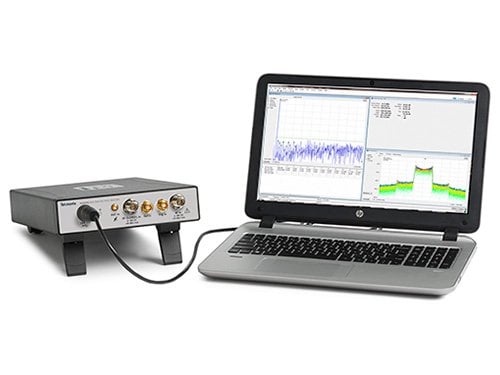

rsa600 spectrum analyzer connected to a laptop

RSA600 Series: High Fidelity, Compact Size

Ideal for cramped spaces in the lab or production line, the RSA600 series provides advanced capture, identify and analyze capabilities utilizing the power of your PC in a compact form factor.

  • Up to 7.5 GHz frequency coverage
  • 40 MHz real-time signal acquisition bandwidth
  • Line powered
  • 2.79 kg (6.15 lbs.)



Starting Price : US $8,730
rsa5000b spectrum analyzer

RSA5000B Series: Advanced Signal Analysis

Accelerate troubleshooting and analysis with best in class RF performance in a mid-range real-time Spectrum Analyzer.

  • Up to 26.5 GHz frequency coverage
  • Up to 165 MHz real-time signal acquisition bandwidth
  • 0.434 μs Minimum Event Duration for 100% POI
Starting Price : Contact Us

RSA7100B: Ultra-Wide Bandwidth Analysis and Recording

Scan RF signals faster with flexibility to record, stream and analyze data in real time, at full bandwidth.

  • Up to 26.5 GHz frequency coverage
  • Up to 800 MHz real-time signal acquisition bandwidth
  • IQFlowTM streaming to RAID, LVDS, 40 GbE and an API provides the speed and flexibility needed to perform real-time DSP algorithms, and record/analyze long event sequences
Starting Price : Contact Us

Spectrum Analyzer Software

Get the most out of your spectrum analyzer by pairing it with industry-leading signal recording and signal analysis application software from Tektronix.

SignalVu-PC

RF Spectrum Analyzer Software

Get a comprehensive suite of tools to capture, isolate, and analyze hard-to-find transient RF signals of interest with confidence.

Starting Price : US $1,330

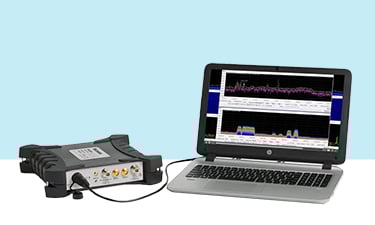

DataVu-PC Record Analysis Software for Real-Time Spectrum Analyzers

DataVu-PC: Recording and Analysis Software

Rapidly find signals of interest on large RF datasets with a Tektronix RSA spectrum analyzer.

Starting Price : Contact Us
