7 Series DPO Digital Phosphor Oscilloscope
The 7 Series DPO now offers the world’s first 8-channel oscilloscope with bandwidths ranging from 8 GHz to 25 GHz per channel, delivering a new level of visibility into complex, multi-channel systems.
Available with 4 or 8 channels, it combines unparalleled signal fidelity, high ENOB, low noise and jitter, fast measurement throughput, and the award-winning TekScope® user interface.
The 7 Series DPO is designed for demanding high-speed serial, high-energy physics, and wideband RF applications. It is compatible with TekConnect™ probes and adapters.
Up to 25GHz
Up to 125 GS/s
Up to 2 G
12 bits
Get to know the 7 Series DPO
Get to know the 7 Series DPO
- Intuitive TekScope user interface minimizes learning curve
- Maximize test margins with lowest noise and highest Effective Number of Bits (ENOB)
- Powerful measurement system
- Jitter measurements made fast and accurate
- 10x faster data transfers saves time
- Maximize signal fidelity with QuietChannel Technology
World’s First 8-Channel 25 GHz Oscilloscope
Industry‑leading channel density at 25 GHz per channel with flexible acquisition modes, allows users to optimize channel count, sample rate, and noise performance to match their measurement needs.
Highlights:
- Unparalleled flexibility especially for rackmount applications where both channel density with highest signal fidelity are paramount. Choose between 4 channels @ 125 GS/s or 8 channels @ 62.5 GS/s
- Quick connect/disconnect with 4 channels using the 2.92 mm Planar Crown® 50 Ω connector system and 4 TekConnect™ channels
- Capture twice the sensor coverage with 8 channels or maximize performance with 125 GS/s sample rate in 4-channel mode for single-shot experiments
- Gain system-level visibility by capturing RF and other analog signals simultaneously with phase-synchronous timing, with independent control and analysis of each channel
- Get faster multi-lane serial bus testing and characterization with simplified test set up, unmatched throughput, and tighter synchronization
Low Noise, High ENOB - Unmatched Measurement Results
Maximize test margins with the low noise and high effective number of bits (ENOB). Superior measurement accuracy, sensitivity and precision are enabled with our proprietary Tek85 low noise preamp, Tek79 12-bit ADC and advanced DSP algorithms for accurate capture and measurement.
Highlights
- Resolve and measure low amplitude signals with low noise (523 µV at 8 GHz (0.10% FS) to 1.13 mV at 25 GHz (0.23% FS), 500 mV full scale)
- High Effective Number of Bits (ENOB) enables high resolution signal digitization (7.7 bits at 8 GHz to 6.7 bits at 25 GHz, 125 GS/s, 500 mV full scale, signal 80% of full scale. For more detail refer to datasheet.)
- QuietChannel™ Technology further minimizes the noise from the oscilloscope signal path utilizing active CTLE (Continuous Time Linear Equalization) to compensate for channel loss
- Fully automatic, built-in Signal Path Compensation (SPC) requires no user intervention to ensure optimal measurement accuracy by adjusting internal gain, offset, and frequency response
Learn More:
Minimize Test Times with 11x Throughput
With the built-in 10 Gbps SFP+ port and the TekHSI™ technology, the 7 Series DPO allows for up to 11x throughput of large waveform datasets to a PC enabling acquisition and analysis to be performed in parallel for faster workflows.
Highlights
- TekHSI technology is based on gRPC low latency framework to enable fetch and streaming data transfer almost as fast as the physical bandwidth of the link. Use with available C# and Python libraries.
-
10 Gbps SFP+ port accepts choice of RJ-45 electrical, fiber optic, or direct attach transceiver modules
-
TekScope PC software natively supports the high-speed interface along with offline and remote oscilloscope-like analysis capabilities
Learn More:
Get to Results Faster with an Award-Winning User Experience
Highlights
- Large 15.6-inch 1080p touchscreen delivers exceptional visibility and ease of use
- Award-winning TekScope UI experience shared across 2, 3, 4, 5 and 6 Series oscilloscopes reduces learning time
- Well organized menu structure to quickly navigate settings, set up the instrument, configure measurements, and move through acquired data
- Responsive touchscreen optimized for touch controls simplify waveform exploration and advanced analysis
- One-button Jitter Measurement Summary simplifies set-up of key plots, diagrams, and measurement results across multiple channels
- Available with embedded or Windows OS on a removable SSD
Learn More:
What’s Included
- Hard carrying case (HC7B)
- Accessories case
- Five (5) TCA292D TekConnect™ to 2.92 mm adapters
- Four (4) Planar Crown™ to 2.92 mm adapters (DPO718AX only)
- Five (5) backing wrench card tools for coax cables
- Torque wrench, 8.0 in-lbs
- Static protection wrist strap, adjustable, 6 ft coiled cord
- Slot for optional 7-WIN SSD (embedded OS SSD installed in instrument)
- Front cover
- Power cord
- Comprehensive built-in online help
- Certificate of traceability
- 1-year warranty on instrument
| Model | Analog Bandwidth | Analog Channels | Sample Rate | Record Length | List Price | Configure And Quote |
|---|---|---|---|---|---|---|
| DPO714AX | 8 GHz – 25 GHz | 4 | 125 GS/s | Up to 2G points | US $178,000 | Configure & Quote |
| DPO718AX | 8 GHz – 25 GHz | 8 | 4 @ 125 GS/s 8 @ 62.5 GS/s |
Up to 2 Gpoints | US $308,000 | Configure & Quote |
| Model | Analog Bandwidth | Analog Channels | Sample Rate | Record Length | List Price | Configure And Quote |
|---|---|---|---|---|---|---|
| DPO714AX | 8 GHz – 25 GHz | 4 | 125 GS/s | Up to 2G points | US $178,000 | Configure & Quote |
| DPO718AX | 8 GHz – 25 GHz | 8 | 4 @ 125 GS/s 8 @ 62.5 GS/s |
Up to 2 Gpoints | US $308,000 | Configure & Quote |
For a detailed comparison of the 7 Series DPO specifications to other performance oscilloscopes download the PDF below.
Photonic Doppler Velocimetry
Improve measurement accuracy of single-shot applications with the new 8-channel model. Capture twice the sensor coverage with 8 channels or maximize performance with 125 GS/s sample rate in 4-channel mode. Built on Tektronix' legacy of exceptional single-shot signal fidelity, it delivers the bandwidth and sample rate needed to accurately represent events.
Highlights
- New 8-channel model gives flexibility between double coverage of experiments at 62.5 GS/s sample rate or a high sample rate of 125 GS/s on 4 channels
- Get lower velocity uncertainty with low noise and high ENOB for the highest signal fidelity combined with deep record lengths up to 2G for long-duration single capture
- Precise channel-to-channel timing stability to ensure accurate multi-channel measurements
- Transfer data up to 11x faster to an external computer using TekHSI™ and 10Gbps SFP+ port. Data is pushed to connected clients ensuring data is off-loaded as quickly as possible
- Tightly synchronize the 7 Series DPO with other equipment using the oscilloscope’s low-latency (<20 ns) trigger in-to-out capability
Learn More:
Precise Measurement of Single Shot Events
Advanced Research Diagnostics
The ideal companion tool for high energy physics, particle accelerators, optical and RF diagnostic instrumentation, astrophysics radio detection, plasma/fusion research, and materials and explosives research. Get rich datasets and precise models with the world's first 8U 8-channel digitizer at 25 GHz per channel.
Highlights
- Get lower velocity and position uncertainty with industry-leading ENOB.
- Unmatched channel density, sample rate flexibility, and precision with 4 channels at 125 GS/s sample rate for lowest noise or 8 channels at 62.5 GS/s for double the channels (e.g., for added sensor coverage)
- Tightly synchronize the digitizer with other equipment using low-latency (<20 ns) trigger in-to-out capability
- Get the highest precision jump off timing resolution with 125 GS/s sampling rate, low noise, and high ENOB combined with deep record lengths up to 2G for long-duration signal capture
Learn More:
High Speed Serial Compliance Testing and Debug
Test to current and emerging standards and reduce your time to market. Automated compliance testing software manages the whole testing process – set-up, making measurements, checking against limits, and generating detailed reports.
Highlights
- Save time with fast automated compliance testing software for technologies like PCIe, USB, DisplayPort, HDMI, DDR, LPDDR and C-PHY, D-PHY and more
- Get comprehensive jitter and eye-diagram analysis (option DJA) with detailed jitter breakdown, unmatched flexibility, and visualization. Easily compare results by analyzing multiple signals simultaneously with the same or different clock recovery settings
- Maximize test margins with low noise and low intrinsic jitter
- Transfer data up to 11x faster to an external computer using the TekHSI capability and 10 Gbps SFP+ port. Data is immediately pushed to connected clients ensuring data is off-loaded as quickly as possible
- 8 synchronous high-speed channels in the same oscilloscope allow for faster multi-lane serial bus testing and characterization
Learn More:
Wideband RF Systems
Perform measurement and analysis of wideband RF signals in electronic warfare, multi-emitter environments, radar, command communication and control, satellite communications, and SIGINT. Get industry-leading DANL, SFDR, EVM, and Phase Noise with the perks of using an oscilloscope including faster data transfer, 8 channels for easy signal connectivity, and flexibility to perform offline analysis.
Highlights
-
Gain system-level visibility by capturing RF and other analog signals simultaneously with phase-synchronous timing, with independent control and analysis of each channel
-
Resolve interdependent system integration issues faster with independent configuration settings on each channel and analyze signals on all 8 channels
-
Get up to 8 channels of simultaneous capture of threats and system responses with a comprehensive pulse characterization in SignalVu-PC software
-
Move faster with tight integration of SignalVu-PC software and the oscilloscope environment for detailed RF pulse characterization, and comprehensive analog and digital RF modulation analysis
Learn More:
Each option is available as node-locked or a floating license. For floating license pricing please contact your Account Manager.
Add Instrument Functions
| Upgrade | Description | Purchasing Details |
|---|---|---|
| 7-LNX-UP | Add additional removable SSD with embedded OS (one included standard with instrument) (field upgrade) | Contact Us |
| 7-WIN-UP | Add optional removable SSD with Microsoft Windows 10 operating system license (field upgrade) | Contact Us |
| 7-RL-1 | License; Extend record length to 1G/ch maximum; Canned, Electronically Downloaded; Node Locked | Contact Us |
| 7-RL-2 | License; Extend record length to 2G/ch maximum; Canned, Electronically Downloaded; Node Locked | Contact Us |
| 7-RL-1T2 | License; Extend record length from 1G/ch to 2G/ch maximum; Canned, Electronically Downloaded; Node Locked | Contact Us |
| 7-SIM-UP | License; Signal Integrity Modeling – Upgrade License from SIM to SIMA to Enable Equalization and CDR; requires existing SIM license (mutually exclusive with SIM and SIMA); Canned, Electronically Downloaded, Node Locked | Contact Us |
| Opt. 7-FRQCNT | License; Frequency Counter-Timer; Canned, Electronically Downloaded; Node Locked | Software upgrade license key provided upon registration. Register now |
Upgrade Bandwidth
| Upgrade | Description | Purchasing Details |
|---|---|---|
| 7-BWAX4 | Bandwidth Upgrade for 7 Series DPO714AX | Contact Us |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| View Datasheet | P7625 | 25 GHz LOW NOISE TRIMODE PROBE IN CASE WITH ACCESSORIES | Configure & Quote |
| View Datasheet | P7633 | 33 GHz LOW NOISE TRIMODE PROBE IN CASE WITH ACCESSORIES | Configure & Quote |
| View Datasheet | P7708 | 8 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| View Datasheet | P7713 | 13 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| View Datasheet | P7716 | 16 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| View Datasheet | P7720 | 20 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| View Datasheet | TDP1500 | Differential Probe: 1.5 GHz, 1X/10X, +/-8.5V, TekVPI | Configure & Quote |
| Datasheet / Manual | Accessory | Description |
|---|---|---|
| View Manual | HC7 | Hard transit case for the 7 Series |
| View Manual | RM7 | Rackmount kit for the 7 Series |
| View Datasheet | TCA292D | 2.92 MM TEKCONNECT ADAPTER |
Tektronix offers a range of Factory Service plans, including accredited calibration, for purchase with your instrument to protect and maintain its performance over the years. Services include:
- Minimize downtime and unplanned expenses with our Extended Warranties, Total Protection and Enterprise (loaner) Plans.
- Protect the integrity of your measurements and prolong the life of your instrument with our Factory Calibration Plans.
- Expert calibration that maintain Tektronix’s class leading standards are offered in addition to ISO accredited offerings.
- Factory verified quality service.
Invest now to avoid unplanned downtime and expense. Talk to your sales rep about adding a service plan to your instrument purchase.
Our factory warranty covers your equipment from manufacturing failures and design flaws. In addition, there are several service plans which can extend your warranty coverage and avoid costly repairs. Pick the plan that best suits your needs (4- or 6-year options available):
Extended Warranties
Ensure your equipment is protected with an extended warranty plan and save up to 80% of the cost of one un-planned repair. Gain peace of mind with low, predictable costs and convenient service initiation.
With an extended warranty you will receive:
- Coverage of full repair costs due to manufacturing defects including all parts, labor, and return shipping
- Locked-in upfront pricing guaranteed to reduce total cost of ownership
- 90 day service warranty
- Factory Verified Calibration included with all repairs
Total Protection
Total Product Protection is a comprehensive plan that goes beyond the factory warranty. If your equipment is used in an electrically sensitive or high-risk environments, then Total Product protection will eliminate any potential risk to your equipment.
With Total Product Protection you receive the same benefits of an extended warranty including:
- Coverage for electro static discharge (ESD) damage
- Coverage for electrical overstress (EOS) damage
- Coverage from any accidental damage
-
Annual calibration, with either Factory Calibration including a full data report or an ISO Accredited Calibration through the duration of the plan (4 or 5 total calibrations depending on the selected plan’s length)
-
Tektronix-engineered transit hard case included with the plan. Easily and securely transport your instrument to avoid shipping damage.
-
Unused repair portion of the plan qualifies for a renewal discount(6)
| Factory Service Plan Name (1) |
Product Warranty Ships with your instrument |
Extended Warranty
Extends your warranty to protect your investment |
Total Protection Plus Save up to 60% and avoid unexpected downtime |
|---|---|---|---|
| Service Option | Original Factory Warranty | R4, R6 | T4PLUS, T6PLUS |
| Coverage | 12-Months | 4 Years, 6 Years | 4 Years, 6 Years |
| Protection from manufacturer defects and failures | |||
| Easy and fast service initiation - No PO or administrative payment processing needed | |||
| Free factory verified calibration with all repairs (2) | |||
| Extension of factory warranty (3) | |||
| User-caused Electrical Overstress (EOS) and Electrostatic Discharge(ESD) damage (4) | |||
| Accidental damage (5) | |||
| Annual calibration service, with either a Factory Calibration (including full data report) or an ISO Accredited Calibration through the duration of the plan | |||
| Tektronix-engineered transit case (6) | |||
| Unused repair portion qualifies for renewal discount(7) | |||
| Estimated customer savings(8) | 15-30% | 35-45% | 40-60% |
Notes:
(1) Service plans can be purchased at point of sale with new equipment. Extended warranties are available for post-sales purchase within the equipment’s warranty period. Total Protection plans can be purchased post-warranty. All service plans are subject to the Tektronix Worldwide Terms & Conditions available at our Terms & Conditions webpage.
(2) Factory Verified Calibration will include firmware updates and adjustment if needed. For 7 Series Scopes, ISO17025 compliant calibrations are available with data and certificate. Instrument adjustments for out-of-tolerance calibrations and on-scope firmware and software updates included. Cosmetic repairs and exhaustive cleaning included. Service coverage may vary by region; contact your local service center for more details.
(3) Includes coverage of full repair costs due to manufacturing defects including all parts, labor, and return shipping. Does not cover non-warranted damages.
(4) & (5) Plans cover a maximum of two EOS, ESD or accidental events per instrument per year, with exclusions outlined in Tektronix Worldwide Terms & Conditions of Service Plan.
(6) Tektronix’s engineered HC7 transit case is available for purchase from Tektronix.
(7) Unused repair portion of Plan qualifies for up to a 20% discount upon plan renewal (10% discount for one repair event in 3 years, 20% discount for no repair events in 6 years).
(8) Savings are estimated per calibration and/or repair event, based on industry average field failure rates and current on-demand service prices, and may be higher or lower depending on specific end user experience and time of event. All estimates are only estimates based on generic assumptions and will vary based on actual product experience and usage. Savings do not include plan renewal discounts.
Maintain Accuracy, Get Updates, Pass Audits
Protect the integrity of your measurement results and ensure compliance with our Factory Calibration Plans including accredited calibration. Our cost effective, pre-paid calibration plans offer the annual touch points from our factory trained technicians to extend the useful life of your instrument, ensuring precise measurements and results while protecting against unplanned failure and downtime.
Our factory calibration plans include:
- Locked in upfront pricing guaranteed to reduce total cost of ownership
- Instrument adjustments for out of tolerance calibration
- On-scope firmware and software updates
- Full routine preventative maintenance checkpoints
- Cosmetic repairs and exhaustive cleaning process
- 1, 3 or 5 year coverage options available
New Product Calibration Options:
Tektronix instruments undergo a factory calibration immediately after manufacturing. By default, your new instrument will include a non-accredited calibration certificate without data. You can choose from the following upgraded options if available for your model and your region:
- Calibration certificate with full data report (D1 Option)
- Accredited calibration (ISO, ACC3, ACC5 Options)
| Factory Calibration Plans (1) (2) | Non-Accredited Calibration with Data | Accredited Calibration |
|---|---|---|
| Tektronix Product Option | CD1, CD3 or CD5 | ISO, ACC3 or ACC5 |
| Calibration Standard | ISO/IEC 17025:2017 Compliant | ISO/IEC 17025:2017 Accredited |
| ISO 9000:2015 Compliant | ||
| ISO 17025A Compliant | ||
| Preventative Maintenance Check across the full range of instrument operation | ||
| Firmware and Software Updates | ||
| Instrument Adjustments for out of tolerance calibration | ||
| Traceable calibration to national standards | ||
| As Found / As Left Data | (3) | (3) |
| Measurement uncertainties | (4) | (4) |
Notes:

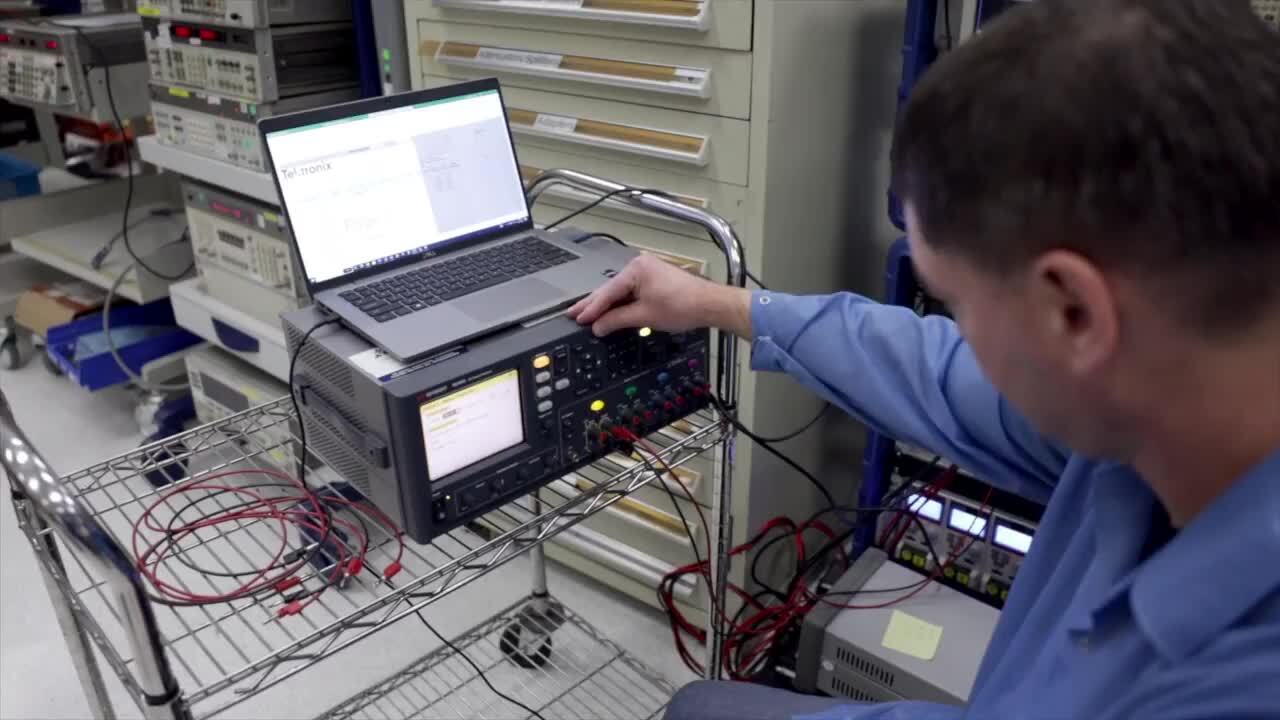

One Provider for All Your Calibration Needs
Say goodbye to the hassle of managing multiple service providers for different instrument brands. Tektronix Multi-Brand Calibration Services provide you with the ultimate convenience of a single service partner for all your calibration needs. Streamline your operations, save time, and ensure uniformity across your equipment fleet.
