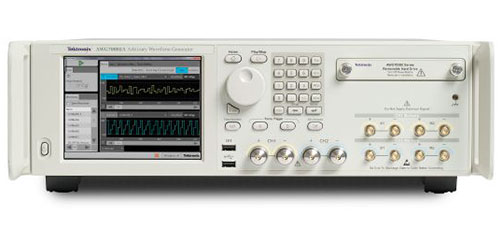

AWG70000B Arbitrary Waveform Generator

The AWG70000B Series Arbitrary Waveform Generator represents the cutting edge in sample rate, signal fidelity and waveform memory, making it ideal for design, testing and operations of complex components, systems and experiments. With up to sample rate of 50 GS/s and 10-bit vertical resolution, it delivers the industry's best signal stimulus solution for easy generation of ideal, distorted and “real-life” signals.
See all waveform generators »

What’s New

  • Optional memory expansion up to 32 Gigasamples
  • Streaming Waveform ID
  • Windows 10 support
Sample Rate

50 GS/s

Memory

2 Gsamples/channel
32 Gsamples (Optional)

Resolution

10 bits

Recreating real world chaos

Thumbnail

Streaming Waveform ID gives users immediate access to 16,383 sequence steps through an Ethernet network connection. For applications such as quantum computing, electronic warfare threat simulations and radar receiver with interference signal testing, that need dynamic technique modification in a scenario to quickly change waveforms, replicating real world simulations with unprecedented accuracy. Streaming Waveform ID also provides direct programmatic access allowing you to do more in a time sensitive testing period.

Learn about Streaming Waveform ID

The cleanest, truest to life signals.

Thumbnail

10 bits of resolution with a full range of sample rates (up to 50 Gs/s) allows you to simulate complex environments, recreate objects of interest and reliably generate precise test signals—all with low EVM and noise. Directly generate signals with up to 18 GHz of bandwidth or generate baseband I/Q streams.

Highlights

  • 10 bits of resolution
  • SFDR -80 dBc

Tools that let you be as arbitrary as you want to be.

Thumbnail

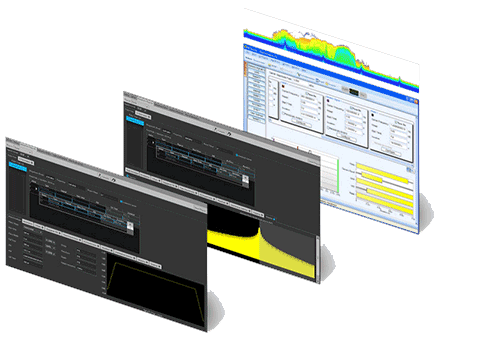

AWG Software Library supports fast development of waveforms, inserts jitter, pre-distorts waveforms for optimal EVMs, and even simulates complex real world environments. All waveform plug-ins integrate seamlessly into the AWG GUI and can be run on your PC when you can't make it to lab. Generate all the waveforms you need—there’s no charge to compile.

Highlights

Test more. Test faster. Test now.

Thumbnail

Ready to use just minutes out of the box, the AWG70000B accelerates the pace of test. The AWG Sync Hub enables plug-and-play instrument-to-instrument synchronization, allowing experiments or test set-ups to scale with ease. It’s easy to set up too, so you’ll spend less time on synchronization and more time doing.

Highlights

  • Less than 10ps of skew means tight instrument-instrument synchronization
  • AWG Sync Hub has all of the cables and hardware you need to sync up to 4 AWGs.
  • SourceXpress software enables flexible remote instrument control, with support for multiple synchronized instruments

Reliable, repeatable & rugged. Your off the shelf, performance solution.

Thumbnail

Rack mountable and tested to work in the field, the AWG70000B Series is a perfect solution for remote field deployments, COTS updates for legacy equipment or updating your test and measurement rack. With excellent performance and calibration service, it’s a rugged and reliable key to your mission-critical set up.

Highlights

  • Available with 3- or 5-year service plan
  • Non-operating temp from -40C to 70C
  • Tested to military vibration standards
  • Shock- and drop-tested for field use
Model Analog Channels Vertical Resolution Analog Bandwidth Output Frequency Max Sample Rate Record Length List Price
AWG70001A 1 8, 9, or 10 bits Up to 14 GHz 20 GHz 50 GS/s 2 GS, 16 GS (optional) Configure & Quote
AWG70001B

1

8, 9, or 10 bits

Up to 15 GHz

20 GHz

50 GS/s

2 GS, 32 GS (Optional)

Configure & Quote
AWG70002B

2

8, 9, or 10 bits

Up to 13.5 GHz

10 GHz

25 GS/s

2 GS, 16 GS (Optional)

Configure & Quote
Model Analog Channels Vertical Resolution Analog Bandwidth Output Frequency Max Sample Rate Record Length List Price
AWG70001A 1 8, 9, or 10 bits Up to 14 GHz 20 GHz 50 GS/s 2 GS, 16 GS (optional) Configure & Quote
AWG70001B

1

8, 9, or 10 bits

Up to 15 GHz

20 GHz

50 GS/s

2 GS, 32 GS (Optional)

Configure & Quote
AWG70002B

2

8, 9, or 10 bits

Up to 13.5 GHz

10 GHz

25 GS/s

2 GS, 16 GS (Optional)

Configure & Quote



Generate complex signals with AWG plug-ins – FREE

These plug-ins can be installed on the AWG5200 Series, AWG70000 Series and SourceXpress PC platform.



AWG Plug-ins

Pattern Generator (for LVDS and other differential or single-ended digital signal pattern generation)

  • Create, edit, and assign digital patterns for up to 8 Analog channels and 32 Digital Marker channels per instrument at 5GS/s
  • Import .txt and .cvs files
1 Download software

Pulse Generator (Applications: LVDS, Timing-to-digital converters, LiDAR)

  • Create pulses and bursts of pulses for non-RF applications
1 Download software

LVDS Video (for LVDS FPD-Link designs)

  • Import bitmap image files and generate static-frame LVDS video waveforms
  • Configure JEIDA/VESA encoding formats and resolution, frame rate and color bits
  • Map data lanes to analog and markers, to create waveforms based on the selected color bits
  • Recommended for use with the AWG5200 due to LVDS applications requiring more than 2 channels
1 Download software
2 Download datasheet



Add advanced measurements with AWG plug-ins – FREE for 30 days

Try these advanced measurements with a trial license. (All trials are floating licenses.)

These plug-ins can be installed on the AWG5200 Series, AWG70000 Series, and SourceXpress PC platform.

Node locked licenses let you move to a new PC three times. Floating licenses allow selected users to manage individual licenses.



AWG Plug-ins

Environment

  • A waveform creation plugin enabling the creation of specific RF environments for applications like simulating/emulating any real world wireless scenarios/environments for EW monitoring, radar receivers with interference signals and Phased Array Antennae and MIMO.
1 Download software
2 Enable trial license
3 Request a quote on ENVFL-SS01 (floating license)
Request a quote on ENVFL-SS01 (node-locked license)
4 Download the datasheet

Generic Precompensation

  • Creates correction coefficients that can be applied on waveforms to get flat frequency and linear phase response.
1 Download software
2 Enable trial license
3 Request a quote on PRECOMFL-SS01 (floating license)
Request a quote on PRECOMNL-SS01 (node-locked license)
4 Download the datasheet

High Speed Serial

  • Enables the creation of the exact waveforms required for thorough and repeatable design validation, margin/characterization, and conformance testing.
1 Download software
2 Enable trial license
3 Request a quote on HSSFL-SS01 (floating license)
Request a quote on HSSNL-SS01 (node-locked license)
4 Download the datasheet

Multi-Tone and Chirp

  • Notch out frequencies by setting the start and end frequency of choice.
  • When generating chirps, set high-to-low or low-to-high frequency sweeps and define chirp characteristics by sweep time or sweep rate.
1 Download software
2 Enable trial license
3 Request a quote on MTONEFL-SS01 (floating license)
Request a quote on MTONENL-SS01 (node-locked license)
4 Download the datasheet

OFDM Plug-In

  • Configure and create complete multiple, definable OFDM frames with preamble, header and payload
  • Use presets for standard compliant frames for various wireless standards like Wi-Fi, WiMAX or define your own using subcarrier modulation formats including BPSK, QPSK, QAM (16, 32, 64, 256, 512, 1024), and 8-PSK
  • Add impairments and define frequency hopping and gated noise to simulate practical environments for receiver testing
1 Download software
2 Enable trial license
3 Request a quote on OFDMFL-SS01 (floating license)
Request a quote on OFDMNL-SS01 (node-locked license)
4 Download the datasheet

Optical Plug-In

  • Easily define and generate complex dual polarization modulation schemes with separately configured baseband data.
  • Define optical waveforms using a variety of predefined modulation schemes such as, BPSK, QPSK, OQPSK, OOK, NRZ, up to 8 PAM, and up to QAM1024 – including QAM8.
1 Download software
2 Enable trial license
3 Request a quote on OPTICALFL-SS01 (floating license)
Request a quote on OPTICALNL-SS01 (node-locked license)
4 Download the datasheet

Radar

  • Create multiple customized pulses and pulse groups to simulate multiple target returns and antenna scanning
  • Choose from a wide variety of intra-pulse modulations (LFM, Barker, Piecewise LFM, nonlinear LFM, and more)
  • Simulate antenna scanning with different beam profiles
  • Define inter-pulse-hopping patterns in both frequency and phase
1 Download software
2 Enable trial license
3 Request a quote on RADARFL-SS01 (floating license)
Request a quote on RADARNL-SS01 (node-locked license)
4 Download the datasheet

RF Generic

  • Delivers advanced capabilities to synthesize digitally modulated baseband, IF, and RF/microwave signals supporting a wide range of modulation schemes.
1 Download software
2 Enable trial license
3 Request a quote on RFGENFL-SS01 (floating license)
Request a quote on RFGENNL-SS01 (node-locked license)
4 Download the datasheet

S-Parameter

  • Enables precise channel or device emulation by applying extracted S-parameters directly onto any waveform.
  • S-parameter files can be generated using a vector network analyzer and are convolved with the base pattern to recreate channel characteristics. By applying inverse filtering, the effects of the channel can be effectively de-embedded from the system.
  • The S-parameter plug-in also enables the ISI capability within the High Speed Serial plug-in.
1 This capability is built into several plugins and only requires a license to use it
2 Enable trial license
3 Request a quote on SPARAFL-SS01 (floating license)
Request a quote on SPARANL-SS01 (node-locked license)
4 Download the datasheet

Spread Spectrum Clock (SSC)

  • Allows for SSC modulation to be added with precisely controlled profile, spread, deviation, and df/dt.
  • It supports triangular, sinusoidal, and user-defined frequency spreading schemes that can be added to the base pattern.
1 This capability is built into the High Speed Serial and Optical plugins and only requires a license to use it in either plug-in.
2 Enable trial license
3 Request a quote on SSCFL-SS01 (floating license)
Request a quote on SSCNL-SS01 (node-locked license)
4 Download the datasheet
Software Package / Software Option Description
C-PHY Signal Generation Software for Receiver Testing - V1.1.0 CPHYXpress is a powerful and easy to use software package to synthesise waveform for C-PHY, which is one of High Speed Serial Interface under MIPI® Alliance. This tool supports the creation of High Speed signal with various types of Jitter impairments. It also controls the creation of Low Power signals.
D-PHY Signal Generation Software for Receiver Testing - V1.1.0 DPHYXpress is a powerful and easy to use software package to synthesize waveforms for D-PHY, which is one of High Speed Serial Interface under MIPI® Alliance. This tool supports the creation of High Speed signal with various types of jitter impairments.It also controls the creation of Low Power signals.
SourceXpress Software - V7.1 SourceXpress is a software application that allows users to remotely control multiple AWG70000 and AWG5200 series instruments. SourceXpress is also the PC platform for software plug-ins.
AWG70000A Series Firmware - V6.1 The AWG Software is a collection of software components for AWG70000A series arbitrary waveform.
Product Description
AWG70000 Option AC Internal amplifier/attenuator: -70dBm to +18dBm from 10MHz to 18GHz
Amplifiers Tektronix provides a complete line of amplifiers including a 12.5 Gb/s lithium niobate driver amplifier and a series of broadband linear amplifiers with bandwidths up to 45 GHz.
Baluns Tektronix baluns are an effective means for using single-ended test equipment (AWGs) for taking differential measurements.
Bias Tees Tektronix bias tees are used to supply an active device like an amplifier, laser diode, photodiode, or optical modulator with a bias current or bias voltage while allowing high speed, ultra-broadband signals to pass through with minimum signal
Power Splitters Tektronix Power Dividers are resistive tees that have excellent performance and frequency response from DC to as high as 50 GHz.
MDC4500-4B The MDC4500-4B is a certified one-box solution for simplifying your MIPI C-PHY/D-PHY test setup. Designed to work with the Tektronix AWG70002A, the MDC4500-4B is designed to condition the output to meet the conditions needed for C-PHY/D-PHY compliance test. Reduce setup time, troubleshooting overhead, and test uncertainty with an all-in-one integrated solution.



Building a multiple emitter RF signal environment made easy

Thumbnail

In recent years, proposals have been made for communication systems to operate in radar bands, closing the proximity of Radar and RF signal environments. Tektronix has put together a specific waveform creation plugin for current Arbitrary Waveform Generators that enables engineers to create specific RF environments for many specific applications.

Supported applications include simulating/emulating any real world wireless scenarios/environments for EW monitoring, radar receivers with interference signals and Phased Array Antennae and MIMO.

Features of the new environment plugin include:

  • The ability to create multiple scenarios and assign to different AWG channels in one compile. Users can create up to 50 Scenarios.
  • Scenarios are made up of individual RF Emitters signals and users can define up to 100 Emitters per Scenario

Engineering through complexity

Thumbnail

When engineering the world's most complex systems, the ability to create ideal, distorted and "real life" signals is essential. Generating advanced radar signals demands exceptional performance from an AWG in terms of sample rate, dynamic range, and memory. Advanced communication systems, such as coherent optical and PAM4, require reliable, easy to set up and high performing tool sets for optical testing, waveform generation and calibration. Electronic warfare systems require complex, stress testing with advanced capabilities to synthesize digitally modulated baseband, IF and RF/microwave signals through a wide range of modulation schemes in a timely manner is essential. Advanced electronic and physics applications like quantum computing need to create clean, stable waveforms to reduce the time to iterate through designs and experiment costs to make breakthroughs happen.

Accessory AWGRACK
Datasheet Description
View Datasheet RACK KIT, AWG 70000 SERIES
Accessory AWGSYNC01
Datasheet Description
Hub for synchronizing multiple AWGs
Accessory TEK-USB-488
Datasheet Description
USB TO IEEE488 (GPIB) COMMUNICATIONS ADAPTOR FOR USBTMC-USB488 COMPLIANT TEKTRONIX INSTRUMENTS
Datasheet Accessory Description
AWGRACK RACK KIT, AWG 70000 SERIES
View Datasheet AWGSYNC01 Hub for synchronizing multiple AWGs
View Datasheet TEK-USB-488 USB TO IEEE488 (GPIB) COMMUNICATIONS ADAPTOR FOR USBTMC-USB488 COMPLIANT TEKTRONIX INSTRUMENTS
Observe as Tektronix Dr. Klaus Engenhardt demonstrates how to conduct PAM-4 Signal Generation using AWG70000's.
This video demonstrates the use of the RF Generic Plug-in for the AWG70000 series. This plug-in allows users to build complex RF modulated waveforms directly on their AWG or by using SourceXpress ...
Tektronix supports many applications where AWGs are heavily used, with plug-ins that improve overall efficiency by shortening the time it takes to build these complicated application test set-ups ...
You don't want the influence of the generators hardware and the connecting components to impact your test results. In this video Chris Skach demos how to compensate for these elements using the Pr...
AWG 70K Waveform generation plugins description, installation and licensing.
This video explores our latest AWG waveform generation Plug in for current AWG70K and AWG5200 products. This RF Environment Plug-in has been highly anticipated and hopefully this video will help y...
This webinar provides viewers with an extensive overview of coherent optic signals, including: key fundamentals, how to create and generate coherent optic signals, test equipment challenges and ho...
What are the challenges related to the creation and generation of complex radar signals and what are the tools to help make this task more efficient? Gain these insights and learn how to avoid com...
Generating signals to recreate complex environments can feel like the 80s when we still had cassette tapes. Make the leap into the 21st century with the new Streaming Waveform ID technology in the...
View a quick walk through on how to use the AWG70000 Arbitrary Waveform Generator Sequencer from Tektronix.
Introducing the industry’s best combination of high sample rate, long waveform memory and deep dynamic range to meet cutting-edge design needs for bandwidth efficiency, modulation complexity and n...
Learn about the coherent modulation being considered for 400G networks, the key building blocks of a coherent test system, how to optimize measurement accuracy and the benefits of customizable ana...
A demonstration of some new features for the AWG70000 series instruments from Tektronix.
This video demonstrated the use of SourceXpress, the AWG free utility software that allows users to run the AWG interface on their Windows PC.
View this demonstration for how to setup and use the Sync Hub (AWGSYNC01).
Get an overview of the optical solutions available from Tektronix. Learn about what we showcased at our OFC 2016 exhibit, then learn more about these solutions online.
1m 16s
Can I sync an AWG70001A & an AWG70002A using the sync hub?
The sync hub, unfortunately, does not support the synchronization of mixed channel AWGs. The units being synced must have the same channel count. The issue comes from the fact that the delays between the two boxes are different, meaning a reliable sy
Faq Id773751 15 Jan 2020
What is TekVISA and how can I use it to communicate with and control my instrument?
VISA is an acronym that stands for Virtual Instrument Software Architecture. In a nutshell, VISA handles the communications between your computer’s OS and the instrument.  You may be familiar with TekVISA, which is Tektronix’s own brand of VISA. Agi
Faq Id69176 15 Jan 2020
What are the differences between the AWG70000A and the AWG70000B?
The key improvements on the B model from the A model are the following: Streaming ID capability added Memory up to 32 GSa Windows 10 is now standard
Faq Id773671 15 Jan 2020
How do I use the programmer manual for my instrument?
TekVISA Download Link: TEKVISA CONNECTIVITY SOFTWARE Hello and welcome to Tektronix, today I’m presenting the last part in the 3-part series on using TekVISA. I’ll be giving a basic overview of programmer manuals and how to use them to find the corr
Faq Id69186 15 Jan 2020
How do I find the Host ID for SourceXpress or for the optional application plug-ins?
Within SourceXpress, from the Tools menu, click on “Licenses” to display the license management screen.  The Host ID is listed at the top of the screen. You can also find the Host ID under the select "Help>About" menu. To learn how to install
Faq Id772691 15 Jan 2020
I received the following message about my floating license:  (This is a courtesy note to remind you that the checkout of 1 floating license(s) will soon expire.) Why am I receiving this message when I own the license?
The Floating Licenses are good forever; however, the checkout of the Floating License is good for for any duration from 4 hours up to 4 years, selectable at the time of check out.  After it reaches selected duration, it will automatically check itsel
Faq Id467516 15 Jan 2020
How do I use TekVISA to send commands to my instrument?
TekVISA Download Link:TEKVISA CONNECTIVITY SOFTWARE In order to communicate with and control the scope, you can use OpenChoice Talker-Listener. Back on the Application and Utilities panel, click on OpenChoice Talker Listener and click Start Applicat
Faq Id69181 15 Jan 2020
My scope has Windows 10 version 1607, but more recent versions have been released by Microsoft.  Can my scope be updated?
No, but there is no need to.  The Windows build on Tektronix scopes is from the Long-Term Servicing Channel (Windows 10 Enterprise LTSC). Unlike normal releases of version 1607, this release still receives security updates and support from Microsoft,
Faq Id780986 15 Jan 2020
Arbitrary Waveform Generators
The AWG70000B Series arbitrary waveform generators (AWG) represent the cutting edge for sample rate, signal fidelity, and waveform memory, making them ideal for design, testing, and operations of complex components, systems and experiments. With up t

Literature Number: 76W-61412-1
Datasheet 12 Jan 2020
Arbitrary Waveform Generators

Literature Number: 76W-28380-8
Datasheet 12 Jan 2020
Applications for SourceXpress® and AWG70000/5200 Series generators
The Tektronix RF Generic application plug-in enhances the capabilities of the SourceXpress® waveform creation platform, and the AWG70000 series and AWG5200 series arbitrary waveform generators, adding the ability to synthesize digitally modulated wav

Literature Number: 76W-60621-2
Datasheet 12 Jan 2020
HDMI 2.1 AWG 70K Patterns Installer
HDMI 2.1 Sink Electrical patterns as per HDMI 2.1 CTS needs.

Part Number: 066207800
Software 27 Dec 2019
Coherent Optical Measurements Reference Poster
Identifying the cause of coherent optical transmitter and receiver impairments can be challenging.  Quickly and easily identify them with this reference poster.

Literature Number: 85W-60044-2
Poster 27 Dec 2019
Creating Signals That Look Real to Radar
Radar ensures the safety and security of the skies, and lives depend on it. That’s why radar design measurements call for exhaustive, realistic stimulus signals. What’s the best solution to help you create complex radar test signals at the highest fr

Literature Number: 37W-29247-4
Application Note 27 Dec 2019
AWG70001B and AWG70002B
Arbitrary Waveform Generators Installation and Safety

Part Number: 071359700
Manual 26 Dec 2019
Solutions for Aerospace and Defense
Integrated Tektronix measurement tools for signal capture, characterization, simulation and analysis help you deliver on your promises. Learn more about our military/government solutions.

Literature Number: 46A-61169-2
Brochure 26 Dec 2019
RFXpress RFX100
Advanced RF/IF/IQ Waveform Creation and Editing Software for the AWG70000, AWG5000, and AWG7000 Series Signal Generators Quick Start User Manual

Part Number: 077015911
Manual 26 Nov 2019
RFXpress RFX100
Advanced RF/IF/IQ Waveform Creation and Editing Software for the AWG70000, AWG5000, and AWG7000 Series Signal Generators Quick Start User Manual

Part Number: 077015910
Manual 26 Nov 2019
AWG701AUP & AWG702AUP
Options 01, 03, and SSD-0xAWG70000A Series Upgrades

Part Number: 075104903
Manual 26 Nov 2019
AWG70001A and AWG70002A
Arbitrary Waveform Generators Installation and Safety Instructions

Part Number: 071311004
Manual 26 Nov 2019
AWG70000B Series
Arbitrary Waveform GeneratorsDeclassification and Security

Part Number: 077145500
Manual 26 Nov 2019
AWG701AUP & AWG702AUP
Options 01, 03, and SSD AWG70000A Series Upgrades Instruction Manual

Part Number: 075104902
Manual 26 Nov 2019
AWG70000B Series
Arbitrary Waveform GeneratorsSpecifications and Performance Verification

Part Number: 077145300
Manual 26 Nov 2019
AWG701BUP and AWG702BUP
Arbitrary Waveform GeneratorsUpgrades

Part Number: 075110500
Manual 26 Nov 2019
AWG70000 Series and AWGSYNC01
Rackmount Kit

Part Number: 071310402
Manual 26 Nov 2019
AWG70001A and AWG70002A
Arbitrary Waveform GeneratorsPrintable Help

Part Number: 077082508
Manual 26 Nov 2019
RFXpress RFX100
Advanced RF/IF/IQ Waveform Creation and Editing Software for theAWG70000, AWG5000, and AWG7000 Series Signal Generators Online Help

Part Number: 077004514
Manual 26 Nov 2019
RFXpress RFX100
Advanced RF/IF/IQ Waveform Creation and Editing Software for the AWG70000, AWG5000, and AWG7000 Series Signal Generators Programmer Manual

Part Number: 077043505
Manual 26 Nov 2019
AWG70000 Series
Arbitrary Waveform Generators

Part Number: 077145200
Manual 26 Nov 2019
AWG70000 Series
Arbitrary Waveform GeneratorsPrintable Help

Part Number: 077144601
Manual 26 Nov 2019
AWG70000A Series
Arbitrary Waveform Generators Specifications and Performance Verification Technical Reference

Part Number: 077078003
Manual 26 Nov 2019
Coherent Optical Signal Generation with High-Performance AWG
Learn how instrument characteristics and performance level of the AWG70000 influence the ability to generate different modulation schemes and the way the instrument’s flexibility can be used to compensate for internal and external device imperfection

Literature Number: 76T-29051-0
Application Note 26 Nov 2019
AWG70000 Series Precompensation Whitepaper
Whitepaper 26 Nov 2019
AWG70000 Series Multiple Unit Synchronization
This guide explains the AWG clocking and triggering and then provides a step-by-step recommended method of synchronization.

Literature Number: 76W-29177-0
How-to Guide 26 Nov 2019
High-Speed DACs
With the growing applications associated with Digital to Analog Conversion, it is critical that users of such devices understand the characteristics and their uses. In this note we explore the most important topics to make you familiar with the DACs

Literature Number: 76W-30631-0
Application Note 26 Nov 2019
10 Things about the AWG70000 Series
See how you can generate signals that could not be done before the AWG70000 Series.

Literature Number: 76W-29029-2
Fact Sheet 26 Nov 2019
Baseband Response Characterization of I-Q Modulators
Learn how an arbitrary waveform generator (AWG) and a mixed domain oscilloscope (MDO) can be used for basedband frequency response, single-sideband suppression, amplitude and phase errors, and intermodulation performance.

Literature Number: 37W-29553-1
Application Note 26 Nov 2019
PCIE TX Toggle Patterns - v10.0.0.2
PCIE TX Toggle Patterns - When AWG is selected for Automated DUT control‚ this AWG files will help to toggle between various patterns in PCIE TX. TekExpress Automation software can control the DUT using a Tektronix AFG‚ Tektronix AWG‚ or GRL PCI Expr

Part Number: 066191401
Software 12 Nov 2019
TekExpress USB3.1 Tx - DPO-DSA-MSO-70000-C,D,DX,SX - Win7 - V10.3.0
The TekExpress USB3.1 Tx application (Opt. USB-TX and USBSSP-Tx) is the automated solution for verification, characterization and debug of USB3.1 measurements from DPOJET Timing and Analysis tool, that integrates the DPOJET Options 'USB3 Essentials'

Part Number: 066155415
Software 12 Nov 2019
AWG70000A Series Software - v6.1
The AWG Software is a collection of software components for AWG70000A series arbitrary waveform

Part Number: 066139509
Software 12 Nov 2019
AWG70000A/AWG70000B Series Software - V7.1
The AWG Software is a collection of software components for AWG70000A and AWG70000B series arbitrary waveform generators.

Part Number: 066200401
Software 12 Nov 2019
D-PHY Signal Generation Software for Receiver Testing - V1.1.0
DPHYXpress is a powerful and easy to use software package to synthesize waveforms for D-PHY, which is one of High Speed Serial Interface under MIPI® Alliance. This tool supports the creation of High Speed signal with various types of jitter impairmen

Part Number: 066189903
Software 12 Nov 2019
HDMXpress2.1- AWG70001 - Win10, V1.0.2
HDMXpress2.1 is the pattern generation and calibration software for HDMI2.1 sink electrical tests.Major Features:* Supports generation and calibration of patterns for HFR2-1,HFR2-2,HFR2-3, HFR2-4 and HFR2-5 electrical tests.* Supports AWG-HD Deskew*

Part Number: 066176602
Software 12 Nov 2019
Radar Plug-in - V3.1
The Tektronix Radar plug-in waveform creation tool can be used to create pulsed RADAR signals. This plug-in lets you:- Define multiple pulse trains that can be assigned to different channels for applications like simulating phase array radars and cre

Part Number: 066190701
Software 12 Nov 2019
TekExpress USB3.1 Tx - DPO-DSA-MSO-70000-C,D,DX,SX - Win7 - V10.2.1
The TekExpress USB3.1 Tx application (Opt. USB-TX and USBSSP-Tx) is the automated solution for verification, characterization and debug of USB3.1 measurements from DPOJET Timing and Analysis tool, that integrates the DPOJET Options 'USB3 Essentials'

Part Number: 066155413
Software 12 Nov 2019
High Speed Serial Plug-in - V1.3
The High Speed Serial (HSS) plug-in is a waveform creation application that takes an input pattern and creates pre-distorted waveforms to test a device's conformance to standards. The High Speed Serial plug-in can be installed on a PC which has Sourc

Part Number: 066186302
Software 12 Nov 2019
HDMI 1.4 AWG70002A Patterns Installer - V1.0.0
HDMI 1.4 Sink Electrical and Sink Protocol patterns as per HDMI 1.4 CTS needs.

Part Number: 066176510
Software 12 Nov 2019
IVI Driver for AWG70000A - AWG5200 Series Arbitrary Waveform Generator - V1.4
The IVI Driver is a collection of software components used to communicate with AWG70000/AWG5200 series Arbitrary Waveform Generator.

Part Number: 066154104
Software 12 Nov 2019
Multitone and Chirp V2.0
The Multitone plug-in is a waveform creation plug-in to create multitone or continuous chirp waveforms. Multitone plug-in can be installed on a PC which has SourceXpress application or on AWG 70000 instrument with v5.3 or later. Multitone waveforms

Part Number: 066179602
Software 12 Nov 2019
OFDM Plug-in - V3.1
The Tektronix OFDM plug-in is a waveform creation tool that can be used to create OFDM signals. This plug-in lets you: Configure and create complete multiple OFDM Frames with Preamble, Header and Payload. Preset for Standard compliant Frames for var

Part Number: 066190801
Software 12 Nov 2019
OFDM Plug-in - V2.0
The Tektronix OFDM plug-in is a waveform creation tool that can be used to create OFDM signals. This plug-in lets you: • Configure and create complete multiple OFDM Frames with Preamble, Header and Payload. • Preset for Standard compliant Frames for

Part Number: 066190800
Software 12 Nov 2019
Generic Precompensation Plug-in - v1.4
The Generic Precompensation plug-in is used to create correction coefficients that can be applied to waveforms to obtain a flat frequency response and linear phase response.The plug-in is designed to integrate and operate seamlessly with SourceXpress

Part Number: 066179503
Software 12 Nov 2019
SourceXpress Software - V7.1
SourceXpress is a software application that allows users to remotely control multiple AWG70000 and AWG5200 series instruments. SourceXpress is also the PC platform for software plug-ins.

Part Number: 066178805
Software 12 Nov 2019
Environment Plug-in - V3.0
The Environment signal plug-in is a waveform creation application that allows you to emulate realistic signal interference. This plug-in lets you- Build a variety of scenarios- Build up to 50 scenarios- A large variety of emitters available- Ability

Part Number: 066194900
Software 12 Nov 2019
TekExpress USB3.1 Tx - DPO-DSA-MSO-70000C, D, DX, SX - Win7, Win10 - V10.3.3
The TekExpress USB3.1 Tx application (Opt. USB-TX and USBSSP-Tx) is the automated solution for verification, characterization and debug of USB3.1 measurements from DPOJET Timing and Analysis tool that integrates the DPOJET Options USB3 Essentials and

Part Number: 066155418
Software 12 Nov 2019
TekExpress PCI Express Compliance solution - DPO-DSA-MSO70000-C,D,DX - Win 7 V2.0.0.107
The TekExpress Automation for PCI Express Transmitter Compliance greatly reduces the effort and accelerates the compliance testing for PCI Express systems and devices with several unique and innovative capabilities. TekExpress Automation software ca

Part Number: 066155500
Software 12 Nov 2019
TekExpress USB3.1 Tx - DPO-DSA-MSO-70000C, D, DX, SX - Win7, Win10 - V10.3.2
The TekExpress USB3.1 Tx application (Opt. USB-TX and USBSSP-Tx) is the automated solution for verification, characterization and debug of USB3.1 measurements from DPOJET Timing and Analysis tool, that integrates the DPOJET Options ‚USB3 Essentials‚

Part Number: 066155417
Software 12 Nov 2019
TekExpress USB3.1 Tx - DPO-DSA-MSO-70000C, D, DX, SX - Win7, Win10 - V10.3.5
The TekExpress USB3.1 Tx application (Opt. USB-TX and USBSSP-Tx) is the automated solution for verification, characterization and debug of USB3.1 measurements from DPOJET Timing and Analysis tool that integrates the DPOJET Options USB3 Essentials and

Part Number: 066155419
Software 12 Nov 2019
HDMI 2.1 AWG 70K Patterns Installer - V1.0.0
HDMI 2.1 Sink Electrical patterns as per HDMI 2.1 CTS needs.

Part Number: 066202500
Software 12 Nov 2019
HDMI 2.0 AWG70002A Patterns Installer V1.0.2
HDMI 2.0 Sink Electrical and Sink Protocol patterns as per HDMI 2.0 CTS needs.

Part Number: 066176501
Software 12 Nov 2019
C-PHY Signal Generation Software for Receiver Testing - V1.1.0
CPHYXpress is a powerful and easy to use software package to synthesise waveform for C-PHY, which is one of High Speed Serial Interface under MIPI® Alliance. This tool supports the creation of High Speed signal with various types of Jitter impairment

Part Number: 066189902
Software 12 Nov 2019
HDMXpress - AWG7122C-AWG70002A - Win7, V1.0.1
Sink Electrical and Sink Protocol Patterns Generator for HDMI 2.0 Margin Testing

Part Number: 066176601
Software 12 Nov 2019
AWG70000A Series Software, V5.2
The AWG Software is a collection of software components for AWG70000A series arbitrary waveform

Part Number: 066139507
Software 12 Nov 2019
Optical plug-in - V1.3
The Tektronix Optical Signal Plug-in is a waveform creation tool that is optimized for the generation of waveforms with complex modulation schemes for the purpose of testing optical communications components and other devices. The Optical Signal Pl

Part Number: 066187601
Software 12 Nov 2019
RF Generic Signal plug-in - V3.1
The RF Generic Waveform plug-in is a waveform creation application that is used to create digitally modulated signals with multiple carriers.This plug-in lets you:- Create multiple carriers with different modulation options, apply impairments, hop to

Part Number: 066186202
Software 12 Nov 2019
TekExpress USB3.2 Tx - DPO-DSA-MSO-70000C, D, DX, SX - Win7, Win10 - V10.3.6
The TekExpress USB3.2 Tx application (Opt. USB-TX and USBSSP-Tx) is the automated solution for verification, characterization and debug of USB3.2 measurements from DPOJET Timing and Analysis tool that integrates the DPOJET Options USB3 Essentials and

Part Number: 066155420
Software 12 Nov 2019
TekExpress SATA AWG Patterns - AWG7000 B,C, AWG70000 A - V1.4.0
TekExpress SATA AWG pattern files are needed to execute the SATA measurements

Part Number: 066178205
Software 12 Nov 2019
Using the AWG70000 Series technology to generate 30Gbaud data rate in an OFDM-16QAM modulation format.
Joint paper authorized by Alcatel-Lucent and Tektronix which illustrates the use of AWG70000 Series technology to generate 30Gbaud data rate in an OFDM-16QAM modulation format.

Literature Number: 55W-29351-0
Whitepaper 12 Nov 2019
AN Using an AWG For Threat Generation
Application Note 12 Nov 2019
Using the Sequencer on Tektronix AWG 70000B Series Instruments
The sequencer option on the AWG70000B Series enables and improves waveform output capabilities dramatically. Not only does it allow the user to run a series of waveforms automatically but it also allows for: Complex/pattern jumping Flag outputs Su

Literature Number: 76W-30715-1
How-to Guide 12 Nov 2019
Understanding AWG70000A Series Frequency Response and DAC Performance
Gain an understanding of the AWG frequency response characteristics and time domain specifications, plus DAC details and how to interpret them.

Literature Number: 76W-29216-0
Application Note 12 Nov 2019
Using Tektronix AWG70000 Series in Synchronous and Multiple Unit Applications
Understand the trigger and clocking specifications and the external setup configuration of the AWG70000 to achieve maximum performance of in synchronous applications.

Literature Number: 76W-30703-0
Whitepaper 12 Nov 2019
