PSPL5331 6 dB Power Divider, 18 GHz Datasheet

PSPL5331 Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

More Information

Read Online:

PSPL5331 Datasheet

The PSPL5331 6 dB Power Divider is a very broadband, resistive tee. It is useful for splitting a signal into two identical signals or for combining two signals. The output is attenuated by 6 dB. These are impedance-matched tees that present a 50 Ω input impedance when both outputs are terminated in 50 Ω. Power Divider tees are built using three 16.7 Ω resistors and thus present a 50 Ω impedance at any port. The resistors in this tee have 1% tolerances and thus this tee has excellent symmetry and very close impedance match to 50 Ω. It has a rise time of 17 ps and bandwidth from DC to >18 GHz.

Typical performance

Frequency responses from 40 MHz to 20 GHz, linear sweep at 2 GHz/div

PSPL5331-Datasheet-643658-9-N

Specifications

Parameter 1 Value
Rise time 17 ps
Insertion Loss Bandwidth (-3 dB) DC to 18 GHz
Insertion Loss, DC 6.0 dB ±0.05 dB maximum
Insertion Loss, AC 6.0 dB ± 0.5 dB maximum for f
Insertion Loss, Asymmetry 0.05 dB, maximum, DC
Phase Tracking
Delay 178 ps
Input Impedance, DC 50 Ω, ± 0.4 Ω maximum
S11 Return Loss See S11 plots for typical responses vs. frequency
Max Input Power, average 0.75 W
Power Temp Curve Full power-up to +70 °C, linearly derated to 0 W at +125 °C
Peak Power 50 W, t
Temperature Range -55 to +125 °C, operating and storage
Connectors SMA jacks (f)
Warranty One year

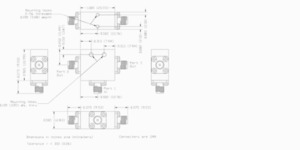

Mechanical dimensions


PSPL5331-Datasheet-643658-10-N

1 All parameters listed are typical unless max/min guaranteed limits are provided. The DC specs are based on resistor tolerances and only when used with 50 Ω source and terminations.

Ordering information

Models
PSPL5331
Power Divider, 6 dB
