IsoVu™ Isolated Current Probes
Make more accurate dynamic shunt‑based current measurements with IsoVu isolated current probe series current probes. High bandwidth, flexible ranges, complete galvanic isolation, and extremely low noise enable you to go beyond traditional limits—ideal for low‑noise measurements on current shunts in floating sections of power circuits.
Innovative wideband shunts, specially designed to integrate with the probe define a complete high-bandwidth, low-noise current measurement solution.
Up to 1GHz
1.8kV max
150µVRMS@ 1GHz
Up to 140dB
A New Level of Visibility in Current measurements.
A Breakthrough in Oscilloscope Current Measurements
IsoVu isolated current probes enable measurements from DC to hundreds of MHz when paired with high-performance shunts or CVRs. Choose from three models to fit your application and budget.Complete RF isolation between the probe tip and the scope eliminates ground loops and dramatically reduces common mode noise.Low attenuation, 50 Ω input impedance, and shielded tips ensure low noise contribution.
- Three bandwidths: 250 MHz, 500 MHz, 1 GHz
- Up to 90 dB CMRR @ 1 MHz
- Noise contribution < 4.7 nV/√Hz (<150 µV at 1 GHz)
Gain New Insights into SiC and GaN Power Converters
For measuring fast-changing currents in wide bandgap switching devices, shunt probes can deliver more bandwidth than clamp-on probes. IsoVu isolation eliminates ground loops, enables measurements on high-voltage circuits, and provides extremely high CMRR. This makes IsoVu isolated current probes ideal for current measurements on shunts and CVRs on high-side SiC and GaN switching FETs.
- 250 MHz, 500 MHz, or 1 GHz bandwidth
- 1800 VRMS Common mode voltage
- Up to 90 dB CMRR @ 1 MHz
- 1000 V CAT II Safety rating
Combine with IsoVu Voltage Probes for a low-noise picture of switching performance.
Measure Current Draw in Nanoseconds and Microamps in Low Power Designs
Accurately measuring low-level, dynamic currents can be critical for optimizing power management in IoT and mobile devices. With IsoVu isolated current probes and wideband shunts, you’ll be able to see current consumption during specific system activities, like transitions from sleep to active states, memory accesses and I/O activity. Tektronix wideband shunts work with IsoVu current probes for real-world current measurements as low as 30 μA with unmatched bandwidth, isolation, and protection.
- Probe bandwidth up to 1 GHz
- Noise contribution < 4.7 nV/√Hz (<150 µV at 1 GHz)
- Easily measure 12, 24 or 48 V rails, or higher

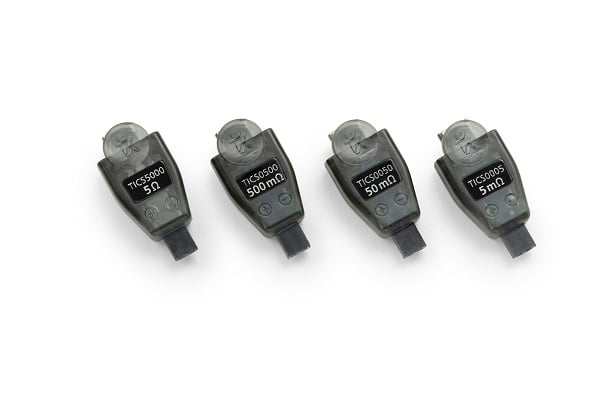

- 250 MHz bandwidth shunts: 5 mΩ ,50 mΩ, 500 mΩ, or 5 Ω
See how we tackle low current and high bandwidth measurements with our wideband shunts.
Improving Shunt Based Current Measurements with IsoVu Isolated Current Probes
Minimize Connection Hassles
Flexible probe tips and cables minimize connection hassles while limiting noise. They bend easily to reduce strain for making reliable connections to your DUT. Tektronix wideband shunts use standard square pins for high performance with low cost per test point.
- Probe tips terminate in shielded, high-bandwidth MMCX connectors; compatible with off-the-shelf SMA or BNC adapters
- Easily connect to 25 mil square pins for on-board shunts and test points
- Scopes automatically recognize tip attenuations and shunt values
- Included bipod and tripod adapters provide stability
Seamless Integration with 4, 5 and 6 Series MSO Oscilloscopes
4, 5 and 6 Series MSO oscilloscopes are known for their advanced power analysis capabilities. IsoVu current probes are designed to work seamlessly with these instruments. The TekVPITM probe interface powers the probe, and automatically detects the probe and tip, allowing you to adjust probe parameters from the scope user interface. This also enables test automation using the oscilloscopes’ programming commands.
Perform Validation Testing Across Extreme Temperature Ranges
These optional extreme temperature tips enable IsoVu Isolated Current Probes to perform measurements across a wide temperature range from -40°C to +125°C.
Featuring six foot reach (1.8 m), these tips provide convenient MMCX connectivity between a DUT inside a temperature chamber and the current probe located outside the chamber. These tips are available in 1X, 10X, and 100X attenuation options and offer bandwidth performance up to 700 MHz.
| Model | Bandwidth | Differential Voltage | Common Mode Voltage | Common Mode Rejection Ratio | List Price | Configure And Quote | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TICP025
|
250 MHz | ±0.5V (1x Tip) ±5V (10x Tip) ±50V (100x Tip) |
1.8 kV Pollution degree 1 1000 V CAT II |
140 dB at DC 90 dB at 1 MHz (1x Tip) |
US $9,440 | Configure & Quote | ||||||||||||||
TICP050
|
500 MHz | ±0.5V (1x Tip) ±5V (10x Tip) ±50V (100x Tip) |
1.8 kV Pollution degree 1 1000 V CAT II |
140 dB at DC 90 dB at 1 MHz (1x Tip) |
US $11,400 | Configure & Quote | ||||||||||||||
TICP100
|
1 GHz | ±0.5V (1x Tip) ±5V (10x Tip) ±50V (100x Tip) |
1.8 kV Pollution degree 1 1000 V CAT II |
140 dB at DC 90 dB at 1 MHz (1x Tip) |
US $13,500 | Configure & Quote |
| Model | Bandwidth | Differential Voltage | Common Mode Voltage | Common Mode Rejection Ratio | List Price | Configure And Quote | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TICP025
|
250 MHz | ±0.5V (1x Tip) ±5V (10x Tip) ±50V (100x Tip) |
1.8 kV Pollution degree 1 1000 V CAT II |
140 dB at DC 90 dB at 1 MHz (1x Tip) |
US $9,440 | Configure & Quote | ||||||||||||||
TICP050
|
500 MHz | ±0.5V (1x Tip) ±5V (10x Tip) ±50V (100x Tip) |
1.8 kV Pollution degree 1 1000 V CAT II |
140 dB at DC 90 dB at 1 MHz (1x Tip) |
US $11,400 | Configure & Quote | ||||||||||||||
TICP100
|
1 GHz | ±0.5V (1x Tip) ±5V (10x Tip) ±50V (100x Tip) |
1.8 kV Pollution degree 1 1000 V CAT II |
140 dB at DC 90 dB at 1 MHz (1x Tip) |
US $13,500 | Configure & Quote |
Unlock wideband current insights with our IsoVu probes and shunts.
Cables and Connectors
| Datasheet / Manual | Accessory | Description |
|---|---|---|
| 131967700 | Square pin to MMCX adapter, 0.062” spacing | |
| 196-3546-01 | Lead, MMCX to IC Grabber | |
| 196354701 | Square pin to IC grabber lead | |
| 206056900 | MicroCKT grabbers | |
| TICPMM100 | 100X sensor tip cable with MMCX connector | |
| TICPMM100ET | 100X extreme temperature TICP cable with MMCX connector | |
| TICPMM10ET | 10X extreme temperature TICP cable with MMCX connector | |
| TICPMM1ET | 1X extreme temperature TICP cable with MMCX connector |
Wideband Shunts
| Datasheet / Manual | Accessory | Description |
|---|---|---|
| TICPTWCBL | TICP Twinax cable for Tektronix shunts | |
| TICPTWCBLPK | TICP Twinax cable pack for Tektronix shunts (pack of 5) | |
| TICS0005 | 5 mΩ Tektronix wideband shunt | |
| TICS0005PK | 5 mΩ Tektronix wideband shunt pack (pack of 10) | |
| TICS0050 | 50 mΩ Tektronix wideband shunt | |
| TICS0050PK | 50 mΩ Tektronix wideband shunt pack (pack of 10) | |
| TICS0500 | 500 mΩ Tektronix wideband shunt | |
| TICS0500PK | 500 mΩ Tektronix wideband shunt pack (pack of 10) | |
| TICS5000 | 5 Ω Tektronix wideband shunt | |
| TICS5000PK | 5 Ω Tektronix wideband shunt pack (pack of 10) |
Tektronix offers a range of calibration and protection plans for purchase with your equipment to protect and maintain its performance over the lifetime of the instrument. Benefits include:
- Service conducted by factory trained technicians using many of the same test stands and standards designed in manufacturing.
- Predictable costs with locked-in, up-front pricing.
- A host of accident protection, loaner program, and other plan features.
- A breadth of calibration service levels and options.
Invest now to avoid unplanned downtime and expense. Talk to your sales rep about adding a service plan to your instrument purchase.
All newly manufactured TICP025, TICP050, TICP100 probes will come with a traceable calibration including measurement uncertainties compliant to ISO/IEC 17025:2017. A full calibration data report is available to purchase with your new probe by ordering option "D1".
| Service Plan Feature |
Tek Care Extended Warranty (Opt. R3, R5) |
Total Protection (Opt. T3, T5) |
|---|---|---|
| Extension of factory warranty |
|
|
| Protection from manufacturer defects |
|
|
| Free factory certified calibration with repair |
|
|
| Free in-country shipping |
|
|
| Priority on-bench service |
|
|
| Coverage of user-caused EOS and ESD damage |
|
|
| Coverage from accidental damage |
|
|
| Coverage from normal wear and tear |
|
| Calibration Features: |
Z540 Calibration1 |
ISO 17025 Compliant3 |
ISO 17025 Accredited |
|---|---|---|---|
| Certificate of calibration and calibration label designed to meet audit requirements |
|
|
|
| Firmware updates, if applicable, along with safety and reliability updates ² |
|
|
|
| OEM procedures for measurements ² |
|
|
|
| Test data | Optional |
|
|
| Calibration record retention |
|
|
|
| Traceability |
|
|
|
| Uncertainty analysis |
|
|
|
| Independent verification by a ISO/IEC accredited organization (with logo on certificate) |
|
| Product/Option |
Description |
|---|---|
| Tektronix Opt. C3 | Calibration service 3 years. C3 provides for 2 calibration events during 3 years after shipment. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2-years calibration coverage. |
| Tektronix Opt. C5 | Calibration service 5 years. C5 provides for 4 calibration events during 5 years after shipment. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4-years calibration coverage. |
1 May be ISO 9001 in specific locations.
2 Standard with factory verified calibration service
3 Standard calibration level for newly manufactured TICP probes.
Some limits apply, see program terms for details.
