8 Series Sampling Oscilloscope
The 8 Series Sampling Oscilloscope enables efficient and affordable optical component testing with an innovative disaggregated architecture. With a reconfigurable and compact design, an innovative user interface, and reliable high-end performance, it resembles an ideal test solution for manufacturing applications. The 8 Series is designed to adapt to a continuous increase in demand for higher bandwidths and baud rates addressing current and future test parameters.
Increased throughput by disaggregation
The 8 Series enables inexpensive, adaptable, and scalable solutions by leveraging the separation of acquisition hardware from measurement analysis. Stream data from the instrument through high-speed Ethernet to the analysis platform, limiting oscilloscope downtime and maximizing investment.

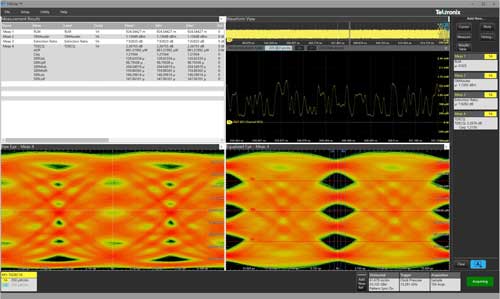

Enhanced analysis with TSOVu
TSOVu is an advanced software platform that runs independent of the oscilloscope mainframe for both live and post-processing of acquired data. TSOVu offers efficient analysis of optical signals and includes support for eye diagrams as well as complex measurements like TDECQ.
- Programmatic Interface commands available for automation
- Parallel channel acquisition
- Intuitive and easy to use
Save time, space, and money with modular design
Optimize test setups with the 8 Series’ compact form factor and user-swappable modules to quickly adapt to changes in workflow and accommodate next generation technologies. The smaller form factor of 8 Series instruments, driven by higher density devices, significantly reduces overall production floor space. The TSO820 Sampling Oscilloscope Mainframe also features up to 8 times faster pattern acquisition as compared to the previous generation, increasing test throughput.
- 3U High, half-rack wide
- Scalable channel count
- Up to 4 optical channels per system

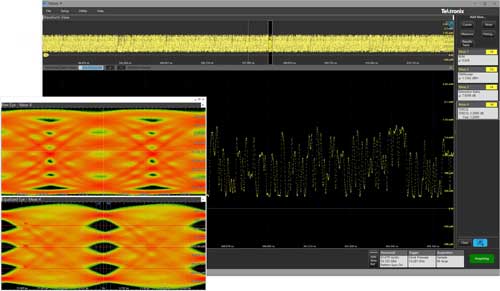

High performance hardware
Confidence in device measurements begins with the exceptional hardware platform of the 8 Series, enabling accurate, repeatable, and reliable measurements. The high-sensitivity, low noise design of 8 Series Optical Modules are ideal for single mode and multimode testing, especially on low power signals.
Optical testing simplified: The 8 Series Optical Clock Recovery
An ideal companion to the 8 Series Sampling Oscilloscope, the TCR801 Optical Clock Recovery is designed to support a growing list of optical standards. As a part of the 8 Series, this instrument simplifies optical testing by efficiently recovering the clock on high-speed optical signals.Learn More
|Data Sheet||Module||Description||Configure and Quote|
|View Datasheet||TSO8C17||8 Series Optical Module: Single Channel, Single / Multi Mode, 30GHz optical bandwidth for 50G/100G/200G/400G||Configure and Quote|
|View Datasheet||TSO8C18||8 Series Optical Module: Dual Channel, Single / Multi Mode, 30GHz optical bandwidth for 50G/100G/200G/400G||Configure and Quote|
