Photonic Doppler Velocimetry (PDV) Solutions
Unlock the full potential of your Photonic Doppler Velocimetry (PDV) testing with Tektronix’s advanced solution. Our high-performance system — with performance oscilloscopes and low-profile digitizers — delivers high sample rates, low noise, and excellent vertical resolution for demanding applications. Companion software extends acquisition time, provides RF vs time traces, high-resolution spectrograms for fast beat frequency analysis, and supports machine diagnostics to ensure full PDV system integrity. Get accurate, reliable results every time.

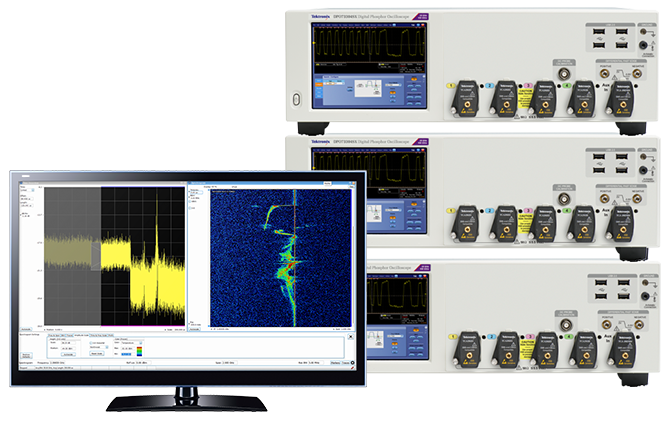

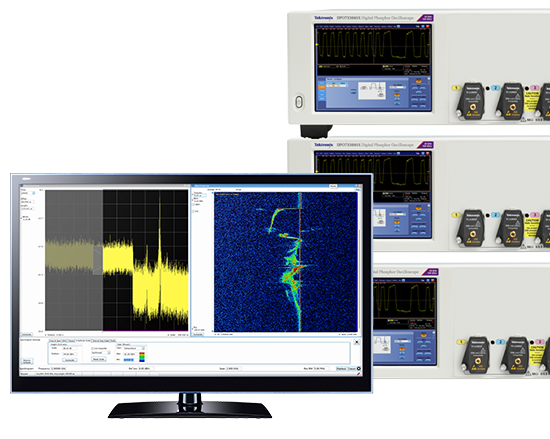

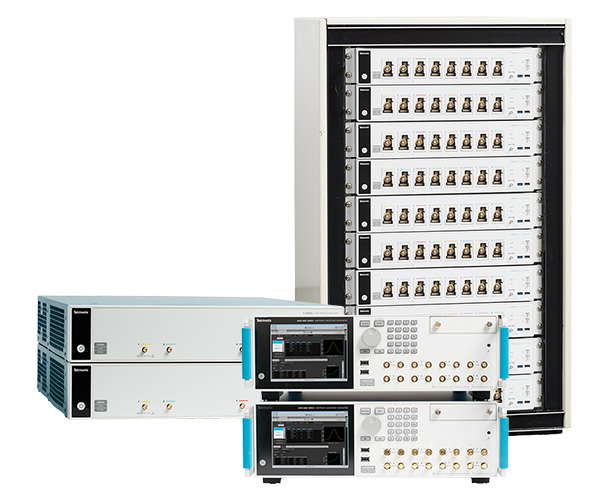

Featuring the DPO70000SX oscilloscope and 6 Series low-profile digitizers, the Tektronix solution offers:
- High Effective Number of Bits (ENOB)
- High Signal-to-Noise Ratio (SNR)
- Low Noise
- Optional software for rapid insights and diagnostics
- Full-service plans
Experience the difference this solution can bring to your PDV testing.
Schedule a demoSchedule A Demo

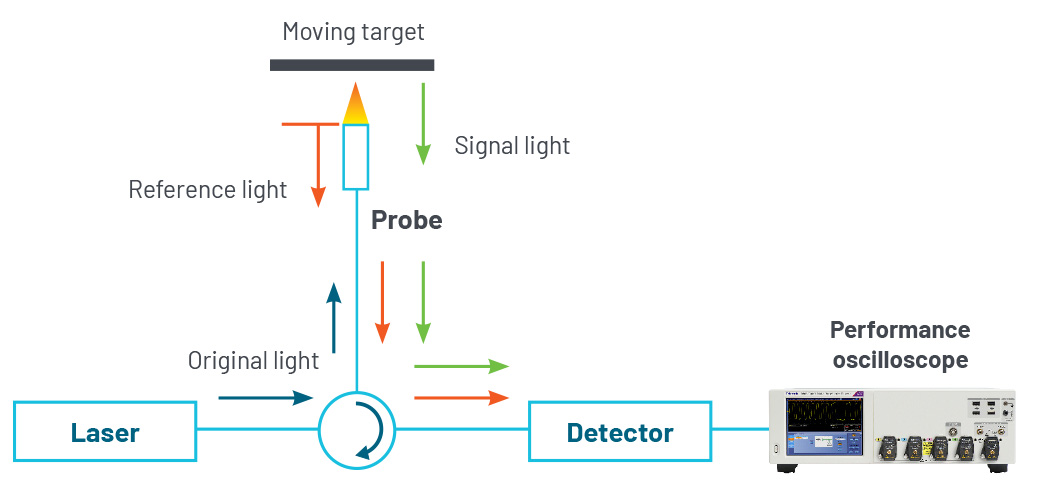

Photonic Doppler Velocimetry (PDV) Solutions
Engineered for Accuracy
Industry-leading signal fidelity, minimal noise, and the highest effective number of bits (ENOB) ensure you capture all single-shot signals accurately.
Low instrument noise and a high signal-to-noise ratio enable precise characterization of your designs.
Tektronix acquisition systems are guaranteed to withstand 30G's of force (with margin testing up to 50G's), ensuring your data is captured reliably every time.
Precision Capture for Shock Events
This solution for PDV ensures highly reliable, accurate, and stable signal acquisition, delivering exceptional signal fidelity and high channel counts — critical for capturing single-shot, high-value shock physics experiments with confidence.
Why Choose Tektronix for Your PDV Testing Solution
Performance: Designed for high-energy physics challenges. Achieve over 8 bits of ENOB at 1 GHz, eliminating the need to split acquisition ranges across multiple input channels. Optimize your full performance acquisition channels by extending coverage to new sensors or reducing the size of your PDV system.

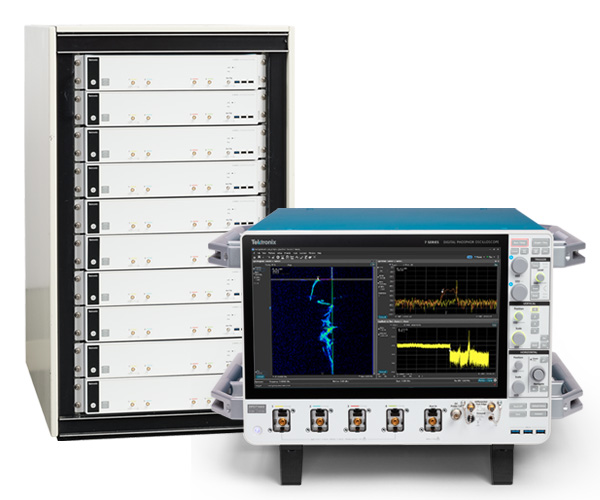

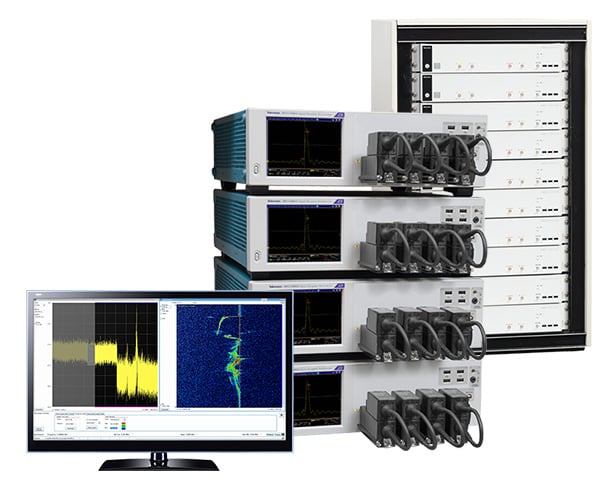

Reliability: Confidence in the most demanding conditions. The 5 Series MSO low-profile oscilloscope and 6 Series low-profile digitizer offer high channel density and fit seamlessly into tight spaces. These oscilloscopes reliably trigger on single-shot events at high bandwidth, ensuring trusted acquisition of essential PDV experimental data.
Data Capture: Engineered for precision. Our low-noise acquisition systems ensure high-fidelity, single-shot capture, minimizing uncertainty in PDV tests.
Fast Data Movement: Secure, high-speed offloading of data for offline analysis.
Security: Secure your data. Tektronix oscilloscopes can be easily declassified to remove it from a secure environment for repair, calibration, or deployment elsewhere.
System Integration: Seamless deployment. System integrators use Tektronix low profile digitizers for high-speed, high-density data acquisition in compact test systems. Controlled via TekHSI, a Python client using Google’s open-source gRPC framework, enable efficient, low-latency remote control and data streaming.
APIs: Streamlined and scalable. Python APIs provide a consistent interface for controlling a wide range of Tektronix instruments, simplifying system integration, reducing development time, and enabling scalable, scriptable automation across complex test setups.
Instrument Care and Support: Downtime is not an option. We provide comprehensive support solutions to ensure your equipment operates within specified ranges.
Recommended Equipment List for Single Shot Data Acquisition Experiments
Ideal for high-fidelity data capture in high-energy physics applications like PDV
| Product | Description | Advantage | |
|---|---|---|---|
| Hardware Aquisition (Choose one) |
DPO72004SX: 20 GHz or higher bandwidth 2.5-8 GHz LPD6 |
DPO70000SX performance oscilloscope up to 70 GHz bandwidth 6 Series Low Profile Digitizer between 2.5 GHz and 8 GHz bandwidth |
High bandwidth options and superior signal fidelity ensure precise measurement of high-speed events with accurate single-shot acquisitions. |
| Software |
RL-X Extended Record Length - OPT |
Optional: Record length to extend acquisition time. |
Extends acquisition time for comprehensive data capture. |
| Software |

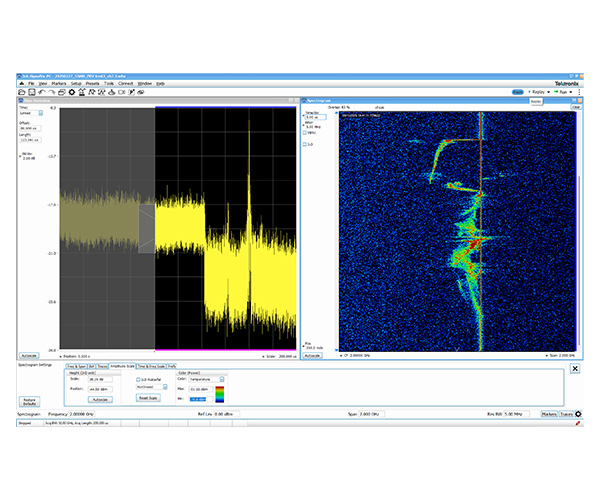

Spectrum View 5-SV-RFVT or 6-SV-RFVT (Spectrograms) |
Optional: Enables SignalVU PC software with 5/6 series and provides RF vs time traces (frequency, magnitude, and phase). |
Provides RF vs time traces for detailed signal analysis. |
| Software (Use both) |

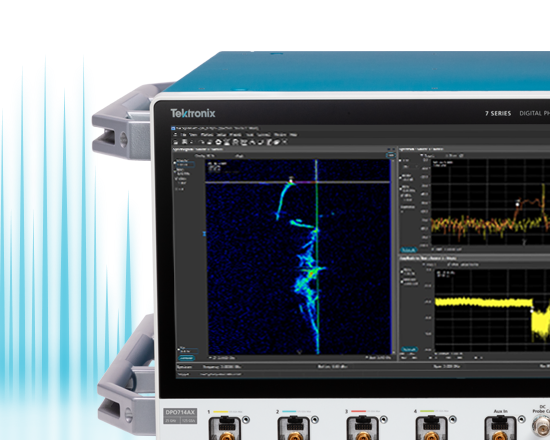

SignalVu-PC (Spectrograms) for DPO70000SX Option SVE (SignalVu Essentials) for on any DPO70000SX |
Optional: For SignalVu-PC, purchase option SVE on your DPO70000SX oscilloscope. |
Easily see your FFT data in a high-resolution Spectrogram, uncovering insights more quickly. |
| Service Plan |
Gold Care Plan |
Premier service plan including loaner unit, free calibration, full damage coverage, and more. |
Ensures minimal downtime for your critical, complex equipment. |
| Service Plan |
Factory Verified Calibration |
Comprehensive service plan including precise calibration, firmware upgrades, maintenance, and more. |
Restores your instrument to factory-new condition. |
Recommended Equipment List for Machine Diagnostics
Ideal for Monitoring and Validating Hardware Operations in a PDV system
| Product | Description | Advantage | |
|---|---|---|---|
| Hardware Acquisition (one or both) |
MSO58LP: 1 GHz LPD64 |
5 Series Low Profile 6 Series Low Profile Digitizer between 2.5 GHz and 8 GHz bandwidth. Multiple oscilloscopes can be daisy-chained in a series to help synchronize and coordinate other devices. |
High channel density and synchronization for comprehensive sensor data acquisition. |
| Hardware Signal Source (one or both) |
AFG31000 AWG5200 |
Generate precise signals for calibration and testing. The AFG31000 and AWG5200 signal generators provide the flexibility and control needed to test the accuracy of PDV measurements and verify proper system functionality. |
Precise signal generation for calibration and testing accuracy. |
Service Plan
|
|
Gold Care Plan
|
Premier service plan including loaner unit, free calibration, full damage coverage, and more.
|
Ensures minimal downtime for your critical, complex equipment. |
Service Plan
|
|
Factory Verified Calibration
|
Comprehensive service plan including precise calibration, firmware upgrades, maintenance, and more.
|
Restores your instrument to factory-new condition. |
