New Analysis Tools for PDNs

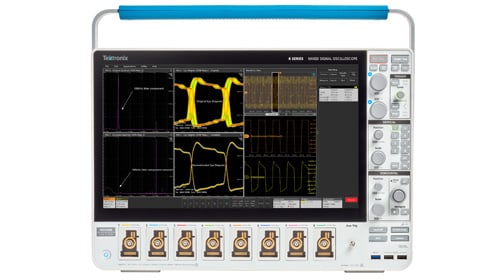

The new Power Distribution Network software (option PDN) paired with our low noise oscilloscopes and probes, enables easy identification of noise sources, modeling of jitter solutions, and  stability measurements even on power distribution networks with extremely high, dynamic current requirements.

• Confidently assess power distribution network stability, even in nonlinear, time-variant systems with non-invasive Stability Evaluation for Power Integrity Analysis (SEPIA) measurements by PICOTEST.
• Accurately track power rail noise in high-current power delivery networks with automated Power Supply Rejection Ratio (PSRR) measurement, and spectrum analysis available on every channel.
• Bridge the gap between power integrity and signal integrity with jitter analysis and filter modeling to assess the impact of power rail noise on clock and data signals.

What is SEPIA?

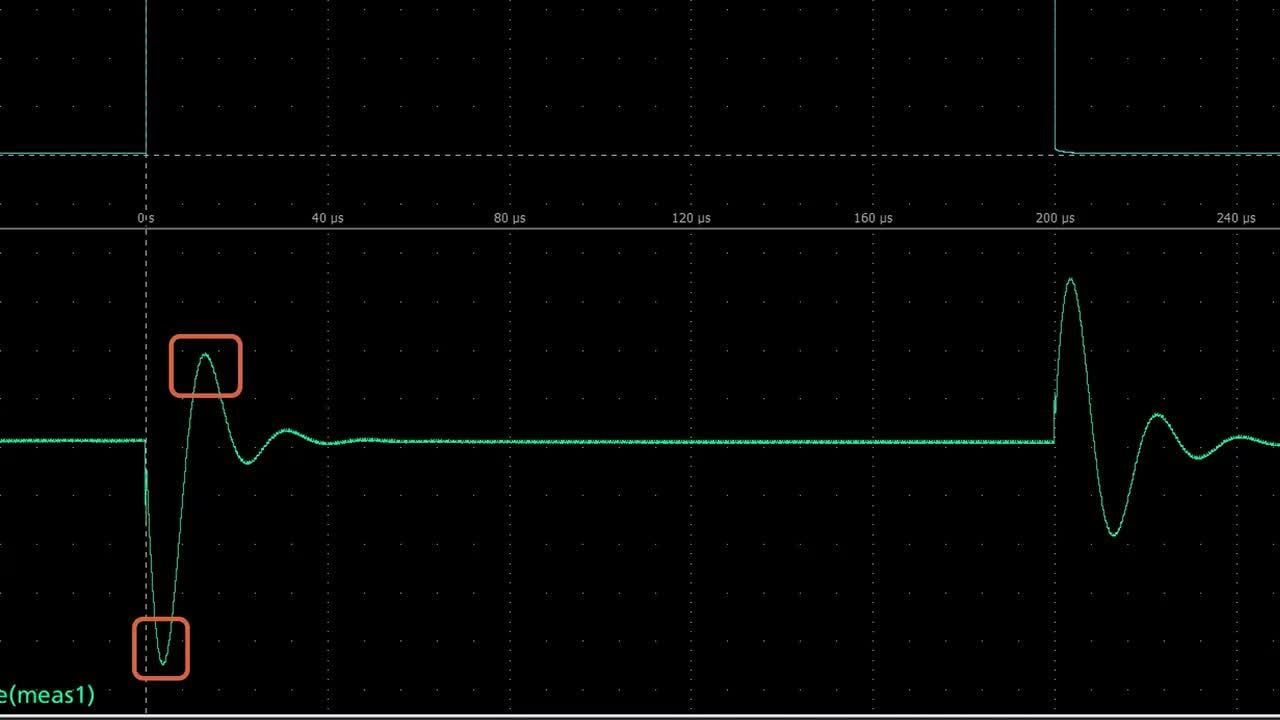

In this video, Steve Sandler from PICOTEST, creator of SEPIA, explains why step load response is superior to traditional bode plots for validating data center power.



Get the Details
