Digital Multimeters (DMM) Selector Guide


STANDARD PERFORMANCE FOR THE MOST ESSENTIAL NEEDS

2110 : 5½-Digit Dual-Display Digital Multimeter

2110 DMM
  • Measure and display two parameters concurrently
  • Sample a signal at 50,000 readings/s
  • Measure temperature and capacitance
  • Interface to a PC or a system with the USB interface or the optional GPIB interface
Learn more about the 2110
Efficiently conduct laboratory exercises in student labs with Tek SmartLab™ Software and instrumentation including the 2110 DMM.
Efficiently conduct laboratory exercises in student labs with Tek SmartLab™ Software and instrumentation including the 2110 DMM

2100 6½-Digit USB Multimeter

2100 61/2 DMM
  • Connect to either the front terminals or the rear terminals
  • Measure any parameter with fully-specified accuracies
  • Interface to a PC with the USB-TMC compliant protocol
Learn more about the 2100

ENHANCED PERFORMANCE WITH A TOUCHSCREEN GRAPHICAL USER INTERFACE

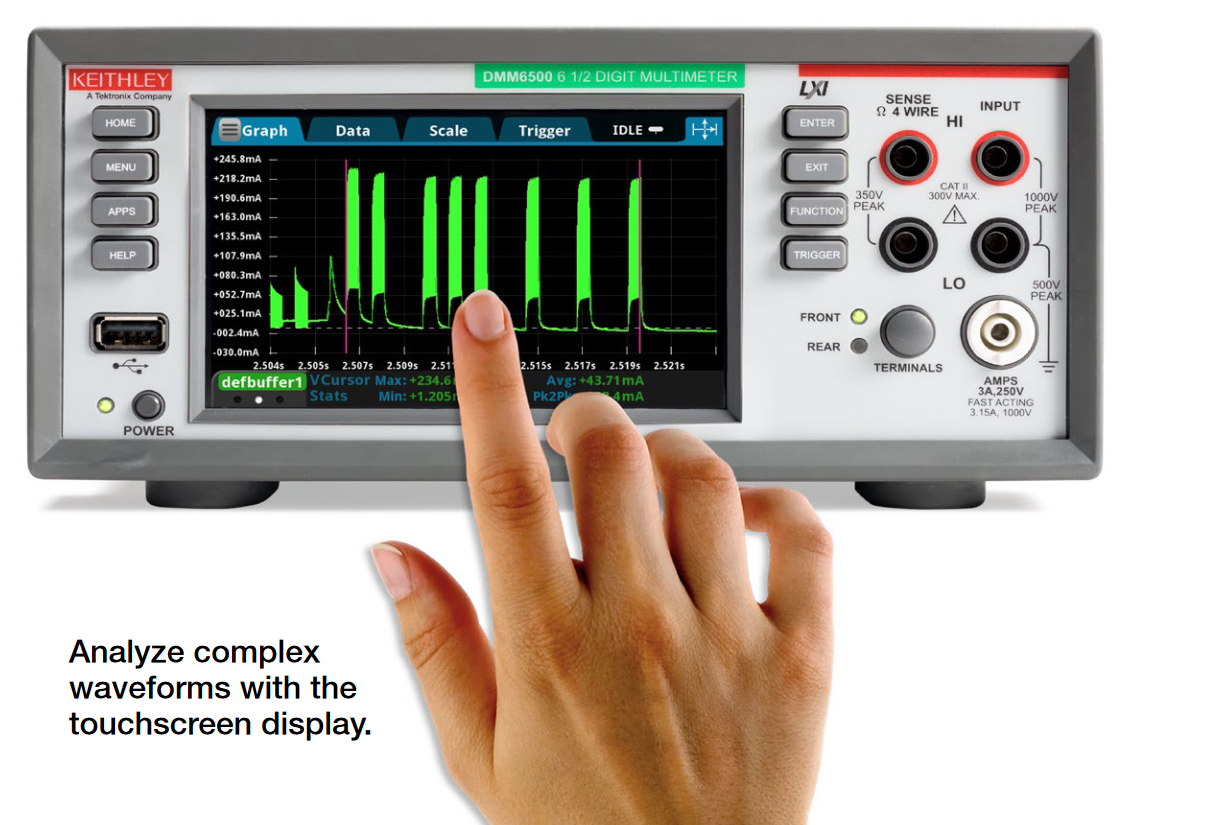

DMM6500 6½-Digit Bench/System Digital Multimeter

6500 DMM
  • Capture complex signals and transients with up to 1 Msample/s 16-bit digitizing
  • Make low level measurements with 100 nV, 10 pA, and 1 µΩ sensitivities
  • Measure with superior 0.0025% basic, 1-year, DC Volt accuracy and 0.0075% basic, 1-year resistance accuracy
  • Analyze data and display waveform plots on the 5 inch (12.7 cm) touchscreen display
  • Measure power circuit current up to 10 A
  • Interface to a PC with LAN/LXI and USB-TMC interfaces or optional GPIB or RS-232 interfaces

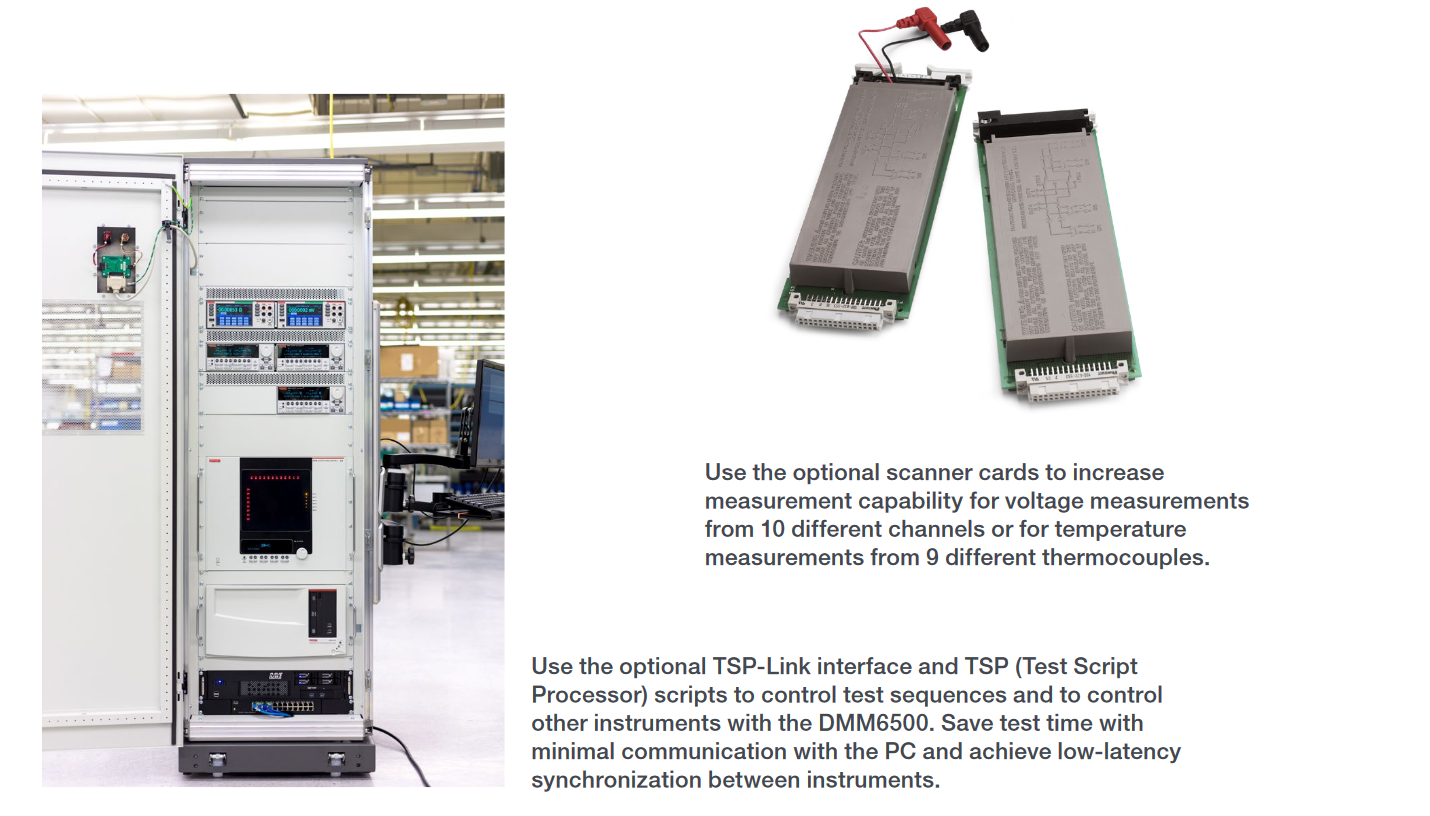

  • Test up to 10 DUTs in one test setup with the optional plug-in scanner cards
Learn more about the 6500
6500 DMM

NO COMPROMISE: HIGH SPEED AND HIGH ACCURACY

DMM7510 7½-Digit Graphical Sampling Multimeter

DMM7510
  • Capture IoT wireless device load current transmit bursts wit 18-bit, 1Msample/s digitizing
  • Measure ultra-low sleep mode currents on processors and products with 1 pA current sensitivity
  • Hold DUTs to tight test tolerances using voltage measurements with accuracies as low as 14 ppm
  • Store up to 27.5 million readings for profiling load current waveforms and transient waveforms
  • Take measurements as fast as 26,000 readings/s for high throughput testing
  • Get fast insight into waveform characteristics with the 5 inch (12.7 cm) touchscreen display
  • Execute custom test scripts and control other instruments with the built-in test script processing language
  • Interface to a PC with either LXI LAN, USB, or GPIB interfaces
Learn more about the 7510
DMM 7510

SAVE RACK SPACE AND DOUBLE TEST CAPACITY IN MANUFACTURING

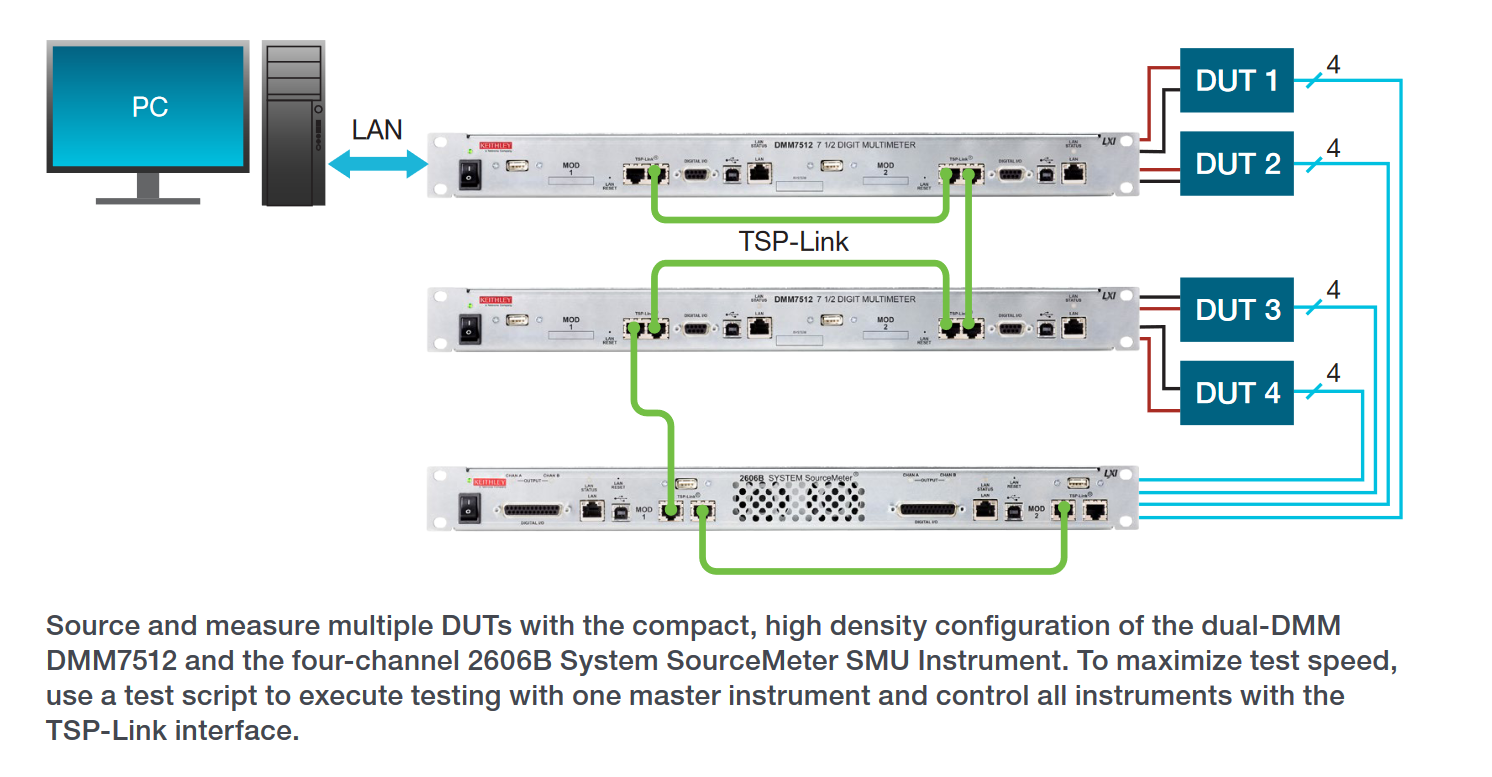

DMM7512 Dual Channel 7½-Digit Sampling Multimeter
DMM 7510
  • Double measurement performance with two independent, identical 3½- to 7½-digit DMMs similar to the DMM7510 in a 1U high, full rack width chassis
  • Capture waveforms such as battery drain currents with up to 1 Msample/s, 18-bit digitizing and 0.1 nA and 1 µV sensitivities
  • Simultaneously capture voltage and current waveforms to determine a device’s instantaneous peak and average power
  • Evaluate low power components including quiescent or sleep mode states with 10 nV, 0.1 µΩ, and 1 pA sensitivities
  • Make high accuracy, low resistance measurements with offset compensated Ohms, four-wire measurement, and dry circuit voltage control
  • Maximize test uncertainty ratios based on 1-year DV volts accuracies as good a 14 ppm.
  • Reduce test time by executing test scripts with the Embedded Test Script Processor, which saves PC command communication overhead.
  • Obtain tight synchronization between the two DMMs using TSP-Link® communication
Learn more about the 7512
DMM 7510

HIGH ACCURACY WITH HIGH RESOLUTION

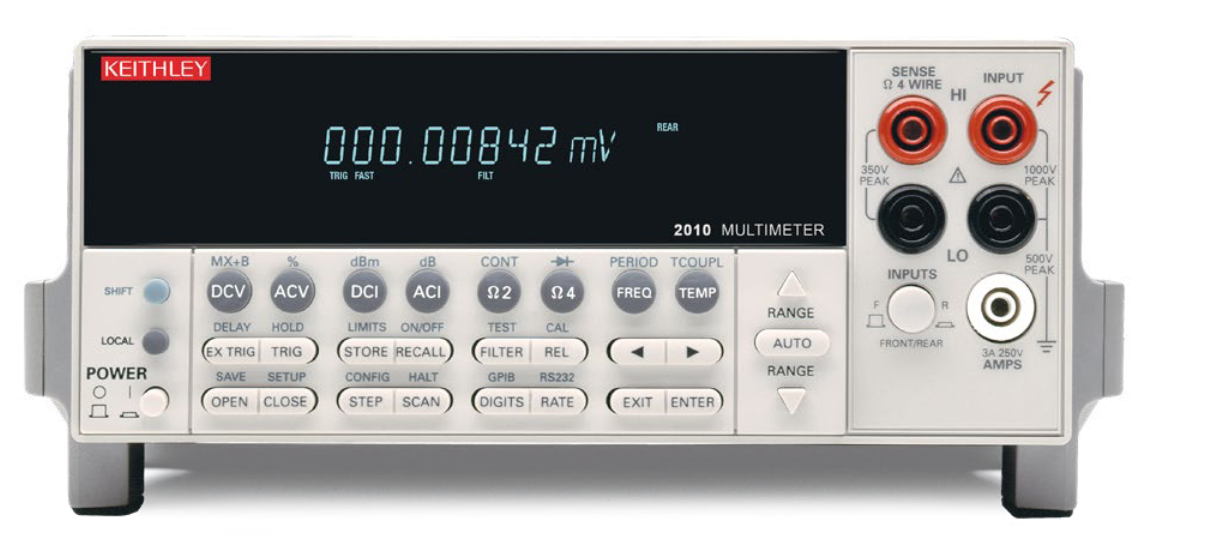

2010 Low Noise 7½-Digit Autoranging Multimeter
DMM 2010
  • Resolve low voltages with the 100 nVrms noise floor
  • Make automatic ratio measurements on two voltages with the front and rear inputs
  • Minimize device self-heating with low power resistance measurements
  • Avoid breaking down oxides or films on relay contacts and connectors with the dry circuit test function
  • Test up to 10 DUTs with an optional voltage or temperature plug-in scan card
  • Interface to a PC with the RS-232 or the GPIB interface
Learn more about the 2010

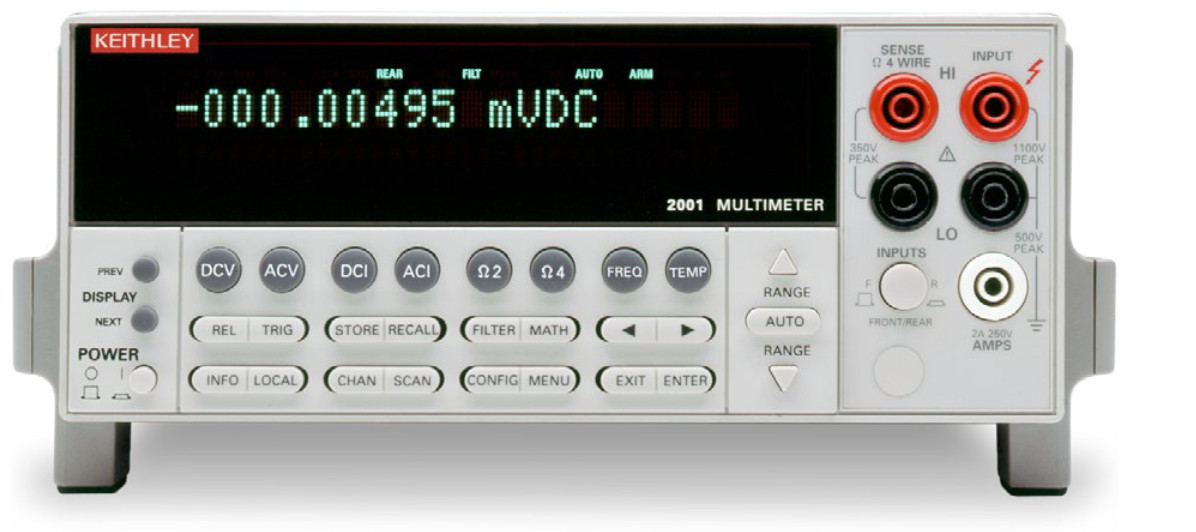

2001 7½-Digit High Performance Multimeter
DMM 2010
  • Capture spikes as narrow as 1µs with the peak detector function
  • Perform in-circuit current measurements without breaking the circuit
  • Automatically separate components based on measurement limits using the Binning function
  • Measure up to 10 channels of voltage or 9 channels of temperature with the optional plug-in scanner cards
  • Make high accuracy, 2 MHz bandwidth AC voltage measurements for control system analysis
  • Connect to a PC with the GPIB interface
Learn more about the 2001

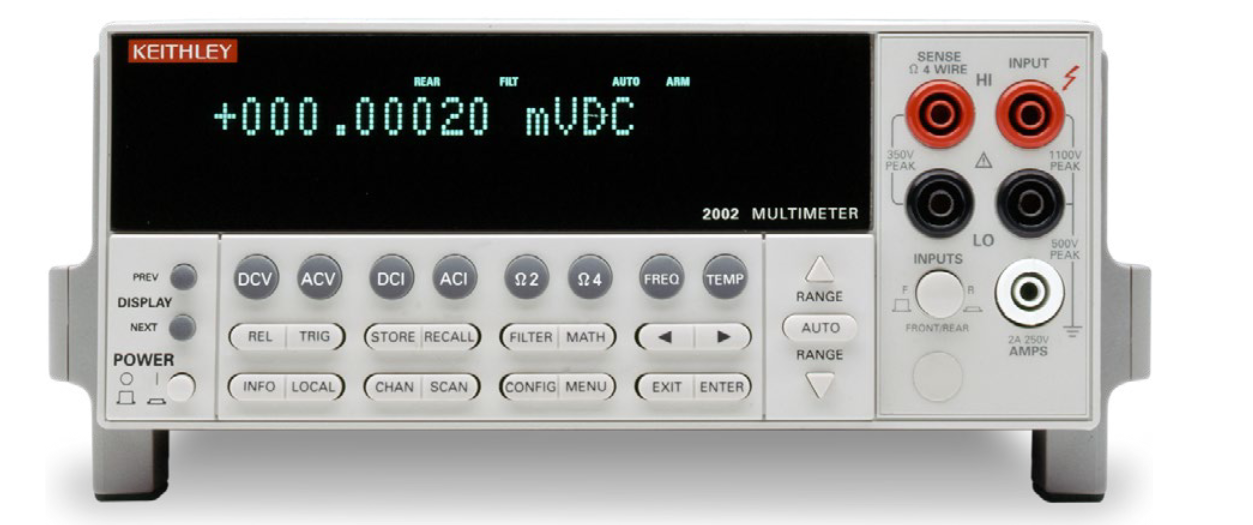

2001 8½-Digit High Performance Multimeter
DMM 2002
  • Make the most accurate voltage measurements with tolerances as narrow as 10 ppm
  • Capture spikes as narrow as 1 µs with the peak detector function
  • Perform in-circuit current measurements without breaking the circuit
  • Automatically separate components based on measurement limits using the Binning function
  • Measure up to 10 channels of voltage or 9 channels of temperature with the optional plug-in scanner cards
  • Make high accuracy, 2 MHz bandwidth AC voltage measurements for control system analysis
  • Connect to a PC with the GPIB interface
Learn more about the 2002

PRECISION MULTI-CHANNEL MEASUREMENTS FOR DATA ACQUISITION

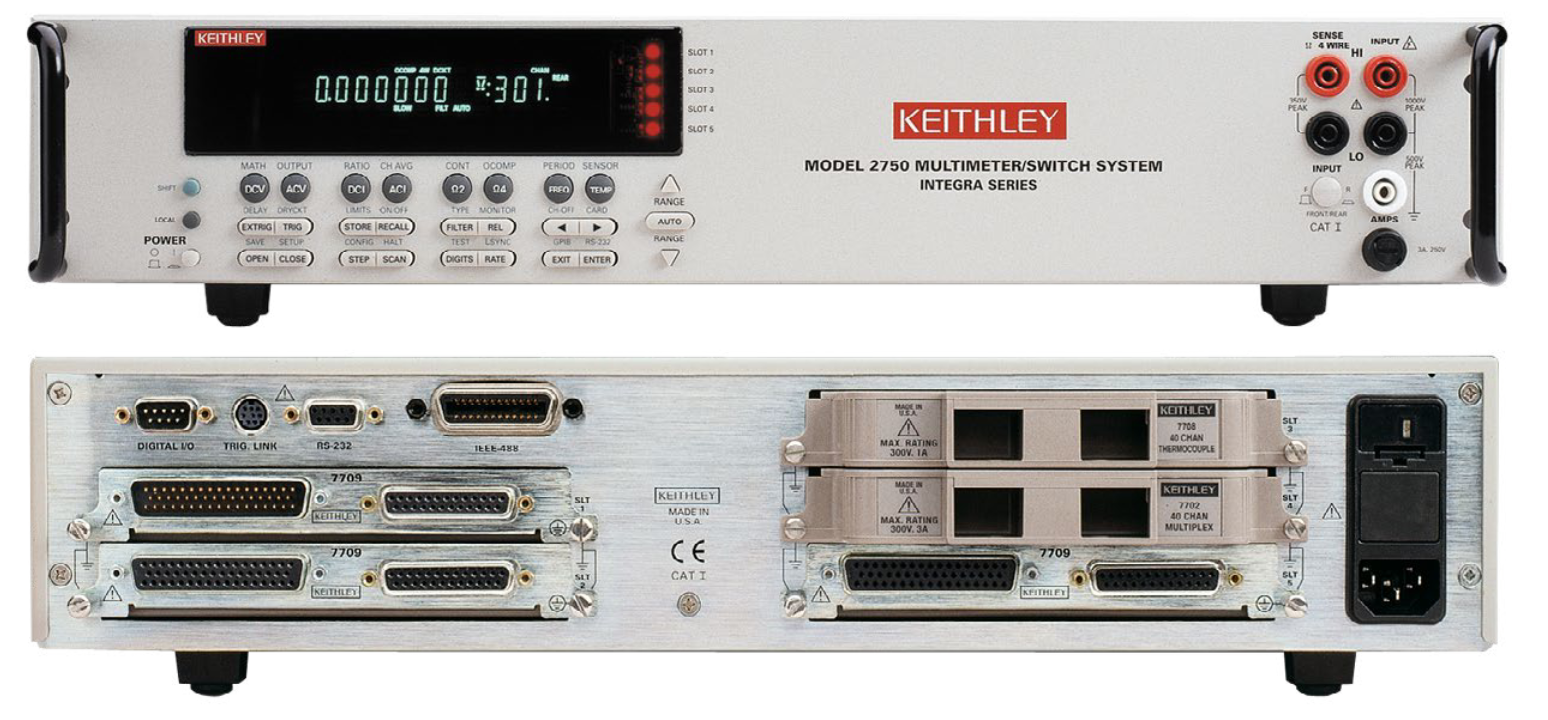

2750 Multimeter/Switch Systems
DMM2700
  • Build a test system as large as 200 differential input channels
  • Design a versatile system using up to 5 different models of the 7700-series plug-in switch modules in a 2750
  • Measure low resistive components with 1 µΩ sensitivity
  • Use the dry circuit function to protect sensitive devices from damage and to minimize self-heating errors during testing
  • Make measurements with the high performance 6½-digit DMM
  • Interface to a PC with the GPIB or RS-232 interface
Learn more about the 2750

PRECISION MULTI-CHANNEL MEASUREMENTS WITH BOTH MORE PERFORMANCE AND WITH THE MOST SIMPLIFIED SETUP PROCEDURE

DAQ6510 Data Acquisition and Logging, Multimeter System
DAQ 6510
  • Set up a test in minutes with the 5-inch (12.7 cm) touchscreen display and graphical user interface
  • Test low power devices with current sensitivity down to 10 pA
  • Save upgrade costs by using the same plug-in switch modules as the 2750
  • Monitor up to 80 channels of thermocouple, RTD, or thermistor temperature measurements
  • Monitor fast-changing signals with the 1 Msample/s, 16-bit digitizer
  • Make high precision measurements with the high performance 6½-digit DMM
  • Interface to a PC with either LAN LXI or USB or add an RS-232 or a GPIB option
  • Control other instruments and execute a test with the built-in scripting code and the Test Script Processor (TSP®), TSP-Link® I/O option
Learn more about the DAQ6510

HIGH CHANNEL COUNT AND PRECISION MEASUREMENT DATA ACQUISITION SYSTEMS

3706A System Switch/Multimeter
3706A
16-pin connector test system using a 2450 Source-Measure Instrument and a 3706A with 3740 and 3721 Multiplexer Plug-In Modules
  • Build a test system with as many as 576 two-wire or 720 one-wire multiplexed channels or with up to 2,688 matrix crosspoints
  • Fill up to 6 slots with 10 different 3700 Series plug-in switch modules
  • Make the most accurate measurements with the 7½-digit DMM and 13 measurement functions
  • Maximize throughput with measurement speeds up to 14,100 readings/s
  • Minimize time-consuming interaction with a PC by using the 3706A as a master system controller using Keithley’s internal Test Script Processor (TSP) software
  • Control other LAN-based instruments with the TSP-Link interface
  • Interface to a PC with LAN/LXI, USB, or GPIB interfaces
Learn more about the 3706A
