BERTScope™ Differential ISI Board
Precision ISI Test Accessory
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
The BERTScope Differential ISI Board meets the needs of engineers constructing stressed eye type receiver jitter tolerance test signals. It provides a convenient variety of realistic test channels for designers wanting to exercise semiconductor circuits with features such as de-emphasis.
Notice to EU customers
This product is not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.
Key features
The board has been designed with the following features:
- Specially designed to provide a low cost, high accuracy method of introducing controlled amounts of Inter-Symbol Interference (ISI) for stress testing and general lab use
- Matched Differential Lines of the following nine lengths:
2.42", 5", 6.75", 9", 12", 17," 24", 31", 40"
- Matched 3 dB attenuators for easy amplitude adjustment in compliance testing for standards such as Serial ATA
- Flexible and easy to use around the lab with many different pieces of test equipment
- Connector pairs aligned for easy cascade of lines for added length
- Individually characterized s parameter data optionally available
- Correctly exhibits skin effect losses

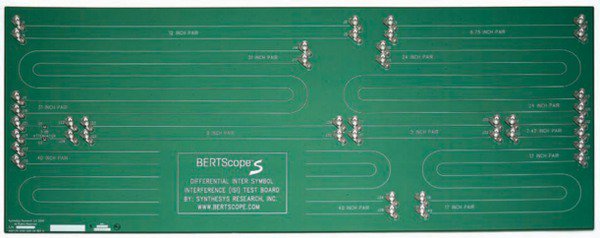

BSA12500ISI board
Measurement examples

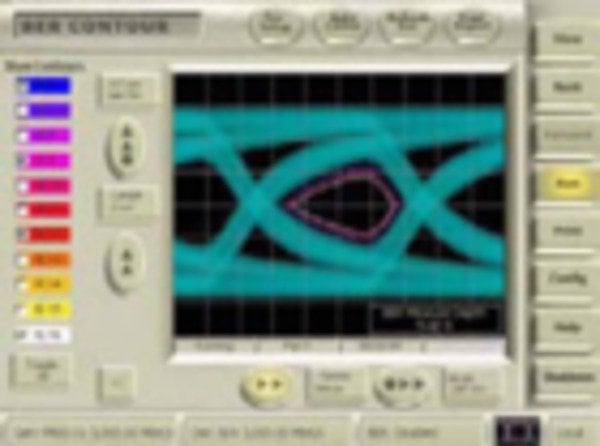

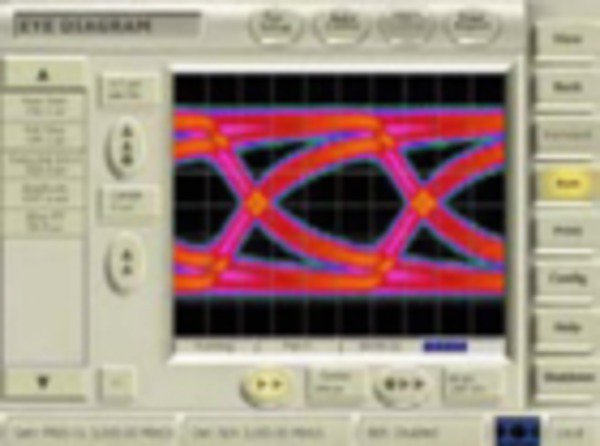

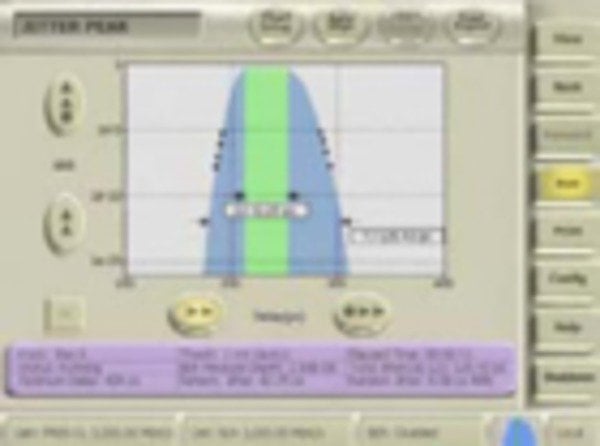

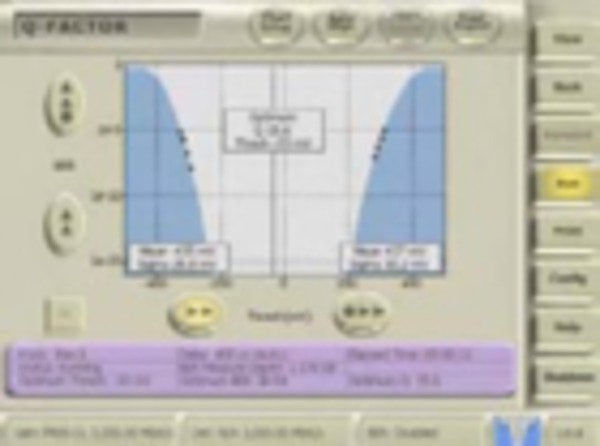

Measurement screens with 40-inches, 3 Gb/s, PRBS7

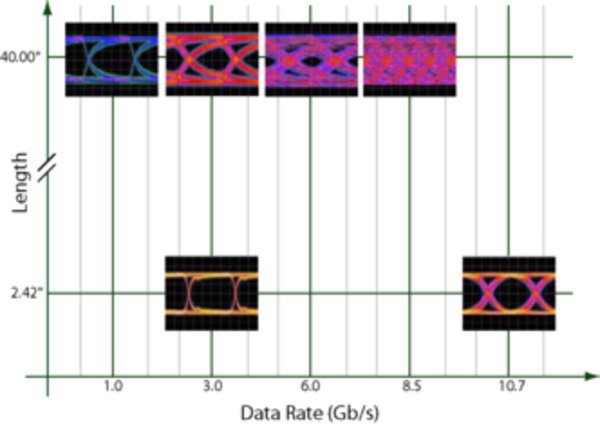

Example measured eye diagram

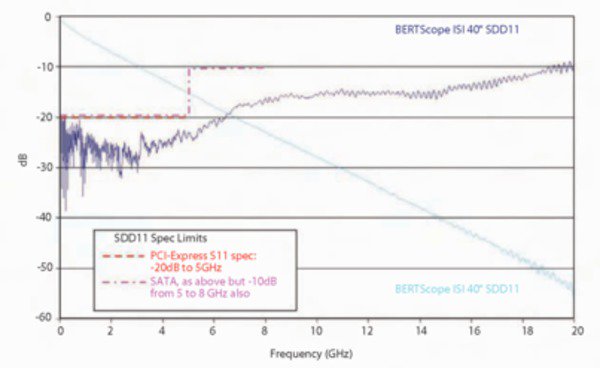

Example measured properties of 40-inch length: Forward SDD21 and Reflected SDD11

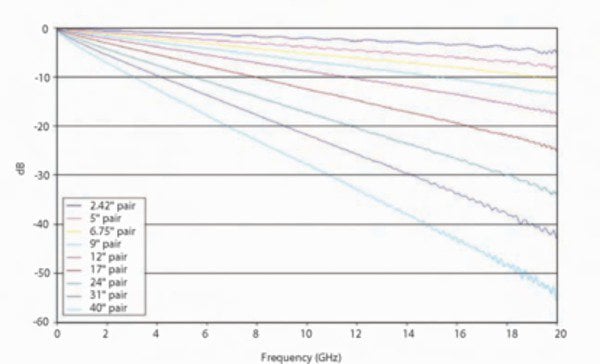

Example measured SDD21 responses for all lengths
Compliance information
- BERTScope ISI Board compliance to common standards
Standard Requirement BERTScope ISI Board Trace Length (inches) DisplayPort, Reduced Bit Rate (RBR), 1.62 GHz Inter Symbol Interference (ISI) Interconnect Media 40+31+24+17 DisplayPort, High Bit Rate (HBR), 2.7 GHz ISI Interconnect Media 24 PCI-Express Calibration Channel 40 Serial Advanced Technology Attachment (SATA), 6 Gbps Compliance Interconnect Channel (CIC) 17 SATA, Gen1x and Gen2x CIC 40 Serial Attached SCSI (SAS) Low-loss Transmitter Compliance Transfer Function (TCTF) Test Load 24 TCTF Test Load 40 XAUI (802.3ae) Compliance Interconnect 40 10GBASE-KX4 (802.3ap) Test Channel 40+24 8x Fibre Channel (8xFC) TCTF for 400-DF-EL-S Intercabinet Gamma Point 31
Ordering information
Models
- BSA12500ISI
- Differential ISI Board
Typical S parameters are available upon request.
