BERTScope™ Differential ISI Board

Precision ISI Test Accessory

Les produits figurant sur cette fiche technique ne sont plus vendus par Tektronix.
Référez-vous à Tektronix Encore pour les équipements de test reconditionnés.
Consultez l'assistance et les informations de garantie pour ces produits.

BSA12500ISI-Datasheet
Precision ISI Test Accessory

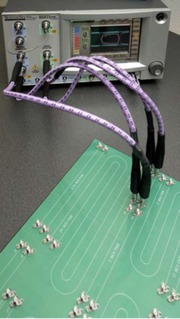

The BERTScope Differential ISI Board meets the needs of engineers constructing stressed eye type receiver jitter tolerance test signals. It provides a convenient variety of realistic test channels for designers wanting to exercise semiconductor circuits with features such as de-emphasis.

Notice to EU customers

This product is not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.

Key features

The board has been designed with the following features:

  • Specially designed to provide a low cost, high accuracy method of introducing controlled amounts of Inter-Symbol Interference (ISI) for stress testing and general lab use
  • Matched Differential Lines of the following nine lengths:

    2.42", 5", 6.75", 9", 12", 17," 24", 31", 40"

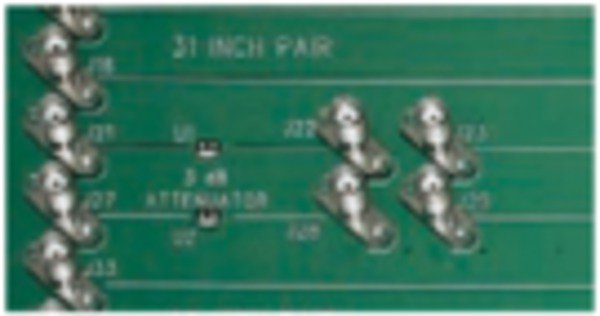

  • Matched 3 dB attenuators for easy amplitude adjustment in compliance testing for standards such as Serial ATA

    BSA12500ISI-Datasheet-EN_US-9-L


  • Flexible and easy to use around the lab with many different pieces of test equipment
  • Connector pairs aligned for easy cascade of lines for added length
  • Individually characterized s parameter data optionally available
  • Correctly exhibits skin effect losses

BSA12500ISI board

BSA12500ISI-Datasheet-EN_US-10-L


Measurement examples

Measurement screens with 40-inches, 3 Gb/s, PRBS7

BSA12500ISI-Datasheet-EN_US-11-L


BSA12500ISI-Datasheet-EN_US-12-L


BSA12500ISI-Datasheet-EN_US-13-L


BSA12500ISI-Datasheet-EN_US-14-L


Example measured eye diagram

BSA12500ISI-Datasheet-EN_US-15-L



Example measured properties of 40-inch length: Forward SDD21 and Reflected SDD11

BSA12500ISI-Datasheet-EN_US-16-L


Example measured SDD21 responses for all lengths

BSA12500ISI-Datasheet-EN_US-17-L


Compliance information

BERTScope ISI Board compliance to common standards
Standard Requirement BERTScope ISI Board Trace Length (inches)
DisplayPort, Reduced Bit Rate (RBR), 1.62 GHz Inter Symbol Interference (ISI) Interconnect Media 40+31+24+17
DisplayPort, High Bit Rate (HBR), 2.7 GHz ISI Interconnect Media 24
PCI-Express Calibration Channel 40
Serial Advanced Technology Attachment (SATA), 6 Gbps Compliance Interconnect Channel (CIC) 17
SATA, Gen1x and Gen2x CIC 40
Serial Attached SCSI (SAS) Low-loss Transmitter Compliance Transfer Function (TCTF) Test Load 24
TCTF Test Load 40
XAUI (802.3ae) Compliance Interconnect 40
10GBASE-KX4 (802.3ap) Test Channel 40+24
8x Fibre Channel (8xFC) TCTF for 400-DF-EL-S Intercabinet Gamma Point 31

Ordering information

Models
BSA12500ISI
Differential ISI Board

Typical S parameters are available upon request.
