Arbitrary Waveform Generator

AWG7102 • AWG7101 • AWG7052 • AWG7051

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

AWG7102 • AWG7101 • AWG7052 • AWG7051

Features & Benefits

  • 10 GS/s (20 GS/s) and 5 GS/s Models
  • 1 or 2 Arbitrary Waveform Outputs
    • Accurate Timing with only 20 psp-p Total Jitter (at 10-12 BER, Typical)
    • 45 ps Tr/Tf (20% to 80%)
    • ±100 ps Range (1 ps Resolution) Interchannel Skew Control
  • 2 or 4 Variable-level Marker Outputs
    • Accurate Timing with only 30 psp-p Total Jitter (at 10-12 BER, Typical)
    • 45 ps Tr/Tf (20% to 80%)
    • Up to 300 ps Range (1 ps Resolution) Delay Control
  • Vertical Resolution up to 10 bit Available: 10 bits (No Marker Output) or 8 bits (with Two Marker Outputs)
  • Up to 64 M (64,800,000) Point Record Length Provides Longer Data Streams
  • Down to 100 fs Resolution Edge Timing Shift Control
  • Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
  • Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
  • Intuitive User Interface Shortens Test Time
  • Integrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN, and USB Ports

Applications

  • Disk Drive (Magnetic/Optical) Read/Write:
    • Up to 5 Gb/s Data Rate (2 Points/Cell) or 50 ps Timing Resolution
  • Telecom/Data Communications:
    • Up to 10 Gb/s Data Rate (Binary, Pre/De-emphasis, and Multilevel Logic)
  • Wireless Communications:
    • Up to 5 GHz (4 Waveform Points/Cycle) Arbitrary RF/IF and Wide-bandwidth Modulation I and Q Baseband Signals
  • Mixed-signal Design and Test:
    • 2-channel Analog plus 4-channel Marker Outputs
  • High-speed, Low-jitter Data/Pulse and Clock Source
  • Real-world, Ideal, or Distorted Signal Generation – Including All the Glitches, Anomalies, and Impairments
  • Enhanced/Corrupted Playback of DSO Captured Signals
  • Waveform Vectors Imported from Third-party Tools such as MATLAB, MathCAD, Excel, and Others

The AWG7000 Series of Arbitrary Waveform Generators Delivers the Industry’s Best Mixed-signal Stimulus Solution for Ever-increasing Measurement Challenges

The AWG7000 Series Arbitrary Waveform Generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth and signal fidelity, and uncompromised usability.

This family offers the industry’s best solution to the challenging signal stimulus issues faced by designers verifying, characterizing, and debugging sophisticated electronic designs.

With sample rates from 5 GS/s to 20 GS/s (10 bits), together with 1 to 2 output channels, the toughest measurement challenges in the disk drive, communications, digital consumer, and semiconductor design/test industries can be easily solved.

The open Windows (Windows XP)-based instruments deliver ease of use and allow connectivity with peripherals and compatibility with third-party software.

Application Examples

The need for performance arbitrary waveform generation is broad and spans over a wide array of applications. With the AWG7000 Series, Tektronix’ 3rd generation of industry-leading Arbitrary Waveform Generators represent a new benchmark in performance, sample rate, signal fidelity, and timing resolution.

The ability to create, generate, or replicate either ideal, distorted, or “real-life” signals is essential in the design and testing process. Signal generation with controllable rise and fall times, noise or jitter; pre-emphasis, multilevel, and mixed signals; wideband RF, and fast-changing signals are just some of the capabilities of the AWG7000 Series.

Pre/De-Emphasized Signal Generation
A000_7040-N

Figure 1: 5 Gb/s Pre/De-emphasized signal.

With increasing transmission speeds and to compensate for frequency characteristics of “lossy” media, the technique of pre/de-emphasis is increasingly applied. Serial data standards such as PCI Express and others have also included pre/de-emphasis tests as a requirement to meet the respective compliance test specification.

The basic theory of pre-emphasis is that for any series of bits of the same value, the first bit always has a higher voltage level than the following bits. By doing so, frequency characteristics of transmission lines can be compensated thus the signal fidelity at the receiver side increased.

The AWG7000 Series, with its performance and analog output, enables users to directly generate pre/de-emphasized signals for next-generation serial data standards. It also enables users to generate 3-level signals as required for SATA Out-of-Band (OOB) testing.

The direct generation of such signals provides an increased signal quality and avoids cumbersome signal generation using multiple channels and a power combiner. See Figure 1.

Multilevel Signal Generation
A000_7037-N

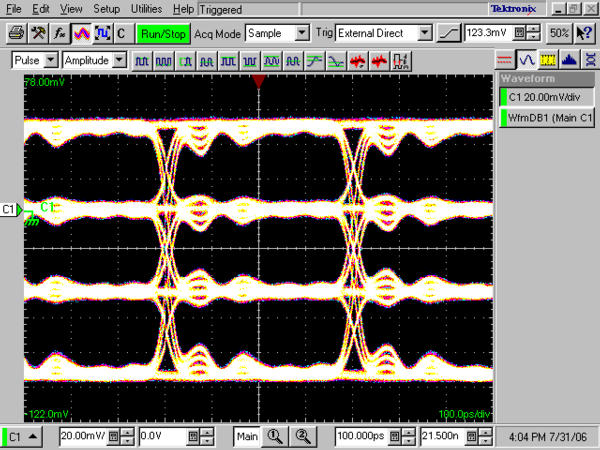

Figure 2: 20 Gb/s 4PAM signal (5 GS/s; AWG7101).

The requirements for serial interfaces are continuously increasing. Higher and higher data rates are required, and the performance of cables and circuits is moving closer to their theoretical limits. One technique to increase the data rate without increasing the transition rate is by applying multilevel signals, wherein a signal can assume more than the standard binary 2 levels.

In multilevel signaling one can think of multilevel discrete amplitudes of a signal. This phenomenon is known as Pulse Amplitude Modulation or PAM. A 4PAM signal, a signal with 4 different amplitudes, increases the data rate by four without increasing the transition rate of the signal. Multilevel signals are not only applied for data transmission. Multilevel memory chips, storing more than a single bit in an individual memory element, are being produced and multilevel coding of data for storage on optical disks is being considered as an efficient way to increase storage capacity.

The AWG7000 Series enables you to test your latest design by generating any kind of mixed or multilevel signal. See Figure 2.

Signal Generation for Storage Device Testing
A000_7039-N

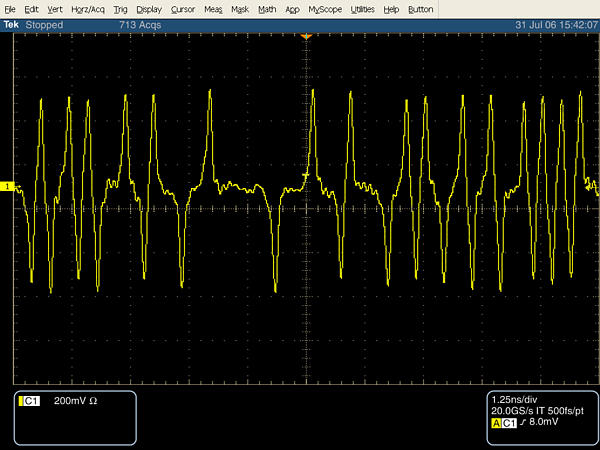

Figure 3: Hard disk read channel signal (5 Gb/s 2 points per cell); AWG7101 with 10 GS/s.

Increasing capacity requirements for storage devices leads to the development of new and faster read-and-write strategies for magnetic as well as optical storage devices. Multilevel coding of data for storage on optical disks is also being considered as an efficient way to increase storage capacity.

The AWG7000 Series, with its ability to generate an accurate reproduction of the read­and­write signals, enables users to design, develop, and test the latest storage devices. With sample rates up to 20 GS/s, and the generation of up to 6 signals (2 analog plus 4 marker) with a clock timing resolution of 100 ps, the AWG7000 Series represents a new benchmark in the industry. See Figure 3.

Wideband RF-signal Generation
A000_7038-N

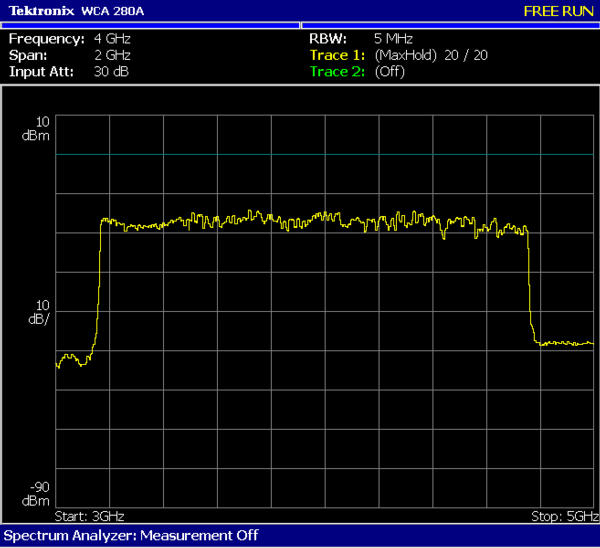

Figure 4: UWB (MBOA) three band (480 Mb/s 1795 MAC bytes 96 symbol payload); 3.168 GHz-4.752 GHz; AWG7102; Interleave at 15.84 GS/s; 0.5 Vp-p.

In the RF world, technologies ranging from a wireless mouse to a satellite image require test equipment that can provide enough sample rate and resolution to recreate even the most complex RF behavior. The latest digital RF technologies often exceed the capabilities of current test equipment to generate wide-bandwidth and fast-changing signals that are increasingly seen in many wireless applications such as radar, UWB, and others.

The AWG7000 Series enables the direct generation of RF signals and their output through the D/A converter for signals up to a carrier frequency of 5 GHz and a bandwidth of 5.8 GHz. The direct generation of IF or RF signals avoids I/Q degradations and lengthy adjustments associated with traditional generation using I/Q modulators. The AWG7000 Series with its maximum sample rate of 20 GS/s is the sole solution that allows a direct RF signal generation for up to 5 GHz. See Figure 4.

Additional Software Application Tools Extending Waveform Generation

A001_3148-N

RFXpress (RFX100)

RFXpress is a software package that synthesizes digitally modulated baseband, IF, and RF signals. It takes IQ, IF, and RF signal generation to the next level and fully exploits the wideband signal generation capabilities of Arbitrary Waveform Generators (AWGs). Supporting a wide range of modulations, as well as the symbol map functions, the software allows you to define your own modulation.

UWB-WiMedia signal creation, a software module for RFXpress, has the capability to digitally synthesize and generate RF signals in Band Groups 1 and 2 of the UWB spectrum. As per the latest WiMedia specification, signals will band hop in real-time over 1.5 GHz modulation bandwidth including all the different preamble synchronization sequences, cover sequences, TFCs, and band groups. All six band groups (BG1 to BG6) can be generated with band hopping in either IQ or IF. The conformance mode enables you to generate all signals that conform to WiMedia’s specifications, while the custom mode allows you to adjust the signals for stress and margin testing.

A001_3147-N

SerialXpress® (SDX100)

SerialXpress enables creation of exact waveforms required for thorough and repeatable design validation, margin/characterization, and conformance testing of high-speed serial data receivers. It considerably simplifies the signal creation and Jitter simulations, thus reducing overall development and test time. In addition to supporting generation of Jitter (Random, Periodic (sinusoidal), ISI, and DCD) SerialXpress also supports SSC, pre-emphasis, and noise addition. This allows the user to create a combination of various impairments simultaneously to stress the receiver.

Both RFXpress and SerialXpress are powerful easy-to-use software packages to synthesize RF and high-speed serial data signals respectively for arbitrary waveform generators (AWG). It runs as an integral part of the AWG7000 Series arbitrary waveform generators or from an external PC.



Characteristics

Arbitrary Waveforms

Characteristic

AWG7102

AWG7101

AWG7052

AWG7051

Waveform Length

2 to 32,400,000 points (or 2 to 64,800,000 points, Option 01) in multiples of 64



Interleave:

2 to 64,800,000 points (or 2 to 129,600,000 points, Option 01) in multiples of 128

2 to 32,400,000 points (or 2 to 64,800,000 points, Option 01) in multiples of 64

Number of Waveforms

1 to 16,000

Sequence Length

1 to 4,000 steps

Sequence Repeat Counter

1 to 65,536 or infinite

Sequence Control

Repeat count, Wait for Trigger, Go-to-N, and Jump

Jump Mode

Synchronous and Asynchronous

Run Modes

   Continuous

Waveform is iteratively output. If a sequence is defined, the sequence order and repeat functions are applied

   Triggered

Waveform is output only once when an external, internal, GPIB, LAN, or manual trigger is received

   Gated

Waveform begins output when gate is true and resets to beginning when false

   Sequence

Waveform is output as defined by the sequence

   Interleave operation

Up to 20 GS/s sample rate (Option 06)

N/A

Clock Generator

   Sampling frequency

10 MS/s to 10 GS/s

(10 GS/s to 20 GS/s at interleave)

10 MS/s to 10 GS/s

10 MS/s to 5 GS/s

Resolution

8 digits

Internal Clock

   Accuracy

Within ±(1 ppm + Aging)

Aging: within ±1 ppm/year

   Clock phase noise

< -90 dBc/Hz at 100 kHz offset

Internal Trigger Generator

Internal Trigger Rate

   Range

1.0 μs to 10.0 s

   Resolution

3 digits, 0.1 μs minimum

Skew Control Between Outputs

   Range

-100 ps to +100 ps

N/A

-100 ps to +100 ps

N/A

   Resolution

1 ps

N/A

1 ps

N/A

   Skew accuracy

±(10% of setting +10 ps)

N/A

±(10% of setting +10 ps)

N/A

Main Arbitrary Waveform Output

Characteristic

AWG7102

AWG7101

AWG7052

AWG7051

Digital to Analog Converter

   Resolution

10 bit (no marker output) or 8 bit (2 ch markets available): each channel selectable

Standard Output (into 50 Ω)

   Number of arb outputs

2

1

2

1

   Output style

Differential

   Output impedance

50 Ω

   Connector

SMA Front

Amplitude

   Amplitude



      Normal

50 mVp-p to 2.0 Vp-p

      Direct

50 mV to 1.0 Vp-p

   Resolution

1 mV

   DC accuracy

±(3.0% of Amplitude + 2 mV) at offset = 0 V

Offset

   Range



      Normal

-0.5 V to +0.5 V

      Direct

N/A

   Resolution

1 mV

   Accuracy

±(2% of offset ±10 mV) at minimum amplitude

   Pulse response

(-1 and 1 waveform data, 0 V offset, through filter at 1 Vp-p)

Rise/Fall Time (20 to 80%)

      Normal

350 ps (at 2 0 Vp-p)

      Direct

75 ps (at 1.0 Vp-p)

   Overshoot

Less than 10% (at 1.0 Vp-p amplitude)

   Bandwidth (-3 dB) (typical)

      Normal

750 MHz

      Direct

3.5 GHz

   Timing skew

Less than 20 ps (Direct output; between each channel (+) Pos and (–) Neg output)

   Low-pass filter

      Normal

50 MHz, 200 MHz (Bessel type)

      Direct

N/A

   Delay from marker output

Normal: 50 MHz (9.7 ns), 200 MHz (3.9 ns), Through (2.1 ns), Direct (0.5 ns)

   Sine wave (up to 5th harmonic)

(10 GS/s clock, 32 waveform points, 312.5 MHz signal frequency, 1.0 V amplitude)

(5 GS/s clock, 32 waveform points, 156.25 MHz signal frequency, 1.0 V amplitude)

   Harmonic distortion (typical)

      Normal

≤ -35 dBc

≤ -40 dBc

      Direct

≤ -42 dBc

≤ -45 dBc

   Nonharmonic spurious (typical)

      Normal

≤ -50 dBc (DC to 5 GHz)

≤ -50 dBc (DC to 2.5 GHz)

   SFDR (typical)

(10 GS/s clock, Amplitude: 1 Vp-p, Offset: 0 V, filter: “through,” 10 bit DAC operation mode, DC to 5 GHz)

(5 GS/s clock, Amplitude: 1 Vp-p, Offset: 0 V, filter: “through,” 10 bit DAC operation mode, DC to 2.5 GHz)

      Normal

45 dB

51 dB

      Direct

45 dB (at 312.5 MHz)

51 dB (at 156 MHz)

   Phase noise

(10 GS/s clock, Amplitude: 1 Vp-p, Offset: 0 V, 312.5 MHz)

≤ -90 dBc/Hz at 10 kHz offset

(5 GS/s clock, Amplitude: 1 Vp-p, Offset: 0 V, 156 MHz)

≤ -90 dBc/Hz at 10 kHz offset

   Random Jitter (typical)

1010 clock pattern

   RMS

      Normal

1.6 ps

1.6 ps

      Direct

0.9 ps

0.9 ps

   Total Jitter (typical)

215-1 PN data pattern (at 10-12 BER)

   Peak-to-Peak

      Normal

50 ps at 0.5 Gb/s

50 ps at 0.5 Gb/s

      Direct

30 ps at 1 to 6 Gb/s

30 ps at 1 to 5 Gb/s

Option 02: High-bandwidth Output Option (Remove Standard Output)

Characteristic

AWG7102

AWG7101

AWG7052

AWG7051

Output Style

Differential

Output Impedance

50 Ω

Connector

SMA Front

Amplitude (into 50 Ω)

   Amplitude

500 mVp-p to 1.0 Vp-p

   Resolution

1 mV

   DC accuracy

±(2.0% of Amplitude + 2 mV)

Offset

N/A

Pulse Response

(-1 and 1 waveform data, 1 Vp-p)

Rise/Fall Time: (20 to 80%)

45 ps

Overshoot

Less than 3% (at 1.0 Vp-p amplitude)

Bandwidth (-3 dB) (typical)

5.8 GHz

Timing Skew

Less than 20 ps (between each channel (+) Pos and (–) Neg output)

Delay from Marker Output

0.2 ns

Sine Wave (up to 5th harmonic)

(10 GS/s clock, 32 waveform points, 312.5 MHz signal frequency, 1.0 V amplitude)

(5 GS/s clock, 32 waveform points, 156.25 MHz signal frequency, 1.0 V amplitude)

Harmonic Distortion (typical)

≤ -42 dBc

≤ -45 dBc

Nonharmonic Spurious (typical)

≤ -50 dBc, DC to 5 GHz

≤ -50 dBc, DC to 2.5 GHz

SFDR (typical)

(10 GS/s clock, Amplitude: 1 Vp-p, 10 bit DAC operation mode, DC to 5 GHz) 44 dB (at 312.5 MHz)

(5 GS/s clock, Amplitude: 1 Vp-p, 10 bit DAC operation mode, DC to 2.5 GHz) 48 dB (at 156 MHz)

Phase Noise

(10 GS/s clock, Amplitude: 1 Vp-p, 312.5 MHz)

≤ -90 dBc/Hz at 10 kHz offset

(5 GS/s clock, Amplitude: 1 Vp-p, 156 MHz)

≤ -90 dBc/Hz at 10 kHz offset

Random Jitter (typical)

1010 clock pattern

   RMS

0.9 ps

0.9 ps

Total Jitter (typical)

215-1 PN data pattern (at 10-12 BER)

   Peak-to-Peak

20 psp-p: at 2 to 10 Gb/s

20 psp-p: at 2 to 5 Gb/s

Option 06: Interleaved High-bandwidth Output in Addition to Option 02 (Remove Standard Output)Available for only AWG7102

Characteristic

Description

Output Style

Differential

Output Impedance

50 Ω

Connector

SMA Front

Zeroing Control

On or Off

Amplitude (into 50 Ω)

   Amplitude

Zeroing On: 250 mVp-p to 0.5 Vp-p

Zeroing Off: 500 mVp-p to 1.0 Vp-p

   Resolution

1 mV

   DC accuracy (typical)

±(8.0% of Amplitude + 2 mV) at offset = 0 V

Offset

N/A

Pulse Response

   Rise/Fall time: (20 to 80%)

45 ps

Overshoot

Less than 10% (at 1.0 Vp-p amplitude)

Bandwidth (-3 dB) (typical)

5.8 GHz

Delay from Marker Output

1.0 ns

Sine Wave (up to 5th harmonic)

(20 GS/s clock, 32 waveform points, 625 MHz signal frequency)

Harmonics Distortion

Zeroing On: ≤ -40 dBc (0.5 Vp-p)

Zeroing Off: ≤ -40 dBc (1 Vp-p)

Nonharmonic Spurious

DC to 5 GHz

Zeroing On: ≤ -45 dBc (0.5 Vp-p)

Zeroing Off: ≤ -45 dBc (1 Vp-p)

SFDR (typical)

(20 GS/s clock, 10 bit DAC operation mode, DC to 10 GHz)

2.5 GHz –

Zeroing On: 30 dB

Zeroing Off: 40 dB

Phase Noise

(20 GS/s clock, 625 MHz)

At 10 kHz offset –

Zeroing On: ≤ -85 dBc/Hz (0.5 Vp-p)

Zeroing Off: ≤ -85 dBc/Hz (1 Vp-p)

Auxiliary Outputs

Characteristic

AWG7102

AWG7101

AWG7052

AWG7051

Marker Output

   Number of outputs

4 (2 per channel)

2

4 (2 per channel)

2

   Output style

Differential

   Output impedance

50 Ω

   Connector

SMA Front

Level (into 50 Ω) (Twice for Hi_Z Input)

   Output window

-1.4 V to +1.4 V

   Amplitude

0.5 Vp-p to 1.4 Vp-p

   Resolution

10 mV

   External termination

-2.8 V to +2.8 V

   Level accuracy

±(10% of setting + 50 mV)

   Rise/Fall time (20% to 80%)

45 ps (1.0 Vp-p, Hi +1.0 V, Lo 0 V)

Marker Timing Skew

   Intra Skew

<13 ps (between each channel (+) Pos and (–) Neg output) (typical)

   In same channel

<30 ps (between Marker 1 and Marker 2 output) (typical)

Delay Control Between Markers

   Range

0 to 300 ps

   Resolution

1 ps

   Accuracy

±(5% of setting + 50 ps)

Random Jitter (typical)

1010 clock pattern

   RMS

1 ps

1 ps

Total Jitter (typical)

215-1 PN data pattern (at 10-12 BER)

   Peak-to-Peak

30 psp-p

30 psp-p

10 MHz Reference Out

   Amplitude

1.2 Vp-p into 50 Ω. Max 2.5 Vp-p open

   Impedance

50 Ω, AC coupling

   Connector

BNC Rear

DC Outputs

   Number of outputs

4: Independently controlled outputs

   Range

-3.0 to +5.0 V

   Resolution

10 mV

   Max. current

±30 mA

   Connector

2×4 Pin Header on front panel

Auxiliary Inputs

Characteristic

AWG7102

AWG7101

AWG7052

AWG7051

Trigger/Gate In

   Impedance

1 kΩ or 50 Ω

   Polarity

POS or NEG

   Connector

BNC Front

Input Voltage Range

1 kΩ: ±10 V

50 Ω: ±5 V

Threshold

   Level

-5.0 V to 5.0 V

   Resolution

0.1 V

   Trigger to output uncertainly



   Asynchronies between internal/external clock and trigger timing (typical)

2.2 ns at 10 GS/s, 2.6 ns at 7 GS/s, 3.4 ns at 5 GS/s

   Synchronize between external clock and trigger timing (typical)

10 GS/s

x1 clock divider: 8 clock + 50 psp-p 10 GS/s

x1 clock divider with specific timing: 50 psp-p, 10 psRMS

The ambient temperature variant allows only ±5 ℃

   Synchronize between external 10 MHz reference and trigger timing (typical)

10 GS/s setting: 8 clock + 150 psp-p

10 GS/s setting with specific timing: 150 psp-p, 30 psRMS

The ambient temperature variant allows only ±5 ℃

Trigger Mode

   Minimum pulse width

20 ns

   Trigger hold-off

832 × sampling_period - 100 ns

   Delay to analog out

128 × sampling_period + 250 ns

Gated Mode

   Minimum pulse width

1024 × sampling_period + 10 ns

   Delay to analog out

640 × sampling_period + 260 ns

Event Input

   Impedance

1 kΩ or 50 Ω

   Polarity

POS or NEG

Connector

BNC Front

   Input voltage range

1 kΩ: ±10 V

50 Ω: ±5 V

   Threshold level

-5.0 V to 5.0 V

   Resolution

0.1 V

Sequence Mode

   Minimum pulse width

20 ns

   Event hold-off

900 × sampling_period + 150 ns

   Delay to analog out

1024 × sampling_period + 280 ns (Jump timing: Asynchronous jump)

External Clock IN

   Input voltage swing

+5 to +11 dBm

   Impedance

50 Ω, AC coupled

   Frequency range

5 GHz to 10 GHz: (acceptable frequency drift is ±0.5%)

   Clock divider

1/1, 1/2, 1/4……1/256

1/2, 1/4……1/256

   Connector

SMA Rear

Fixed Reference Clock IN

   Input voltage range

0.2 Vp-p to 3.0 Vp-p

   Impedance

50 Ω, AC coupled

   Frequency range

10 MHz, 20 MHz, 100 MHz (with ±0.1%)

   Connector

BNC Rear

Variable Reference Clock IN

   Input ranges

5 MHz to 800 MHz (acceptable frequency drift is ±0.1%)

   Input voltage range

0.2 Vp-p to 3 Vp-p

   Impedance

50 Ω, AC coupled

   Multiplier rate

1 to 2000

(2 to 4000 at interleave)

1 to 2000

1 to 1000

   Connector

BNC Rear

AWG7000 Series Common Features

Characteristic

Description

Waveform File Import Capability

Tektronix DPO7000/TDS5000/6000/7000 (*.wfm), TDS3000 (*.ISF)

AWG400s/500s/610/615/710/710B (*.wfm, *.pat, *.seq)

Text data file (third-party software creation waveform data: MATLAB, MathCad, Excel)

S/W Driver for Third-party S/W

IVI-COM driver

Instrument Control / Data Transfer Ports

   GPIB*1

Remote control and data transfer. (Conforms to IEEE-Std 488.1, compatible with IEEE 488.2 and SCPI-1999.0)

   Ethernet (10/100/1000Base-T)*1

Remote control and data transfer. (Conforms to IEEE 802.3). RJ-45

   Computer system and peripherals

Windows XP Professional, 512 MB SDRAM, 20 GB removable Hard Drive at rear (available front mount kit), CD-RW/DVD drive at front, included USB compact keyboard and mouse

   PC I/O ports

USB 2.0 compliant ports (6 total, 2 front, 4 rear), PS/2 mouse and keyboard connectors (rear panel), RJ-45 Ethernet connector (rear panel) supports 10/100/1000Base-T, XGA out

Display

10.4 inch, LCD color display with touchscreen, 1024 (H) × 768 (V) (XGA)

Power Supply

100 to 240 VAC, 47 to 63 Hz

   Power consumption

450 W

Safety

UL61010-1,CAN/CSA-22.2, No.61010-1-04, EN61010-1, IEC61010-1

Emissions

EN 55011 (Class A), IEC61000-3-2, IEC61000-3-3

Immunity

IEC61326, IEC61000-4-2/3/4/5/6/8/11

Regional Certifications

   Europe

EN61326

   Australia /

   New Zealand

AS/NZS 2064

*1 Supported by MATLAB software through MATLAB Instrument Control Toolbox.

Physical Characteristics

Dimension

mm

in.

Height

245

9.6

Width

465

18.0

Length

500

19.7

Weight (approx.)

kg

lb.

Net

19

41.9

Net with Package

28

61.7

Mechanical Cooling Required Clearance

Top and Bottom

2 cm

0.8 in.

Side

15 cm

6 in.

Rear

7.5 cm

3 in.

Environmental

Characteristic

Operation

Nonoperation

Temperature

+10 °C to +40 °C

-20 °C to +60 °C

Humidity

5% to 80% relative humidity (% RH) at up to +30 °C

5% to 45% RH above +30 °C up to +50 °C

5% to 90% relative humidity (% RH) at up to +30 °C

5% to 45% RH above +30 °C up to +50 °C

Altitude

Up to 3,048 meters (10,000 feet)

Up to 12,192 meters (40,000 feet)

Random Vibration

0.27 GRMS, 5 to 500 Hz, 10 minutes per axis

2.28 GRMS, 5 to 500 Hz, 10 minutes per axis

Sine Vibration

0.33 mmp-p (0.013 in.p-p) constant displacement, 5 to 55 Hz

Mechanical Shock

Half-sine mechanical shocks, 30 g peak amplitude 11 ms duration, 3 drops in each direction of each axis

Characteristic

AWG7101

AWG7102

AWG7052

AWG7051

AWG7101

AWG7051

AWG7052

AWG7102

Standard

Option 02

Option 06 (Including Option 02)

Normal Out

Direct Out

High Bandwidth

High Bandwidth without Interleave

High Bandwidth with Interleave, Zeroing Off, (Zeroing On)

Maximum Amplitude

2 Vp-p

1 Vp-p

1 Vp-p

1 Vp-p

1 Vp-p (0.5 Vp-p )

Minimum Amplitude

50 mVp-p

50 mVp-p

500 mVp-p

500 mVp-p

500 mVp-p (250 mVp-p)

Offset

±500 mV

N/A

N/A

N/A

N/A

Tr/Tf (20 to 80%)

350 ps

75 ps

45 ps

45 ps

45 ps

Output Bandwidth

750 MHz

3.5 GHz

5.8 GHz

5.8 GHz

5.8 GHz



Ordering Information

Arbitrary Waveform Generator Mainframe
AWG7102

10.0 GS/s (20 GS/s interleaved), 8/10 bit, 32 M point, 2-channel arbitrary waveform generator.

AWG7101

10.0 GS/s, 8/10 bit, 32 M point, 1-channel arbitrary waveform generator.

AWG7052

5.0 GS/s, 8/10 bit, 32 M point, 2-channel arbitrary waveform generator.

AWG7051

5.0 GS/s, 8/10 bit, 32 M point, 1-channel arbitrary waveform generator.

All Models Include: Accessory pouch, front cover, USB mouse, compact USB keyboard, lead set for DC Output, stylus for touchscreen (2 each), Windows XP operating system restore DVD and instructions, AWG7000 Series product software CD and instructions, Document CD with Browser, Quick Start User Manual, registration card, Certificate of Calibration, power cable, 50 Ω SMA Terminator (3 each) (015-1022-xx).

Please specify power cord and language option when ordering.

Instrument Options

Product Options

Option

Description

AWG7102

Opt. 01

Waveform Length Expansion (from 32 M to 64 M)

Opt. 06

High-bandwidth output with 20 GS/s interleaved including Opt. 02 features (alternative for standard output)

AWG7101, AWG7052, AWG7051

Opt. 01

Waveform Length Expansion (from 32 M to 64 M)

Opt. 02

High-bandwidth output (alternative for standard output)

Common Options

Option

Description

International Power Plugs

Opt. A0

North America

Opt. A1

Universal EURO

Opt. A2

United Kingdom

Opt. A3

Australia

Opt. A5

Switzerland

Opt. A6

Japan

Opt. A10

China

Opt. A11

India

Opt. A99

No power cord or AC adapter

Language Options

Opt. L0

English

Opt. L5

Japanese

Service

Option

Description

The following service options and programs are available for AWG7000s (AWG7102, AWG7101, AWG7052, AWG7051).

Service Option: (for example, AWG7102 Opt. C3)

Opt. CA1

A single calibration event

Opt. C3

Calibration Service 3 Years

Opt. C5

Calibration Service 5 Years

Opt. D1

Calibration Data Report

Opt. D3

Calibration Data Report 3 Years (with Opt. C3)

Opt. D5

Calibration Data Report 5 Years (with Opt. C5)

Opt. R3

Repair Service 3 Years

Opt. R5

Repair Service 5 Years

Service Post-sales Offering: (for example, AWG7102-CA1).

CA1

A single calibration event

R3DW

Repair service coverage 3 years

R5DW

Repair service coverage 5 years

R2PW

Repair service coverage 2 years post warranty

R1PW

Repair service coverage 1 year post warranty

Product Upgrade

Product

Ordering Options

Description

AWG7102

AWG70UP

Opt. M12

Waveform Length Expansion 32 M point to 64 M point.

AWG7052

AWG70UP

Opt. M02

AWG7101

AWG70UP

Opt. M11

AWG7051

AWG70UP

Opt. M01

Recommended Accessories

Accessory

Order

Transition Time Converter

   150 ps (10% to 90%)

015-0710-xx

   250 ps (10% to 90%)

015-0711-xx

   500 ps (10% to 90%)

015-0712-xx

   1000 ps (10% to 90%)

015-0713-xx

   2000 ps (10% to 90%)

015-0714-xx

Pin Header SMA Cable

   102 cm (40 in.)

012-1690-xx

   51 cm (20 in.)

012-1503-xx

Rackmount Kit: Rackmount Kit with instruction

016-1983-xx

Front Removable HDD Bay: Front removable HDD kit

016-1979-xx

Replacement Hard Disk: SATA disk assembly (no software installation)

065-0753-xx

Documentation

Quick Start User Manual

   English

071-1851-xx

   Japanese

071-1852-xx

Service Manual: English

071-1854-xx

Warranty

One-year parts and labor.
