AFG31000 Arbitrary Function Generator

New Series!

AFG31000 Arbitrary Function Generator

The AFG31000 series with InstaView™ technology is the first high-peformance AFG with built-in waveform generation applications, patented real-time wave monitoring, and a modern user interface.

Bandwidth

Up to
250Mhz

Sample Rate

Up to
2GSa/S

Record Length

16Mpts/ch (standard)
128Mpts/ch (optional)

Vertical Resolution

14bits

Verify your waveform at the DUT

Watch InstaView™ in action.

Patented InstaView™ technology enables you to view the real waveform at the device under test (DUT) directly on the AFG without the need for an oscilloscope, probes, or additional equipment, saving test time and eliminating the risk of unmatched impedance in your test results.

High-fidelity signals with advanced mode

Program a simple waveform sequence in 3 easy steps. Watch how.

Generate long, precise waveforms in continuous mode with lengths up to 16 Mpts per channel right out-of-the-box. Variable sampling clock technology guarantees you will never lose any waveform data. Available upgrades let you take your testing to the next level and build and program complex waveforms at one-tenth the cost of a traditional AWG.

With optional upgrades you get:

  • Memory extension to 128 Mpts per channel (option MEM)
  • Sequence/triggered/gated modes (option SEQ) with up to 25 entries and controls for: branching, repeat, wait, jump, go-to, external trigger in, manual trigger, timed trigger, and SCPI command, for building long waveforms with complex and flexible timing.

Simplified ARB waveform creation

Watch how easily you can create any waveform using ArbBuilder™.

The built-in arb editing tool, ArbBuilder, includes all operations to create, edit and transfer an ARB waveform, eliminating the need to connect or transfer files to a PC. The amplitude and offset data is stored in the waveform, removing the need to adjust the settings after loading a normalized arb.

Thumbnail

"The advanced features on this AFG could cut my typical setup and test cycle nearly in half"

- John Moore, Engineering Manager, TZ Medical

Smart user interface

Learn faster and work quicker with the largest AFG touchscreen on the market. The 9-inch screen works just like a smart device so you can pinch, zoom and scroll to easily locate settings and parameters on the simplified menu and find shortcuts to frequently used settings.

Need more than two channels?

Watch how to sync two AFG31000 units.

If you need more than two channels of waveforms to stimulate your device under test (DUT), multi-sync enables you to quickly sync up two or more units. The onscreen wizard will lead you through the process of cable connections and settings in less than three minutes.

Strength in numbers

Thumbnail
  • 1 or 2 channel models
  • Output amplitude range 1 mVp-p to 10 Vp-p into 50Ω loads
  • Basic (AFG) mode
    • 25 MHz, 50 MHz, 100 MHz, 150 MHz or 250 MHz sine waveforms
    • 250 MSa/s, 500 MSa/s, 1 GSa/s or 2GSa/s sample rate
    • 14-bit vertical resolution
    • Continuous, modulation, sweeping and burst run modes
    • 128 kpts arbitrary waveform memory in each channel
  • Advanced mode
    • Continuous mode and optional sequence, triggered and gated modes
    • 16 Mpts arbitrary waveform memory in each channel (128 Mpts optional)
    • Up to 256 steps in sequence mode with loop, jump and wait events
    • Variable sample clock 1 µSa/s to 2 GSa/s
    • Minimum waveform length 168pts with granularity of 1 point

Reduce noise and jitter by 10x

Thumbnail

Jitter from an AFG31000 (upper waveform) vs previous generation AFG (lower waveform)

With a lower noise floor and output amplitude down to 1mVpp – the noise and jitter specs are 10x better than last generation technology ensuring clarity and fidelity for your test.

Online upgrades

The software-based architecture means you can upgrade your AFG31000 directly from our website, with new options to keep evolving with your needs.

Currently available

  • Bandwidth upgrade
  • Memory size upgrade
  • Waveform sequencing upgrade

Models

Model Analog Channels Output Frequency Record Length Sample Rate Vertical Resolution List Price Buy Online
AFG31021

1

25 MHz

16 MSa/ch

250 MS/s

14-bit

-
Configure & Quote
AFG31051

1

50 MHz

16 MSa/ch

500 MS/s

14-bit

-
Configure & Quote
AFG31022

2

25 MHz

16 MSa/ch

250 MS/s

14-bit

-
Configure & Quote
AFG31052

2

50 MHz

16 MSa/ch

500 MS/s

14-bit

-
Configure & Quote
AFG31101

1

100 MHz

16 MSa/ch

1 GS/s

14-bit

-
Configure & Quote
AFG31151

1

150 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
AFG31102

2

100 MHz

16 MSa/ch

1 GS/s

14-bit

-
Configure & Quote
AFG31152

2

150 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
AFG31251

1

250 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
AFG31252

2

250 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
Model AFG31021
Analog ChannelsOutput FrequencyRecord Length

1

25 MHz

16 MSa/ch

Sample RateVertical Resolution

250 MS/s

14-bit

Model AFG31051
Analog ChannelsOutput FrequencyRecord Length

1

50 MHz

16 MSa/ch

Sample RateVertical Resolution

500 MS/s

14-bit

Model AFG31022
Analog ChannelsOutput FrequencyRecord Length

2

25 MHz

16 MSa/ch

Sample RateVertical Resolution

250 MS/s

14-bit

Model AFG31052
Analog ChannelsOutput FrequencyRecord Length

2

50 MHz

16 MSa/ch

Sample RateVertical Resolution

500 MS/s

14-bit

Model AFG31101
Analog ChannelsOutput FrequencyRecord Length

1

100 MHz

16 MSa/ch

Sample RateVertical Resolution

1 GS/s

14-bit

Model AFG31151
Analog ChannelsOutput FrequencyRecord Length

1

150 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Model AFG31102
Analog ChannelsOutput FrequencyRecord Length

2

100 MHz

16 MSa/ch

Sample RateVertical Resolution

1 GS/s

14-bit

Model AFG31152
Analog ChannelsOutput FrequencyRecord Length

2

150 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Model AFG31251
Analog ChannelsOutput FrequencyRecord Length

1

250 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Model AFG31252
Analog ChannelsOutput FrequencyRecord Length

2

250 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Model Analog Channels Output Frequency Record Length Sample Rate Vertical Resolution List Price Buy Online
AFG31021

1

25 MHz

16 MSa/ch

250 MS/s

14-bit

-
Configure & Quote
AFG31051

1

50 MHz

16 MSa/ch

500 MS/s

14-bit

-
Configure & Quote
AFG31022

2

25 MHz

16 MSa/ch

250 MS/s

14-bit

-
Configure & Quote
AFG31052

2

50 MHz

16 MSa/ch

500 MS/s

14-bit

-
Configure & Quote
AFG31101

1

100 MHz

16 MSa/ch

1 GS/s

14-bit

-
Configure & Quote
AFG31151

1

150 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
AFG31102

2

100 MHz

16 MSa/ch

1 GS/s

14-bit

-
Configure & Quote
AFG31152

2

150 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
AFG31251

1

250 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
AFG31252

2

250 MHz

16 MSa/ch

2 GS/s

14-bit

-
Configure & Quote
Model AFG31021
Analog ChannelsOutput FrequencyRecord Length

1

25 MHz

16 MSa/ch

Sample RateVertical Resolution

250 MS/s

14-bit

Model AFG31051
Analog ChannelsOutput FrequencyRecord Length

1

50 MHz

16 MSa/ch

Sample RateVertical Resolution

500 MS/s

14-bit

Model AFG31022
Analog ChannelsOutput FrequencyRecord Length

2

25 MHz

16 MSa/ch

Sample RateVertical Resolution

250 MS/s

14-bit

Model AFG31052
Analog ChannelsOutput FrequencyRecord Length

2

50 MHz

16 MSa/ch

Sample RateVertical Resolution

500 MS/s

14-bit

Model AFG31101
Analog ChannelsOutput FrequencyRecord Length

1

100 MHz

16 MSa/ch

Sample RateVertical Resolution

1 GS/s

14-bit

Model AFG31151
Analog ChannelsOutput FrequencyRecord Length

1

150 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Model AFG31102
Analog ChannelsOutput FrequencyRecord Length

2

100 MHz

16 MSa/ch

Sample RateVertical Resolution

1 GS/s

14-bit

Model AFG31152
Analog ChannelsOutput FrequencyRecord Length

2

150 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Model AFG31251
Analog ChannelsOutput FrequencyRecord Length

1

250 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Model AFG31252
Analog ChannelsOutput FrequencyRecord Length

2

250 MHz

16 MSa/ch

Sample RateVertical Resolution

2 GS/s

14-bit

Analog circuit characterization

Thumbnail

This is an analog world. All physical quantities are captured and presented as an analog signal. Thus, performance of analog circuits like amplifiers, filters and convertors need to be characterized.

  • InstaView™ technology eliminates the uncertainty of the waveform added at a DUT with unmatched impedance
  • Frequency range from 25 MHz up to 250 MHz
  • High signal fidelity eliminates the need for an external filter or attenuator
  • Frequency response tests are effortless due to frequency agility and well-calibrated sine wave flatness

Real-world signal replication

Thumbnail

Sensors are widely used in almost every modern electronic design, from automotive, to medical devices, to consumer electronics. Capturing a waveform then replicating it for troubleshooting or validation with an AFG has been a challenging process until now.

  • ArbBuilder imports waveforms in csv format saved by the wide portfolio of Tektronix oscilloscopes
  • Up-to 128 Mpts arbitrary memory greatly extends the length of a signal
  • Low noise floor gives the cleanest signal

Function verification and performance characterization

Thumbnail

An intensive number of test cases must be done by test engineers before a product goes to a market to ensure it meets the specifications. But this process is time consuming and repetitive.

  • Full programability for automated testing and intuitive user interface for manual test
  • Waveform sequencing enables you to serialize all test cases in a single sequence
  • Flexible branching methods allows high efficiency
  • Up to 128 Mpts of arbitrary memory and built-in non-volatile flash memory store all of your waveforms and test cases

System synchronization with clock or pulses

Thumbnail

All parts of a circuit in a digital design work synchronously at the pace of a clock. All devices in a big system must be coordinated with triggered signals to ensure they work properly and reliably. The AFG31000 is a cost-effective way to generate the clocks and triggerring pulses.

  • Pulse/square frequency range up to 160 MHz
  • Frequency agility seamlessly switches from one clock rate to another
  • Easy-to-use wizard guides you through the process of synchronizing multiple units to extend the number of channels
  • Low jitter level gives you more confidence in triggering your system

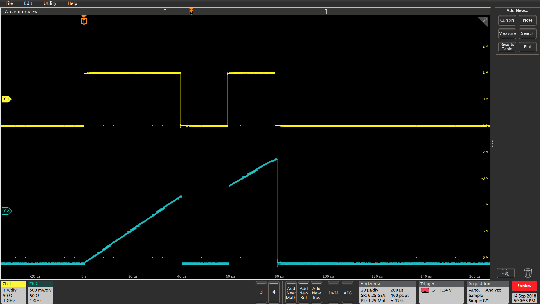

Pulses to drive power devices

Thumbnail

Dynamic performance characterization of IGBT or MOSFET requires pulses to drive the gate to turn it on or off.

  • Easy pulse generation with adjustable duty cycle and edge time
  • Waveform sequencing for pulse train generation with flexible timing
  • Built-in noise generator and floating ground for adding noise to DC power supply for stress test
  • Output channels are protected from overcurrent to minimize down time

Advanced research and education

Thumbnail

Researchers and educators need a wide variety of signals to get their research and teaching job done. Tests could be as simple as a series of pulses to simulate the output of a Geiger-Muller counter or as complicated as a long modulated baseband IQ.

  • InstaView™ technology eliminates the uncertainty of the waveform added at your complex load
  • Versatility of features and functions integrated
  • Dual operation modes balance ease-of-use and flexibility to generate the most complex waveforms
  • Built-in ArbBuilder enables you to generate and edit arbitrary waveforms directly on the screen

Upgrade Bandwidth

Upgrade Description Purchasing Details
AUP-AFG3BW150T250-1 License (Upgrade option); Bandwidth extension from 150MHz to 250MHz on a single channel model; Node locked Request a quote
AUP-AFG3BW150T250-2 License (Upgrade option); Bandwidth extension from 150MHz to 250MHz on a dual channel model; Node locked Request a quote
AUP-AFG3BW25T100-1 License (Upgrade option); Bandwidth extension from 25MHz to 100MHz on a single channel model; Node locked Request a quote
AUP-AFG3BW25T100-2 License (Upgrade option); Bandwidth extension from 25MHz to 100MHz on a dual channel model; Node locked Request a quote
AUP-AFG3BW25T50-1 License (Upgrade option); Bandwidth extension from 25MHz to 50MHz on a single channel model; Node locked Request a quote
AUP-AFG3BW25T50-2 License (Upgrade option); Bandwidth extension from 25MHz to 50MHz on a dual channel model; Node locked Request a quote
AUP-AFG3BW50T100-1 License (Upgrade option); Bandwidth extension from 50MHz to 100MHz on a single channel model; Node locked Request a quote
AUP-AFG3BW50T100-2 License (Upgrade option); Bandwidth extension from 50MHz to 100MHz on a dual channel model; Node locked Request a quote

Add More Memory

Upgrade Description Purchasing Details
AUP-AFG3MEM-1 License (Upgrade option); Extends arb memory to 128Mpts on a single channel model; Node locked Request a quote
AUP-AFG3MEM-2 License (Upgrade option); Extends arb memory to 128Mpts on a dual channel model; Node locked Request a quote

Enable Waveform Sequencing

Upgrade Description Purchasing Details
AUP-AFG3SEQ-1 License (Upgrade option); Enables Sequence mode on a single channel model; Node locked Request a quote
AUP-AFG3SEQ-2 License (Upgrade option); Enables Sequence mode on a dual channel model; Node locked Request a quote
Arbitrary Function Generators
AFG31000 Series Datasheet The Tektronix AFG31000 Series is a high-performance AFG with built-in arbitrary waveform generation, real-time waveform monitoring, and the largest touchscreen on the market. Providing advanced waveform generation and programming capabilities, waveform v…
Literature number: 75W-61444-2
Datasheet
AFG31000 시리즈 임의 함수 발생기 사용 설명서
소개 텍트로닉스 제품을 선택해 주셔서 감사합니다. 시리즈 31000 임의 함수 발생기(AFG) 장비는 내장 파형 발생
애플리케이션과 InstaViewTM라는 실시간 파형 모니터링, 향상된 사용자 인터페이스를 갖춘 고성능 장비로,
테스트 효율성을 한층 더 높여 줍니다. 이 설명서에는 제품 안전 사항과 컴플라이언스 정보, 오실로스코프에 연결하고 전원을 공급하는 방법 그리고
장비 기능, 제어 및 기본 작동에 대한 지침이…
Part number: 077-148-700
Primary User
AFG31000 Генератор сигналов произвольной формы/функций серии AFG31000 Руководство по эксплуатации
Введение Благодарим вас за то, что вы выбрали прибор Tektronix. Генераторы сигналов произвольной
формы/функций (AFG) серии 31000 – это высокопроизводительные приборы со встроенными
приложениями для генерации сигналов, технологией InstaViewTM…
Part number: 077-148-600
Primary User
AFG31000 시리즈 발생기 준수 및 안전 사항 지침
AFG31000 Series Generators Compliance and Safety Instructions   AFG31000 시리즈 발생기 준수 및 안전 사항 지침
Part number: 071362100
User
Generatori serie AFG31000 Conformità e istruzioni di sicurezza
Generatori serie AFG31000 Conformità e istruzioni di sicurezza AFG31000 Series Generators Compliance and Safety Instructions
Part number: 071361400
User
AFG31000 Series Arbitrary Function Generator Declassification and Security Instructions
This document helps customers with data security concerns to sanitize or remove memory devices from the Tektronix AFG31000 Series Arbitrary Function Generator. These products have data storage (memory) devices and data output devices. These instructions…
Part number: 9100*077-149-100
Declassification
AFG31000 系列產生器相容性與安全指示

Part number: 071362000
User
Générateurs de la gamme AFG31000 Instructions de conformité et de sécurité
Générateurs de la gamme AFG31000 Instructions de conformité et de sécurité AFG31000 Series Generators Compliance and Safety Instructions
Part number: 071360600
User
AFG31000 シリーズ任意波形/ファンクション・ ゼネレータ ユーザ・マニュアル
はじめに テクトロニクスの製品をお買い上げいただきありがとうございます。31000 シリーズ任意波形/フ
ァンクション・ゼネレータは、波形生成アプリケーションとリアルタイム波形モニタリング機能
(InstaViewTM)を内蔵し、効率的なテストを可能にする優れたユーザ・インタフェースを備えた高性
能な計測器です。 本マニュアルには、製品の安全とコンプライアンス情報、オシロスコープの接続方法と電源供給方
法、…
Part number: 077-147-800
Primary User
Generadores de la serie AFG31000 Conformidad e instrucciones de seguridad
Generadores de la serie AFG31000 Conformidad e instrucciones de seguridad AFG31000 Series Generators Compliance and Safety Instructions
Part number: 071361600
User
AFG31000 Series Arbitrary Function Generator Programmer's Manual
This is the programmer's guide to the 31000 Arbitrary Function Generator (AFG) instruments. The Series 31000 Arbitrary Function Generator (AFG) instruments are high-performance instruments with built-in waveform generation applications, real-time waveform…
Part number: 077-148-800
Primary User
AFG31000 Series Arbitrary Function Generator User's Manual
This is the user manual for the Series 31000 Arbitrary Function Generator (AFG) instruments. The Series 31000 Arbitrary Function Generator (AFG) instruments are high-performance instruments with built-in waveform generation applications, real-time…
Part number: 077-147-300
Primary User
AFG31000 Series Arbitrary Function Generator Specification and Performance Verification Technical Reference
The Series 31000 Arbitrary Function Generator (AFG) instruments are high-performance instruments with built-in waveform generation applications, real-time waveform monitoring called InstaView, and an improved user interface for higher test efficiency.…
Part number: 077-148-900
Primary User
AFG31000系列发生器合规性和安全说明
AFG31000系列发生器合规性和安全说明 AFG31000 Series Generators Compliance and Safety Instructions
Part number: 071361900
User
Generatoren der Serie AFG31000 Konformitäts- und Sicherheitshinweise
Generatoren der Serie AFG31000 Konformitäts- und Sicherheitshinweise AFG31000 Series Generators Compliance and Safety Instructions
Part number: 071361500
User
The AFG31000 series with InstaView™ technology is the first high-peformance AFG with built-in waveform generation applications, patented real-time wave monitoring, and a modern user interface.
0h 0m 39s
Downloads
Download

Download Manuals, Datasheets, Software and more:

Go to top
