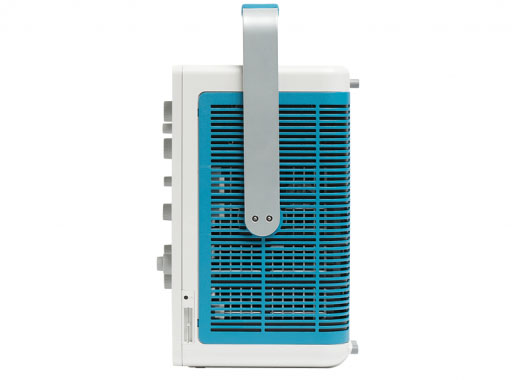

5 Series MSO Mixed Signal Oscilloscope

5 Series MSO Mixed Signal Oscilloscope

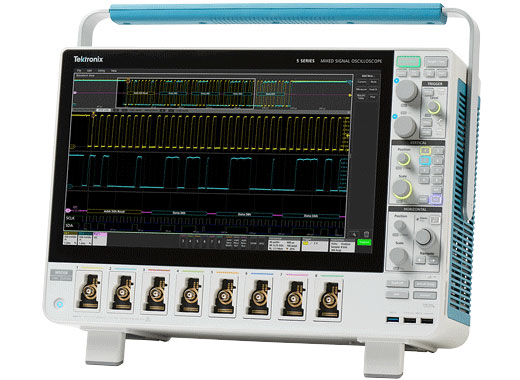

With a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel™ inputs that let you measure one analog or eight digital signals, the 5 Series MSO is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience.

Bandwidth

Up to 2 GHz

Record length

Up to 125 Mpoints

Analog channels

4 or 6 or 8

Digital Channels

8 - 64



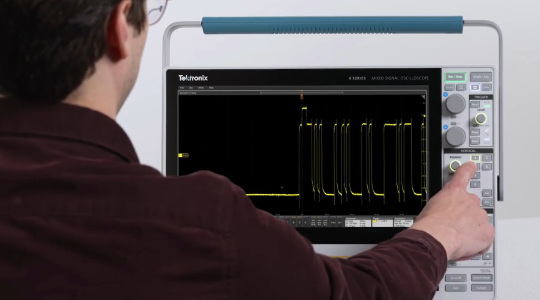

More than just a new display and user interface. A new standard.

Get the big picture and take total control, with the 15.6 HD touchcreen display. Use the capacitive pinch-zoom-swipe touchscreen, front panel controls, or mouse to analyze and manage multiple signals without fighting through menus.

Don't run out of channels.

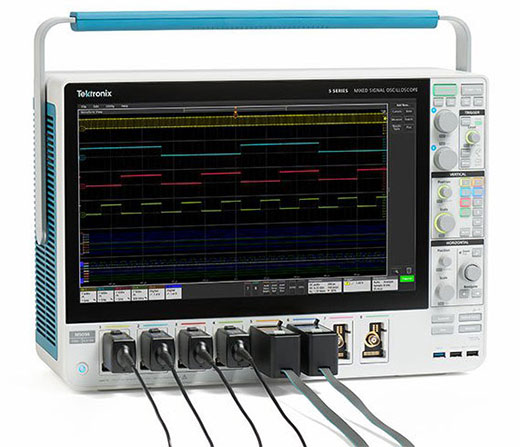

Available with 4, 6, or 8 FlexChannel inputs. Each can be used to look at 1 high-resolution analog waveform or look at 8 digital logic waveforms, just by changing the probe.

Let no detail go unseen, with up to 16 bits of vertical resolution.

Thumbnail

12-bit analog to digital converters deliver up to 16 bits of vertical resolution using advanced digital signal processing. See and measure small signal details, even if they're riding on large signals.

Buy what you need now. Add on as your needs change.

Thumbnail

Performance

  • Bandwidth up to 2 GHz
  • Record Length up to 125 Mpoints

Digital Inputs

  • TLP058 Logic Probes each provide 8 digital channels

Operating System

  • Add Windows OS to run PC software on the scope

Signal Generation

  • Add a built-in Arbitrary/Function Generator

Advanced Analysis

  • Serial Decode/Trigger support for key buses like I2C, SPI, USB 2, Ethernet, CAN, LIN, many others
  • Advanced Jitter Analysis



Models

Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels Function Generator Output List Price
MSO54 350 MHz - 2 GHz 6.25 GS/s 62.5 Mpoints - 125 Mpoints 4 Up to 32 (optional)

1 (optional)

Configure & Quote
MSO56 350 MHz - 2 GHz 6.25 GS/s 62.5 Mpoints - 125 Mpoints 6 Up to 48 (optional)

1 (optional)

Configure & Quote
MSO58 350 MHz - 2 GHz 6.25 GS/s 62.5 Mpoints - 125 Mpoints 8 Up to 64 (optional)

1 (optional)

Configure & Quote
ModelMSO54
Analog BandwidthSample RateRecord Length
350 MHz - 2 GHz6.25 GS/s62.5 Mpoints - 125 Mpoints
Analog ChannelsDigital ChannelsFunction Generator Output
4Up to 32 (optional)<p>1 (optional)</p>
ModelMSO56
Analog BandwidthSample RateRecord Length
350 MHz - 2 GHz6.25 GS/s62.5 Mpoints - 125 Mpoints
Analog ChannelsDigital ChannelsFunction Generator Output
6Up to 48 (optional)<p>1 (optional)</p>
ModelMSO58
Analog BandwidthSample RateRecord Length
350 MHz - 2 GHz6.25 GS/s62.5 Mpoints - 125 Mpoints
Analog ChannelsDigital ChannelsFunction Generator Output
8Up to 64 (optional)<p>1 (optional)</p>
Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels Function Generator Output List Price
MSO54 350 MHz - 2 GHz 6.25 GS/s 62.5 Mpoints - 125 Mpoints 4 Up to 32 (optional)

1 (optional)

Configure & Quote
MSO56 350 MHz - 2 GHz 6.25 GS/s 62.5 Mpoints - 125 Mpoints 6 Up to 48 (optional)

1 (optional)

Configure & Quote
MSO58 350 MHz - 2 GHz 6.25 GS/s 62.5 Mpoints - 125 Mpoints 8 Up to 64 (optional)

1 (optional)

Configure & Quote
ModelMSO54
Analog BandwidthSample RateRecord Length
350 MHz - 2 GHz6.25 GS/s62.5 Mpoints - 125 Mpoints
Analog ChannelsDigital ChannelsFunction Generator Output
4Up to 32 (optional)<p>1 (optional)</p>
ModelMSO56
Analog BandwidthSample RateRecord Length
350 MHz - 2 GHz6.25 GS/s62.5 Mpoints - 125 Mpoints
Analog ChannelsDigital ChannelsFunction Generator Output
6Up to 48 (optional)<p>1 (optional)</p>
ModelMSO58
Analog BandwidthSample RateRecord Length
350 MHz - 2 GHz6.25 GS/s62.5 Mpoints - 125 Mpoints
Analog ChannelsDigital ChannelsFunction Generator Output
8Up to 64 (optional)<p>1 (optional)</p>
  Tektronix
5 Series MSO
Tektronix
MSO/DPO5000B
Keysight
S-Series
LeCroy
HDO6000A/HDO8000A
Rohde & Schwarz
RTO2000
Yokogawa
DLM4000 Series
Detailed Comparison -- -- Fact Sheet Fact Sheet Fact Sheet Fact Sheet
Bandwidth 350 MHz to 2 GHz 350 MHz to 2 GHz 500 MHz to 8 GHz 350 MHz to 1 GHz 600 MHz to 6 GHz 350 MHz, 500 MHz
Upgradeable Bandwidth Yes No Yes No Yes No
Analog Channels 4, 6, or 8 4 2 or 4 4 or 8 2 or 4 8
Analog Sample Rate (All Channels) Up to 6.25 GS/s Up to 5 GS/s Up to 10 GS/s Up to 2.5 GS/s Up to 10 GS/s 2.5 GS/s
Standard Record Length (All Channels) 62.5 M 25 M 50 M 50 M 50 M 25 M
Integrated Arbitrary/Function Generator 50 MHz (opt.) -- -- -- 100 MHz (opt.) --
Digital Channels (MSO) Up to 64 (opt.) 16 (opt.) 16 (opt.) 16 (opt.) 16 (opt.) 8 (std) / 24 (opt)
Operating System Closed Linux
Open Windows (opt.)
Open Windows Open Windows Open Windows Open Windows Closed
Standard Probes Up to 1 GHz Passive
< 3.9 pF Loading
Up to 1 GHz Passive
< 3.9 pF Loading
500 MHz Passive
9.5 pF loading
500 MHz Passive
10 pF loading
500 MHz Passive
10 pF loading
500 MHz
10.5 pF loading
Standard Warranty 3 years 1 year 3 years 3 years 3 years ?

Embedded Serial Bus Analysis

Thumbnail

Automatic serial bus decoding saves time and eliminates errors versus hand decoding. Serial bus triggering and search enable you to isolate events for system-level troubleshooting.

Highlights

  • I2C, SPI
  • CAN, LIN, FlexRay
  • I2S/LJ/RJ/TDM
  • USB 2.0, Ethernet

Automotive Serial Bus Analysis

Thumbnail

Car designers rely on serial buses for error-free communications between ECUs, sensors and actuators. They can also rely on the 5 Series MSO, equipped with CAN, LIN, and FlexRay decoding and triggering to be able to get a synchronized view of their systems.

Jitter Analysis

Thumbnail

Clocks are the at the head of every embedded system and digital communication link. Jitter and other clock distortion can impact system operation, and getting to the root cause can be challenging without the right analysis tools.

Highlights

  • Standard phase noise, TIE, and frequency plots and histograms
  • Optional advanced analysis with jitter decomposition and clock recovery

Power Electronics

Thumbnail

With up to 8 high-resolution channels and a wide range of available probing solutions, the 5 Series MSO is ideal for evaluating power supply sequencing, and digging into 3-phase power converters.



Data SheetSoftware Package / Software OptionDescriptionConfigure and Quote
Opt. 5-AFG

Add built-in Arbitrary/Function Generator

Contact Us
Opt. 5-DJA

Simplifies identifying signal integrity concerns, jitter and their related sources and provides the highest sensitivity and accuracy available for real-time oscilloscopes.

Contact Us
Opt. 5-RL-125M

Extend record length to 125 Mpoints/channel

Contact Us
Opt. 5-SRAUDIO

I2S, LJ, RJ, and TDM protocol trigger and decode of serial packet content

Contact Us
Opt. 5-SRAUTO

CAN, LIN, and FlexRay protocol trigger and decode of serial packet content

Contact Us
Opt. 5-SRCOMP

RS-232/422/485/UART protocol trigger and decode of serial packet content

Contact Us
Opt. 5-SREMBD

I2C and SPI protocol trigger and decode of serial packet content

Contact Us
Opt. 5-SRENET

10BASE-T and 100BASE-TX protocol search and decode of serial packet content

Contact Us
Opt. 5-SRUSB2

USB 2.0 Low-Speed, Full-Speed, and High-Speed protocol trigger and decode of serial packet content

Contact Us
Opt. 5-WIN

Add solid state drive with Windows 10 license

Contact Us
Low Voltage Single Ended Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TAP1500 Active Probe: 1.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
TAP2500 Active Probe: 2.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
Current Probe
Datasheet LinkProbeDescriptionConfigure and Quote
TCP0020

Probe, AC/DC Current; 20 Amp; 50 MHz BW; TekVPI Interface; Certificate of Traceable Calibration Standard

Configure & Quote
TCP0030A

Probe, AC/DC Current; 30 Amp DC, DC TO 120 MHZ; with TekVPI Interface; Certificate of Traceable Calibration Standard

Configure & Quote
TCP0150

Current Probe: 20 MHz, 5 mA to 212 A, AC/DC, TekVPI

Configure & Quote
High Voltage Differential Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TDP0500 Differential Probe: 500 MHz, 5X/50X, +/- 42V, TekVPI Configure & Quote
TDP1000 Differential Probe: 1 GHz, 5X/50X, +/- 42V, TekVPI Configure & Quote
THDP0100

Differential PROBE; 100 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE

Configure & Quote
THDP0200

Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE

Configure & Quote
TMDP0200

Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL MEDIUM VOLTAGE PROBE;TMPD0200

Configure & Quote
Low Voltage Differential Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TDP1500 Differential Probe: 1.5 GHz, 1X/10X, +/-8.5V, TekVPI Configure & Quote
TDP3500 Differential Probe: 3.5 GHz, 5X, +/- 2V, TekVPI Configure & Quote
Isolated Measurement Systems
Datasheet LinkProbeDescriptionConfigure and Quote
TIVM1

Differential Probe; 1 GHZ, 1X/5X/10X/20X/50X, +/- 50V, TekVPI, 3 Meter Cable

Configure & Quote
TIVM1L

Differential Probe; 1 GHZ, 1X/5X/10X/20X/50X, +/- 50V, TekVPI, 10 Meter Cable

Configure & Quote
Logic Analyzer Probe
Datasheet LinkProbeDescriptionConfigure and Quote
TLP058 8 channel general purpose logic probe for 5 Series oscilloscopes. Includes accessory kit. Configure & Quote
Passive Probe
Datasheet LinkProbeDescriptionConfigure and Quote
TPP0500B

Passive Probe: 500 MHz, 10X, TekVPI

Configure & Quote
TPP0502

Passive Probe: 500 MHz, 2X, TekVPI

Configure & Quote
TPP1000

Passive Probe: 1 GHz, 10X, TekVPI

Configure & Quote
High Voltage Single Ended Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TPP0850

High Voltage Probe: 800 MHz, 50X, 2.5 kV, Single-ended, TekVPI

Configure & Quote
Data SheetAccessoryDescription
HC5 Hard transit case for the 5 Series MSO
RM5 Rackmount kit for the 5 Series MSO
TitleTypeDate
Troubleshooting Analog to Digital Converter Offset Using a Mixed Signal Oscilloscope

Shows how to perform quick checks on an Analog to Digital Converter (ADC) gain, offset and linearity, using a function generator and mixed signal oscilloscope (MSO).  The MSO is used to uncover a problem with offset error.


Literature number: 55W-61096-0
Application Note 19 Sep 2017
5 Series

This programmer manual provides you with the information required to use Programmable Interface commands for remotely controlling your instrument.

Mixed Signal Oscilloscopes (MSO54, MSO56, MSO58)


Part number: 077130500
Programmer 15 Sep 2017
Tools to Boost Oscilloscope Measurement Resolution to More than 11 Bits

Measurement resolution depends on more than the number of bits coming out of an oscilloscope's ADC. You need to have a whole-system, end-to-end approach to limit the effects of noise, as well as improve resolution. Learn measurement and signal-…
Literature number: 48W-27802-2

Application Note 13 Sep 2017
5 Series MSO Embedded OS Firmware - V1.2

Download this firmware to install the latest updates for the 5 Series MSO oscilloscopes.


Part number: 066192600
Firmware 13 Sep 2017
5 Series MSO
Mixed Signal Oscilloscope Datasheet
With a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel™ inputs that let you measure one analog or eight digital signals per channel, the 5 Series MSO is…
Literature number: 48W-60850-2
Datasheet 11 Sep 2017
5 Series MSO

This manual provides theory of operation, service instructions, and a list of replaceable parts for the 5 Series MSO instruments.

MSO54, MSO56, MSO58


Part number: 077130700
Service 08 Sep 2017
5 Series-Mixed Signal Oscilloscopes
This document how to install optional upgrade licenses to add new functions or features to the 5 Series Mixed Signal Oscilloscopes (MSO54, MSO56, MSO58).
Part number: 071351900
Field Install Instructions 28 Aug 2017
5 Series Mixed Signal Oscilloscope
For firmware version 1.0 and above. This document contains the specifications and performance verification procedures for the instruments.
Part number: 077130600
Performance Verification 28 Aug 2017
RM5MSO
This document supports installing Tektronix 5 Series instruments in a standard 19-inch equipment rack.
Part number: 071352301
Field Install Instructions 28 Aug 2017
Understanding the impact of reference clock jitter on data jitter - and techniques for measurement and analysis

Electronic Products & Technology magazine

Technical Brief 22 Aug 2017
