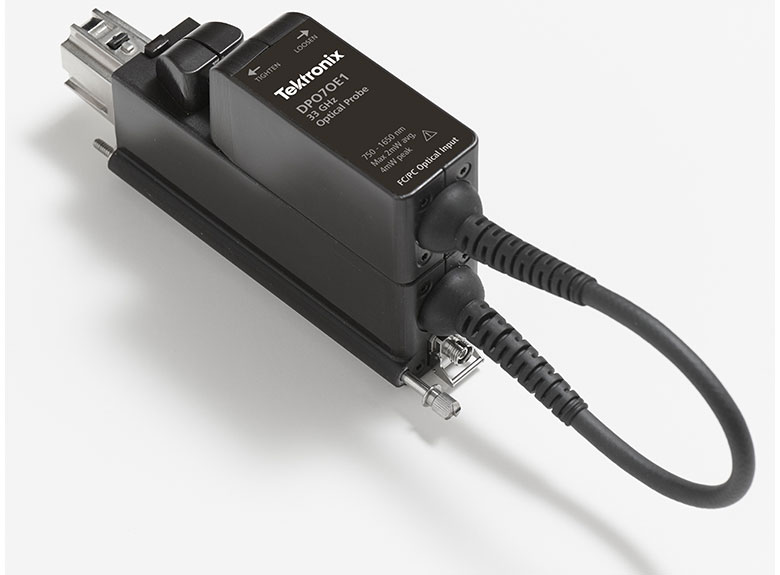

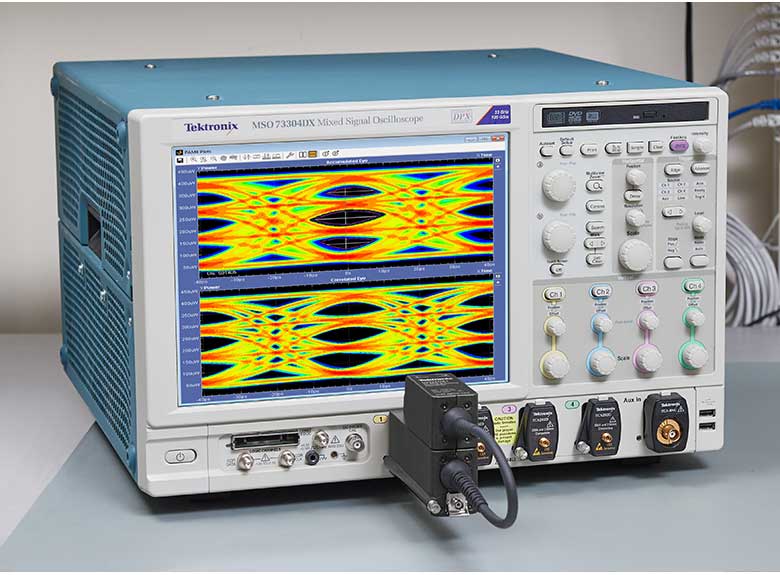

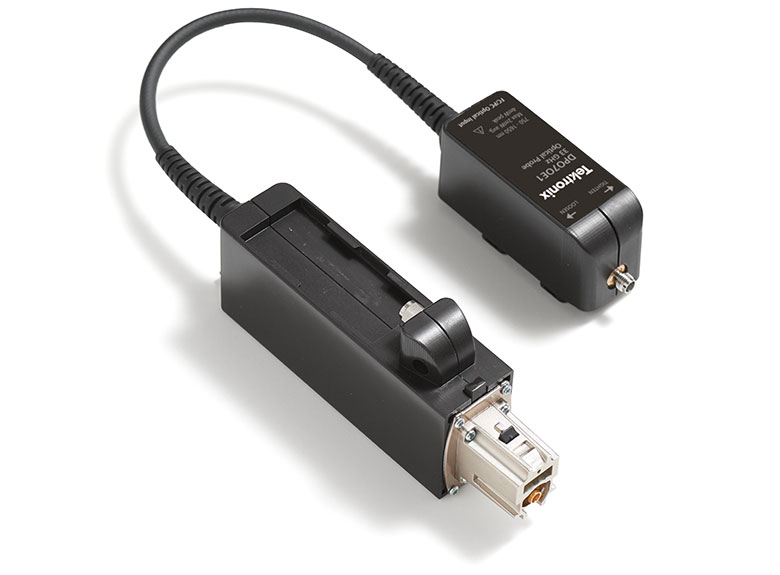

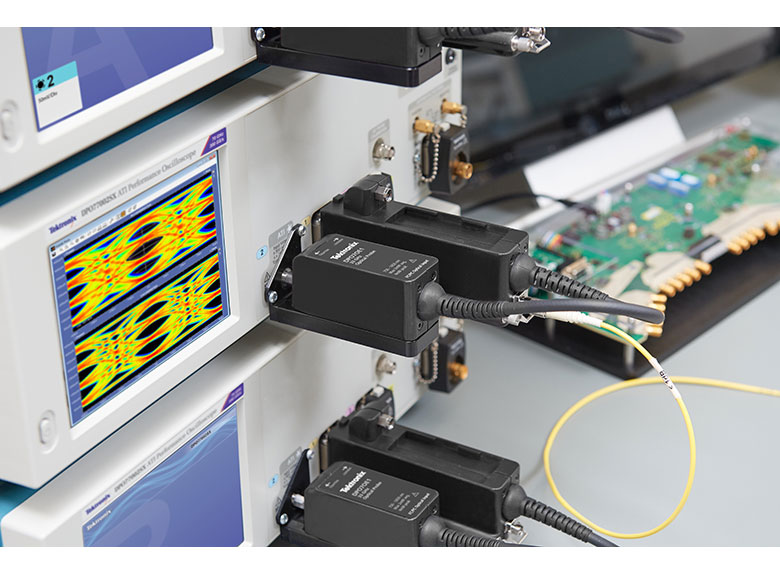

The DPO7OE series optical probes with a DPO70000 real-time scope deliver the performance and advanced debug capabilities designers need to fully troubleshoot 400G PAM4 signals, up to 56 GBaud, and reduce time to market.

These probes can also be used as a conventional O/E with flat response filter for general laser signal acquisition up to their respective bandwidth of 33 GHz or 59 GHz.

See more probes »

Optical Probes - High Bandwidth
Model Wavelength Response High-bandwidth DC Optical Noise NRZ / PAM2 and PAM4 List Price
DPO7OE1
View Compatible Instruments
DPO/DSA/MSO70000CFully compatible, TekConnect
DPO/DSA70000DNot Supported
DPO/MSO70000DXFully compatible, TekConnect
DPO70000SXFully compatible, TekConnect or ATI

750nm - 1650nm

up to 33 GHz

6.6 uW rms (TekConnect / ATI)

up to 28 Gbaud

-
Configure & Quote
DPO7OE2
View Compatible Instruments
DPO/DSA/MSO70000CFully compatible, TekConnect
DPO/DSA70000DNot Supported
DPO/MSO70000DXFully compatible, TekConnect
DPO70000SXFully compatible, TekConnect or ATI

1200m - 1650nm

up to 59 GHz

10 uW rms (ATI)

up to 56 Gbaud

-
Configure & Quote
Model
View Compatible Instruments
DPO/DSA/MSO70000CFully compatible, TekConnect
DPO/DSA70000DNot Supported
DPO/MSO70000DXFully compatible, TekConnect
DPO70000SXFully compatible, TekConnect or ATI
DPO7OE1
Wavelength ResponseHigh-bandwidth DCOptical Noise

750nm - 1650nm

up to 33 GHz

6.6 uW rms (TekConnect / ATI)

NRZ / PAM2 and PAM4

up to 28 Gbaud

Model
View Compatible Instruments
DPO/DSA/MSO70000CFully compatible, TekConnect
DPO/DSA70000DNot Supported
DPO/MSO70000DXFully compatible, TekConnect
DPO70000SXFully compatible, TekConnect or ATI
DPO7OE2
Wavelength ResponseHigh-bandwidth DCOptical Noise

1200m - 1650nm

up to 59 GHz

10 uW rms (ATI)

NRZ / PAM2 and PAM4

up to 56 Gbaud

See the versatility of our high-speed optical-to-electrical converters (DPO7OE1 and DPO7OE2 Optical Probes) for 200G and 400G PAM4 measurements.
0h 3m 40s
Finding the right filter settings for your optical TDECQ and NRZ measurements can be a pain on conventional solutions. With the new real-time O to E’s (DPO7OE Series) from Tektronix changing the ORR…
0h 1m 53s
In this video you will learn how easy it is to recover a clock on an optical PAM4 signal and display an eye. The DPO7OE1 and DPO7OE2 is the perfect solution for optical high-speed measurement where…
0h 2m 25s
