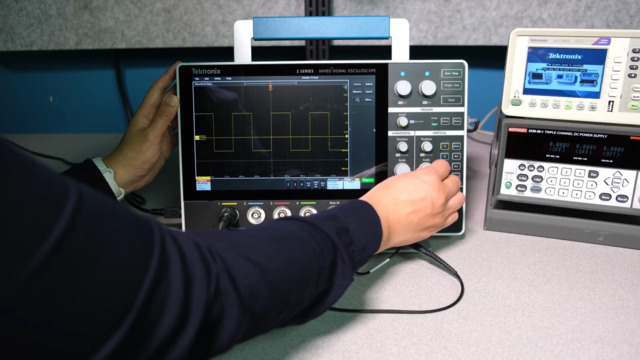

The vertical scale setting on your oscilloscope directly affects signal visibility and measurement accuracy. In this quick tutorial, we show you how to adjust the vertical scale on the Tektronix 2 Series MSO using:
- The vertical scale knob
- Channel badge entry
- Touchscreen pinch/zoom gestures
You'll also learn the difference between Stacked and Overlay display modes—so you can avoid signal clipping and get the most out of your measurement resolution.
Duration 1m 36s
