TMT4 Margin Tester

Industry’s first dedicated Transmit/Receive (Tx/Rx) lane margining tool, the Tektronix TMT4 allows you to easily assess the link health of your PCIe® generation 3 and 4 designs in minutes, not days. Acting as an active link partner with the device under test (DUT), the instrument can control presets via protocol and quickly display eye diagrams with their associated link training parameters, providing insights into potential design flaws on a lane-by-lane or preset-by-preset basis.

PCIE® and PCI Express® are registered trademarks and/or service marks of PCI-SIG.

Request a Demo or Ask a Question

PCiE generation supported

Gen 3 (8 GT/s), Gen 4 (16 GT/s)

PCIe Form Factors Supported

CEM, M.2, U.2, and U.3

PCIe Presets Supported

0 to 9


Link
Width

up to x16


Fast, Easy PCIe Lane Margining

The TMT4 Margin Tester complements existing Bit Error Rate Tester (BERT) and oscilloscope solutions for margin testing. Unlike BERT and oscilloscope systems, the TMT4 Margin Tester’s simple setup, configuration, and user interface minimizes the need for senior engineers to ensure systems are set up properly for testing, and enables a broader team of users to quickly assess the health of the link formed between Margin Tester and their DUT. Its targeted Tx/Rx capability allows you to capture issues with PCIe Gen 3 and Gen 4 communications on both ends of the link and enables teams to evaluate the link health of up to x16 Gen 4 links, across all PCIe presets 0-9, in minutes.

Simple Setup, Fast Results

Control the TMT4 Margin Tester using the front panel, a web browser, or the Rest API. Two scan options are available: Quick Scan and Custom Scan. Both include DUT Tx and DUT Rx tests. In Quick Scan, the Margin Tester and the DUT undergo a natural link negotiation to determine which presets to communicate over. Custom Scan is intended to provide users with more parameters to adjust for specific tests by forcing the DUT into specific presets for test.

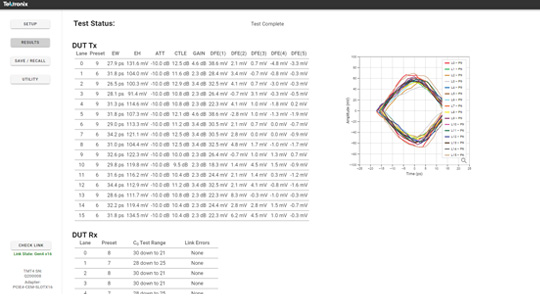

PCIe Margin Tester Quick Scan

Fast Results for Both Ends of the PCIe Link

With the TMT4 Margin Tester link health evaluation takes as little as two minutes.

  • The DUT Tx test provides 2 key pieces of data: eye diagrams for each lane-preset combination measured at the receiver of the Margin Tester and the associated receiver training values the Margin Tester used to open the eye that is displayed.
  • The DUT Rx test is a functional evaluation of the DUT’s receiver path. The test aims to determine how far the transmitted signal amplitude from the Margin Tester can be decreased, within an expected range of operation, before errors are returned.

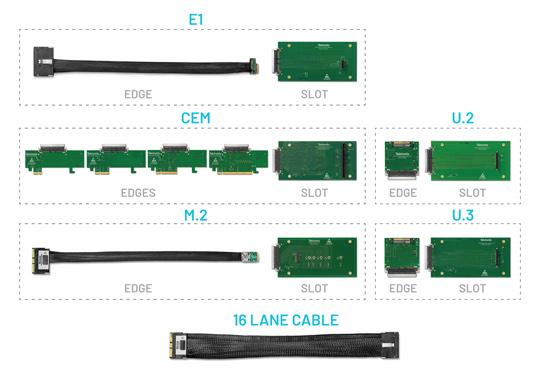

A Full Suite of PCIe Adapters and Cables

The TMT4 Margin Tester supports most common PCIe form factors by means of 11 adapters available for CEM, M.2, U.2, and U.3. A single 16-lane ribbon cable with high density PCIe connectors connects the Margin Tester to any of the adapters, except for the M.2 edge adapter, which has its own integrated cable to accommodate different insertion loss specifications.

Supports PCIeCEM, M.2, U.2, and U.3 Form Factors
Model List Price
TMT4 Configure & Quote

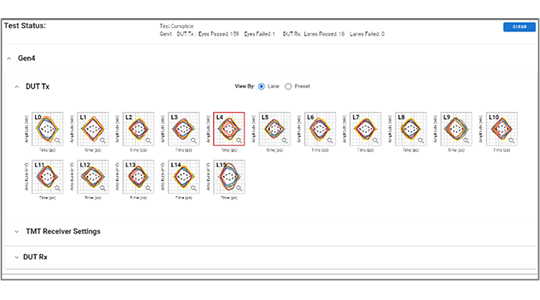

PCIe Margin Tester Custom Scan

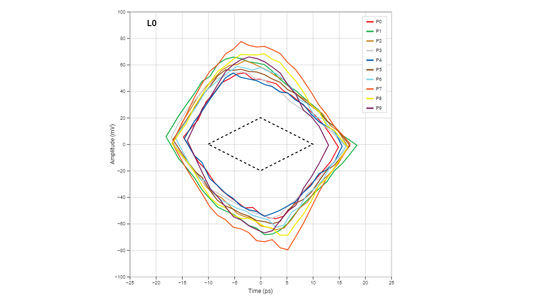

Device Under Test Transmit (Tx) Test

The DUT Tx tests provide 2 key pieces of data:

  • Eye diagrams for each lane-preset combination measured at the receiver of the Margin Tester.
  • Receiver training parameters the Margin Tester used to open the eye to what is displayed.

The resulting eye diagrams represent the error-free region of the link formed between the DUT and the margin tester.

Device Under Test Receive (Rx) Test

The DUT Rx test evaluates the DUT’s receiver path, determining how far the transmitted signal from the Margin Tester can be decreased before errors are returned, within an expected range of operation.

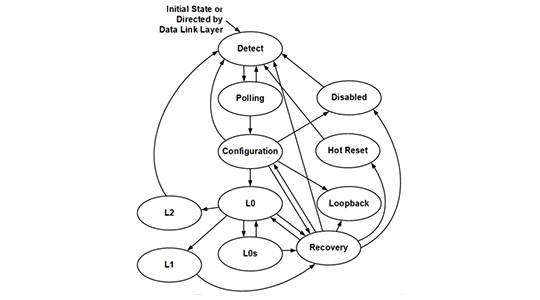

To perform this test, the Margin Tester undergoes a natural link train with the DUT, where the negotiated presets are determined by the DUT receivers. Once presets have been established, the Margin Tester steps down the Tx EQ main cursor value for each lane-preset combination, until an error is seen by the Margin Tester. If an error is seen within the expected range, then the main cursor value at which the error occurred is displayed. If no errors occur in the range, a “no error” message is displayed.

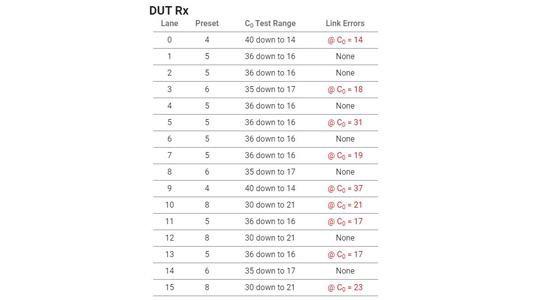

PCIe Margin Tester Custom Scan Receiver Testing
PCIe Margin Tester Quick Scan

Quick Scan for Fast Link Health Evaluation

Choose Quick Scan, the fastest option, to evaluate health of your PCIe link following a natural link negotiation. For the Tx tests, the presets are determined by the Margin Tester, and for the Rx test, the presets are determined by the device under test. Quick Scan promptly provides DUT Tx eye diagrams for each lane-preset combination, with associated link training parameters, and the Rx test results table.

Custom Scan for In-Depth Evaluation

Custom Scan allows you to conduct a more in-depth analysis for specific lanes or presets by allowing the user to the select the:

  • Generation (PCIe Gen 3 or Gen 4)
  • Lanes to Test
  • Presets to Test
PCIe Margin Tester Custom Scan
Model List Price
TMT4 Configure & Quote
Accessory PCIE4-CABLE
Datasheet Description
View Datasheet Accessory cable for all PCIE4 adapters except PCIE4-M2.22-EDGE-ZNC
Accessory PCIE4-CEM-EDGEX1
Datasheet Description
View Datasheet PCIe 4.0 x1 CEM Edge Finger Adapter
Accessory PCIE4-CEM-EDGEX4
Datasheet Description
View Datasheet PCIe 4.0 x4 CEM Edge Finger Adapter
Accessory PCIE4-CEM-SLOTX16
Datasheet Description
View Datasheet PCIe 4.0 x16 CEM Slot Adapter
Accessory PCIE4-M2.22-EDGE
Datasheet Description
View Datasheet PCIe 4.0 M.2 22mm M-type Edge Finger Adapter and Cable
Accessory PCIE4-M2-22-EXTENDER
Datasheet Description
View Datasheet Five replacement extenders for PCI4-M2.22-EDGE adapter/cable
Accessory PCIE4-M2-SLOT
Datasheet Description
View Datasheet PCIe 4.0 M.2 M-type Slot Adapter
Accessory PCIE4-PRO-BUNDLE
Datasheet Description
View Datasheet All PCIe 4.0 Adapters in a Hard Case
Accessory PCIE4-U2-EDGE
Datasheet Description
View Datasheet PCIe 4.0 U.2 Edge Finger Adapter
Accessory PCIE4-U2-SLOT
Datasheet Description
View Datasheet PCIe 4.0 U.2 Slot Adapter
Accessory PCIE4-U3-EDGE
Datasheet Description
View Datasheet PCIe 4.0 U.3 Edge Finger Adapter
Accessory PCIE4-U3-SLOT
Datasheet Description
View Datasheet PCIE4-U3-SLOT
Datasheet Accessory Description
PCIE4-CABLE Accessory cable for all PCIE4 adapters except PCIE4-M2.22-EDGE-ZNC
PCIE4-CEM-EDGEX1 PCIe 4.0 x1 CEM Edge Finger Adapter
PCIE4-CEM-EDGEX4 PCIe 4.0 x4 CEM Edge Finger Adapter
PCIE4-CEM-SLOTX16 PCIe 4.0 x16 CEM Slot Adapter
PCIE4-M2.22-EDGE PCIe 4.0 M.2 22mm M-type Edge Finger Adapter and Cable
PCIE4-M2-22-EXTENDER Five replacement extenders for PCI4-M2.22-EDGE adapter/cable
PCIE4-M2-SLOT PCIe 4.0 M.2 M-type Slot Adapter
PCIE4-PRO-BUNDLE All PCIe 4.0 Adapters in a Hard Case
PCIE4-U2-EDGE PCIe 4.0 U.2 Edge Finger Adapter
PCIE4-U2-SLOT PCIe 4.0 U.2 Slot Adapter
PCIE4-U3-EDGE PCIe 4.0 U.3 Edge Finger Adapter
PCIE4-U3-SLOT PCIE4-U3-SLOT
