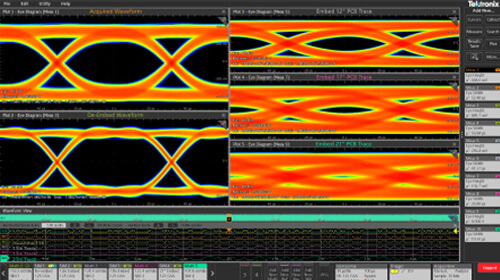

Accurate Eye Diagram Measurements on an Oscilloscope with the New SIM Software
Optimize Margin and Accelerate High-Speed Serial Validation
Accurate validation of high-speed designs requires removing signal-path impairments to reveal true performance, particularly for jitter and eye-diagram analysis. SIM sets a new standard for signal integrity modeling and analysis—combining unmatched flexibility with a modern, intuitive user experience.
In this video, you will see how to:
- Easily build de-embed models
- Add virtual test points anywhere in the signal path
- Validate configurations using built-in S-parameter plots
- Compare multiple models in parallel for complex signal‑path exploration
Learn how you can define as many simulations as you like, shift reference planes, and explore complex signal paths with ease—all directly from your oscilloscope.
Signal Integrity Modeling Software
Tektronix Signal Integrity Modeling Software lets you de-embed cables and fixtures, embed various channel loss profiles, and emulate receiver equalization or experiment with transmitter equalization directly on your oscilloscope.
Designed for early bring-up, compliance, and debug, SIM provides an intuitive user experience that helps you accelerate development and deliver high-performance products with confidence.
Tektronix Signal Integrity Modeling (opt. SIM) software integrates seamlessly with the 5 Series B MSO, 6 Series B MSO, and 7 Series DPO oscilloscopes.
To learn more, visit the Signal De-embedding, Embedding and Equalization solution page.

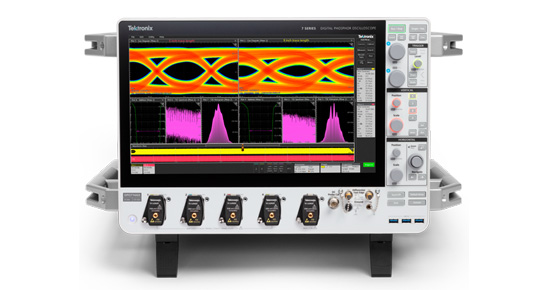

7 Series DPO Digital Phosphor Oscilloscope
The 7 Series DPO delivers unparalleled signal fidelity, high ENOB, low noise, low jitter, fast measurement throughput, and an award-winning TekScope® user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications.
Bandwidth ranging from 8-25 GHz and compatible with TekConnect™ probes.
