Clarity at the Edge of Discovery
Built for Breakthroughs
Explore how the 7 Series DPO is transforming precision at the edge of discovery.
The new 7 Series DPO sets a new benchmark for innovation, combining scalable bandwidth with an exceptionally low noise floor. This powerful combination gives engineers the confidence to explore even the smallest details—the moments where breakthroughs often emerge.
This video explores some of the most impactful features and capabilities of the 7 Series DPO.
- Intuitive TekScope user interface minimizes learning curve
- Maximize test margins with lowest noise and highest Effective Number of Bits (ENOB)
- Powerful measurement system
- Jitter measurements made fast and accurate
- 10x faster data transfers saves time

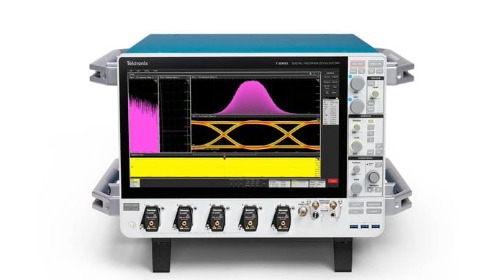

7 Series DPO Digital Phosphor Oscilloscope
Built for the Demands of Tomorrow's Breakthrough
The 7 Series DPO delivers unparalleled signal fidelity, high ENOB, low noise, low jitter, fast measurement throughput, and an award-winning TekScope® user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications.
Highlights
- 8, 10, 13, 16, 20, 25 GHz Bandwidth
- Tek079 10-bit ADC
- ENOB: 6.5 bits @ 25 GHz, 125 GS/s
- Random Noise: 1.13 mVrms @ 25 GHz, 500 mV FS
- Jitter: ≤ 50 fsrms (< 100 ns)
- 500-2000 Mpts Record Length
- 15.6-inch display with UI designed for touch
- Available with both Embedded OS & Windows 10
Learn more about the 7 Series DPO by visiting the product series page.
Learn how the 7 Series DPO delivers unparalleled signal fidelity.
