Oscilloscope Selection Guide

Tektronix Oscilloscope Selection Guide

From basic signal-checking to high-performance analysis, this selection guide gives an overview of the complete range of oscilloscopes from Tektronix. Comparison tables give high-level specifications and features, and indicate the major differences between each series of oscilloscope. It also includes a matrix showing serial protocols supported by each Tektronix oscilloscope series.

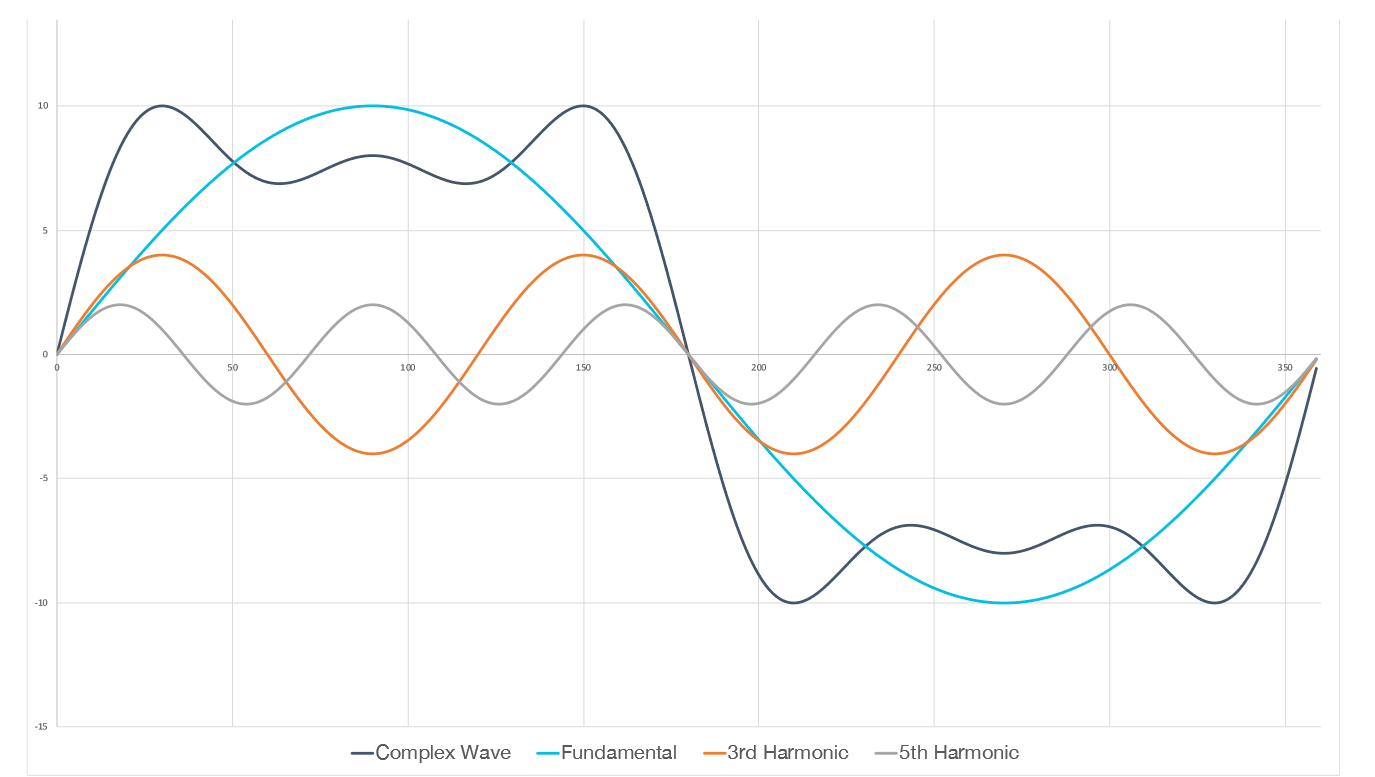

Resources to help you choose your next scope


Tektronix offers oscilloscopes for many different applications and uses. To help you choose the right scope for your needs, below are additional resources to understand the most common criteria for selecting a scope along with other helpful tips for determining your requirements. If you would like to talk with us directly about your needs please contact us at https://www.tek.com/en/contact-tek.



Meet the family

This selection guide provides an overview of the broad portfolio of Tektronix oscilloscopes. Whether you need an oscilloscope for teaching, troubleshooting, design validation or advanced research, Tektronix has an instrument for you.

TBS1000c Digital Storage Oscilloscope TBS2000B Digital Storage Oscilloscope 2 Series MSO Mixed signal oscilloscope 3 Series MDO Mixed Domain Oscilloscope
TBS1000C TBS2000B 2 Series MSO 3 Series MDO
Bandwidth 50 MHz - 200 MHz 70 MHz - 200 MHz 70 MHz - 500 MHz 100 MHz - 1 GHz
Analog Channels 2 2 or 4 2 or 4 2 or 4
Digital Channels - - 16 (optional) 16 (optional)
Sample Rate 1 GS/s 1 GS/s - 2 GS/s 1.25 GS/s - 2.5 Gs/s 2.5 GS/s - 5 GS/s
Page 4 4 4 5



4 Series B MSO Mixed Signal Oscilloscope 5 Series B Mixed signal oscilloscope 6 Series B Mixed Signal Oscilloscope
4 Series B MSO 5 Series B MSO 6 Series B MSO
Bandwidth 200 MHz - 1.5 GHz 350 MHz - 2 GHz 1 GHz - 10 GHz
Analog Channels 4 or 6 4, 6 or 8 4, 6 or 8
Digital Channels Up to 48 (optional) Up to 64 (optional) Up to 64 (optional)
Sample Rate 6.25 GS/s 6.25 GS/s 50 GS/s
Page 5 5 6



DPO70000C/DX Series Digital Phosphor Oscilloscope DPO70000SX ATI Performance Oscilloscope 8 Series Sampling Oscilloscope
MSO/DPO70000DX DPO70000SX 8 Series Sampling
Bandwidth 8 GHz - 33 GHz 13 GHz - 70 GHz 30 GHz (optical BW)
Analog Channels 4 1 to 4 1 to 4 optical
Digital Channels 16 (optional) - -
Sample Rate 50 GS/s - 100 GS/s 50 GS/s - 200 GS/s 300 kS/s (sampling)
Page 6 6 7



5 Series MSO Low Profile Digitizer 6 Series Low Profile Digitizer
5 Series Low Profile Digitizer 6 Series Low Profile Digitizer
Bandwidth 1 GHz 1 GHz - 8 GHz
Analog Channels 8 4 (SMA)
Digital Channels Up to 64 (optional) -
Sample Rate 6.25 GS/s 25 GS/s
Page 7 7



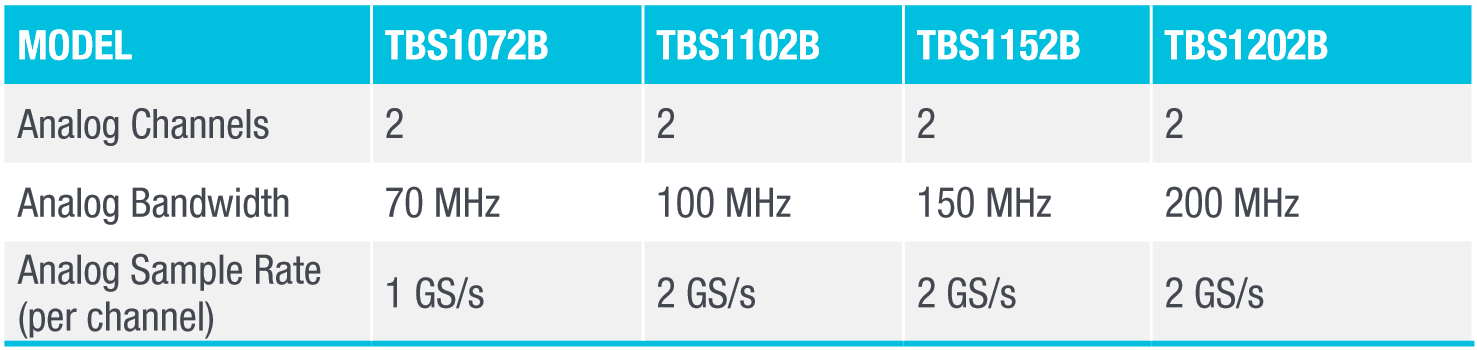

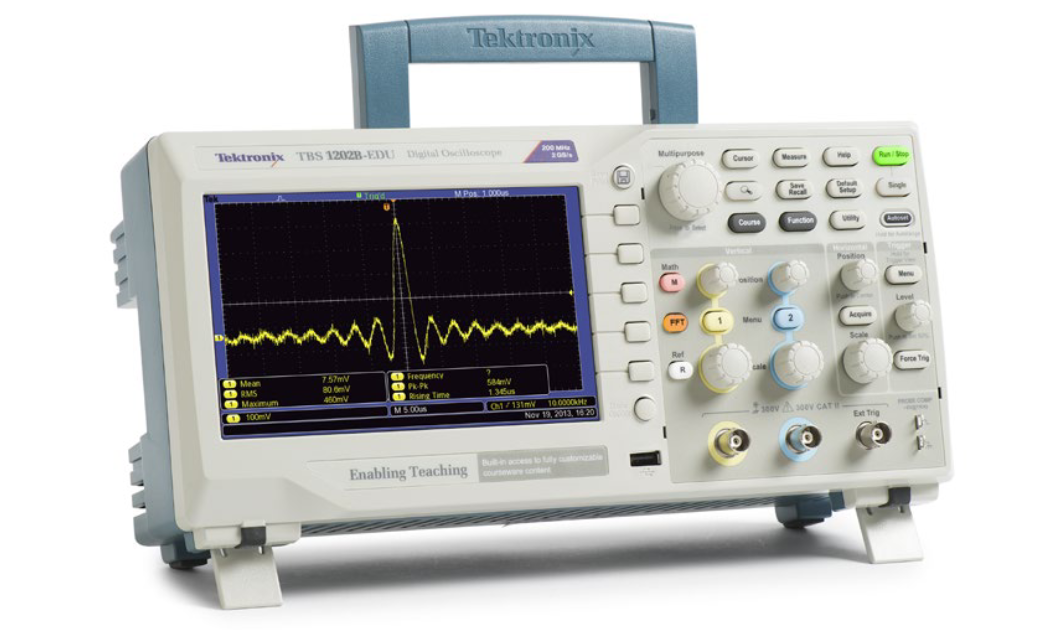

TBS1000C Digital Storage Oscilloscope

TBS1000C Series

The TBS1000C oscilloscope provides industry-leading quality and reliability. With an intuitive UI, built-in help, and a 5 year warranty, this 2-channel scope empowers you to learn and innovate with confidence. Whether you're a student, an engineer, or a business owner, the TBS1000C helps you achieve your goals with ease.

Analog Bandwidth 50 MHz, 70 MHz, 100 MHz, 200 MHz
Analog Channels 2
Sample Rate (per channel) 1 GS/s
  • Two channel instruments
  • Up to 1 GS/s sample rate on all channels
  • Built-in EDU features including courseware
  • 32 automated measurements, and FFT function for quick waveform analysis
  • 5 year warranty as standard
LEARN MORE

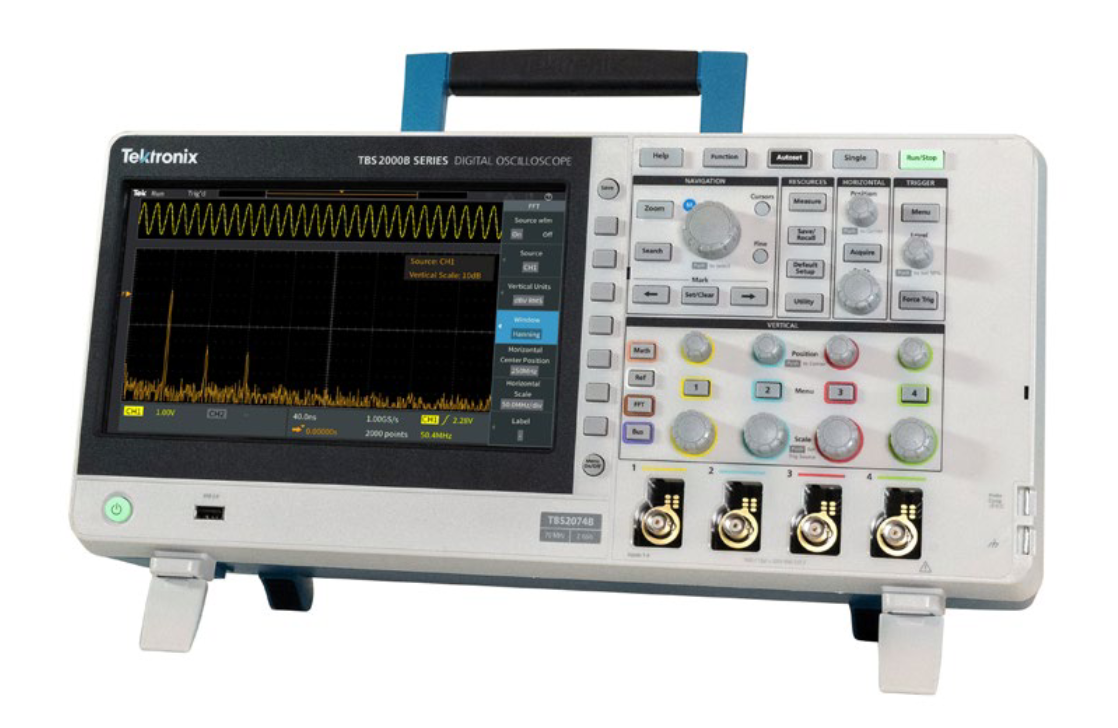

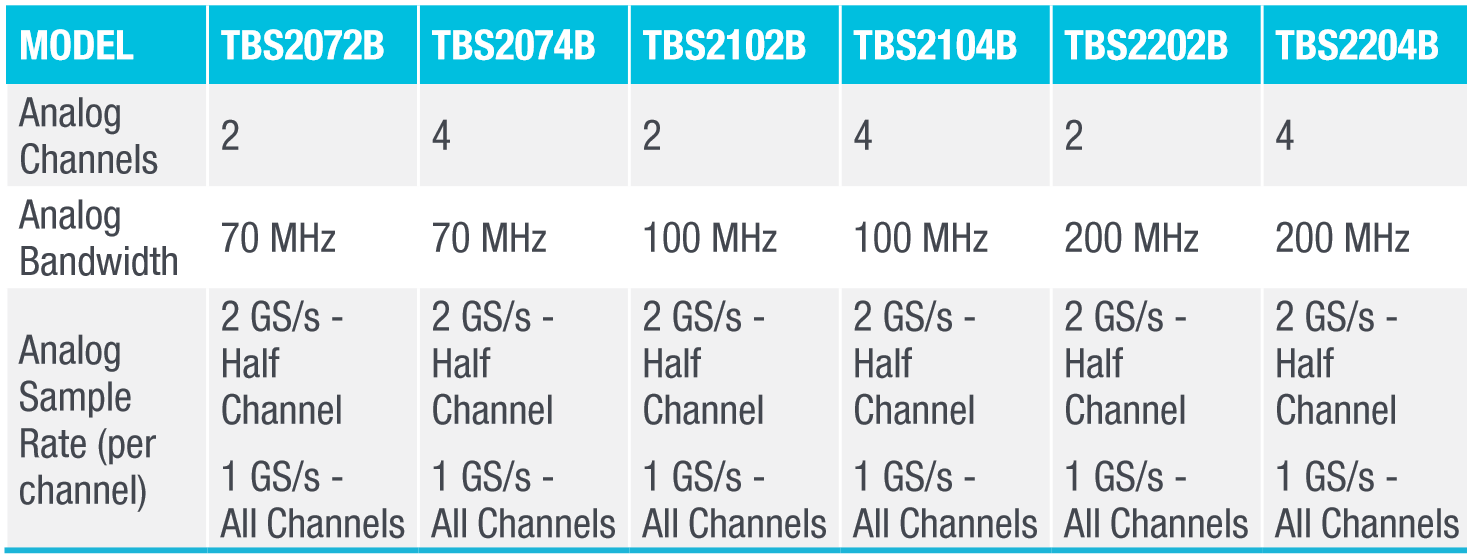

TBS2000B Digital Storage Oscilloscope

TBS2000B Series

The TBS2000B Series, with up to 200 MHz bandwidth, a 9-inch WVGA display, 5-million-point record length and up to 2 GS/s sample rate, can capture and display significantly more signal to help you debug and validate designs faster. The front panel design facilitates accurate measurements and includes unique features for education labs.

Analog Bandwidth 70 MHz, 100 MHz, 200 MHz
Analog Channels 2 or 4
Sample Rate (per channel) Up to 2 GS/s
  • Large, 9-inch display, with 15 horizontal divisions lets you see more of your signal
  • Up to 200 MHz bandwidth and four analog channels
  • 32 automated measurements, and FFT function for quick waveform analysis
  • TekVPI® probe interface supports active, differential, and current probes with automatic scaling and units
  • Search and Mark features for easy identification of events that occur in the acquired waveform
LEARN MORE
2 Series MSO Mixed Signal Oscilloscope

2 Series MSO

Unlock more space on your bench without compromising performance. At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO is a fullfeatured, real-time touchscreen oscilloscope in a compact, portable form factor that feels like a tablet. On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you.

Analog Bandwidth 70 MHz, 100 MHz, 200 MHz, 350 MHz, 500 MHz
Analog Channels 2 or 4
Digital Channels 16 (optional)
Analog Sample Rate 1.25 GS/s - 2.5 GS/s
  • Optional two-slot battery pack supports up to 8 hours of battery life and can be hot swapped in the field.
  • Full suite of capture and analysis capabilities with advanced triggers, search and mark, math and measurements
  • Optional 16 channel MSO, Bode plot feature for analyzing frequency response, 50 MHz AFG, and 4 bit digital pattern generator
  • Supports decoding, triggering and analysis for the most common serial protocols
  • Industry standard VESA mount for use with various accessories
LEARN MORE

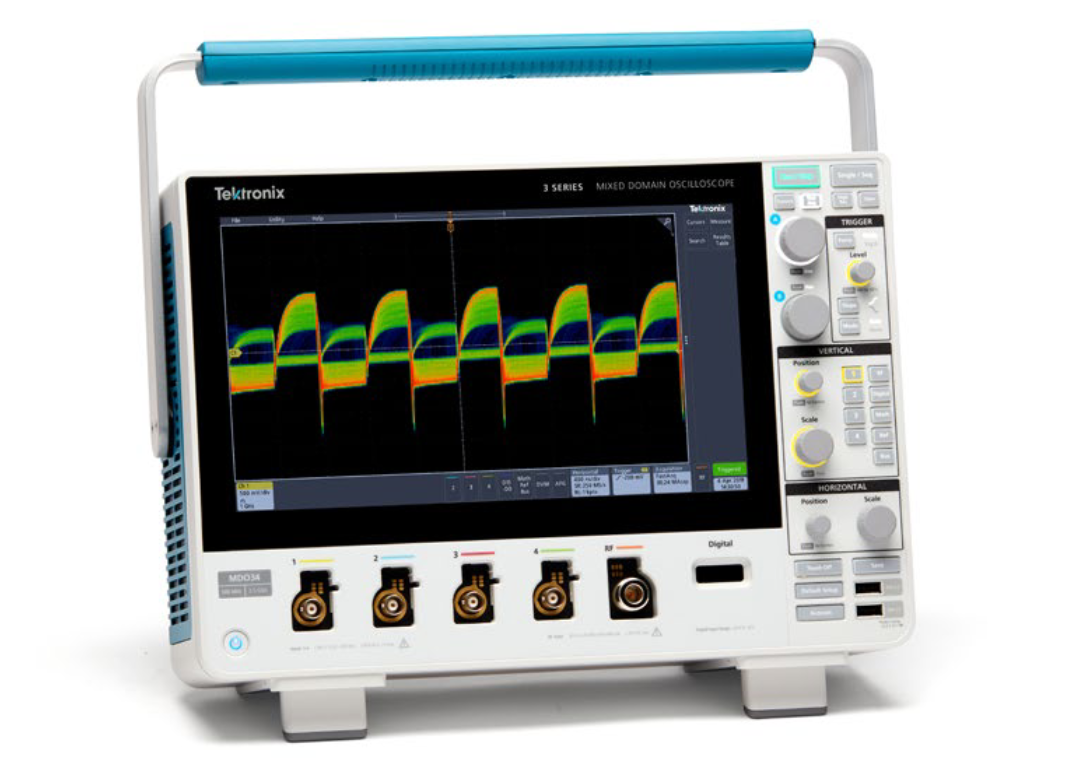

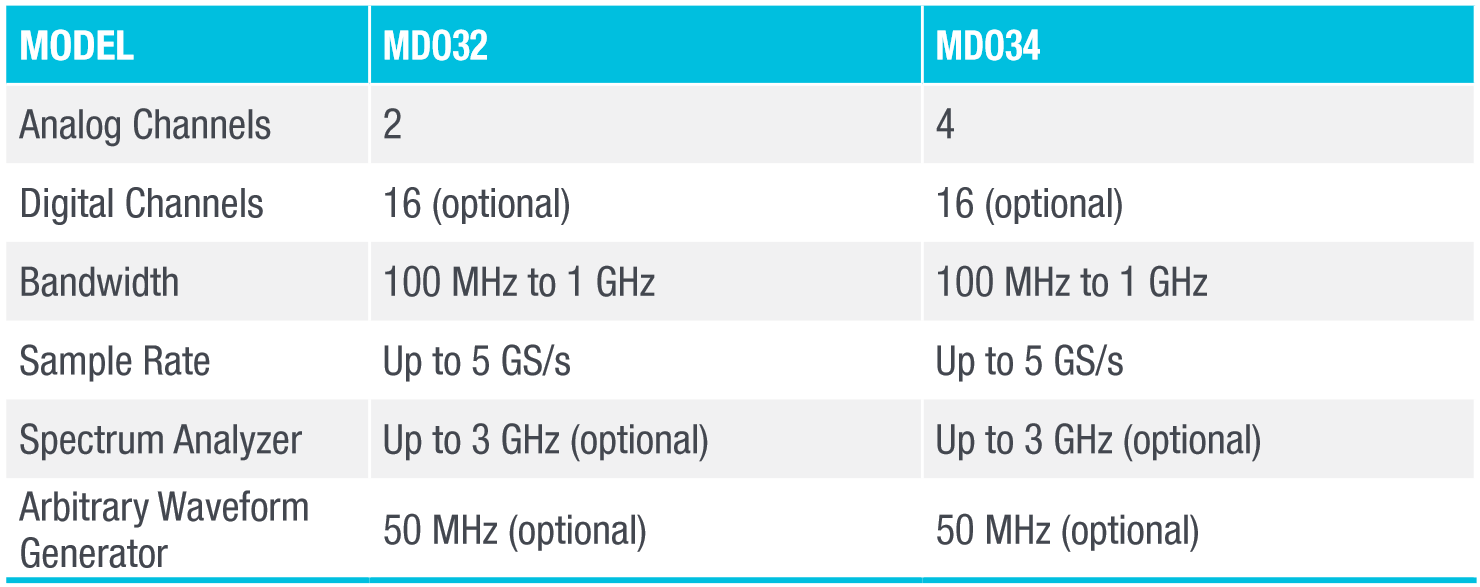

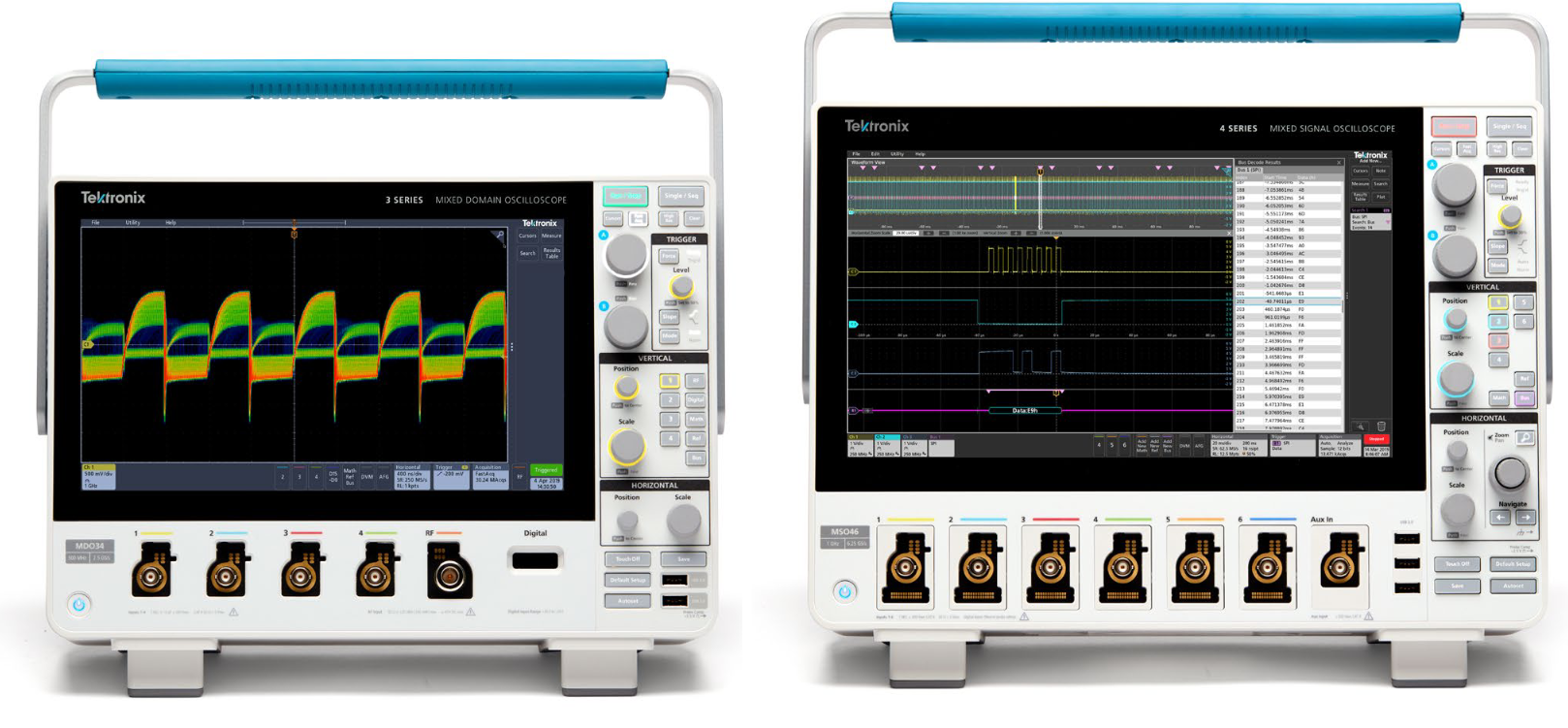

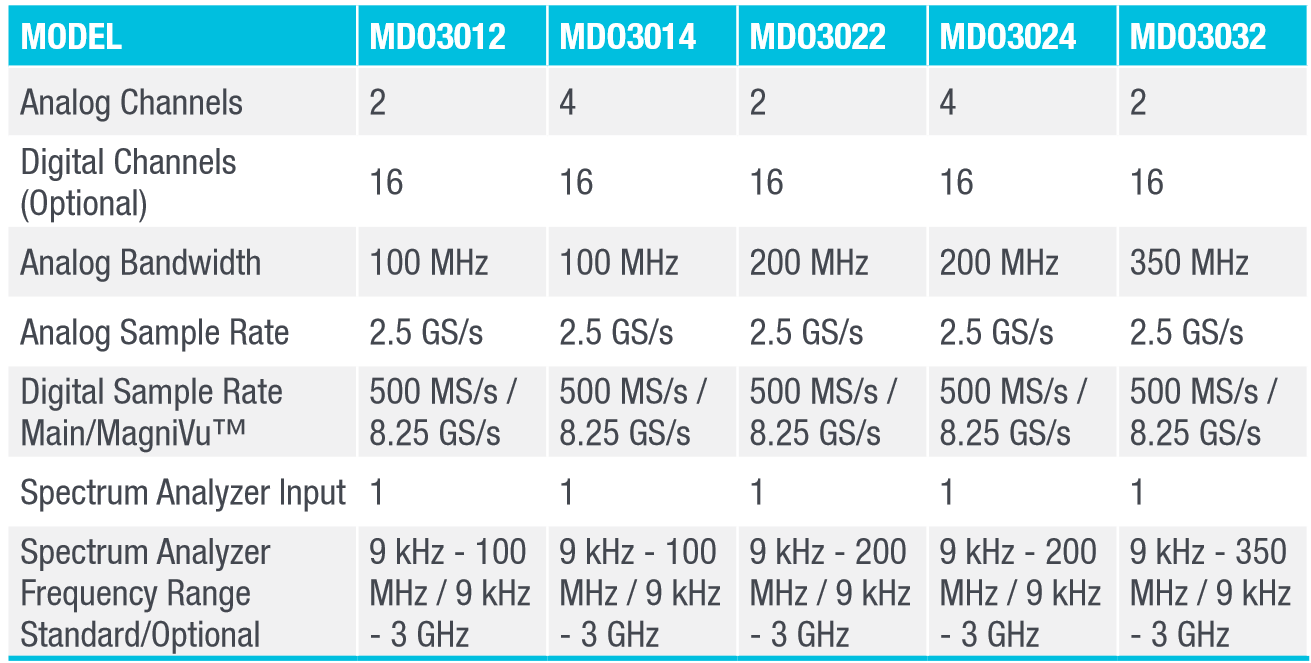

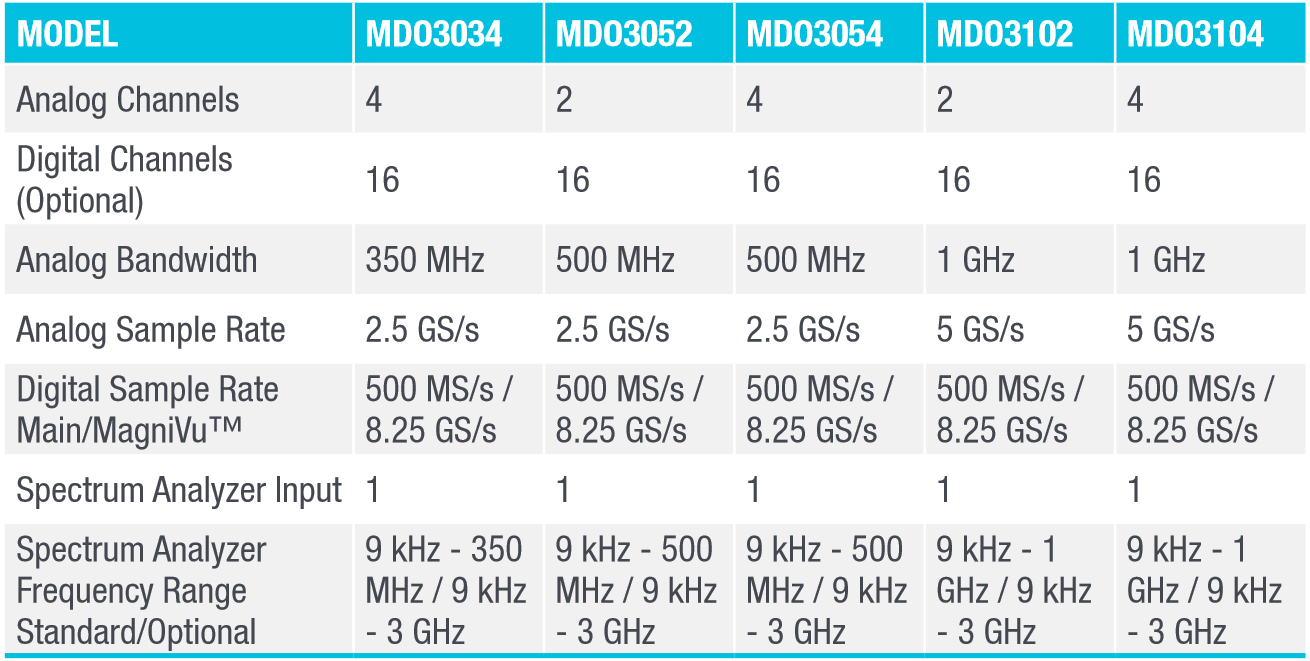

3 Series MDO Mixed Domain Oscilloscope

3 Series MDO

The 3 Series mixed domain oscilloscope has an awardwinning user interface, the largest HD display in its class and more capabilities, including RF measurements with unique built-in hardware spectrum analyzer for EMI and IoT tests. All without using more bench space.

Bandwidth 100 MHz, 200, MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels 2 or 4
Digital Channels 16 (optional)
Sample Rate Up to 5 GS/s
  • The largest 11.6-inch HD (1920×1080) capacitive touch display in its class.
  • Award-winning user interface
  • Optional 16 digital channels for mixed signal analysis
  • Built-in spectrum analyzer available in 1 GHz or 3 GHz versions
  • Optional built-in function generator
LEARN MORE

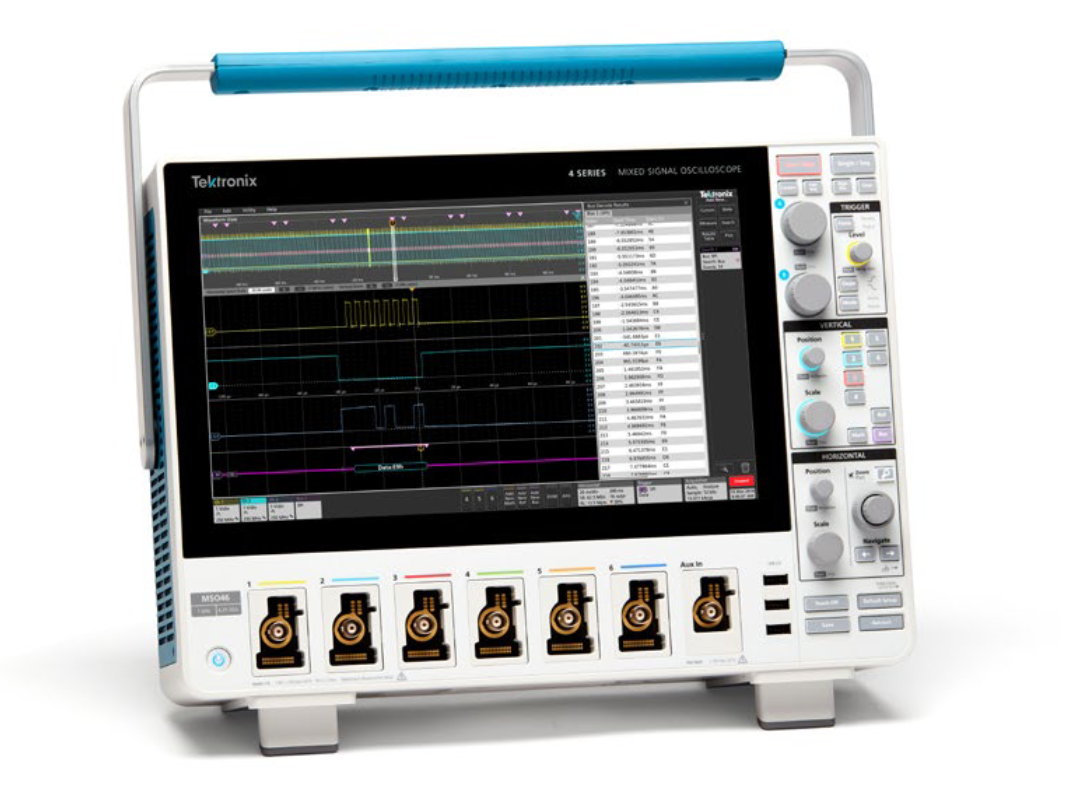

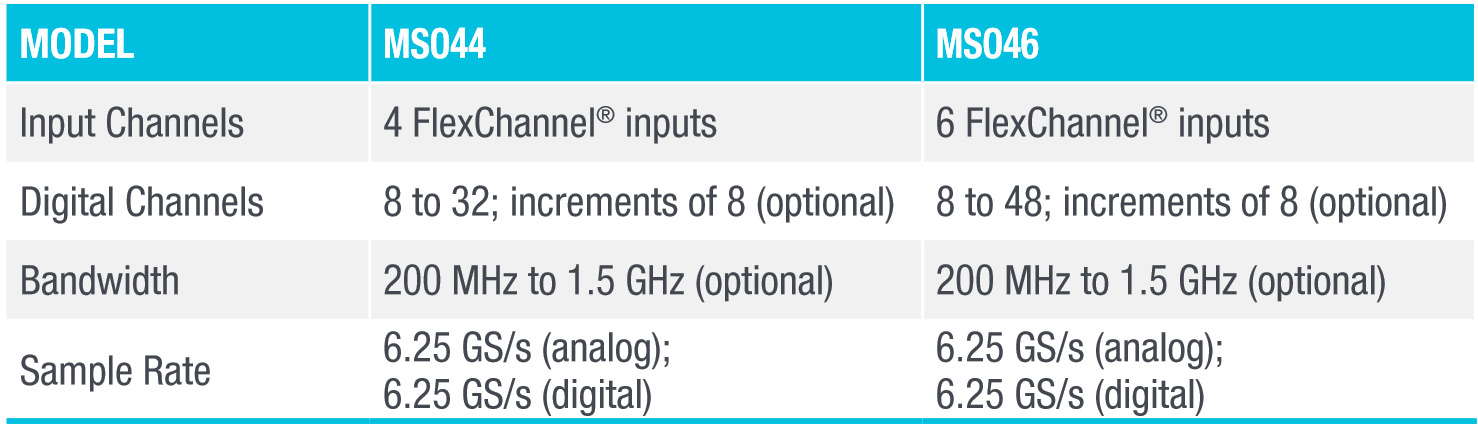

4 Series B MSO Mixed Signal Oscilloscope

4 Series B MSO

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-fortouch user interface works exactly as you’d expect.

Analog Bandwidth 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz
Digital Channels Up to 48 (optional)
Input Channels 4 or 6
Sample Rate 6.25 GS/s
  • 13.3 inch, HD capacitive touch display
  • 4 or 6 FlexChannel™ inputs can each handle 1 analog or 8 digital signals
  • 12-bit Analog-to-digital converters with enhanced resolution up to 16-bits
  • Up to 62.5 Mpoints/ch record length
  • Spectrum View spectrum analysis
LEARN MORE

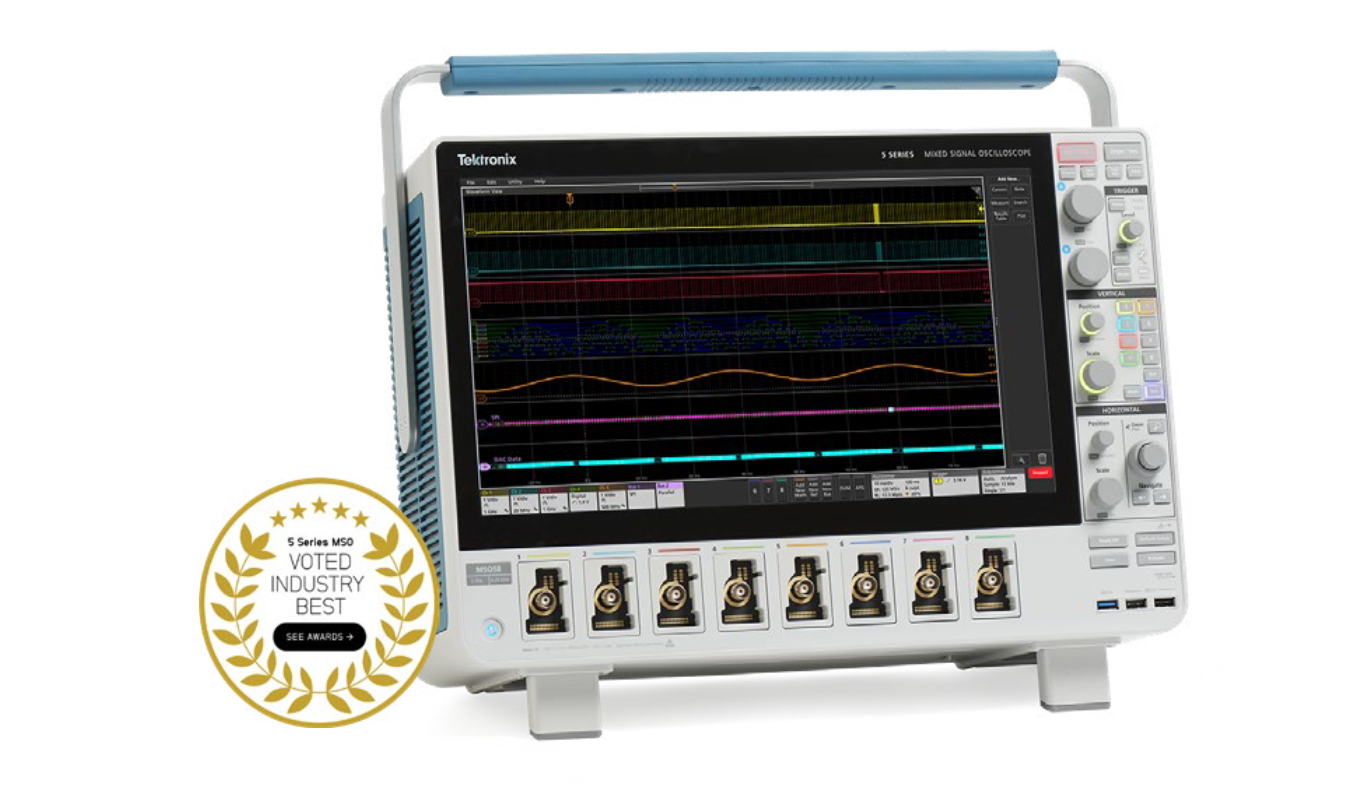

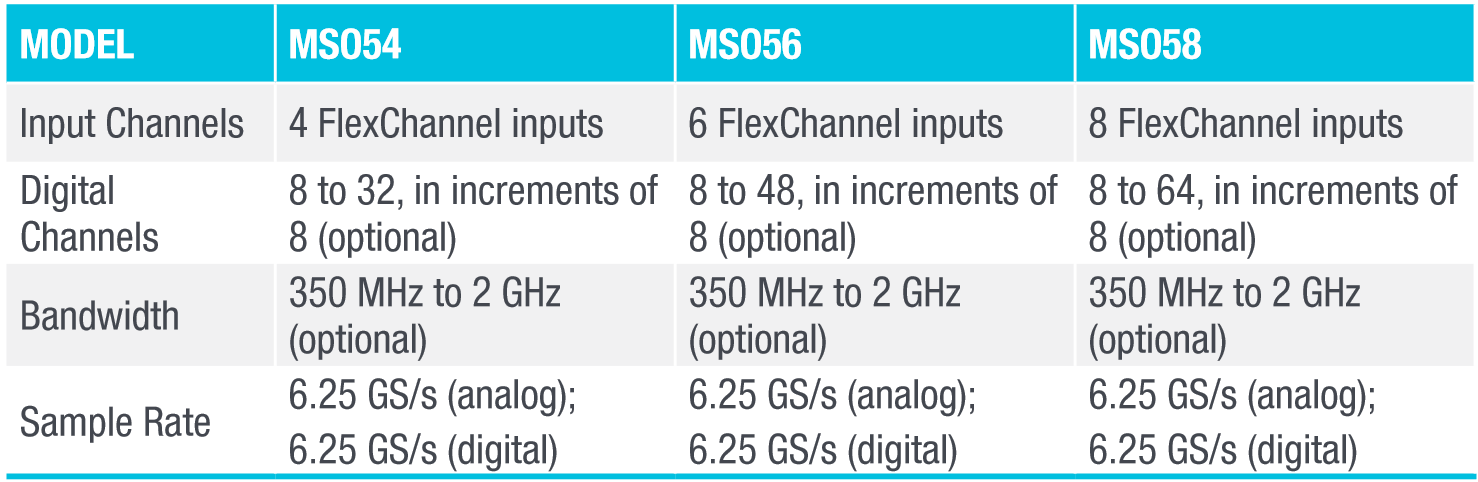

5 Series B Mixed Signal Oscilloscope

5 Series B MSO

With a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel™ inputs that let you measure one analog or eight digital signals, the 5 Series MSO is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience.

Analog Bandwidth 350 MHz, 500 MHz, 1 GHz, 2 GHz
Digital Channels Up to 64 (optional)
Input Channels 4, 6 or 8
Sample Rate 6.25 GS/s
  • 15.6 inch, HD capacitive touch display delivers unmatched signal visibility
  • 4, 6 or 8 FlexChannel™ inputs can each handle 1 analog or 8 digital signals
  • 12-bit Analog-to-digital converters with enhanced resolution up to 16 bits
  • Maximum 500 Mpoints/ch record length
  • Spectrum View spectrum analysis
LEARN MORE

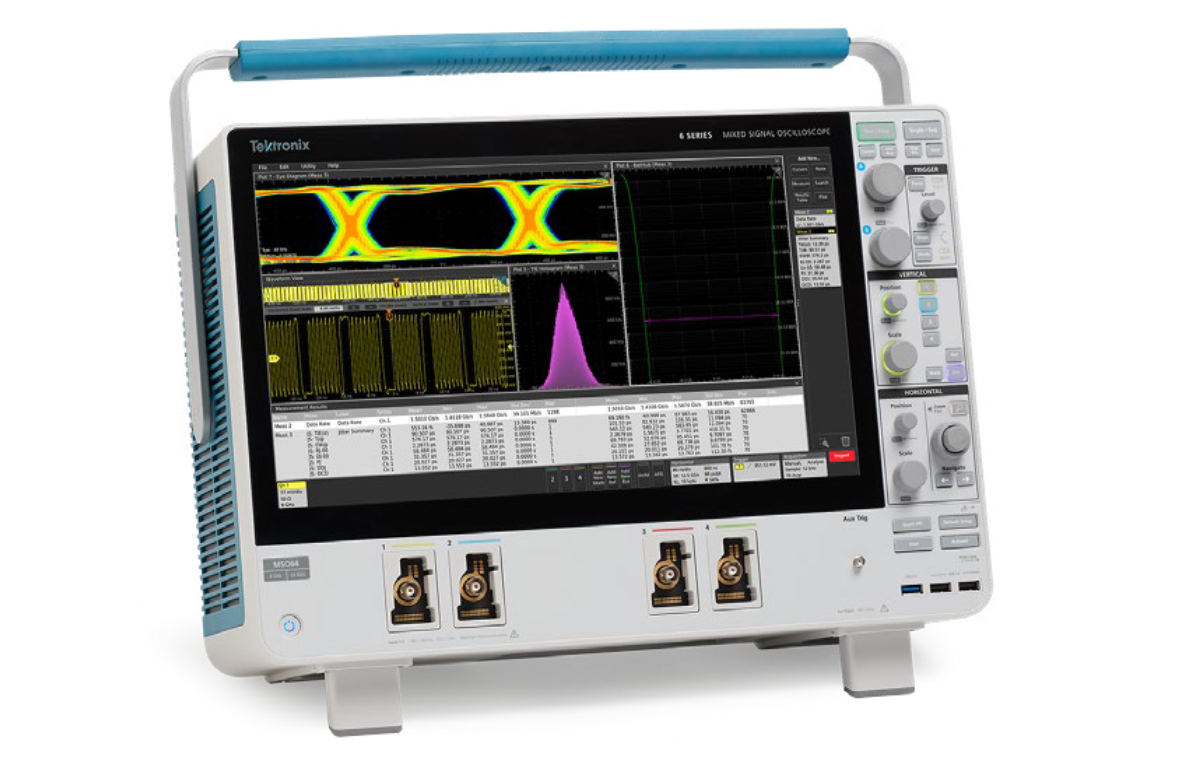

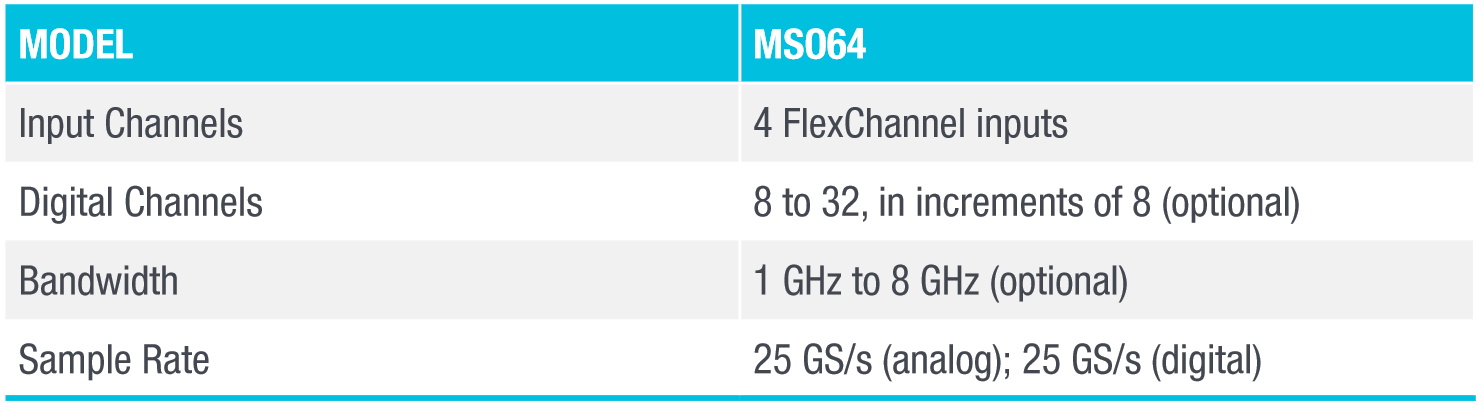

6 Series B Mixed signal oscilloscope

6 Series B MSO

For analyzing and debugging systems with GHz clock and bus speeds, the 6 Series B MSO provides the best signal fidelity with the lowest input noise and up to 10 GHz analog bandwidth. With its intuitive touchscreen user interface, a 15.6-inch high definition display and FlexChannel™ inputs, the 6 Series is a high-performance instrument that’s also a pleasure to use.

Bandwidth 1 GHz, 2.5 GHz, 4 GHz, 6 GHz, 8 GHz, 10 GHz
Digital Channels Up to 64 (optional)
Input Channels 4, 6 or 8
Sample Rate Up to 50 GS/s
  • 15.6 inch, HD capacitive touch display delivers unmatched signal visibility
  • 4 FlexChannel™ inputs can each handle 1 analog or 8 digital signals
  • Lowest noise at high sensitivity
  • >70% noise reduction from previous generation oscilloscopes
  • 12-bit Analog-to-digital converters with enhanced resolution up to 16 bits
LEARN MORE

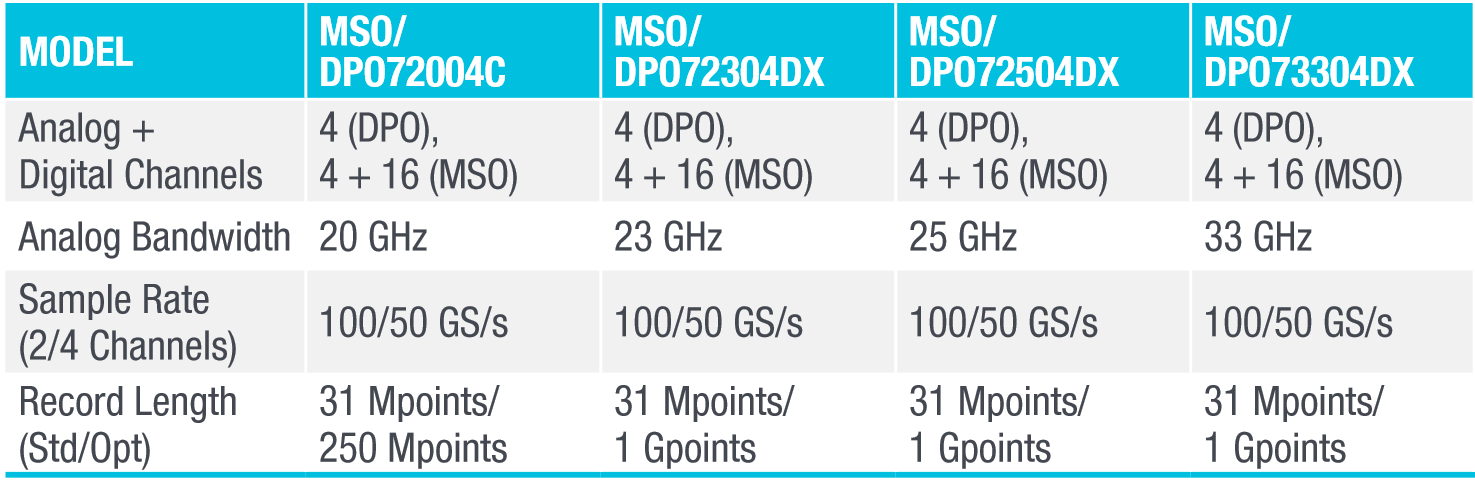

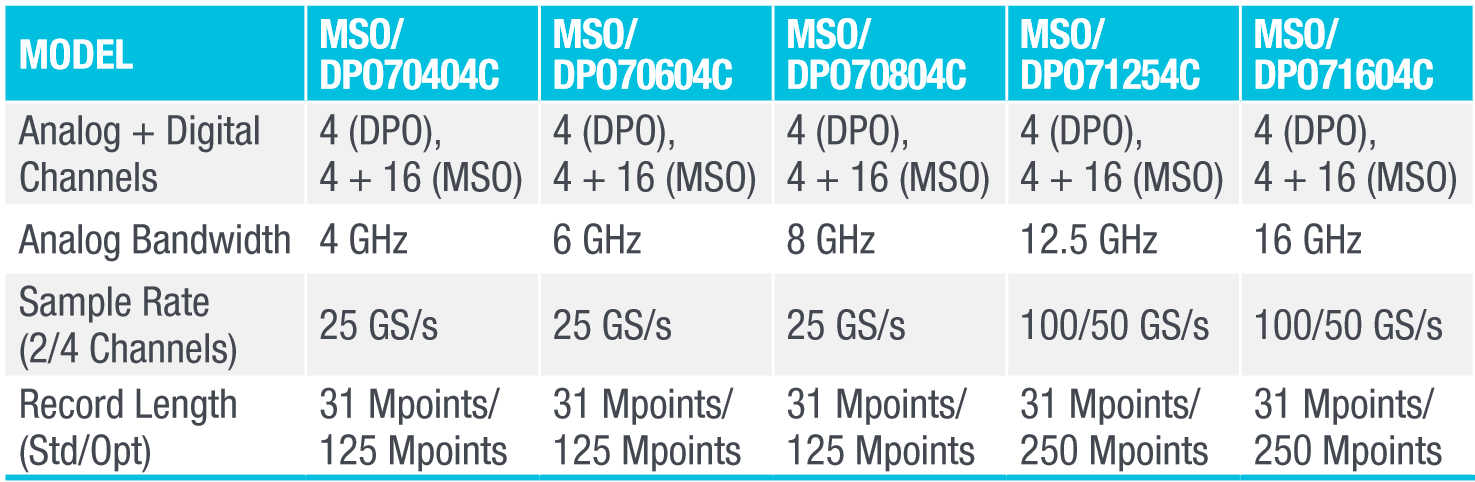

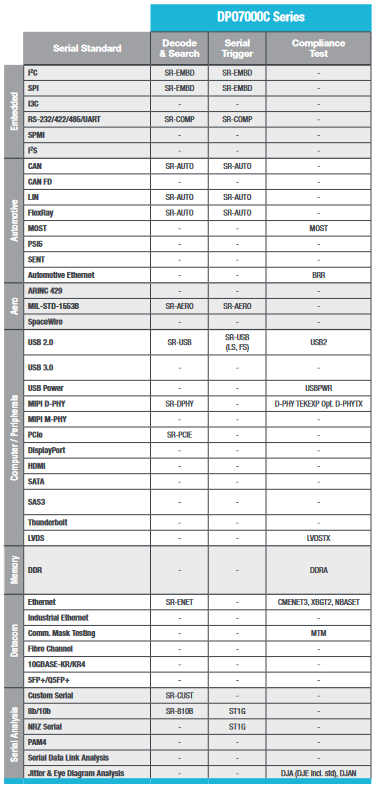

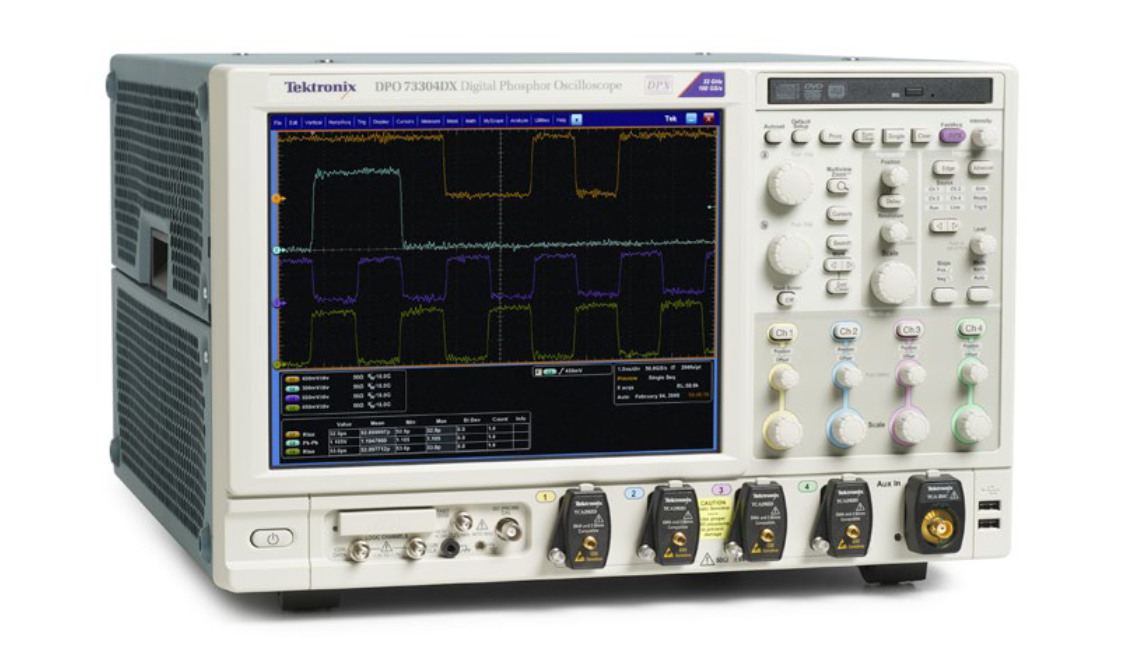

MSO/DPO70000DX Series Mixed Signal Oscilloscope

MSO/DPO70000DX Series

Whether you’re at first power-up on your latest design, verifying compliance to the fastest standards, or researching fundamentals of the universe, these oscilloscopes deliver the performance, precision, and tools to get your job done faster.

Analog Bandwidth 8 GHz–33 GHz
Analog + Digital Channels 4 (DPO), 4 + 16 (MSO)
Sample Rate (2/4 Channels) 100/50 GS/s
  • 8 to 33 GHz true analog bandwidth for measurements on the latest high-speed serial standards.
  • 100 GS/s sample rate on 2 channels.
  • 16 logic channels with 80 ps timing resolution for debug of digital and analog signals (MSO70000 models).
  • iCapture - One connection for analog and digital signals (MSO70000 models).
  • Fastest waveform capture rate with >300,000 wfms/s maximum.
LEARN MORE

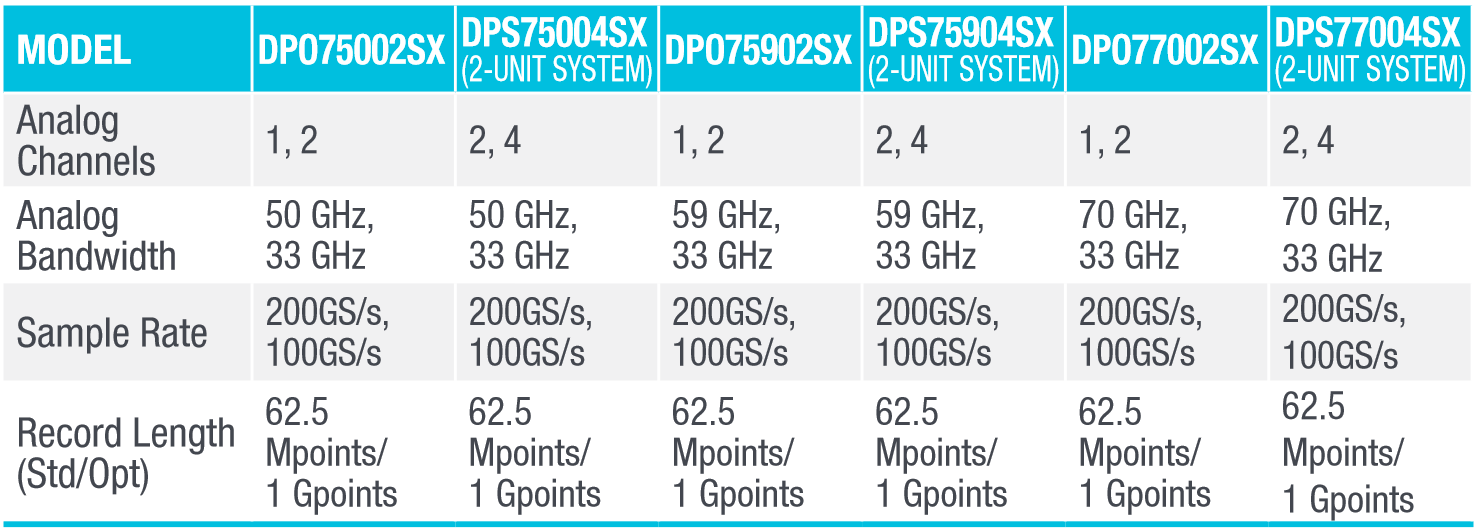

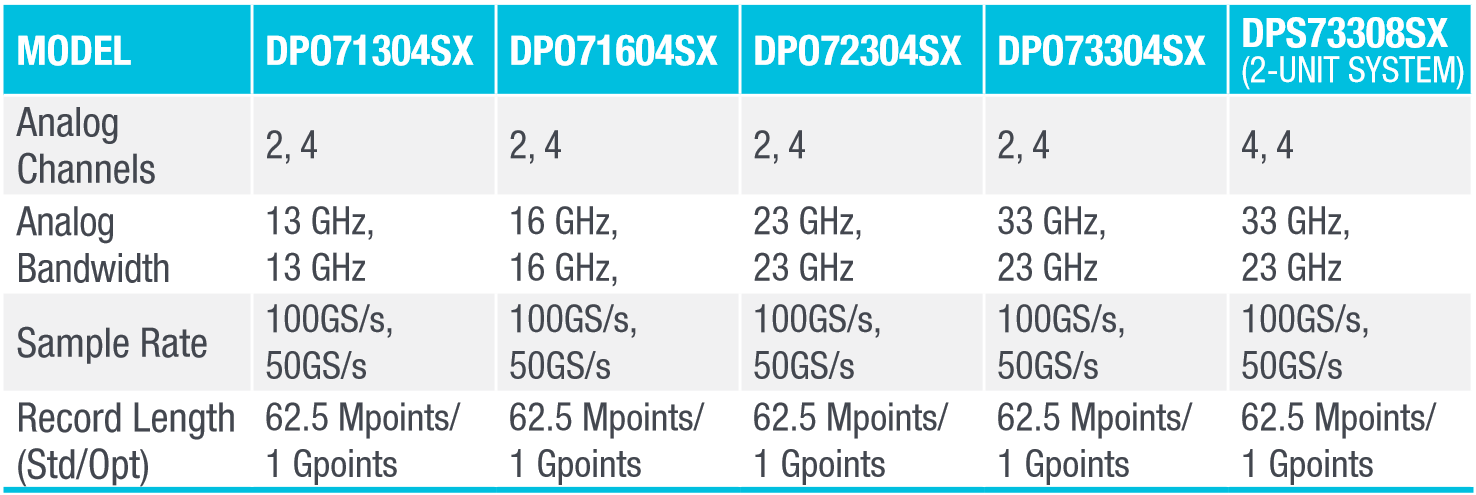

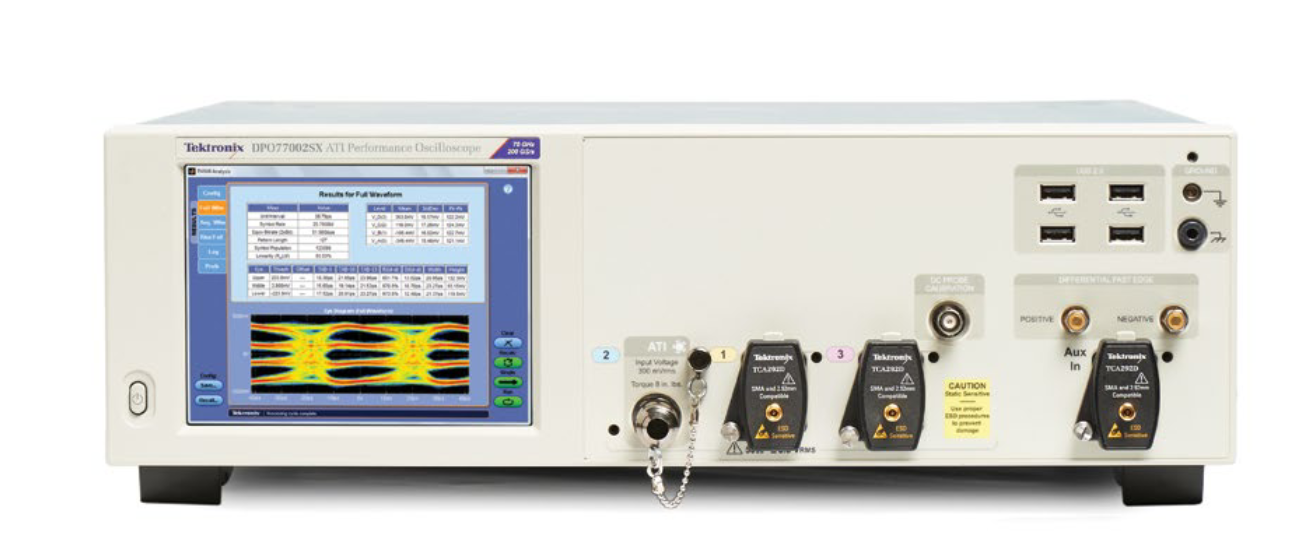

DPO70000 Mixed Signal Oscilloscope

DPO70000SX Series

The DPO70000SX provides low-noise, real-time acquisition using Tektronix’ patented Asynchronous Time Interleaving technology. Its compact, scalable package allows flexible system configurations. Get the most accurate real-time performance for ultra-bandwidth measurement applications like coherent optical modulation, 100G/400G Datacom, wideband RF, and leading-edge research.

Analog Bandwidth 13–70 GHz, 13–33 GHz
Analog Channels 2-4, 4
Sample Rate 100–200 GS/s, 50–100 GS/s
  • Wide range of models from 13 to 70 GHz bandwidth with low noise, high ENOB
  • Compact package allows the scope to get very close to the device under test for accurate measurement results
  • UltraSync architecture ensures precise data synchronization and convenient Master/Extension operation for scalability in multi-unit systems
  • 200 GS/s sample rate for precise 5 ps timing resolution
  • Up to 1 Gpoints record length with multiview zoom for quick navigation and advanced search
LEARN MORE



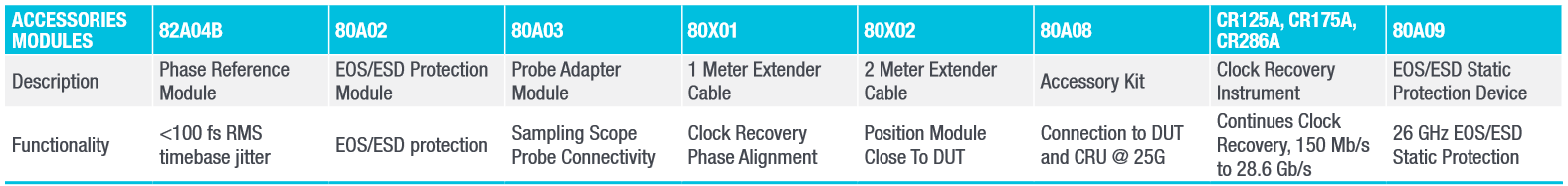

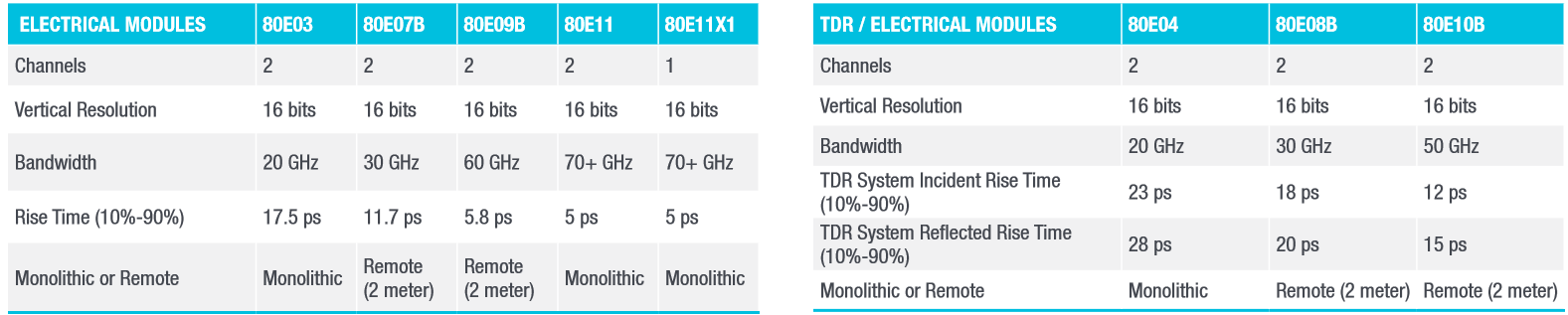

Tektronix 8 Series Sampling Oscilloscope

8 Series Sampling Oscilloscope

The 8 Series Sampling Oscilloscope provides a flexible, efficient solution for the research and design, validation, and manufacturing of optical devices. It combines a disaggregated architecture that’s compact and easy to configure with an intuitive user interface, making it well suited for applying modern test methodologies on devices that demand faster, more complex signal modulations.

Optical Bandwidth 30 GHz (Multimode mode);
>30 GHz Single mode
Optical Channels Up to 4
Wavelength Range 750 to 1650 nm
Vertical Resolution 15.6 bits
  • Best in class noise performance. Highest sensitivity for low power Multimode or Single Mode signal analysis
  • Comprehensive signal analysis supporting complex optical measurement, eye diagram visualization, mask test, equalization, and others
  • User reconfigurable, compact design with scaling from 1 to 4 optical channels as needed
  • Waveform data streaming through network interface.
  • Compliance testing for a wide range of industry NRZ / PAM4 standards, including 10G, 50G, 100G, 200G, and 400G IEEE 802.3TM standards
LEARN MORE

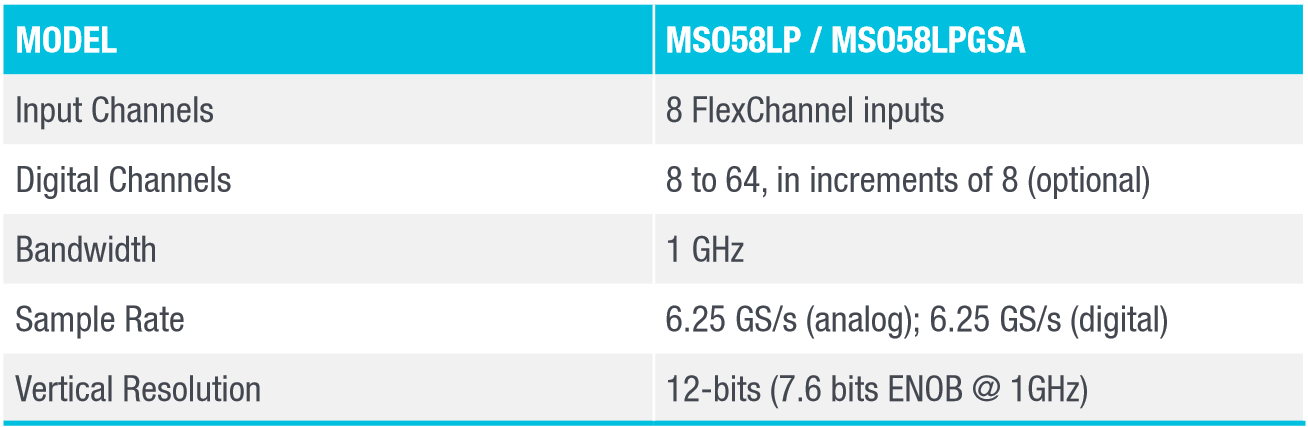

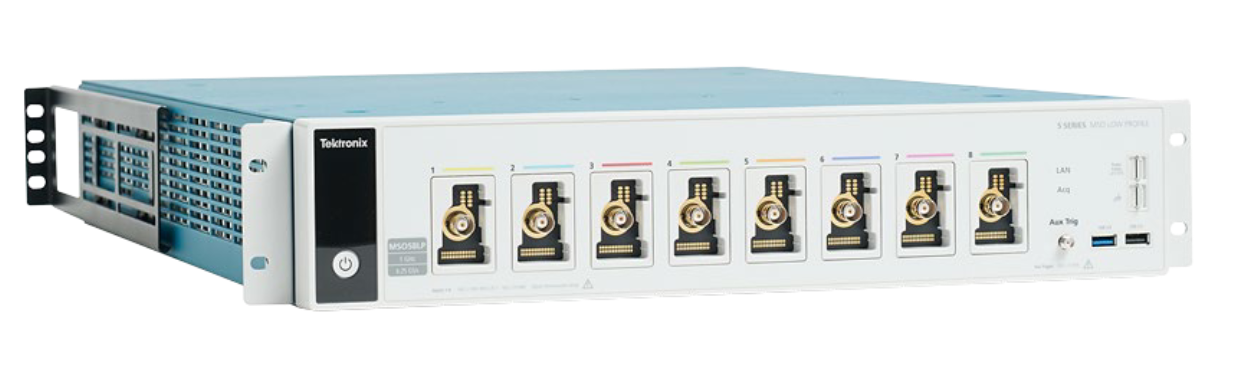

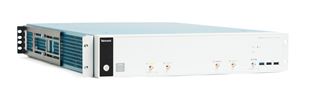

5 Series MSO Low Profile Digitizer

5 Series MSO Low Profile Digitizer

In applications that demand extreme channel density, the 5 Series MSO Low Profile Digitizer sets a new standard for performance. This mixed signal oscilloscope offers 8 input channels (plus AUX Trig) and 12-bit analog-to-digital converters in a compact package, only 3.5 inches high (2U). Replace your oscilloscopes and fit six times more channels into your existing rack space.

Bandwidth 1 GHz
Digital Channels Up to 64 (optional)
Input Channels 8
Sample Rate 6.25 GS/s
  • 8 FlexChannel™ inputs with 1 GHz bandwidth
  • 12-bit Analog-to-digital converter
  • 125 Mpoints/ch record length
  • Only 2 rack units (3.5 inches) high
  • Aux trigger input
LEARN MORE

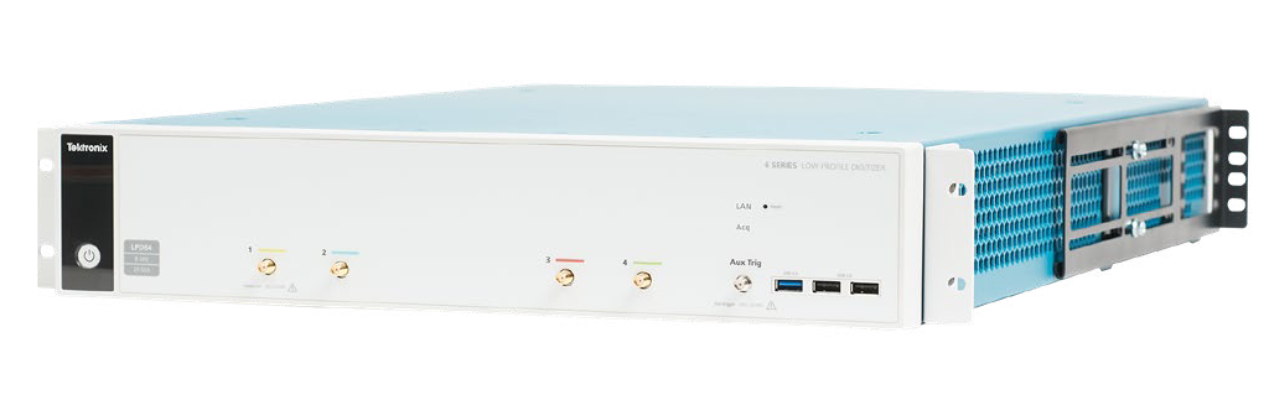

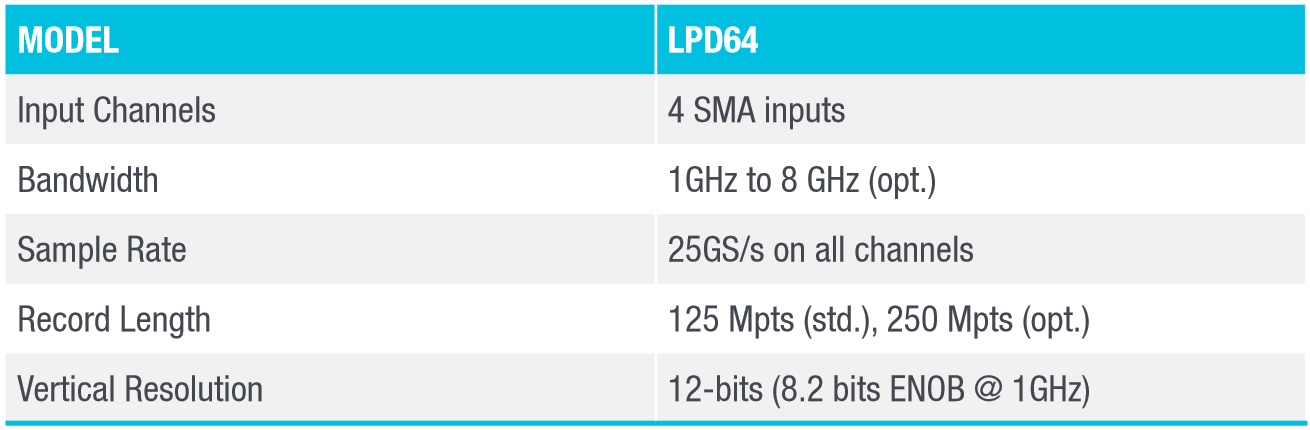

6 Series Low Profile Digitizer

6 Series Low Profile Digitizer

Applications requiring high-speed digitizers shouldn’t trade-off performance when turning on channels. The 6 Series Low Profile Digitizer sets a new standard by not interleaving sample rate, bandwidth or record length. You get the highest performance digitizer on all channels – all in a 2U space.

Bandwidth 1 GHz, 2.5 GHz, 4 GHz, 6 GHz, 8 GHz
Input Channels 4 SMA inputs
Sample Rate 25 GS/s
  • 1 GHz, 2.5 GHz, 4 GHz, 6 GHz, 8 GHz
  • 12-bit Analog-to-digital converter
  • 2 GHz RF capture bandwidth (span) with I/Q data offloading
  • Only 2U rack units (3.5 inches) high
  • Aux trigger input
LEARN MORE

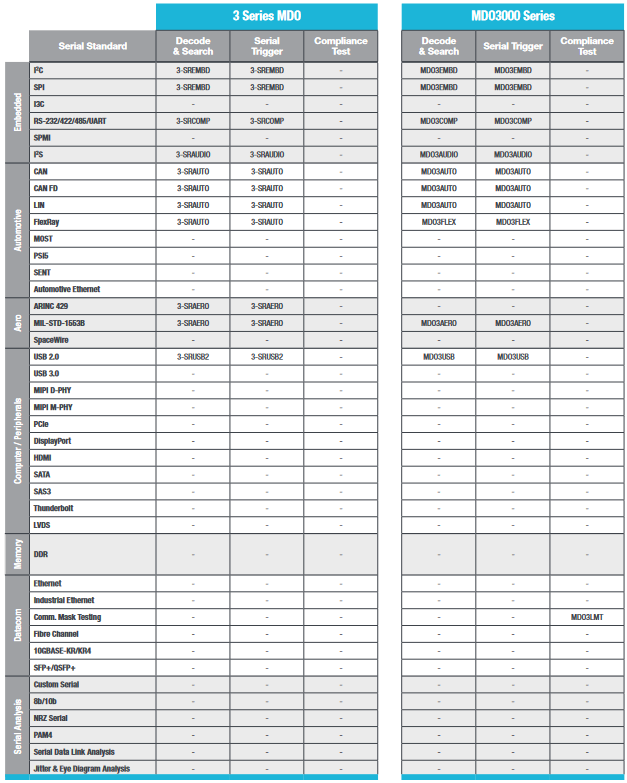

2 Series MSO and 3 Series MDO

Serial Bus Decoding and Advanced Analysis

2 Series MSO Mixed Signal Oscilloscope 3 Series MDO Mixed Domain Oscilloscope
Options 2 Series MSO 3 Series MDO
Serial Decode Aerospace serial trig. and analysis (MIL-STD-1553, ARINC429)
Audio serial trig. and analysis (I2S, LJ, RJ, TDM)
Automotive serial trig. and analysis (CAN, CAN FD, LIN)
Automotive serial trig. and analysis (FlexRay)
Automotive sensor serial triggering and analysis (SENT) ⬤(decode only)
Computer serial triggering and analysis (RS-232/422/485/UART)
Embedded serial triggering and analysis (I2C, SPI)
USB serial triggering and analysis (USB 2.0 LS, FS, HS)
Advanced Analysis Mask and limit testing
Power measurement and analysis

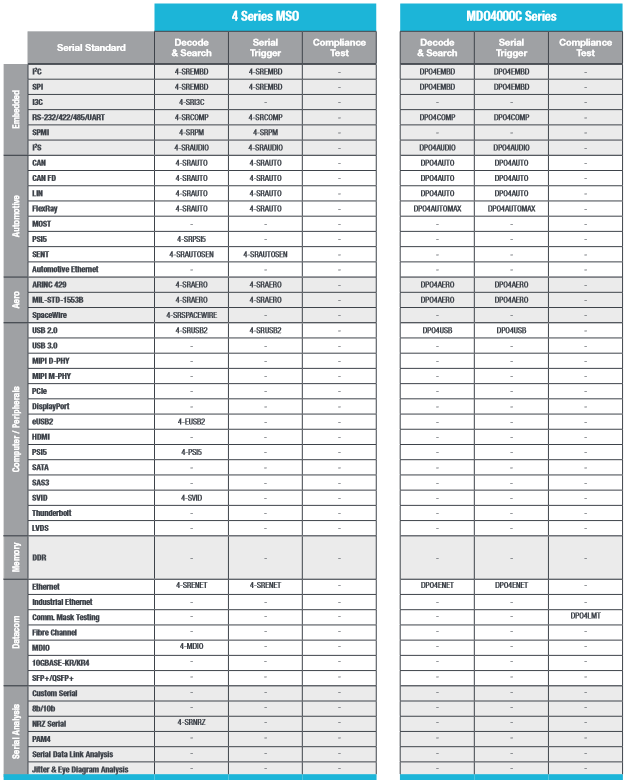

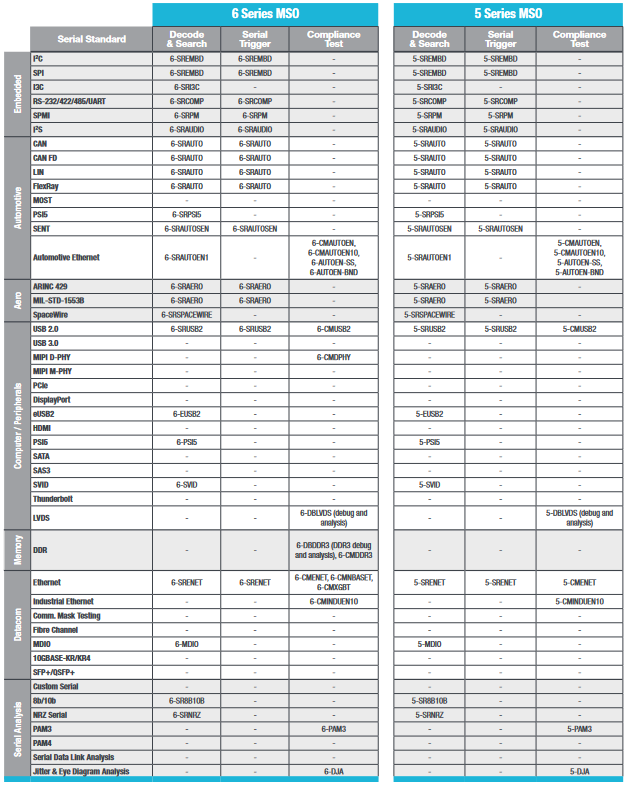

4 Series B MSO, 5 Series B MSO and 6 Series B MSO

Serial Bus Decoding, Compliance/Conformance Testing and Advanced Analysis

Tektronix 4 Series B MSO Mixed Signal Oscilloscope Tektronix 5 Series B Mixed Signal Oscilloscope Tektronix 6 Series B Mixed Signal Oscilloscope
Options 4 Series B MSO 5 Series B MSO 6 Series B MSO
Serial Decode 1-Wire serial decoding and analysis
8b10b serial decoding and analysis
Aerospace serial trig. and analysis (MIL-STD-1553, ARINC429)
Audio serial trig. and analysis (I2S, LJ, RJ, TDM)
Automotive serial trig. and analysis (CAN, CAN FD, LIN, FlexRay)
Automotive sensor serial triggering and analysis (SENT)
Computer serial triggering and analysis (RS-232/422/485/UART)
CXPI serial decoding and analysis
Embedded serial triggering and analysis (I2C, SPI)
EtherCAT serial decoding and analysis
Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
eSPI serial decoding and analysis
eUSB2 serial decoding and analysis
I3C serial decoding and analysis
Manchester triggering and analysis
MDIO serial decoding and analysis
MIPI C-PHY (DSI-2/CSI-2) decoding and analysis
MIPI D-PHY (CSI/DSI) decoding and analysis
NRZ serial decoding and analysis
Power management serial triggering and analysis (SPMI)
PSI5 serial decoding and analysis
SDLC serial decoding and analysis
SMBus serial decoding and analysis
SpaceWire serial decoding and analysis
SVID serial decoding and analysis
USB serial triggering and analysis (USB 2.0 LS, FS, HS)
Conformance / Compliance Automotive Ethernet (10BASE-T1S) compliance solution
Automotive Ethernet (100BASE-T1, 1000BASE-T1, 10BASE-T1S) automated compliance test application
DDR3 and LPDDR3 automated compliance solution
Ethernet (2.5G and 5G BASE-T) automated compliance solution
Ethernet (10G BASE-T) automated compliance solution
Ethernet (1000BASE-T, 100BASE-T, 10BASE-T, 10Base-T1L) automated compliance solution
MIPI D-PHY 1.2 automated compliance solution
MIPI C-PHY 2.0 automated compliance solution
MIPI D-PHY 2.1 automated compliance solution
Multi-Gigabit Automotive Ethernet (2.5G/5GBASE-T1) automated compliance solution
USB2.0 automated compliance test solution
Advanced Analysis 3-phase, inverter, motor, drive analysis
3-phase power measurements and analysis
Advanced jitter and eye analysis
Advanced power measurement and analysis
Power measurements and analysis
DDR3 and LPDDR3 analysis and debug
DQ0 measurements for inverter motor drives
Enhanced security for instrument declassification
Mask and Limit Testing
Mechanical measurements for inverter motor drives
Removable SSD with Windows license
User-defined filter creation tool
Vector signal analysis (SignalVu-PC)
Wide Bandgap SiC/GaN double pulse test measurements



MSO/DPO70000DX and DPO70000SX

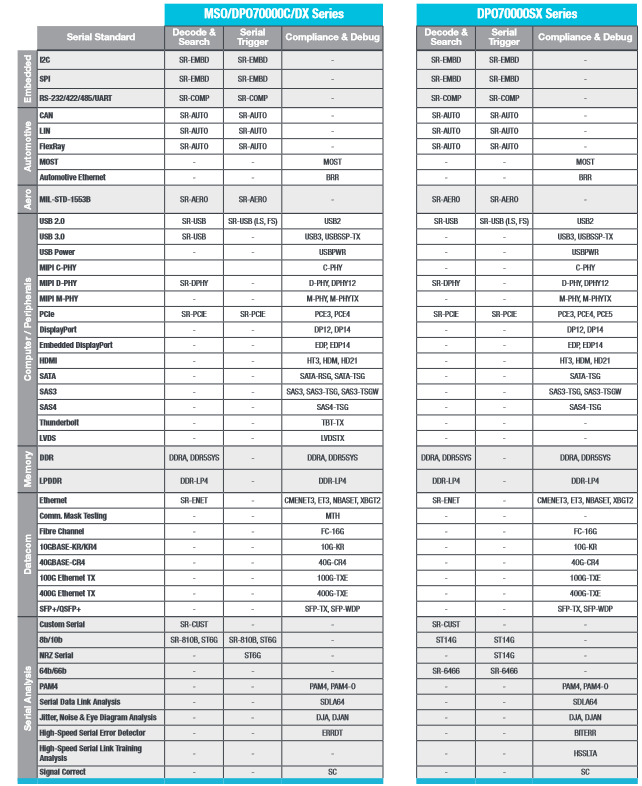

Serial Bus Decoding, Compliance/Conformance Testing and Advanced Analysis

Tektronix DPO70000C/DX Series Digital Phosphor Oscilloscope Tektronix DPO70000SX ATI Performance Oscilloscope
Options MSO/DPO70000DX DPO70000SX
Serial Decode 64b/66b Serial Trigger and Analysis (Requires Opt. ST14G)
8b/10b Serial Trigger and Analysis
Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
Computer Serial Triggering and Analysis (RS-232/422/485/UART)
Custom Serial Analysis Kit for Developers
Embedded Serial Triggering and Analysis (I2C, SPI)
Ethernet Serial Analysis (10BASE-T and 100BASE-TX)
Frame and Bit Error Rate Detector for High Speed Serial Stds
Hi Speed Serial Bit Error Detector
High Speed Serial Link Training Analysis
HSIC Essentials - Electrical Validation and Protocol Decode Solution
MIPI D-PHY (DSI / CSI2) Serial Analysis
PCI Express Serial Analysis
SSIC Protocol Decoder
USB Serial Triggering and Analysis
Conformance / Compliance 10GBASE-KR/KR4 Compliance and Debug Solution
10GBASE-TekExpress Conformance and Debug Solution
40GBASE-CR4 Debug and Automated Compliance Solution
Automotive Ethernet (100BASE-T1, 1000BASE-T1) Automated Compliance
DDR Memory Bus Analysis
DDR5 System-level Tx Compliance/Debug Automation Software
DisplayPort 1.2 Source Test Automation
DisplayPort 1.4 Source Test Automation Software
Embedded DisplayPort 1.3 Essentials
Embedded DisplayPort 1.4 Essentials
Embedded Display Port (EDP) v1.4 TX Compliance Test Package
Ethernet Compliance Testing
HDMI 1.4 Compliance Testing
HDMI 2.0 Advanced Analysis and Rx Compliance
HDMI 2.0 Advanced Analysis and Tx Compliance
HDMI 2.1 Advanced Analysis and Rx Compliance
HDMI 2.1 Advanced Analysis and Tx Compliance
HDMI 2.1 Advanced analysis and Compliance for eARC Rx tests
HDMI 2.1 Advanced analysis and Compliance for eARC Tx tests
IEEE-802.3bm: CAUI4 and IEEE-802.3bj: KR4/CR4 100Gbps Transmitter Compliance
IEEE-802.3bs/cd: 50-400GAUI, 50-200G-KR, 50-200G-CR, OIF-CEI (VSR, MR, LR) Electrical Transmitter Compliance
LPDDR4 Memory Bus Electrical Validation and Analysis
LVDS Tx Test Automation
MHL 3.0 Advanced Analysis and Compliance for Tx, Rx, Dongle and Cable tests
MHL Advanced Analysis and Compliance Software
MIPI D-PHY 1.2 Tx Test Automation
MIPI M-PHY Transmitter Debug, Characterization and Compliance Test Solution
MIPI M-PHY Automated Receiver Solution
MIPI M-PHY Automated Transmitter Solution
MIPI M-PHY Automated Transmitter Solution (Gear 1, 2, 3, 4)
NBASE-T Conformance and Debug Solution
PCI Express® Gen1, Gen 2, and Gen 3 bundle Compliance/Debug Automation
PCI Express® Gen1/2 DPOJet Measurements
PCI Express® Gen3 Compliance/Debug
PCI Express® Gen4 Compliance/Debug
PCI Express® Gen5 Compliance/Debug
PCI Express® Gen6 Base Compliance/Debug
SAS Transmitter Measurements
SAS Transmitter Measurements
SAS-3 WDP Transmitter Measurements
SAS4 DPOJET Essentials
SATA PHY/TSG/OOB Transmitter Tests
SATA RSG/RMT Receiver Tests
SATA TekExpress SATA SW Bundle (TSG and RSG for Hosts or Devices
SFP+ Compliance and Debug Solution
Ethernet Automated 10/100/1000 BASE-T Solution
Thunderbolt TX Compliance Testing
USB 2.0 Automated Compliance Testing
USB 3.0 Automated Compliance Testin
USB 3.1 Automated TX Compliance Testing
USB 3.2 Automated TX Compliance Testing
USB Power Adapter/ EPS Compliance Automated Testing
Advanced Analysis DPOJET Jitter and Eye Analysis Tools - Noise
DPOJET Jitter and Eye Analysis Tools - Advanced
Frequency Counter-Timer
PAMJET PAM4 Transmitter Analysis Software for electrical signals
PAMJET PAM4 Transmitter Analysis Software for optical signals
Serial Data Link Analysis Visualizer
SignalCorrect Cable and Channel Compensation Software
Visual Trigger and Search
Waveform Limit Testing
Spectral and Modulation Analysis Advanced Signal Analysis (including pulse measurements)
AM/FM/PM Audio Signal Analysis
APCO P25 compliance testing and analysis application
Flexible OFDM Analysis
Frequency and Phase Settling Time Measurements
General Purpose Modulation Analysis
IEEE 802.11ad and 802.11ay SC Wideband Waveform Analysis
Settling Time, Frequency, and Phase
SignalVu Bluetooth Basic LE TX SIG measurements
SignalVu LTE Downlink RF measurements
SignalVu® Essentials - Vector Signal Analysis Software
WLAN 802.11ac measurement application
WLAN 802.11n measurement application
WLAN 802.11a/b/g/j/p measurement application



PC Analysis Software for Oscilloscopes


SOFTWARE KEY FEATURES MORE INFORMATION
TekDrive

A collaborative test and measurement workspace wherein users can upload, store, organize, search, download, and share files from any connected device.

  • Analyze and explore standard files such as *.wfm, *.isf, *.tss, and *.csv in your browser
  • Securely share files and folders instantly with other users
  • REST API enables integration with any connected device or software application
https://www.tek.com/en/products/software/tekdrive
TekScope PC Analysis Software

Analyze waveforms anytime from anywhere with oscilloscope analysis on your PC.

  • Perform basic instrument control, waveform transfer and advanced analysis with oscilloscopes
  • Decode common serial protocols, including: I2C, SPI, RS-232/422/485/UART, CAN, CAN-FD, LIN
  • Supports most waveform files (.wfm, .isf, .csv, .h5, .tr0, .trc, and .bin)
https://www.tek.com/en/products/software/tekscope-pc-analysis-software
Keithley KickStart Software

A full bench setup and control solution for arbitrary function generators, DC power supplies, digital multimeters, source measure units (SMUs) and oscilloscopes. This software helps you start running automated tests and measurements as soon as your instrument is out of the box.

  • Save time by automating data collection of millions of readings
  • Set up multi-instrument tests with the ability to independently control up to eight instruments
  • Replicate tests quickly using saved test configurations
https://www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart
Spectrum Analyzer Software – SignalVu

Analyze RF and vector signals on your oscilloscope. This software software shows the timevariant behavior of these signals and is ideal for validating designs for EMI/EMC pre-compliance testing, wideband radar, wireless LAN, or frequency-hopping communications.

  • Analyze waveforms without acquisition hardware present
  • Free version includes 17 signal analysis and real-time spectrum analysis measurements
  • Get the same signal analysis capabilities found in Tektronix real-time signal analyzers on your computer, tablet, or MSO/DPO oscilloscope with Windows 7/8/10 Intel i5 or i7 64-bit operating system
https://www.tek.com/en/product-software-series/signalvu-spectrum-analyzer-software



Oscilloscope Probes


Tektronix probes and accessories are perfectly matched to our industry-leading oscilloscopes. With over 100 choices available, you will find the probe you need.Need help finding the right probe for your application? The Tektronix Probe Selector Tool will guide you through the variety of probes we offer and help you choose the right probe for your needs.

Tektronix Isolated Probes
Isolated Probes
  • High-resolution measurements in the presence of common mode signals or noise
  • Up to 1 GHz bandwidth
  • Complete galvanic isolation
  • 1 Million to 1 (120 dB) of common mode rejection at 100 MHz

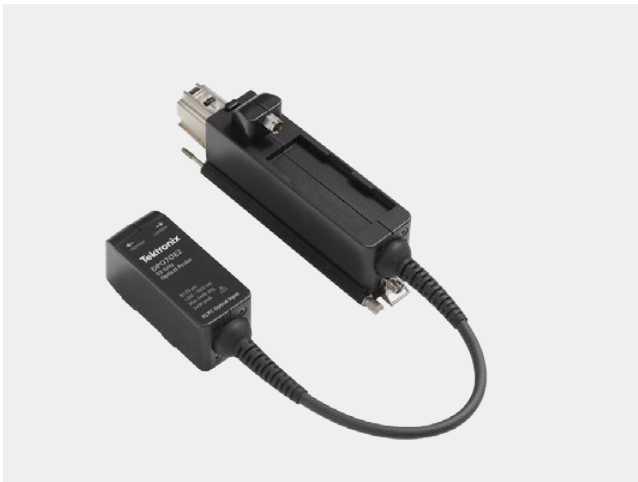

Tektronix Optical Probes
Optical Probes
  • DPO7OE1/DPO7OE2 - high bandwidth optical probes, DC to 33/59 GHz with broad wavelength support from 750-1650 nm / 1200-1650 nm
  • P6701B/P6703B - DC to 1.0/1.2 GHz with broad wavelength support: 500-950 nm/1100-1650 nm

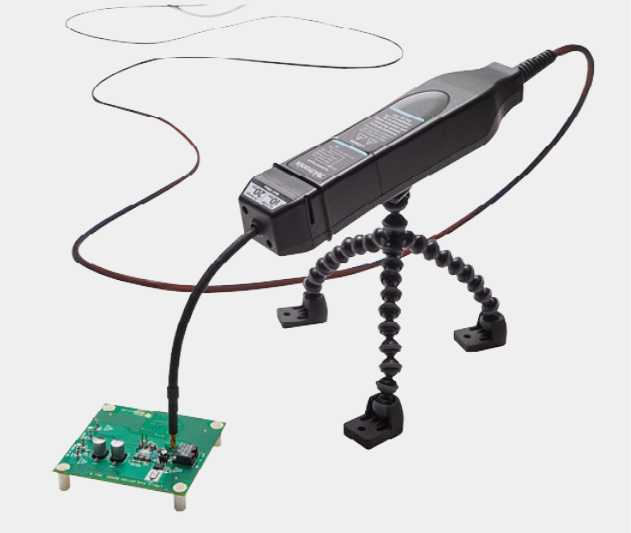

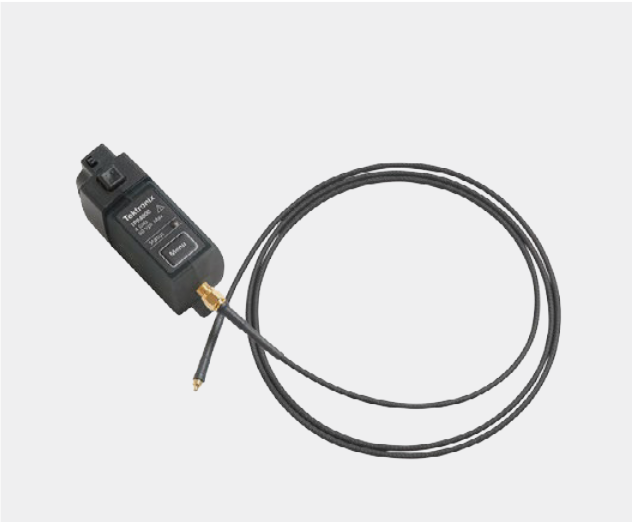

Tektronix Power Rail Probes
Power Rail Probes
  • Bandwidth up to 4 GHz
  • Offset range up to ±60 V
  • Lowest noise
  • Flexible connectivity

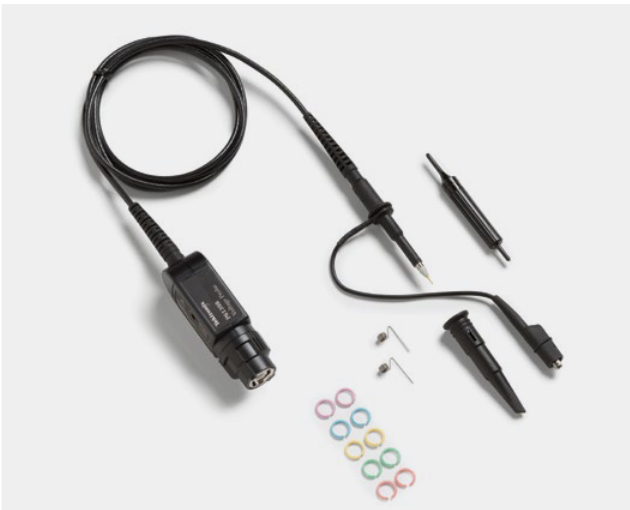

Tektronix Passive Probes
Passive Probes
  • Best-in-class bandwidth up to 1 GHz
  • Best-in-class input capacitance as low as 3.9 pF, which minimizes probe loading effects
  • Rugged and reliable
  • High voltage versions with dynamic range up to 2500 V

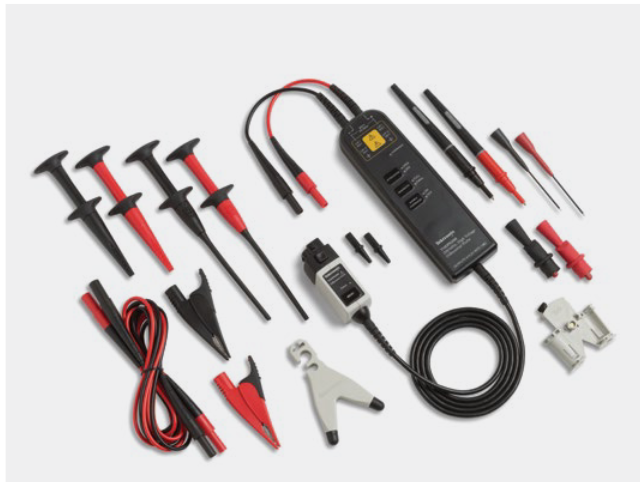

Tektronix High voltage Differential Probes
High Voltage Differential Probes
  • Dynamic range to ± 6000 V
  • Bandwidth up to 200 MHz
  • Most extensive set of probe accessories

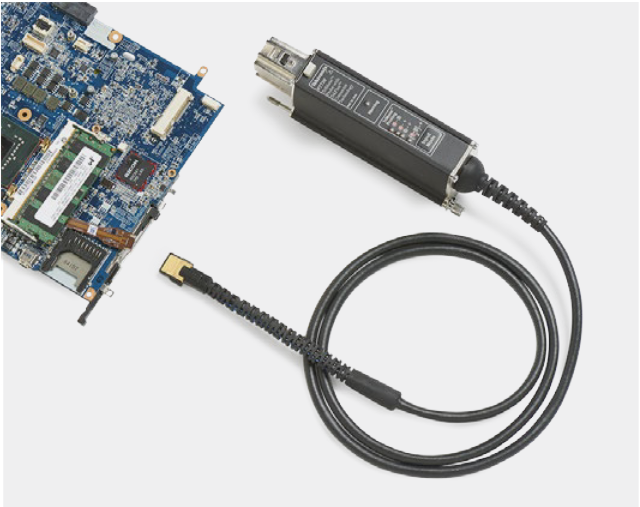

Tektronix Low Voltage Single-ended Probes
Low Voltage Single-ended Probes
  • Bandwidth up to 4 GHz
  • True signal reproduction and fidelity
  • Low input capacitance: down to < 0.8 pF
  • Small, compact probe heads for probing small geometry circuit elements

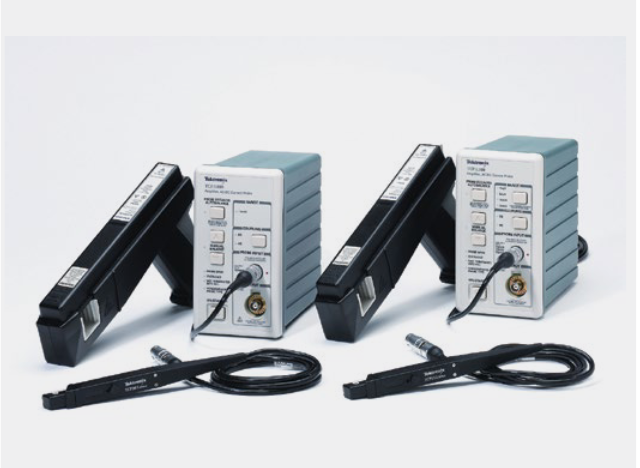

Tektronix Current Probes
Current Probes
  • Easy to use and accurate AC/DC current measurements
  • DC up to 2 GHz
  • Amplitude measurements from 1 mA to 2,000 A
  • Split core and solid core construction

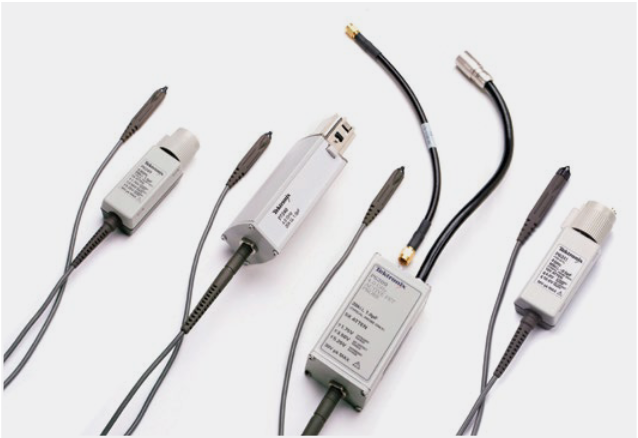

Tektronix Low Voltage Differential Probes
Low Voltage Differential Probes
  • Bandwidth up to 33 GHz
  • Easily measure differential signals
  • TriMode™ probes let you easily switch between differential, single-ended, and common mode
  • High common mode rejection ratio (CMRR)
  • Wide range of probe tips for easier circuit access



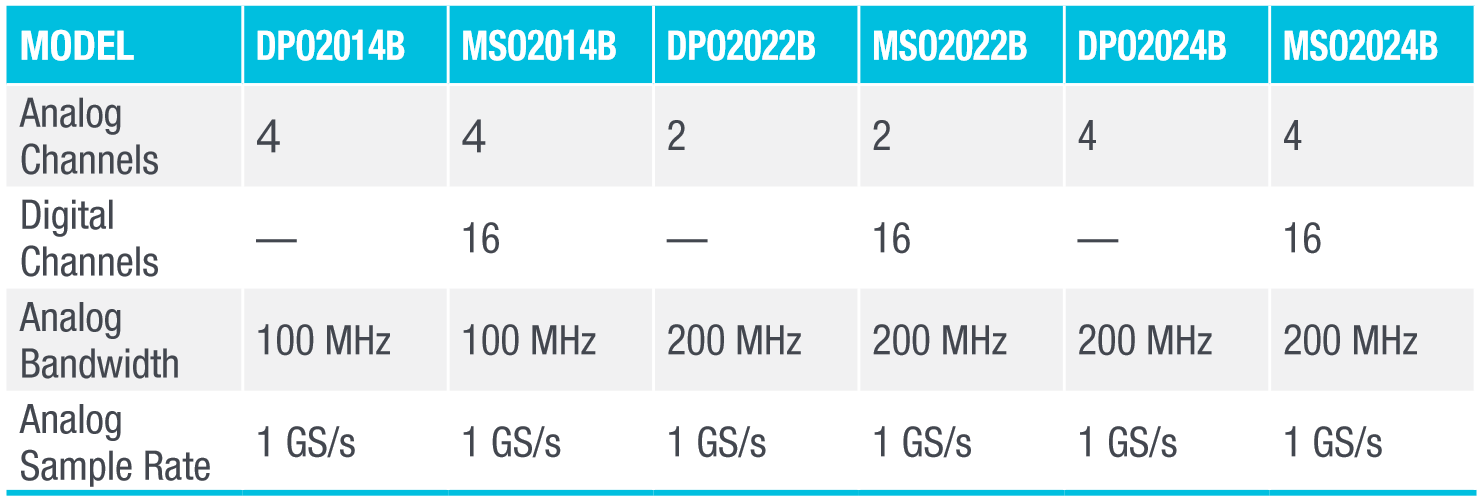

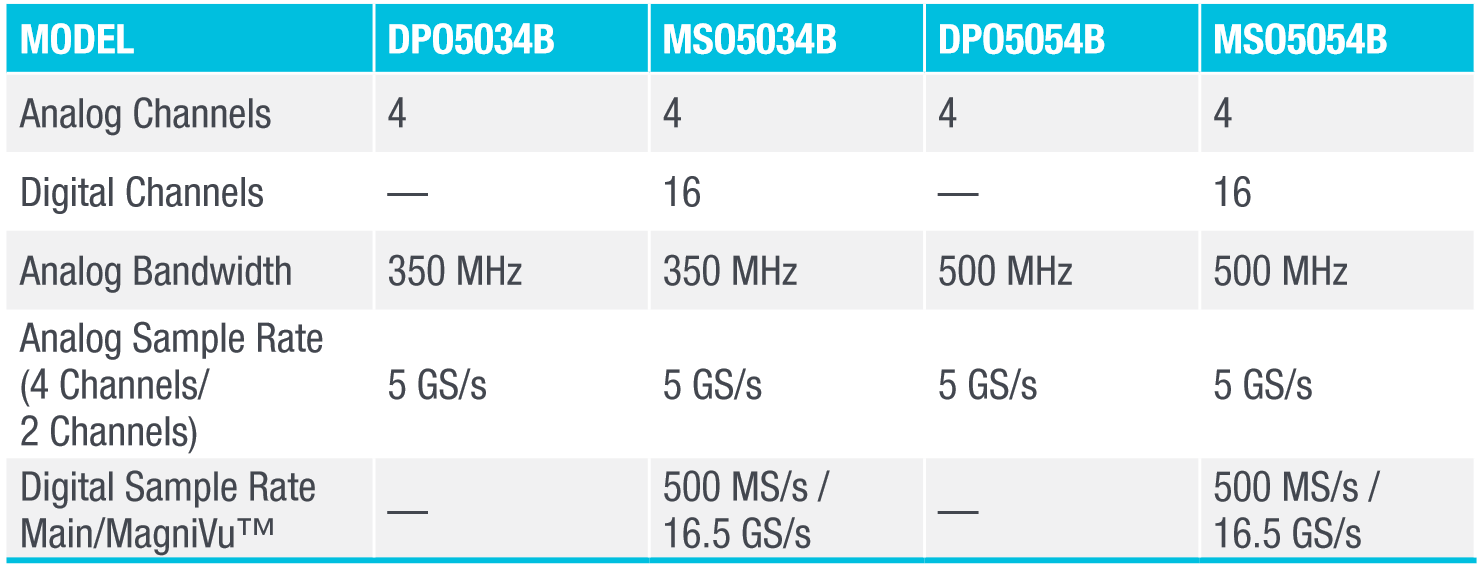

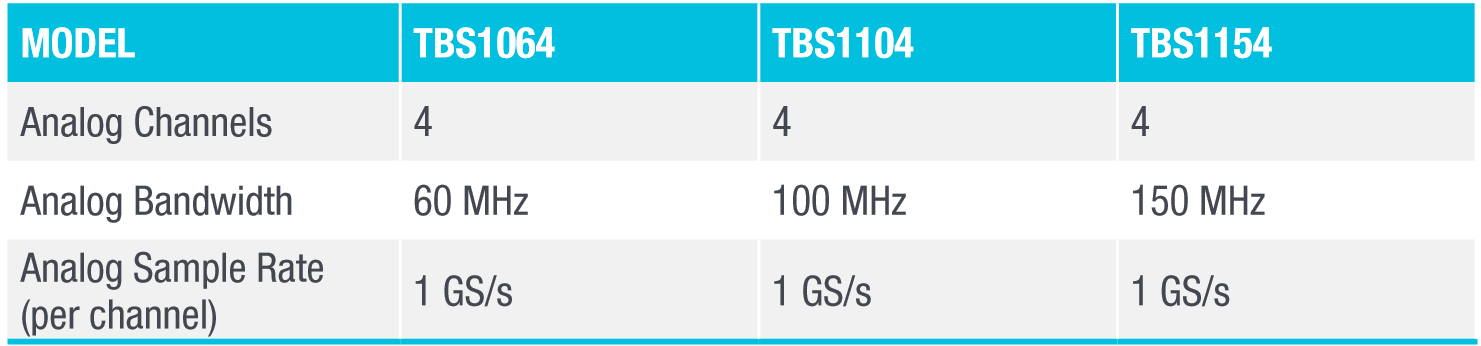

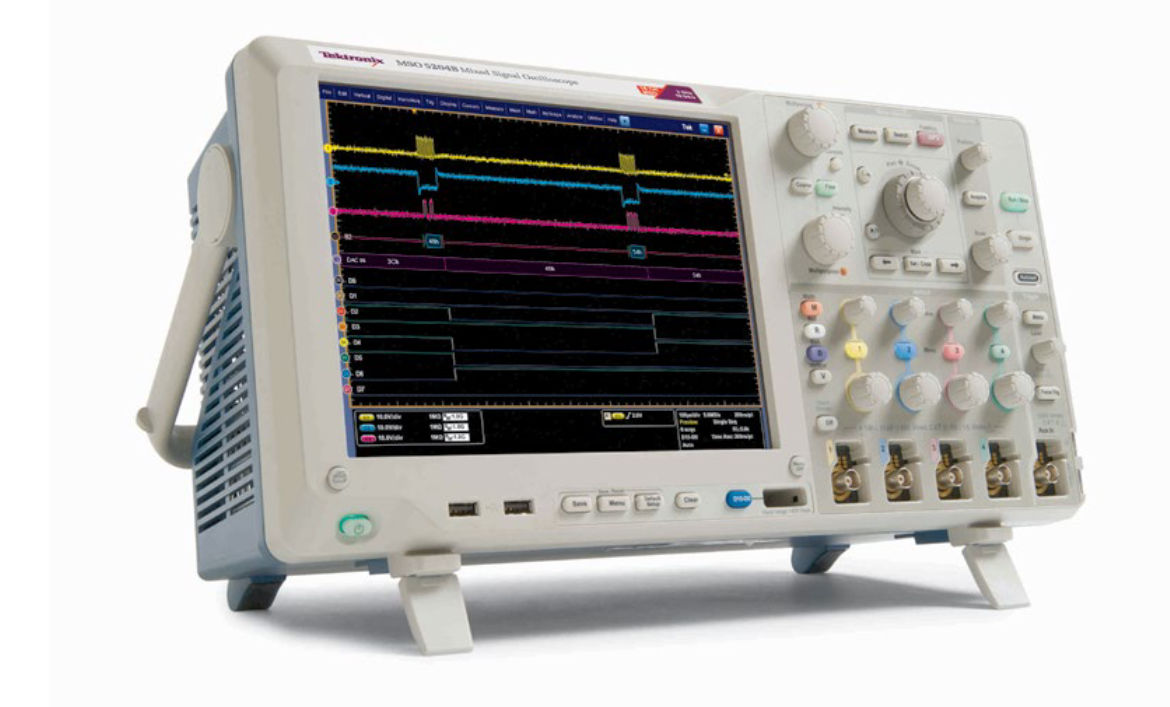

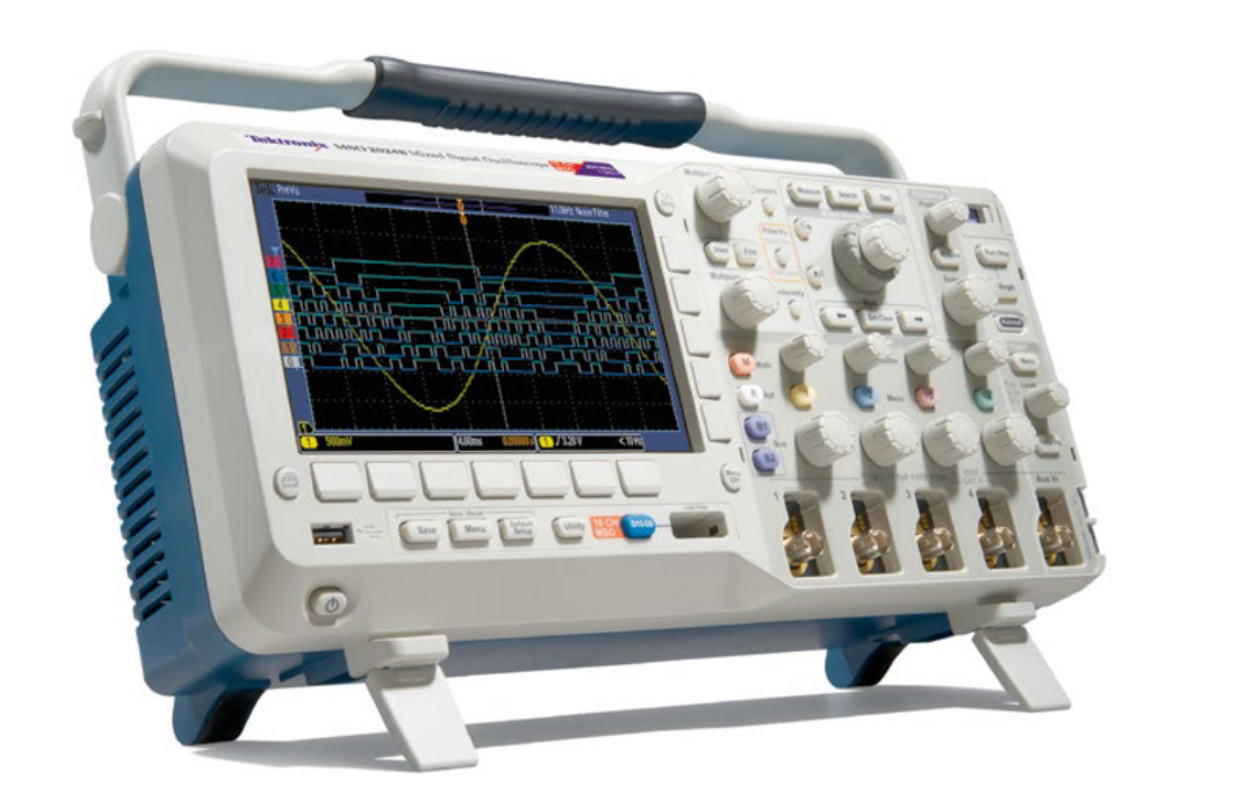

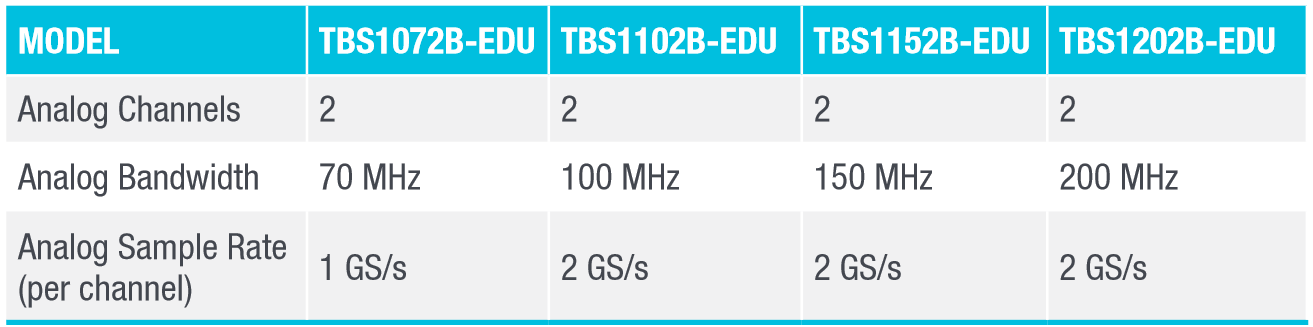

Additional Oscilloscopes


The oscilloscopes listed below are still available for a limited time. For new applications we recommend you consider our newest oscilloscopes that have the latest capabilities and longer-term support.

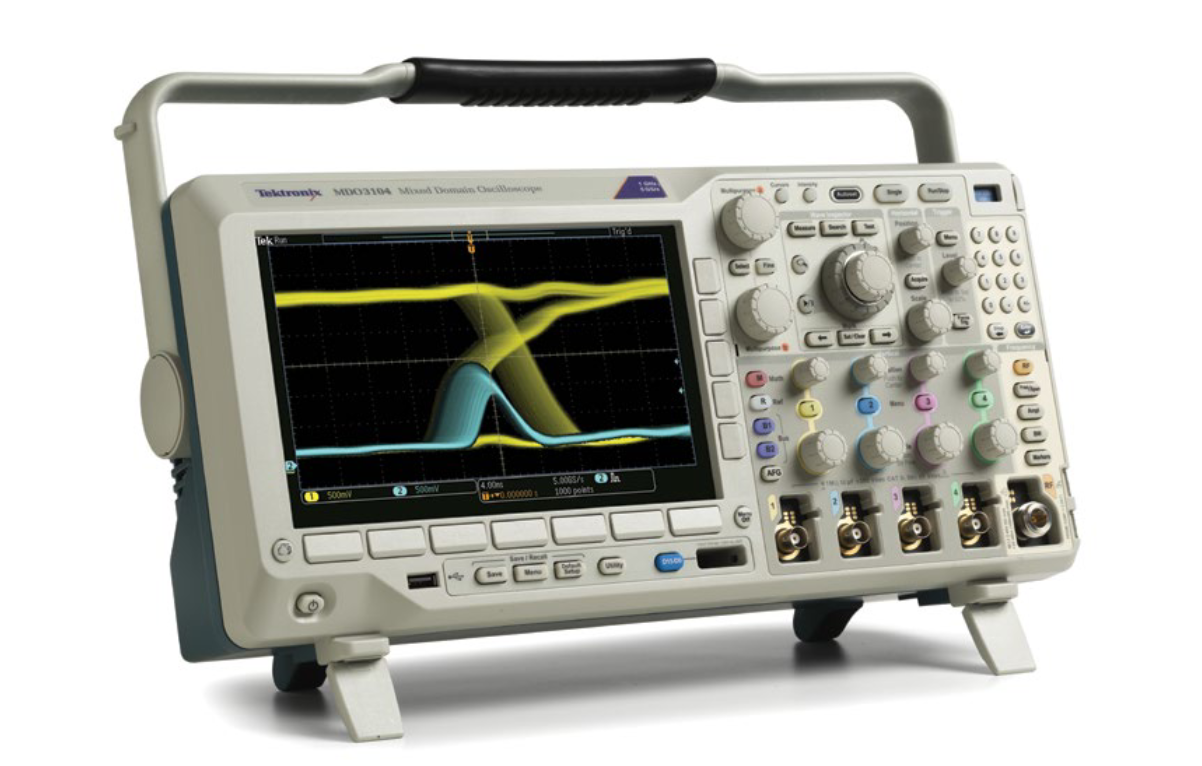

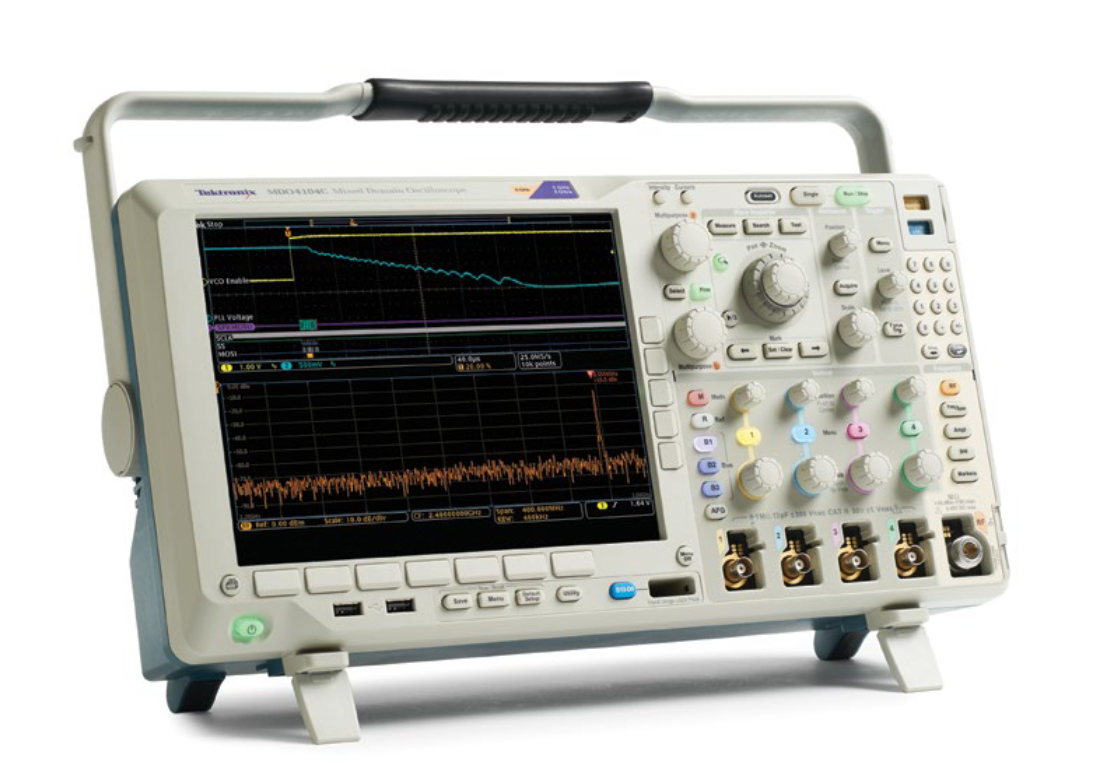

Tektronix MDO3000 Mixed Domain Oscilloscope Tektronix MDO4000C Mixed Domain Oscilloscope
MDO3000
Mixed Domain Oscilloscope

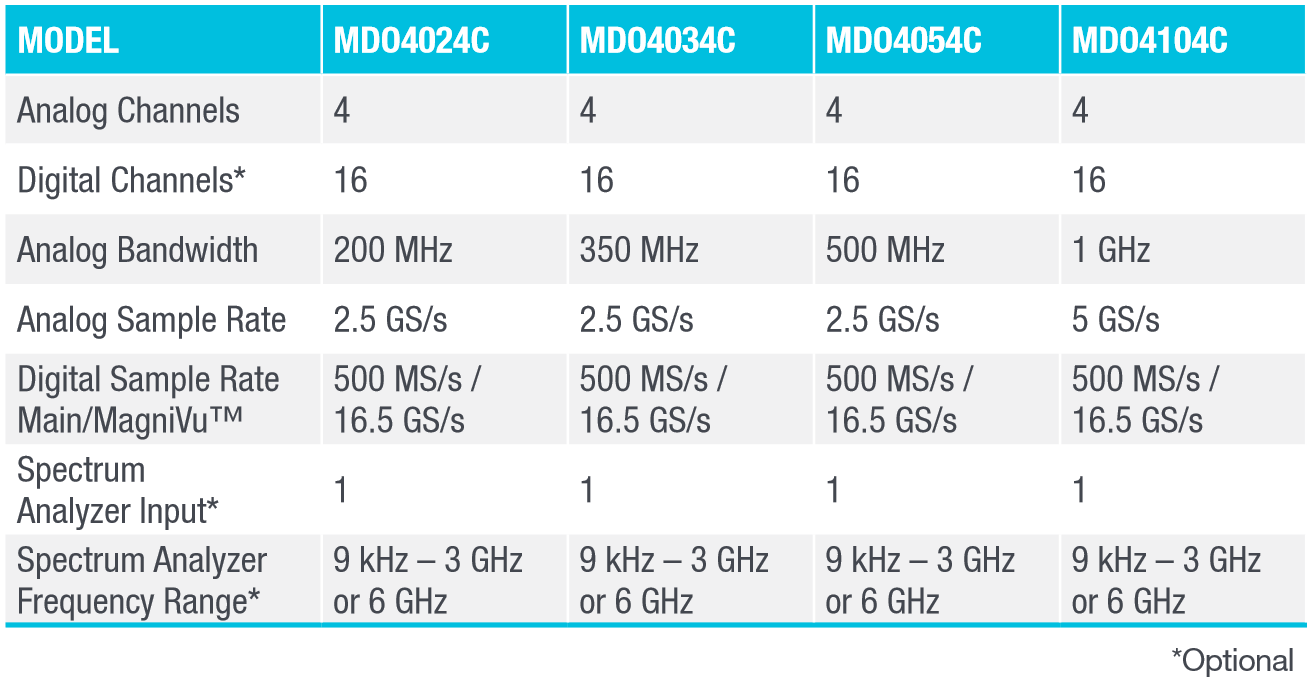

MDO4000C
Mixed Domain Oscilloscope
Bandwidth 100 MHz - 1 GHz 200 MHz - 1 GHz
Analog Channels 2 or 4 4
Digital Channels 16 (optional) 16 (optional)
Sample Rate 2.5 GS/s - 5 GS/s 2.5 GS/s - 5 GS/s
Recommended Replacement 3 Series MDO (see page 5) 4 Series B MSO (see page 5)



Service


Save up to 80% when you protect your investment with a service package for your Tektronix instrument.

Tektronix offers a range of calibration and warranty extension plans for purchase with your instrument to protect and maintain its performance over the years. With benefits from priority service to OEM-expert maintenance to accident protection, invest now to avoid unplanned downtime and expense. View plans.

Calibration Plans

Tektronix Opt. C3

Calibration service 3 years.Includes traceable calibration or functional verification where applicable. Coverage includes the initial calibration plus 2 additional years*.

Tektronix Opt. C5

Calibration service 5 years. Includes traceable calibration or functional verification where applicable. Coverage includes the initial calibration plus 4 additional years**.

*Maximum of 2 events.

**Maximum of 4 events

Which Plan is Right for You?

Factory Service Plans Standard Protection Extended Protection Premium Protection
Ships with your instrument. Basic coverage that extends your warranty to protect your investment and your uptime. Save up to 80% and shield yourself from unexpected downtime and cost with these feature-rich plans.
Features Original factory warranty with purchase – 1 or 3 years) Tek Care and Keithley Care Extended Warranties – 3 or 5 years Total Protection Plan – 3 or 5 Years, Tek & Keithley Gold Care Protection Plan - 1, 3 or 5 Years, Tek only
Original factory warranty
Extension of factory warranty
Protection from manufacturer defects
Free factory certified calibration with repair (if necessary)
Free in-country shipping
Priority on-bench service
Coverage of user-caused EOS and ESD damage
Coverage from accidental damage
Coverage from normal wear and tear
Loaner unit during repair shipped within 48 hours
Optional Factory-Certified Calibration Plans–3 or 5 year Various levels with and without data, for additional cost. Initial factory calibration included
Suitable for Included with every product Any Tektronix and Keithley instruments 4-5-6 Series Oscilloscopes Function Generators Multimeters Probes Other advanced products DPO70k and 8 Series Oscilloscopes Probes Signal Sources Spectrum Analyzers



Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

2/2024 46W-31080-12
