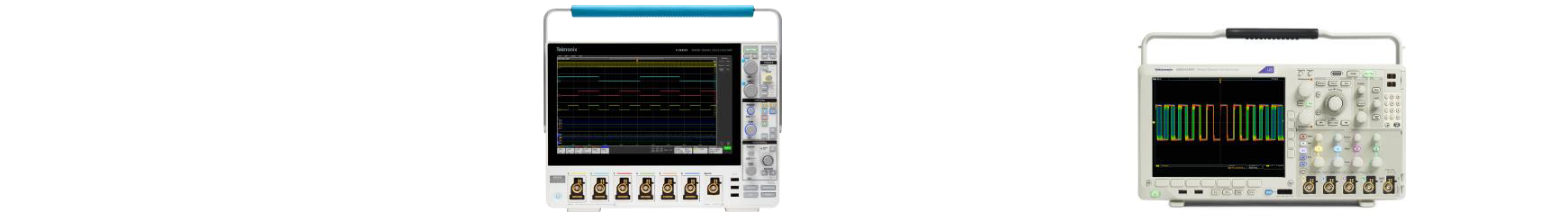

4 Series MSO vs MDO4000C


COMPARISON FACT SHEET

Screen Size and Waveform Viewing Area
4 Series MSO MDO4000C Series
2001 SPECIFIED CALIBRATION INTERVALS 2001 SPECIFIED CALIBRATION INTERVALS
13.3" HD 1920 x 1080 10.4" VGA 1024 x 768
Option/Upgrade Licenses
4 Series MSO MDO4000C Series
Licenses installed via software Licenses installed through application modules
Spectrum Analysis
4 Series MSO MDO4000C Series
Max frequency up to the bandwidth of the scope Max frequency up to 3 or 6 GHz
Dynamic range ~ 50 dB Dynamic range ~ 65 dB
Input Channels
4 Series MSO MDO4000C Series
4 or 6 FlexChannel® inputs + 1 Aux In 4 TekVPI inputs +16 digital on MSO models + 1 RF
Any input may be used for analog, digital, or spectrum analysis up to the bandwidth of the scope A decision must be made between having Aux In or the RF channel
Next-Generation User Interface
4 Series MSO
• Pinch, swipe, tap capacitive touchscreen
• Change position or scale by pinching or dragging, or with knobs
• To change settings, just double tap the readout
2001 SPECIFIED CALIBRATION INTERVALS
MDO4000C Series
• Front panel buttons with bottom- and side-bezel buttons
• Change position or scale with knobs
• To change settings, press the front-panel button. Use bezel buttons to change settings
2001 SPECIFIED CALIBRATION INTERVALS

2001 SPECIFIED CALIBRATION INTERVALS 2001 SPECIFIED CALIBRATION INTERVALS

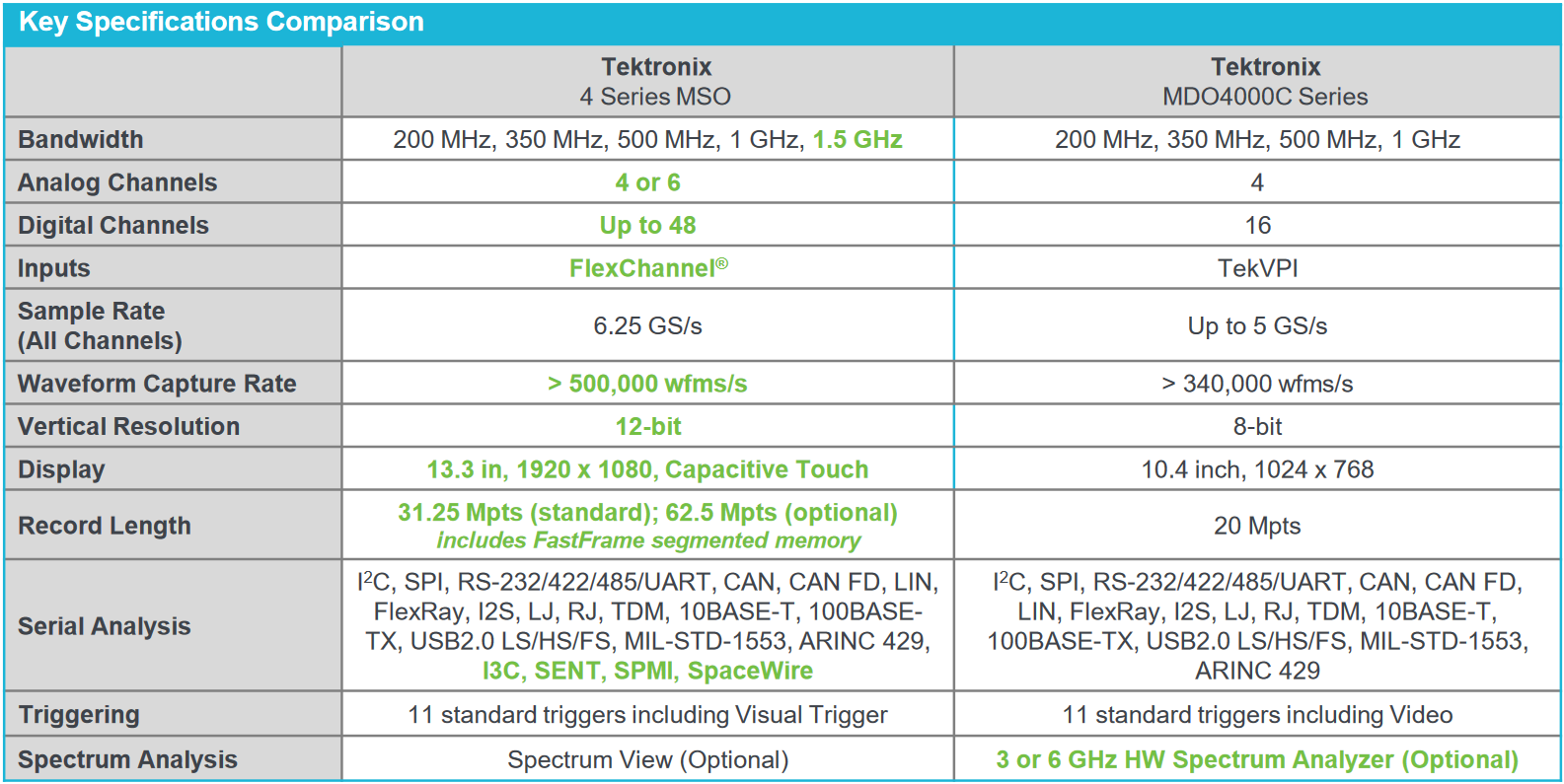

Key Specifications Comparison
Tektronix
4 Series MSO
Tektronix
MDO4000C Series
Bandwidth 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz 200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels 4 or 6 4
Digital Channels Up to 48 16
Inputs FlexChannel® TekVPI
Sample Rate (All Channels) 6.25 GS/s Up to 5 GS/s
Waveform Capture Rate > 500,000 wfms/s >340,000 wfms/s
Vertical Resolution 12-bit 8-bit
Display 13.3 in, 1920 x 1080, Capacitive Touch 10.4 inch, 1024 x 768
Record Length 31.25 Mpts (standard); 62.5 Mpts (optional)
includes FastFrame segmented memory
20 Mpts
Serial Analysis I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, LIN, FlexRay, I2S, LJ, RJ, TDM, 10BASE-T, 100BASETX, USB2.0 LS/HS/FS, MIL-STD-1553, ARINC 429, I3C, SENT, SPMI, SpaceWire I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, LIN, FlexRay, I2S, LJ, RJ, TDM, 10BASE-T, 100BASE-TX, USB2.0 LS/HS/FS, MIL-STD-1553, ARINC 429
Triggering 11 standard triggers including Visual Trigger 11 standard triggers including Video
Spectrum Analysis Spectrum View (Optional) 3 or 6 GHz HW Spectrum Analyzer (Optional)
