PSPL5510 Datasheet

The PSPL5510 Attenuators address a need that has been totally ignored by other microwave component manufacturers who specify their products in the frequency domain, but ignore the time domain responses. For time domain measurements, it is important to also know the transient response of attenuators used in a test set-up. These SMA attenuators have 8 ps risetimes and are recommended for measuring pulses with risetimes of 25 ps or slower. For frequency domain measurements, the useful frequency range is DC to 18 GHz. The 6 dB, 12 dB, 14 dB, and 20 dB values are popular for use as oscilloscope attenuators because they give simple, integer, voltage ratios of 2x, 4x, 5x, and 10x, respectively.

Key performance specifications

SMA DC to 18 GHz
8 ps Risetime

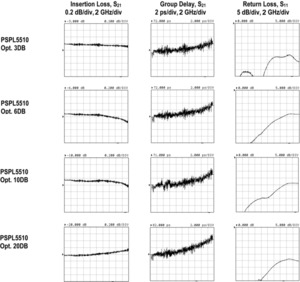

Typical performance

Specifications

Parameter ¹	Value
Values available	1,2, 3, 6, 10, 12, 14, and 20 dB
Frequency range	DC to 18 GHz
Connectors	SMA jack (f) & plug (m)

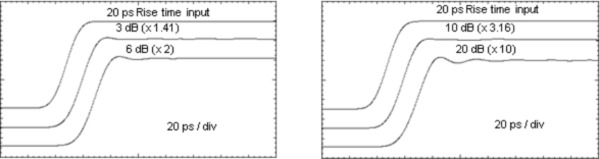

Rise time (10% to 90%)	8 ps typical, when tested with 20 ps rise time pulse
Impedance - DC	50 Ω,
Delay	74 ps, 1 – 12 dB (see Typical performance delay plots) 83 ps, 14 & 20 dB (see Typical performance delay plots)
DC Attenuation accuracy	±0.3 dB, (1 – 6 dB) ±0.5 dB, (10 – 20 dB), maximum limits
Return loss –DC VSWR – DC	> 40 dB typ, 23 dB minimum
Attenuation Flatness (see Typical performance plots)
Return Loss – AC (see Typical performance plots)	> 23 dB, f > 15 dB, f
Maximum Power Input	2 W avg at 25 °C, derated linearly to 0.5 W at 125C, 250 W peak,
Temperature Range	-65 to +125 °C operating and storage, 0.0001 dB/dB/°C temp. coeff.

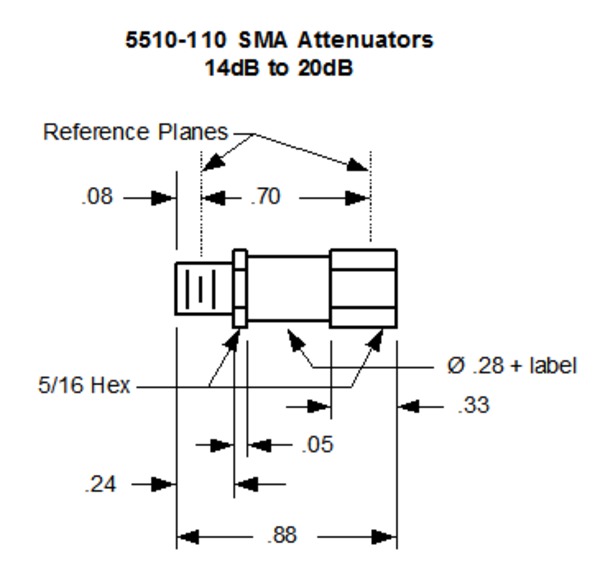

Length & Weight	19.2 mm, 4.1 gm (1-12 dB) 22.5 mm, 4.9 gm (14 & 20 dB), 5/16" hex body
Material	stainless steel
Serial Number	no
Warranty	One Year

¹ All parameters listed are typical unless maximum or minimum guaranteed limits are provided.

Ordering information

Models

PSPL5510: 18 GHz Attenuator

Options

Opt. 1DB: 1 dB attenuation
Opt. 2DB: 2 dB attenuation
Opt. 3DB: 3 dB attenuation
Opt. 6DB: 6 dB attenuation
Opt. 10DB: 10 dB attenuation
Opt. 12DB: 12 dB attenuation
Opt. 14DB: 14 dB attenuation
Opt. 20DB: 20 dB attenuation
