RSA7100B

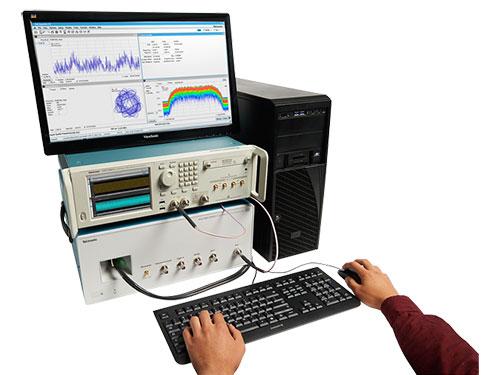

The RSA7100B wideband signal analyzer offers real-time spectrum analysis up to 800 MHz bandwidth and simultaneous streaming of seamless data at full bandwidth. It enables researchers in communications, Radar and Electronic Warfare to create next-generations designs.
See all spectrum analyzers »

  • Unlike other “Real-Time” spectrum analyzers, the full line of Tektronix Real-Time Spectrum Analyzers is capable of simultaneously displaying frequency, time, and modulation domain displays, so you can analyze and measure RF signals faster.
  • IQFlowTM streaming to various hardware interfaces, plus a software API, provide the speed and flexibility you need to perform real-time DSP algorithms
  • Ideal for use as a drop-in system for RF capture, record and playback with 2+ hours of RAID memory
Event Duration

232 ns

Bandwidth

320/800 MHz

SFDR

65 dBc

Frequency Range

Up to 14/26.5 GHz



Uncompromising Performance

You won’t miss signals you need to see with the ability to trigger on and measure signals of 232 ns duration in frequency domain in real time. With higher streaming bandwidth and dynamic range than other spectrum analyzers, the RSA7100B allows you to complete analysis tasks faster with high confidence.

The RSA7100B now comes with real-time recording and signal processing with IQFlowTM, ensuring you are getting the data you need from time-consuming test scenarios. Learn more by downloading the IQFlowTM flyer below.

Powerful and intuitive. Measurement insight at your fingertips.

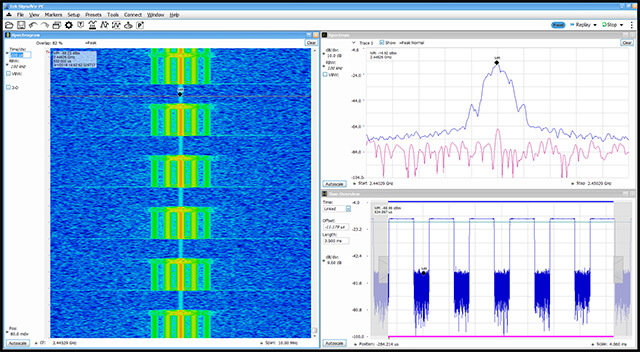

The RSA7100B is powered by SignalVu-PC Vector Analysis software – the same software used on the full-line of Tektronix Real-time Spectrum Analyzers – delivering unlimited access to advanced measurement and analysis capabilities that you can save, customize or share with peers.

Powerful tools to simplify your work.

The RSA7100B delivers the tools to enhance your analysis capabilities with a full set of application-optimized software licenses, available on SignalVu-PC. Options may be added including pulse analysis, general purpose modulation analysis, settling time, automated phase noise measurements, streaming of IQ data, playback of recorded files, and more.

Analyze long recordings with DataVu-PC, which gives you the ability to mark events of interest for later examination and export waveforms to other formats.Save time with automated searches of large files.

LEARN MORE ABOUT SIGNALVU-PC and DATAVU-PC

See more with proprietary DPX® technology.

Discover the most difficult, hard-to-find problems with the powerful real-time architecture of the RSA Series. With the advanced DPX® technology, you can see RF characteristics that are practically invisible to a conventional spectrum analyzer.

Model Frequency Range Real-Time Bandwidth Minimum Event Duration for 100% POI SFDR (typical) List Price
RSA7100B 16 kHz – 14/26.5 GHz 320/800 MHz 232 ns 65 dBc Configure & Quote
RSA7100A 16 kHz – 14/26.5 GHz 320/800 MHz

418 ns

65 dBc Configure & Quote
Model Frequency Range Real-Time Bandwidth Minimum Event Duration for 100% POI SFDR (typical) List Price
RSA7100B 16 kHz – 14/26.5 GHz 320/800 MHz 232 ns 65 dBc Configure & Quote
RSA7100A 16 kHz – 14/26.5 GHz 320/800 MHz

418 ns

65 dBc Configure & Quote
The RSA7100B wideband signal analyzer offers real time spectrum analysis up to 800 MHz bandwidth, and streaming storage of up to 2 hours of seamless data at full bandwidth. In this video, one of …
11m 8s
DataVu-PC has tools like frequency mask, pulse descriptor words and smart markers, to help you find any needle in any size haystack. Your data recordings can be 10’s or 100’s of gigabytes in size …
5m 20s
Learn how to properly measure the Channel Power of a pulsed RF signal using a real-time spectrum analyzer. By properly setting up the analysis settings, the channel power of the RF pulse, as well …
3:18
This Webinar examines approaches for validating Electronic Countermeasures (ECM) systems using the Tektronix Real Time Spectrum Analyzers such as the RSA5100B and RSA7100B.
35m 29s
Unlike a Traditional Zero Span spectrum analyzer, Tektronix Spectrum Analyzers with DPX Zero Span enable you to capture both slowly changing signals and elusive transiets.
2m 18s
The RSA7100B wideband signal analyzer offers real time spectrum analysis up to 800 MHz bandwidth, and streaming storage of up to 2 hours of seamless data at full bandwidth. In this video, one of …
11m 8s
DataVu-PC has tools like frequency mask, pulse descriptor words and smart markers, to help you find any needle in any size haystack. Your data recordings can be 10’s or 100’s of gigabytes in size …
5m 20s
Learn how to properly measure the Channel Power of a pulsed RF signal using a real-time spectrum analyzer. By properly setting up the analysis settings, the channel power of the RF pulse, as well …
3:18
This Webinar examines approaches for validating Electronic Countermeasures (ECM) systems using the Tektronix Real Time Spectrum Analyzers such as the RSA5100B and RSA7100B.
35m 29s
Unlike a Traditional Zero Span spectrum analyzer, Tektronix Spectrum Analyzers with DPX Zero Span enable you to capture both slowly changing signals and elusive transiets.
2m 18s
The RSA7100B wideband signal analyzer offers real time spectrum analysis up to 800 MHz bandwidth, and streaming storage of up to 2 hours of seamless data at full bandwidth. In this video, one of …
11m 8s
DataVu-PC has tools like frequency mask, pulse descriptor words and smart markers, to help you find any needle in any size haystack. Your data recordings can be 10’s or 100’s of gigabytes in size …
5m 20s
Learn how to properly measure the Channel Power of a pulsed RF signal using a real-time spectrum analyzer. By properly setting up the analysis settings, the channel power of the RF pulse, as well …
3:18
This Webinar examines approaches for validating Electronic Countermeasures (ECM) systems using the Tektronix Real Time Spectrum Analyzers such as the RSA5100B and RSA7100B.
35m 29s
Unlike a Traditional Zero Span spectrum analyzer, Tektronix Spectrum Analyzers with DPX Zero Span enable you to capture both slowly changing signals and elusive transiets.
2m 18s
RSA7100B
The RSA7100B wideband signal analyzer offers real time spectrum analysis up to 800 MHz bandwidth, simultaneous streaming to multiple interfaces for record (up to 2 hours) and playback of seamless data at full bandwidth.

Literature Number: 37W-61645-0
Datasheet
RSA7100A
The RSA7100A wideband signal analyzer offers real time spectrum analysis up to 800 MHz bandwidth, simultaneous streaming to multiple interfaces for record (up to 2 hours) and playback of seamless data at full bandwidth.

Literature Number: 37W-60971-7
Datasheet
RSA7100 Series
Real-Time Spectrum Analyzers

This document contains installation and basic operation instructions for the RSA7100 Series Real-Time Spectrum Analyzer. This analyzer offers real time spectrum analysis up to 800 MHz bandwidth, a 14 GHz frequency range (26.5 GHz optional), and streaming storage of up to 2 hours of seamless data at full bandwidth. The RSA7100 is paired with the high-performance CTRL7100 instrument controller running SignalVu-PC. The SignalVu-PC application provides all control and data signals to the instrument over the PCIe cable. See the SignalVu-PC Printable Help for in-depth user instructions.
Part Number: 071350411
Primary User
RSA7100 and CTRL7100 Series
Real-Time Spectrum AnalyzersConvertor and ControllerDeclassification and Security

This document helps customers with data security concerns to sanitize or remove memory devices from the CTRL7100 controller and the RSA7100 Series Real-Time Spectrum Analyzers.
Part Number: 077130002
Declassification
RSA7100 Series
Real-Time Spectrum Analyzers

This document contains installation and basic operation instructions for the RSA7100 Series Real-Time Spectrum Analyzer. This analyzer offers real time spectrum analysis up to 800 MHz bandwidth, a 14 GHz frequency range (26.5 GHz optional), and streaming storage of up to 2 hours of seamless data at full bandwidth. The RSA7100 is paired with the high-performance CTRL7100 instrument controller running SignalVu-PC. The SignalVu-PC application provides all control and data signals to the instrument over the PCIe cable. See the SignalVu-PC Printable Help for in-depth user instructions.
Part Number: 071350410
Primary User
RSA7100B
Real-Time Spectrum Analyzer API

This document provides the API function calls that allow users of the RSA7100 Series Real-Time Spectrum Analyzers to use the IQFlow streaming API feature.
Part Number: 077149601
Programmer
650-6183-00 & 650-6184-00
RSA7100 and CTRL7100 SeriesPackaging Kit

This document provides instructions for packing and boxing the RSA7100A and CTRL7100A for return to Tektronix for conversion. These instructions are included in the 650-6184-00 and 650-8183-00 kits.
Part Number: 071373600
Field Install Instructions
SignalVu-PC
Vector Signal Analysis Software

Provides in-depth information on how to use the SignalVu-PC Vector Signal Analysis Software. This PDF version of the Help contains the most complete descriptions of how to use the base software and all of its optional applications.
Part Number: 077072015
Online Help
020-3185-01 LVDS
RSA7100 Series Converter Kit

This document describes how to use the format adapter box and cables in the 020-3185-01 LVDS RSA7100 Series Converter Kit to connect a CTRL7100 Series controller with Option 05 (LVDS) to an external system that has LVDS.
Part Number: 071360701
Field Install Instructions
016-2124-00 RSA7100
Rackmount Kit

This document provides instructions for how to install the 016-2124-00 Rackmount Kit onto the RSA7100 Series Real-Time Spectrum Analyzers.
Part Number: 071350901
Field Install Instructions
SignalVu-PC
Vector Signal Analysis Software

This document provides detailed information about the programming commands that can be used to remotely control the SignalVu-PC Vector Signal Analysis Software and connected instruments.


Part Number: 077072114
Programmer
RSA7100A
Real-Time Spectrum AnalyzerSpecifications and Performance Verification

This document lists product specifications and performance verification procedures for the RSA7100A Real-Time Spectrum Analyzer.


Part Number: 077129902
Performance Verification
China RoHS Supplemental, 071354601
Product Information Sheet for the People‚s Republic of China

This sheet contains supplemental product information for the People‚s Republic of China.


Part Number: 071354601
User
Electrostatic discharge notice
for the RSA7100AReal-Time-Spectrum Analyzers

This document provides ESD information for the RSA7100A Real-Time Spectrum Analyzer.


Part Number: 071358800
User
RSA Map
Mapping Software

This help provides in-depth information on how to use the RSA Map mapping software. This PDF version of the application Help contains the most complete descriptions of how to use this mapping software used by the RSA306B, RSA500 Series, RSA600 Series, RSA5100B Series, RSA6000 Series, and SPECMONB Series Real Time Spectrum Analyzers.


Part Number: 077075802
Online Help
CTRL7100UP X-RAID-B and X-RAID-C
Option B.10 1-TB drives and Option C.16 2-TB drives for use with RSA7100A Series Real-Time Spectrum Analyzers

This document describes how to install the CTRL7100UP-X-RAID-B and X-RAID-C options in the CTRL7100A controller for the RSA7100A Real Time Spectrum Analyzer.


Part Number: 071355300
Field Install Instructions
SignalVu-PC Vector Signal Analysis Software – RSA7100 only -- V4.0.0016
SignalVu-PC VSA software brings the analysis engine of the Tektronix Real-Time Signal Analyzer (RTSA) to your computer, enabling you to analyze live signals from RSA7100 Spectrum Analyzers and acquired waveforms from Tektronix real-time signal …

Part Number: 066143423
Application
SignalVu-PC Vector Signal Analysis Software - V3.23.0022
SignalVu-PC VSA software brings the analysis engine of the Tektronix Real-Time Signal Analyzer (RTSA) to your computer, enabling you to analyze live signals from RSA306, RSA500, RSA600, RSA7100A Spectrum Analyzers and MDO4000B/C Series oscilloscopes …

Part Number: 066143422
Application
DataVu-PC Recorded Signal Analysis Software - V1.2.26
DataVu-PC analysis software for recordings makes short work of searching through large datasets for signals of interest. You can measure pulses and mark signals for export to other analysis programs, reducing time spent in post-capture analysis …

Part Number: 066190103
SignalVu-PC Vector Signal Analysis Software - Release for RSA7100A only - V3.19.0010
SignalVu-PC VSA software brings the analysis engine of the Tektronix Real-Time Signal Analyzer (RTSA) to your computer, enabling you to analyze live signals from RSA7100A Spectrum Analyzers oscilloscopes, and acquired waveforms from Tektronix real …

Part Number: 066143421
Application
SignalVu-PC Vector Signal Analysis Software - Release Candidate - V3.17.0013
SignalVu-PC VSA software brings the analysis engine of the Tektronix Real-Time Signal Analyzer (RTSA) to your computer, enabling you to analyze live signals from RSA306, RSA500, RSA600, RSA7100A Spectrum Analyzers and MDO4000B/C Series oscilloscopes …

Part Number: 066143420
Application
SignalVu-PC Vector Signal Analysis Software - V3.16.0014
SignalVu-PC VSA software brings the analysis engine of the Tektronix Real-Time Signal Analyzer (RTSA) to your computer, enabling you to analyze live signals from RSA306, RSA500, RSA600, RSA7100A Spectrum Analyzers and MDO4000B/C Series oscilloscopes …

Part Number: 066143419
Application
Radar Basics
While radar technology was initially focused on military and commercial aviation applications, today there are many commercial applications. This application note covers the basics of modern radar applications from military to commercial use in …
Application Note
RF Recording and Playback Solutions
Introduction to RF Record and Playback Spectrum management, RF interference analysis, signal acquisition, product testing and validation, RF system design, communication security, and academic research, all routinely perform or can benefit from the …

Literature Number: 37W-61289-0
Application Note
Understanding Radar Signals Using Real-Time Spectrum Analyzers
The transient nature of radar pulses combined with modern pulse compression schemes often demand carefully designed test setups. This Primer will cover measurements methods, choosing your measurement parameters, how to find the pulse, estimating the …

Literature Number: 76W-61318-2
Primer
Fundamentals of Real-Time Spectrum Analysis
Engineers and scientists have been looking for innovative uses for RF technology ever since the 1860s, when James Clerk Maxwell mathematically predicted the existence of electromagnetic waves capable of transporting energy across empty space …

Literature Number: 37W-17249-6
Primer
Fundamentals of Radar Measurements
Modern radar design has created complicated pulses that present significant measurement challenges. Improvements to range, resolution and immunity to interference have required phase modulated pulses, frequency chirped pulses and very narrow pulses …

Literature Number: 37Z-22065-0
Primer
Advanced Radar Analysis: Tools for Measuring Modern Radar Application Note
With today's rapid advances in radar technology, developing and manufacturing highly specialized and innovative electronic products to detect radar signals takes leading-edge technology and tools. Tektronix innovative test equipment reduces testing …

Literature Number: 37W-23378-4
Application Note
Real-Time Recording and Signal Processing with IQFlow™
The RSA7100B’s real-time analysis for live monitoring and recording of events ensures that you are getting the data you need from your time-consuming test scenarios. IQFlow™ provides IQ streaming for the RSA7100B. It allows you to use the analyzer as …

Literature Number: 37W-61503-0
Features
DPX Acquisition Technology for Spectrum Analyzers Fundamentals
Tektronix' patented Digital Phosphor technology or DPX® is used in our Real-Time Spectrum Analyzers (RTSAs), to reveal signal details that are completely missed by conventional spectrum analyzers and vector signal analyzers. The full-motion DPX …

Literature Number: 37W_19638_7
Primer
