MSO / DPO70000 Mixed Signal Oscilloscopes

MSO / DPO70000 Mixed Signal Oscilloscopes

Discover your real signals and capture more of their details with the industry's highest waveform capture capability. Automate setup, acquisition and analysis of high-speed serial data signals with a toolset engineered to deliver faster design debug and compliance testing. See all oscilloscopes »

Bandwidth

4 GHz -
33 GHz

Record Length

Up to 1G points

Channels

4 analog
16 digital (MSO)

Sample Rate

Up to 100 Gs/s

See your real signal

Thumbnail

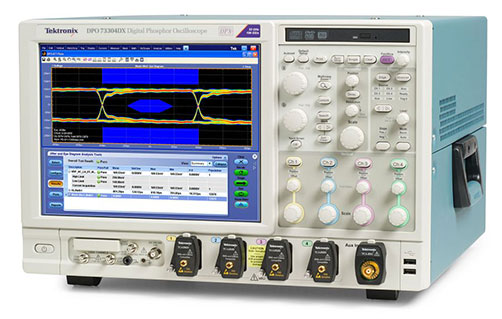

Industry-leading signal fidelity, minimum noise and highest effective number of bits (ENOB) provides confidence you are seeing your real signal and measuring it precisely. High signal-to-noise ratio and low internal noise floor enable you to perform precise characterization of your designs.

Highlights

  • Bandwidth enhancement eliminates imperfections in frequency response to the probe tip
  • Low jitter noise floor and high vertical accuracy provide additional margin in your measurements
  • Wide range of probes simplify complex measurement setups and maintain signal integrity
  • Compare optical and electrical signal timing on one screen with calibrated optical probe

Reduce debug time

Thumbnail

From first power-on through operational checks, MSO/DPO70000 Series provides features you need to find problems fast. An industry-leading waveform capture rate and Pinpoint® triggering make you efficient at tracking down and capturing intermittent faults.

Highlights

  • FastAcq keeps up with your changing signals to show true system behavior including elusive faults

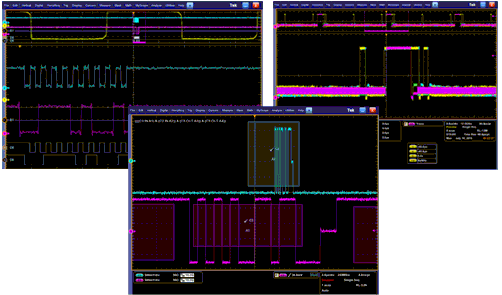

  • Quickly find invalid state or bus sequences with parallel/serial bus decoding/triggering

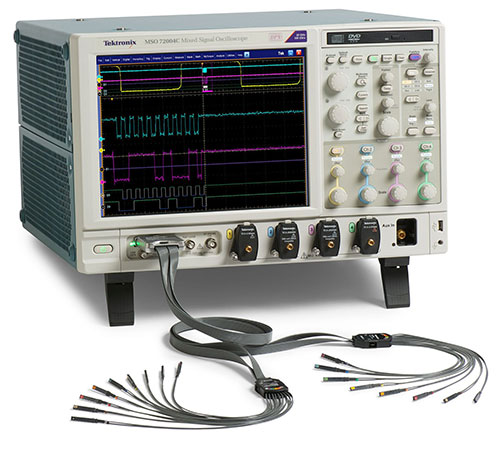

  • iCapture™ easily verifies analog characteristics of digital signals without changing connections
  • Visual Trigger saves hours of capturing and manually searching through acquisitions to find critical events and complete your debug efforts

Measurement and analysis tools that keep you on track

Thumbnail

Application support packages provide automated compliance testing, insightful debugging tools and the extensive signal connection options you need to verify and certify your latest design.

Highlights

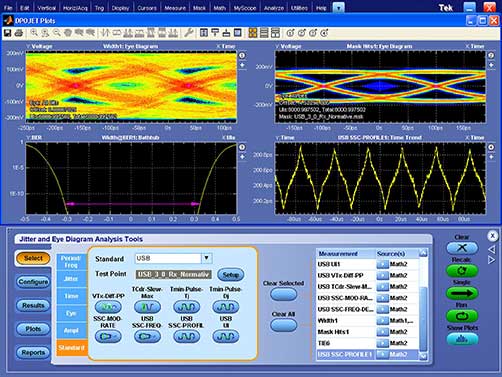

  • DPOJET: the most comprehensive, flexible measurement tool available
  • SDLA: the most powerful, complete tool for analyzing and compensating for signal affects in serial data links
  • Broadest range of standards support, including I2C, SPI, RS-232, FlexRay, MIPI, DisplayPort, HDMI, PCIe Gen3/Gen4, SATA/SAS, USB3.1, Type-C, 10/100BaseT to 10G/100G Ethernet
  • Powerful debugging tools to quickly uncover/fix design challenges
  • Optical measurements, such as Extinction Ratio (ER), Average Optical Power (AOP), Optical Modulation Amplitude (OMA), Optical High/Optical Low value - compatible with DPO7OE1/DPO7OE2 optical probe

Need a similar loaner instrument to use during repairs?

Stay productive while your instruments are being repaired. The Gold Care service option offers a free loaner unit that will keep your team working. Loaner units are shipped within 48 hours of initiation of service and Gold Care customers receive priority status when instruments reach our service center.

Learn More


Models

Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels List Price
DPO70404C 4 GHz 25 GS/s 31.25M points - 125M points 4 -
-
Configure & Quote
MSO70404C 4 GHz 25 GS/s 62.5M points - 125M points 4 16
-
Configure & Quote
DPO70604C 6 GHz 25 GS/s 31.25M points - 125M points 4 -
-
Configure & Quote
MSO70604C 6 GHz 25 GS/s 62.5M points - 125M points 4 16
-
Configure & Quote
DPO70804C 8 GHz 25 GS/s 31.25M points - 125M points 4 -
-
Configure & Quote
MSO70804C 8 GHz 25 GS/s 62.5M points - 125M points 4 16
-
Configure & Quote
DPO71254C 12.5 GHz 50 GS/s - 100 GS/s 31.25M points - 250M points 4 -
-
Configure & Quote
MSO71254C 12.5 GHz 50 GS/s - 100 GS/s 62.5M points - 250M points 4 16
-
Configure & Quote
DPO71604C 16 GHz 50 GS/s - 100 GS/s 31.25M points - 250M points 4 -
-
Configure & Quote
MSO71604C 16 GHz 50 GS/s - 100 GS/s 62.5M points - 250M points 4 16
-
Configure & Quote
DPO72004C 20 GHz 50 GS/s - 100 GS/s 31.25M points - 250M points 4 -
-
Configure & Quote
MSO72004C 20 GHz 50 GS/s - 100 GS/s 62.5M points - 250M points 4 16
-
Configure & Quote
DPO72304DX 23 GHz 50 GS/s - 100 GS/s 31.25M points - 1G points 4 -
-
Configure & Quote
MSO72304DX 23 GHz 50 GS/s - 100 GS/s 62.5M points - 1G points 4 16
-
Configure & Quote
DPO72504DX 25 GHz 50 GS/s - 100 GS/s 31.25M points - 1G points 4 -
-
Configure & Quote
MSO72504DX 25 GHz 50 GS/s - 100 GS/s 62.5M points - 1G points 4 16
-
Configure & Quote
DPO73304DX 33 GHz 50 GS/s - 100 GS/s 31.25M points - 1G points 4 -
-
Configure & Quote
MSO73304DX 33 GHz 50 GS/s - 100 GS/s 62.5M points - 1G points 4 16
-
Configure & Quote
Model DPO70404C
Analog BandwidthSample RateRecord Length
4 GHz25 GS/s31.25M points - 125M points
Analog Channels
4
Model MSO70404C
Analog BandwidthSample RateRecord Length
4 GHz25 GS/s62.5M points - 125M points
Analog ChannelsDigital Channels
416
Model DPO70604C
Analog BandwidthSample RateRecord Length
6 GHz25 GS/s31.25M points - 125M points
Analog Channels
4
Model MSO70604C
Analog BandwidthSample RateRecord Length
6 GHz25 GS/s62.5M points - 125M points
Analog ChannelsDigital Channels
416
Model DPO70804C
Analog BandwidthSample RateRecord Length
8 GHz25 GS/s31.25M points - 125M points
Analog Channels
4
Model MSO70804C
Analog BandwidthSample RateRecord Length
8 GHz25 GS/s62.5M points - 125M points
Analog ChannelsDigital Channels
416
Model DPO71254C
Analog BandwidthSample RateRecord Length
12.5 GHz50 GS/s - 100 GS/s31.25M points - 250M points
Analog Channels
4
Model MSO71254C
Analog BandwidthSample RateRecord Length
12.5 GHz50 GS/s - 100 GS/s62.5M points - 250M points
Analog ChannelsDigital Channels
416
Model DPO71604C
Analog BandwidthSample RateRecord Length
16 GHz50 GS/s - 100 GS/s31.25M points - 250M points
Analog Channels
4
Model MSO71604C
Analog BandwidthSample RateRecord Length
16 GHz50 GS/s - 100 GS/s62.5M points - 250M points
Analog ChannelsDigital Channels
416
Model DPO72004C
Analog BandwidthSample RateRecord Length
20 GHz50 GS/s - 100 GS/s31.25M points - 250M points
Analog Channels
4
Model MSO72004C
Analog BandwidthSample RateRecord Length
20 GHz50 GS/s - 100 GS/s62.5M points - 250M points
Analog ChannelsDigital Channels
416
Model DPO72304DX
Analog BandwidthSample RateRecord Length
23 GHz50 GS/s - 100 GS/s31.25M points - 1G points
Analog Channels
4
Model MSO72304DX
Analog BandwidthSample RateRecord Length
23 GHz50 GS/s - 100 GS/s62.5M points - 1G points
Analog ChannelsDigital Channels
416
Model DPO72504DX
Analog BandwidthSample RateRecord Length
25 GHz50 GS/s - 100 GS/s31.25M points - 1G points
Analog Channels
4
Model MSO72504DX
Analog BandwidthSample RateRecord Length
25 GHz50 GS/s - 100 GS/s62.5M points - 1G points
Analog ChannelsDigital Channels
416
Model DPO73304DX
Analog BandwidthSample RateRecord Length
33 GHz50 GS/s - 100 GS/s31.25M points - 1G points
Analog Channels
4
Model MSO73304DX
Analog BandwidthSample RateRecord Length
33 GHz50 GS/s - 100 GS/s62.5M points - 1G points
Analog ChannelsDigital Channels
416
Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels List Price
DPO70404C 4 GHz 25 GS/s 31.25M points - 125M points 4 -
-
Configure & Quote
MSO70404C 4 GHz 25 GS/s 62.5M points - 125M points 4 16
-
Configure & Quote
DPO70604C 6 GHz 25 GS/s 31.25M points - 125M points 4 -
-
Configure & Quote
MSO70604C 6 GHz 25 GS/s 62.5M points - 125M points 4 16
-
Configure & Quote
DPO70804C 8 GHz 25 GS/s 31.25M points - 125M points 4 -
-
Configure & Quote
MSO70804C 8 GHz 25 GS/s 62.5M points - 125M points 4 16
-
Configure & Quote
DPO71254C 12.5 GHz 50 GS/s - 100 GS/s 31.25M points - 250M points 4 -
-
Configure & Quote
MSO71254C 12.5 GHz 50 GS/s - 100 GS/s 62.5M points - 250M points 4 16
-
Configure & Quote
DPO71604C 16 GHz 50 GS/s - 100 GS/s 31.25M points - 250M points 4 -
-
Configure & Quote
MSO71604C 16 GHz 50 GS/s - 100 GS/s 62.5M points - 250M points 4 16
-
Configure & Quote
DPO72004C 20 GHz 50 GS/s - 100 GS/s 31.25M points - 250M points 4 -
-
Configure & Quote
MSO72004C 20 GHz 50 GS/s - 100 GS/s 62.5M points - 250M points 4 16
-
Configure & Quote
DPO72304DX 23 GHz 50 GS/s - 100 GS/s 31.25M points - 1G points 4 -
-
Configure & Quote
MSO72304DX 23 GHz 50 GS/s - 100 GS/s 62.5M points - 1G points 4 16
-
Configure & Quote
DPO72504DX 25 GHz 50 GS/s - 100 GS/s 31.25M points - 1G points 4 -
-
Configure & Quote
MSO72504DX 25 GHz 50 GS/s - 100 GS/s 62.5M points - 1G points 4 16
-
Configure & Quote
DPO73304DX 33 GHz 50 GS/s - 100 GS/s 31.25M points - 1G points 4 -
-
Configure & Quote
MSO73304DX 33 GHz 50 GS/s - 100 GS/s 62.5M points - 1G points 4 16
-
Configure & Quote
Model DPO70404C
Analog BandwidthSample RateRecord Length
4 GHz25 GS/s31.25M points - 125M points
Analog Channels
4
Model MSO70404C
Analog BandwidthSample RateRecord Length
4 GHz25 GS/s62.5M points - 125M points
Analog ChannelsDigital Channels
416
Model DPO70604C
Analog BandwidthSample RateRecord Length
6 GHz25 GS/s31.25M points - 125M points
Analog Channels
4
Model MSO70604C
Analog BandwidthSample RateRecord Length
6 GHz25 GS/s62.5M points - 125M points
Analog ChannelsDigital Channels
416
Model DPO70804C
Analog BandwidthSample RateRecord Length
8 GHz25 GS/s31.25M points - 125M points
Analog Channels
4
Model MSO70804C
Analog BandwidthSample RateRecord Length
8 GHz25 GS/s62.5M points - 125M points
Analog ChannelsDigital Channels
416
Model DPO71254C
Analog BandwidthSample RateRecord Length
12.5 GHz50 GS/s - 100 GS/s31.25M points - 250M points
Analog Channels
4
Model MSO71254C
Analog BandwidthSample RateRecord Length
12.5 GHz50 GS/s - 100 GS/s62.5M points - 250M points
Analog ChannelsDigital Channels
416
Model DPO71604C
Analog BandwidthSample RateRecord Length
16 GHz50 GS/s - 100 GS/s31.25M points - 250M points
Analog Channels
4
Model MSO71604C
Analog BandwidthSample RateRecord Length
16 GHz50 GS/s - 100 GS/s62.5M points - 250M points
Analog ChannelsDigital Channels
416
Model DPO72004C
Analog BandwidthSample RateRecord Length
20 GHz50 GS/s - 100 GS/s31.25M points - 250M points
Analog Channels
4
Model MSO72004C
Analog BandwidthSample RateRecord Length
20 GHz50 GS/s - 100 GS/s62.5M points - 250M points
Analog ChannelsDigital Channels
416
Model DPO72304DX
Analog BandwidthSample RateRecord Length
23 GHz50 GS/s - 100 GS/s31.25M points - 1G points
Analog Channels
4
Model MSO72304DX
Analog BandwidthSample RateRecord Length
23 GHz50 GS/s - 100 GS/s62.5M points - 1G points
Analog ChannelsDigital Channels
416
Model DPO72504DX
Analog BandwidthSample RateRecord Length
25 GHz50 GS/s - 100 GS/s31.25M points - 1G points
Analog Channels
4
Model MSO72504DX
Analog BandwidthSample RateRecord Length
25 GHz50 GS/s - 100 GS/s62.5M points - 1G points
Analog ChannelsDigital Channels
416
Model DPO73304DX
Analog BandwidthSample RateRecord Length
33 GHz50 GS/s - 100 GS/s31.25M points - 1G points
Analog Channels
4
Model MSO73304DX
Analog BandwidthSample RateRecord Length
33 GHz50 GS/s - 100 GS/s62.5M points - 1G points
Analog ChannelsDigital Channels
416

Analog/Digital Design and Debug

Thumbnail

When you're debugging your next design, you need to quickly find and analyze a wide range of mixed-signal problems, from signal integrity issues like crosstalk or jitter, to bus faults such as setup and hold violations or dropped packets. That's when you need an oscilloscope with powerful tools and reliable performance. You'll keep on schedule when you have an MSO/DPO70000 on your bench.

Highlights

  • Easily view analog characteristics of any input and verify system timing with iCapture™ on 4 analog and 16 logic channels
  • Analyze system operation on the timescale you need with deep memory on all channels
  • Find and fix problems fast with a full suite of triggering, decoding and measurement tools

Data Communications

Thumbnail

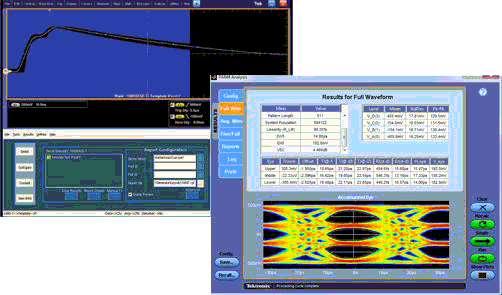

Today's data communication networks are constantly evolving and are built upon many different standards. MSO/DPO70000 offers comprehensive, integrated tool sets for validating the physical layer of Ethernet devices and debugging ethernet-based systems from 10BASE-T up to 40/100GB. MSO/DPO70000 also offer advanced compliance and debug tools for other Data Comm standards.

Highlights

  • Standard-specific automated compliance testing and debugging tools
  • Extensive jitter analysis and debug tool set
  • Characterize PAM4 and NRZ signals

High Speed Serial Communications

Thumbnail

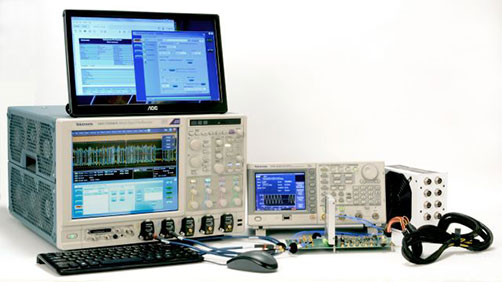

Next generation digital interface standards push the limits of today’s compliance and debug tools. MSO/DPO70000 Series' automated measurement suites speed PHY validation cycles and ensure consistency. Powerful tools like Protocol Decoding and Visual Trigger shorten debugging when compliance measurements fail. Identify jitter and noise from crosstalk or other multi-lane noise coupling.

Highlights

  • Accelerate analysis, validation, and pre-compliance testing of your PCIe, SATA or SAS design
  • Quickly find the root cause of issues when testing SuperSpeed USB 3.1 Type-C designs
  • Decrease DisplayPort compliance testing and HDMI physical layer validation times
  • SDLA with DPOJET provide comprehensive simulation and measurement of Computer, Communications, and Memory buses

RADAR and RF

Thumbnail

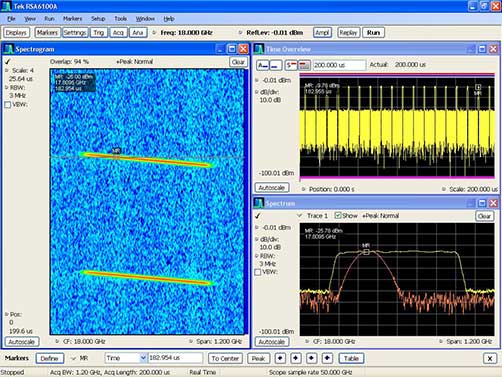

MSO/DPO70000 Series with SignalVu Vector Analysis software gives you the analysis capabilities required to overcome the most challenging RF, wireless and microwave design problems with total confidence. You can analyze signals up to 70GHz wide with the same tools used on Tektronix' Real-Time Spectrum Analyzers.

Highlights

  • Easily verify wideband radar, high data-rate satellite links, WLAN 802.11, WiGig 802.11 or frequency-hopping radio designs
  • Make measurements in frequency, time, phase, modulation domains simultaneously
  • Application optimized software options supporting wideband radar, high data-rate satellite links, IEEE 802.11 a/b/g/j/p/n/ac (WiFi), IEEE802.11ad/ay (WiGig), Zigbee and Bluetooth



Data SheetSoftware Package / Software OptionDescriptionConfigure and Quote
Opt. 10G-KR

10GBASE-KR/KR4 Compliance and Debug Solution.

Contact Us
Opt. 40G-CR4 40GBASE-CR4 Debug and Automated Compliance Solution Contact Us
Opt. BRR

BroadR-Reach/100BASE-T1 and 1000BASE-T1 Automated Compliance Solution.

Contact Us
Opt. C-PHY

C-PHY TX Essentials solution provides easy way to debug and characterize C-PHY data links. C-PHY TX application allows you to select electrical and timing measurements, as defined in MIPI C-PHY v1.0 specification.

Contact Us
Opt. D-PHY,D-PHYTX Verify to the MIPI D-PHY specification by rapidly characterizing and discovering sources of jitter and signal integrity concerns using the fully flexible and customizable test setup. Using DPOJET, Option D-PHY enables transmitter high-speed data-clock timing measurements, along with a full range of electrical characteristics in high-speed or low-power modes. Contact Us
Opt. DDRA, LP-DDR4

Complete memory interface analysis package for DDR1/2/3/4, LPDDR1/2/3/4 and GDDR3/5. Option LP-DDR4 for LPDDR4 is available to use only on MSO/DPO70000 oscilloscopes.

Contact Us
Opt. DJA, DJAN

Simplifies identifying signal integrity concerns, jitter and their related sources and provides the highest sensitivity and accuracy available for real-time oscilloscopes.

Contact Us
Opt. DP12

DisplayPort 1.2 Automated Conformance Test Solutions.

Contact Us
Opt. DPOQPI

DPOQPI is a test automation software package that Tektronix has developed working in close partnership with the Intel engineers who own the QPI V1.1 specification and test procedures. The software simplifies user operation by presenting only the features required for PHY testing of the QPI V1.1 bus that maybe needed when designing and validating node controllers.

Contact Us
Opt. EDP Embedded Display Port (EDP) v1.4 TX Compliance Test Package Contact Us
Optical Probes - High Bandwidth
Datasheet LinkProbeDescriptionConfigure and Quote
DPO7OE1

33GHz, single/multi-mode optical probe for MSO/DPO70000 Real Time Oscilloscopes. Wavelength range: 750nm - 1650nm

Configure & Quote
DPO7OE2

59GHz, single mode optical probe for MSO/DPO70000 Real Time Oscilloscopes. Wavelength range: 1200nm - 1650nm

Configure & Quote
High Voltage Single Ended Probes
Datasheet LinkProbeDescriptionConfigure and Quote
P5100A High Voltage Probe: 500 MHz, 100X, 2.5 kV, Single-ended, BNC Configure & Quote
P6015A PROBE HIVOLTAGE; 75MHZ,40KV,1000X 10 FT - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
High Voltage Differential Probes
Datasheet LinkProbeDescriptionConfigure and Quote
P5200A High Voltage Probe: 50 MHz, 50X/500X, 1.3 kV, Differential, BNC Configure & Quote
P5202A Differential PROBE; 20X/200X, 100 MHZ DIFFERENTIAL VOLTAGE PROBE Configure & Quote
P5205A High Voltage Probe: 100 MHz, 50X/500X, 1.3 kV, Differential, BNC Configure & Quote
P5210A High Voltage Probe: 50 MHz, 100X/1000X, 5.6 kV, Differential, BNC Configure & Quote
P6251 PROBE, DIFF HV, WITH TEKPROBE-BNC INTERFACE, 42V, 1GHZ - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
Optical Probes - Low Bandwidth
Datasheet LinkProbeDescriptionConfigure and Quote
P6701B

O/E CONVERTER; DC-1GHZ, 500-950NM, TPI - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD

Configure & Quote
P6703B O/E CONVERTER; DC-1GHZ, 1100-1650NM, TPI - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
Datasheet LinkProbeDescriptionConfigure and Quote
P6717A PROBE, GENERAL PURPOSE UPGRADED W/ ACCESSORY KIT Configure & Quote
P6750 PROBE, P6750 DMAX FOR MSO70K INSTRUMENTS Configure & Quote
P6780 17 channel differential input logic probe for MSO70000 with solder-in accessories Configure & Quote
Low Voltage Differential Probes
Datasheet LinkProbeDescriptionConfigure and Quote
P7504 4GHz TRIMODE DIFFERENTIAL PROBE Configure & Quote
P7506 6GHz TRIMODE DIFFERENTIAL PROBE Configure & Quote
P7508 8GHz TRIMODE DIFFERENTIAL PROBE Configure & Quote
P7513A 13GHz TRIMODE DIFFERENTIAL PROBE Configure & Quote
P7516 TRIMODE DIFFERENTIAL PROBE. CERTIFICATE OF TRACEABLE CALIBRATION STANDARD WITH PRODUCT. Configure & Quote
P7520A TriMode Differential Probe Configure & Quote
P7625 25 GHz LOW NOISE TRIMODE PROBE IN CASE WITH ACCESSORIES Configure & Quote
P7633 33 GHz LOW NOISE TRIMODE PROBE IN CASE WITH ACCESSORIES Configure & Quote
P7708 8 GHz TriMode Probe with TekFlex connector technology, TekConnect interface Configure & Quote
P7713 13 GHz TriMode Probe with TekFlex connector technology, TekConnect interface Configure & Quote
P7716 16 GHz TriMode Probe with TekFlex connector technology, TekConnect interface Configure & Quote
P7720 20 GHz TriMode Probe with TekFlex connector technology, TekConnect interface Configure & Quote
Current Probe
Datasheet LinkProbeDescriptionConfigure and Quote
TCPA300 Current Probe: 100 MHz, Amplifier (Requires Probe) Configure & Quote
TCPA400 Current Probe: 50 MHz, Amplifier (Requires Probe) Configure & Quote
Isolated Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TIVH02

IsoVu optically isolated differential probe, 200 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH02L

IsoVu optically isolated differential probe, 200 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH05

IsoVu optically isolated differential probe, 500 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH05L

IsoVu optically isolated differential probe, 500 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH08

IsoVu optically isolated differential probe, 800 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH08L

IsoVu optically isolated differential probe, 800 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVM1

IsoVu optically isolated differential probe, 1 GHz, TekVPI, 3 m cable, includes 5X(IVTIP5X) and 25X(IVTIP25X) tips

Configure & Quote
TIVM1L

IsoVu optically isolated differential probe, 1 GHz, TekVPI, 10 m cable, includes 5X(IVTIP5X) and 25X(IVTIP25X) tips

Configure & Quote
Data SheetAccessoryDescription
TCA-1MEG AMPLIFIER; HIGH IMPEDANCE BUFFER;1 MEG OHM/10PF;TEKPROBE BNC-TO-TEKCONNECT;WITH P6139B, CERTIFICATE OF TRACEABLE CALIBRATION STANDARD
TCA-292MM TEKCONNECT 2.92MM; TEKCONNECT ADAPTER WITH 2.92MM INPUT CONNECTOR
TCA-BNC TEKCONNECT BNC; TEKCONNECT ADAPTER WITH BNC INPUT CONNECTOR
TCA-N TEKCONNECT N; TEKCONNECT ADAPTER WITIH N-CONNECTOR INPUT
TCA-SMA TEKCONNECT SMA; TEKCONNECT ADAPTER WITIH SMA INPUT CONNECTOR
TCA-VPI50 TekVPI to TekConnect Adapter for 50ohm terminated accessories
TCA292D 2.92 MM TEKCONNECT ADAPTER
TCA75 TEKCONNECT ADAPTER; 75 OHM TO 50 OHM, WITH 75 OHM BNC INPUT CONNECTOR
TPA-BNC Probe adapter from TekProbe-BNC to TekVPI
This short video shows how to debug a compliance measurement that has failed by using Tektronix’ Jitter and Eye Diagram Software, DPOJET. Using DPOJET, engineers can go from a compliance environment…
0h 4m 35s
This webinar will provide the information on test processes for PCIe devices to allow you to reach compliance faster.
0h 53m 34s
The NEW P7700 Series TriMode Probe provides the highest probe fidelity available for real-time oscilloscopes. Watch our 60-second video to see how this new probe can help minimize noise and easily…
0h 0m 54s
This Tektronix webinar will teach engineers how to use modeling tools to correlate simulations with high-speed physical layer measurements on Serial Bus Standards using the DPO/MSO70000 Series…
0h 27m 38s
The MSO/DPO70000 Series oscilloscope delivers exceptional signal acquisition performance and analysis capability. Discover your real signals and capture more signal details with the industry's…
0h 5m 49s
Learn how to dramatically cut down test time on required compliance interop tests for USB3 using an automated test suite from Tektronix.
0h 4m 4s
This webinar will explain how to prepare for next generation DDR-based memory testing. Learn about the changes these new standards bring to electrical verification and how to prepare for proper…
0h 15m 37s
Learn how to open closed eyes using equalization techniques and how to de-embed reflections and loss caused by the measurement setup using SDLA Visualizer for Tektronix Real-Time Oscilloscopes.
0h 30m 55s
How do I setup and run SATA RSG-RMT compliance testing on my DUT with an oscilloscope and AWG?
The best answer on how to do receiver SATA testing with an AWG is to look at the Method of Implementation (MOI). This can be found here MOI. This guide will walk through all the manual tests that are needed and performed for compliance testing. Please…
FAQ ID: 64701 16 Jul 2019
Custom Math Waveforms using Matlab and ADK on an Oscilloscope
The following is a list of equipment and software that is needed to do this quick MATLAB example. In the download below there is a txt file that has the instruction with where to place the MATLAB file and ADK files.  Equipment list: Windows 7…
FAQ ID: 64766 16 Jul 2019
Programing - How to get and plot a waveform from DPO/MSO/MDO4000 Series scope in Python
There are a few things that are needed for programming with an oscilloscope. First it's important to have a copy of your oscilloscopes Programmers manual. This can be found be searching for manuals on Tek.com and specifying Programmers manual in the…
FAQ ID: 64796 16 Jul 2019
How do I set up a I2C Bus Decode
The procedure to set up a I2C bus decode and trigger is simple once you understand the basics. First you have to have the correct module or scope option. Second make sure your signal is on screen and taking up as much of the DAC as possible with good…
FAQ ID: 64756 16 Jul 2019
How do I set up a RS232 bus decode
The procedure to set up a RS232 bus decode and trigger is simple once you understand the basics. First you need to have the correct module or scope option. Second make sure your signal is on screen and taking up as much of the screen as possible with good…
FAQ ID: 64761 16 Jul 2019
What is aliasing and how do I detect it and fix it on my oscilloscope?
Aliasing is basically a form of under sampling and what is displayed on the scopes is an indistinguishable waveform. The under sampled waveform is then contstructed to look like a slower frequency waveform or a flat line in the case of the sample rate…
FAQ ID: 64691 16 Jul 2019
How do I set up a USB bus decode
First you must have the USB module or option key that enables USB decoding for your scope as well as proper probes. For help finding the right probe use our probe selector tool. When you go into the bus option you must select USB and then make sure you…
FAQ ID: 64726 16 Jul 2019
How do I set up a CAN bus decode
Depending on what scope you have will depend on what options are availiable for decoding your CAN signal. For all the DPO/MSO2000/3000/4000/5000 and MDO3000/4000 Series scopes there are modules or license keys that can be purchased. Once you have one,…
FAQ ID: 64751 16 Jul 2019
How do I utilize the XY display feature on a DPO/MSO/MDO4000 Series oscilloscope?
The XY display format can be used to measure the phase relationship between two or more synchronous signals. This measurement technique involves inputting one signal into the vertical system as usual and then another signal into the horizontal system –…
FAQ ID: 64666 16 Jul 2019
Programing - How do I get a Screen Capture from DPO4000 scope using Python?
There are a few things that are needed for programming with an oscilloscope. First it's important to have a copy of your oscilloscopes Programmers manual. This can be found be searching for manuals on Tek.com and specifying Programmers manual in the…
FAQ ID: 64791 16 Jul 2019
PAM4 Analysis DPO70000DX DPO70000SX Win10 - V10.7.0
The following new major features are added into this release:? New measurements: EOJ-per-transition, sigm_n-per-PAM-level (Electrical) RINxOMA, OMA-TDECQ, Ceq (Optical)? Scope noise compensation for selected measurements, such as EH5/6, SNDR, Jrms, J4u/…
Part number: 066181407
Application
Difference between Position and Offset on an oscilloscope
To answer this first you need to understand the layout of how your waveform trace is displayed. On your oscilloscope you generally will see either 8 or 10 divisions vertically on the screen. Along the left side of the screen you will see a marker…
FAQ ID: 247211 10 Jul 2019
Tektronix AMS (Asset Management System) Floating Licenses Expiration Time.
The Floating Licenses are good forever; however, the checkout of the Floating License is good for for any duration from 4 hours up to 4 years, selectable at the time of check out.  After it reaches selected duration, it will automatically check itself…
FAQ ID: 467516 10 Jul 2019
How to extract the trigger time stamp from a Tektronix .wfm file?
The .wfm waveform files saved from Tektronix DPO/DSA/MSO 5K 7K 70K and 5 and 6 Series MSO oscilloscopes contains a time stamp that indicates the time that the scope was triggered. This example program shows how you can extract this time stamp from the…
FAQ ID: 471231 10 Jul 2019
Using FastFrame™ Segmented Memory
This application note explains how to use FastFrame(TM) Segmented Memory feature to capture signal bursts or data packets without using memory to capture unimportant dead time.
Literature number: 55W-12112-2
Application Note 05 Jul 2019
How Do I Set Up a Parallel Bus Decode?
For doing Parallel Bus decode Tektronix recommends using a MSO or MDO + MSO option Series oscilloscopes. This feature comes standard in the Bus menu and can be used in a variety of ways. Start by turning it on, selecting the channel and setting your…
FAQ ID: 64771 26 Jun 2019
How do I use TekVISA to send commands to my instrument?
TekVISA Download Link:TEKVISA CONNECTIVITY SOFTWARE In order to communicate with and control the scope, you can use OpenChoice Talker-Listener. Back on the Application and Utilities panel, click on OpenChoice Talker Listener and click Start Application…
FAQ ID: 69181 25 Jun 2019
What is TekVISA and how can I use it to communicate with and control my instrument?
VISA is an acronym that stands for Virtual Instrument Software Architecture. In a nutshell, VISA handles the communications between your computer’s OS and the instrument.  You may be familiar with TekVISA, which is Tektronix’s own brand of VISA. Agilent…
FAQ ID: 69176 25 Jun 2019
How do I use the programmer manual for my instrument?
TekVISA Download Link: TEKVISA CONNECTIVITY SOFTWARE Hello and welcome to Tektronix, today I’m presenting the last part in the 3-part series on using TekVISA. I’ll be giving a basic overview of programmer manuals and how to use them to find the correct…
FAQ ID: 69186 25 Jun 2019
DPOJET Jitter, Noise and Eye Digram Analysis Tools
This document is a printable version of the online help. DPOJET is a jitter, timing, and eye diagram analysis tool for Tektronix Performance Digital Oscilloscopes (DPO7000, DSA/DPO70000/B/C, and MSO70000/C series). DPOJET enables you to achieve new levels…
Part number: 077004826
User
Downloads
Download

Download Manuals, Datasheets, Software and more:

Go to top
