RF and Vector Signal Analysis for Oscilloscopes

SignalVu® Datasheet

Read Online:

SignalVu RF and vector signal analysis software combines the signal analysis engine of the RSA5000 Series real-time spectrum analyzer with that of the industry's leading digital oscilloscopes, making it possible for designers to evaluate complex signals without an external down converter. You get the functionality of a vector signal analyzer, a spectrum analyzer, and the powerful trigger capabilities of a digital oscilloscope - all in a single package. You can use SignalVu with an MSO/DPO5000, DPO7000, or DPO/DSA/MSO70000 Series digital oscilloscope to easily validate wideband designs and characterize wideband spectral events. Whether your design validation needs include wideband radar, high data rate satellite links, wireless LAN, WiGig IEEE 802.11ad/ay, or frequency-hopping communications, SignalVu can speed your time-to-insight by showing you the time-variant behavior of these wideband signals. The 5GNR analysis plug-in is supported on Windows 10 (SignalVu), DPO70000 SX oscilloscope models.

Key features

  • Trigger
    • Integrated RF signal analysis package lets you take full advantage of oscilloscope settings
    • Pinpoint™ triggering offers over 1400 combinations to address virtually any triggering situation
  • Capture
    • Direct observation of microwave signals without need of an external down converter
    • All signals up to the analog bandwidth of oscilloscope are captured into memory
    • Customize oscilloscope acquisition parameters for effective use of capture memory
    • FastFrame segmented memory captures signal bursts without storing the signal's off time
    • Supports RF, I and Q, and differential I and Q signals using the oscilloscope's 4 analog inputs
  • Analyze
    • 5G New Radio (NR) uplink/downlink RF power, Power dynamics, Signal quality, and Emissions measurements based on the 3GPP release 15/16 Standard
    • Extensive time-correlated, multidomain displays connect events in time, frequency, phase, and amplitude for quicker understanding of cause and effect when troubleshooting
    • Power measurements and signal statistics help you characterize components and systems: SEM, Multicarrier ACLR, Power vs. Time, CCDF, OBW/EBW, and Spur Search
    • WLAN spectrum and modulation transmitter measurements based on IEEE 802.11 a/b/g/j/p/n/ac standards (Opts. SV23, SV24, and SV25)
    • WiGig IEEE 802.11ad/ay Spectral and modulation transmitter measurements (Opt. SV30)
    • Bluetooth® Transmitter Measurements based on Bluetooth SIG RF Specifications for Basic Rate and Low Energy. Some support of Enhanced Data Rate. (Option SV27)
    • LTE™ FDD and TDD Base Station (eNB) Transmitter RF measurements (Option SV28)
    • Complete APCO Project 25 transmitter testing and analysis for Phase 1 (C4FM) and Phase 2 (TDMA) (Opt. SV26)
    • AM/FM/PM Modulation and Audio Measurements (Opt. SVA) for characterization of analog transmitters and audio signals
    • Settling Time Measurements, Frequency, and Phase (Opt. SVT) for characterization of wideband frequency-agile oscillators
    • Advanced Pulse Analysis Suite (Opt. SVP) - Automated pulse measurements provide deep insight into pulse train behavior. Measurement pulse statistics over many acquisitions (millions of pulses)
    • General Purpose Digital Modulation Analysis (Opt. SVM) provides vector signal analyzer functionality
    • Flexible OFDM analysis (Opt. SVO) with support for 802.11a/g/j and WiMAX 802.16-2004 signals
    • Frequency offset control for analyzing baseband signals with near-zero intermediate frequencies (IF)
    • Tektronix OpenChoice® makes for easy transfer to a variety of analysis programs such as Excel and Matlab

Applications

  • Wideband radar and pulsed RF signals
  • Frequency agile communications
  • Broadband satellite and microwave backhaul links
  • Wireless LAN, WiGig, Bluetooth, Commercial Wireless
  • Land Mobile Radio (LMR), APCO P25
  • Long Term Evolution (LTE), Cellular
  • 5G NR Cellular base station or user equipment transmitter test

Wideband signal characterization

SignalVu helps you easily validate wideband designs and characterize wideband spectral events using an MSO/DPO5000, DPO7000/DPO70000 SX oscilloscope models, or DPO/DSA/MSO70000 Series digital oscilloscope. Users can easily switch between the SignalVu application and the oscilloscope's user interface to optimize the collection of wideband signals.

Trigger

SignalVu software works seamlessly with the oscilloscope allowing users to utilize all of its powerful triggering capabilities. The ability to trigger on time- and amplitude-varying events of interest is paramount in wideband system design, debug, and validation. The Tektronix oscilloscopes' trigger systems allow selection of virtually all trigger types on both A and B trigger events whether they be transition, state, time, or logic qualified triggers. Once triggered, SignalVu processes the acquisition for analysis in multiple domains.

SignalVu_EN US_37W 22314 21

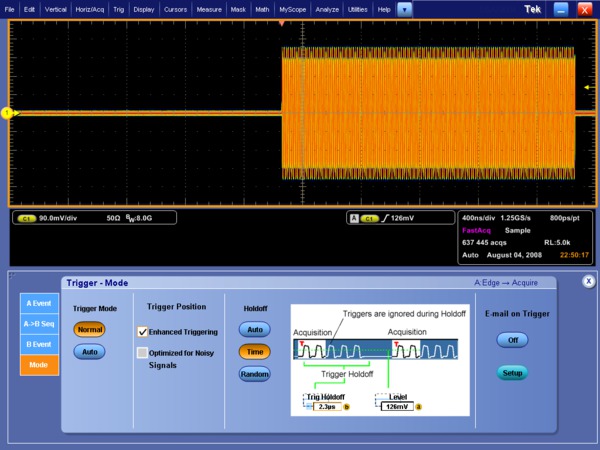

Powerful oscilloscope triggers allow the user to capture only the relevant portion of wideband signals. Pinpoint trigger functions such as combining A and B events with Edge with Holdoff can capture a pulse train during a specific transmitter mode of operation.

Capture

Capture once - make multiple measurements without recapturing. All signals in an acquisition bandwidth are recorded into the oscilloscope's deep memory. Up to four channels can be captured simultaneously; each of which can be independently analyzed by SignalVu software. Channels can be RF, I and Q, or differential inputs. Users can also apply math functions to the acquisition prior to analysis by SignalVu. Acquisition lengths vary depending upon the selected capture bandwidth - up to 25 ms can be captured on a single channel with the MSO/DPO5000 Series, up to 12.5 ms can be acquired on a single channel with the DPO7000 Series, and up to 2.5 ms can be captured on a single channel with the DPO/DSA/MSO70000 Series. Significantly longer capture times can be realized with lower oscilloscope sample rates.

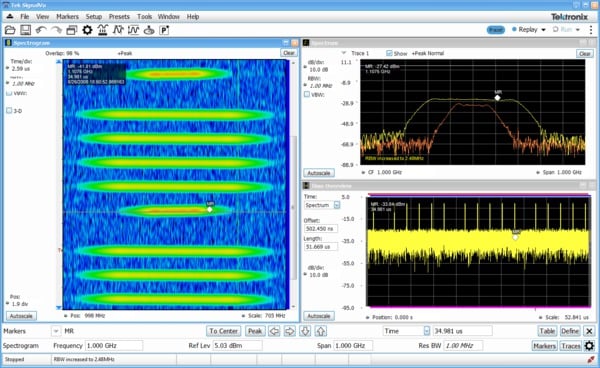

Using the FastFrame segmented memory feature in SignalVu enables you to capture events of interest, such as low duty cycle pulsed signals, while conserving acquisition memory. Using multiple trigger events, FastFrame captures and stores short-duration, bursty signals and passes them to SignalVu vector signal analysis functions. Capturing thousands of frames is possible, so long-term trends and changes in the bursty signal can be analyzed.

SignalVu_EN US_37W 22314 21
Once captured into memory, SignalVu provides detailed analysis in multiple domains. The spectrogram display (left panel) shows the frequency of a 500 MHz wide LFM pulse changing over time. By selecting the point in time in the spectrogram during the On time of the pulse, the chirp behavior can be seen as it sweeps from low to high (upper right panel).

Analyze

SignalVu RF and vector signal analysis software uses the same analysis capabilities found in the RSA5000 Series real-time spectrum analyzers. SignalVu advances productivity for engineers working on components or in wideband RF system design, integration, and performance verification, or operations engineers working in networks, or spectrum management. In addition to spectrum analysis, spectrograms display both frequency and amplitude changes over time. Time-correlated measurements can be made across the frequency, phase, amplitude, and modulation domains. This is ideal for signal analysis that includes frequency hopping, pulse characteristics, modulation switching, settling time, bandwidth changes, and intermittent signals.

SignalVu can process RF, I and Q, and differential I and Q signals from any one of the four available oscilloscope inputs. Math functions applied by the oscilloscope are also utilized by SignalVu allowing users to apply custom filtering prior to vector signal analysis.

The Microsoft Windows environment makes this multidomain analysis even easier with an unlimited number of analysis windows, all time-correlated, to provide deeper insight into signal behavior. A user interface that adapts to your preferences (keyboard, front panel, touch screen, and mouse) makes learning SignalVu easy for both first-time users and experienced hands.

SignalVu_EN US_37W 22314 21

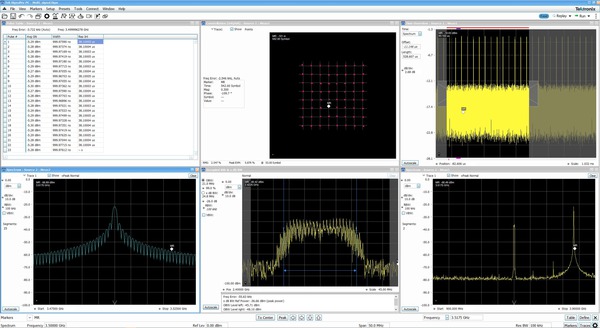

Time-correlated, multidomain view provides a new level of insight into design or operational problems not possible with conventional analysis solutions. Here, the hop patterns of a narrowband signal can be observed using Spectrogram (lower right) and its hop characteristics can be precisely measured with Frequency vs Time display (lower left). The time and frequency responses can be observed in the two top views as the signal hops from one frequency to the next.

Options tailored for your wideband applications

SignalVu RF and vector signal analysis software is available for all MSO/DPO5000, DPO7000, DPO70000 SX oscilloscope models, and DPO/DSA/MSO70000 Series oscilloscopes and offers options to meet your specific application, whether it be wideband radar characterization, broadband satellite, or spectrum management. SignalVu Essentials (Opt. SVE) provides the fundamental capability for all measurements and is required for pulse analysis (Opt. SVP), settling time (Opt. SVT), digital modulation analysis (Opt. SVM), flexible OFDM analysis (Opt. SVO, not offered on MSO/DPO5000), and AM/FM/PM Modulation and Audio Measurements (Opt. SVA).

SignalVu_EN US_37W 22314 21

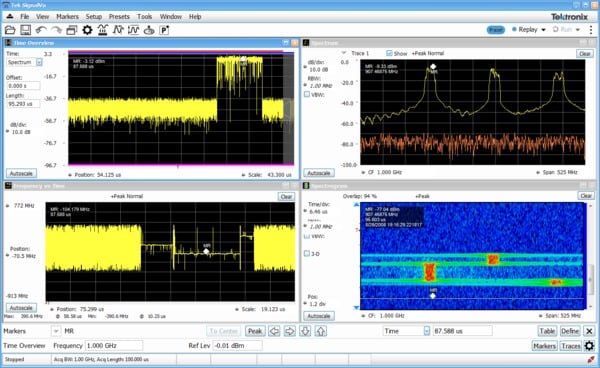

Wideband satellite and point-to-point microwave links can be directly observed with SignalVu analysis software. Here, General Purpose Digital Modulation Analysis (Opt. SVM) is demodulating a 16QAM backhaul link running at 312.5 MS/s.

SignalVu_EN US_37W 22314 21

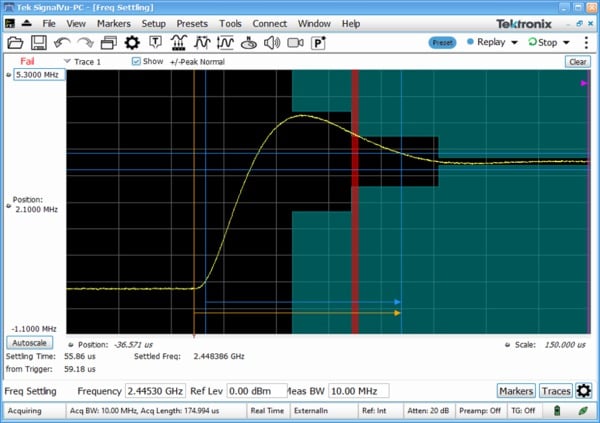

Settling time measurements (Opt. SVT) are easy and automated. The user can select measurement bandwidth, tolerance bands, reference frequency (auto or manual), and establish up to 3 tolerance bands vs. time for Pass/Fail testing. Settling time may be referenced to external or internal trigger, and from the last settled frequency or phase. In the illustration, frequency settling time for a hopped oscillator is measured from an external trigger point from the device under test.

WLAN transmitter testing

With the WLAN measurement options, you can perform standards-based transmitter measurements in the time, frequency, and modulation domains.

  • Option SV23 supports IEEE 802.11a, b, g, j and p signals
  • Option SV24 supports IEEE 802.11n 20 MHz and 40 MHz SISO signals
  • Option SV25 supports IEEE 802.11ac 20/40/80/160 MHz SISO signals

The table below described the modulation formats and frequency bands of IEEE 802.11 WLAN signals

Standard Std PHY Freq bandsSignal Modula­tion formats Band­width (max) 802.11- 2012 section
802.11b DSSS HR/DSSS 2.4 GHz DSSS/CCK

1 - 11 Mbps

DBSK, DQPSK

CCK5.5M, CCK11M

20 MHz 16 & 17
802.11g ERP 2.4 GHz DSSS/CCK/PBCC

1 - 33 Mbps

BPSK

DQPSK

20 MHz 17
802.11a OFDM 5 GHz OFDM 64

<54 Mbps

BPSK

QPSK

16QAM

64QAM

20 MHz 18
802.11g 2.4 GHz 20 MHz 19
802.11j/p 5 GHz 5, 10, 20 MHz 18
802.11n HT 2.4 GHz & 5 GHz OFDM 64, 128

≤ 150 Mbps

BPSK

QPSK

16QAM

64QAM

20 , 40 MHz 20
802.11ac VHT 5 GHz OFDM 64, 128, 256, 512

≤ 867 Mbps

BPSK

QPSK

16QAM

64QAM

256QAM

20, 40, 80, 160 MHz 22

The Frequency Band (Freq Bands) provides the minimum requirement for the bandwidth of the oscilloscope to use.

Inside SignalVu, the WLAN presets make the EVM, Constellation and SEM measurements push-button. The WLAN RF transmitter measurements are defined by the IEEE 802.11- 2012 revision of the standard and listed below with the reference to the section and the limit to reach.

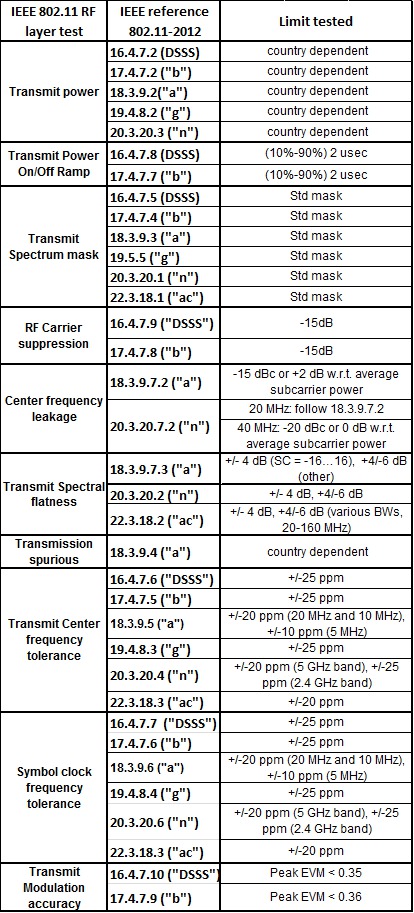

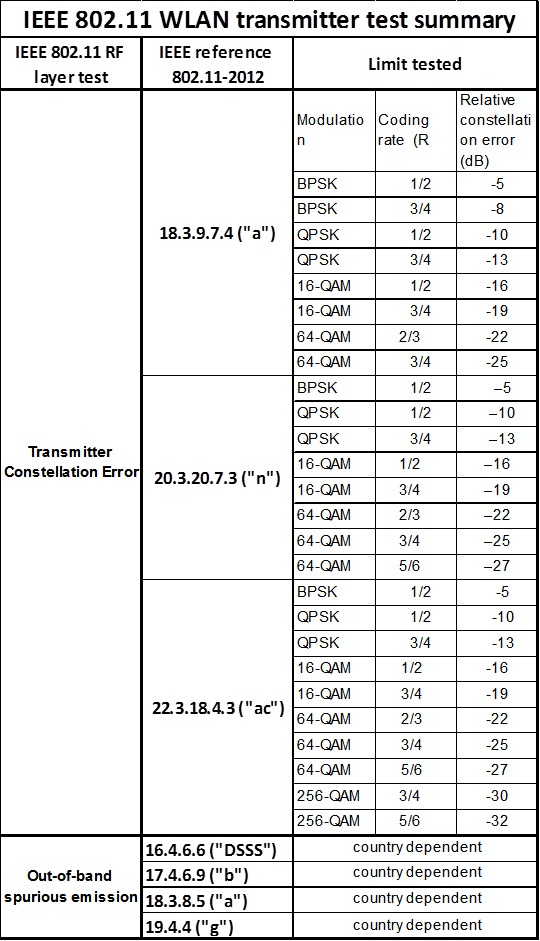

IEEE 802.11 RF layer test IEEE reference 802.11-2012 Limit tested
Transmit power 16.4.7.2 (DSSS) Country dependent
17.4.7.2 ("b")
18.3.9.2 ("a")
19.4.8.2 ("g")
20.3.20.3 ("n")
Transmit power on/off ramp 16.4.7.8 (DSSS) (10%-90%) 2 μsec
17.4.7.7 ("b")
Transmit spectrum mask 16.4.7.5 (DSSS) Std mask
17.4.7.4 ("b")
18.3.9.3 ("a")
19.5.5 ("g")
20.3.20.1 ("n")
22.3.18.1 ("ac")
RF carrier suppression 16.4.7.9 ("DSSS") -15 dB
17.4.7.8 ("n")
Center frequency leakage 18.3.9.7.2 ("a") -15 dBc or +2 dB w.r.t. average subcarrier power
20.3.20.7.2 ("n") 20 MHz: follow 18.3.9.7.2
40 MHz: -20 dBc or 0 dB w.r.t. average subcarrier power
SignalVu_EN US_37W 22314 21
SignalVu_EN US_37W 22314 21
SignalVu_EN US_37W 22314 21

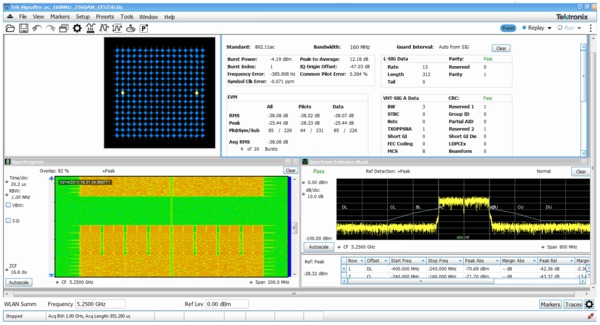

Easy analysis of WLAN 802.11ac transmitter with a WLAN preset that provides spectral emission mask, constellation diagram, and decoded burst information.

WiGig IEEE802.11ad/ay transmitter testing

Option SV30 provides comprehensive analysis for WiGig IEEE802.11ad/ay IC characterization. Used together with the DPO77002SX, it delivers the industry's most accurate signal quality measurement at 60 GHz. Automatically detect the packet Start, as well as decode packet information in the Header; synchronize to preamble using the Golay codes in the short training field; demodulates preamble, header, and payload separately; and measures EVM in each of these sections per the standard.

SV30 provides significant margin in EVM performance compared to what is required by the standard. Channel Impulse coefficients are also available. Both Control PHY (802.11ad) and Single Carrier PHY (802.11ad and 802.11ay) are supported and this option provides analysis of 802.11ay 2.16 GHz packets or 4.23 GHz adjacent 2-channel bonded packets.

Testing and verification can be done on IF and RF setups. RF power, Received Power Indicator (RCPI), Frequency error (Max, Average, Std. Deviation), DC Offset, IQ DC origin offset, IQ Gain and Phase imbalance, Signal Quality, and estimated SNR measurements are reported in the Summary display. Pass/Fail results are reported using customizable limits and the presets make the test set-up push-button.

For further insight into the signal, color coding is available in the user interface, allowing you to visualize the EVM spread across the analyzed packet with color codes differentiating regions. You can also view the demodulated symbols in tabular form with different color codes and with an option to traverse to the start of each region for easier navigation.

SignalVu_EN US_37W 22314 21

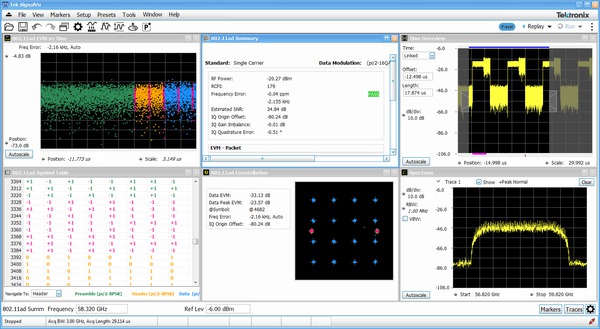

DPO770002SX with SV30 provides the industry's most accurate EVM. It allows easy setup to perform transmitter measurements including time overview of the bursts, spectrum, constellation diagram, decoded burst information, and EVM measurements.
Modulation formats

802.11ad: MCS0-12.6

802.11ay: MCS1-21

802.11ad/ay Single carrier: π/2 BPSK, π/2 QPSK, π/2 16QAM, π/2 64QAM

802.11ad Control PHY: π/2 DBPSK

Measurements

RF output power, Received Channel Power Indicator (RCPI), Estimated SNR, Frequency Error, Symbol Rate Error, IQ Origin Offset, IQ Phase Imbalance, IQ Gain Imbalance, IQ Quadrature Error, EVM results for each packet region (STF, CEF, Header and Data). Packet information includes the Packet type, Preamble, Synchronization Word or Access Code, Packet Header, Payload length, and CRC details.

Displays

Constellation, EVM vs Time, Symbol Table, Summary

Residual EVM, measured at RF (Channel 1-6) on DPO770002SX 1

802.11ad MCS0-12.6

802.11ay MCS1-21
Channel1-4

1.2 - 1.6%

(-38.4 to -35.9 dBc)

1.2 - 1.6%

(-38.4 to -35.9 dBc)

Channel 5-6

1.4 - 2.5%

(-37.1 to -32.0 dBc)

1.4 - 2.5%

(-37.1 to -32.0 dBc)

Channel 1-2, 2-3, 3-4

(adjacent bonded)

NA

1.2 - 1.7%

(-38.4 to -35.4 dBc)

Channel 4-5, 5-6

(adjacent bonded)

NA

< 2.5%

(< -32.0 dBc)

Bluetooth transmitter testing

Two options have been added to help with Bluetooth SIG standard base transmitter RF measurements in the time, frequency and modulation domains. Option SV27 supports Basic Rate and Low Energy Transmitter measurements defined by RF.TS.4.2.0 and RF-PHY.TS. 4.2.0 Test Specification. It also demodulates and provides symbol information for Enhanced Data Rate (EDR) packets. Option SV31 supports Bluetooth 5 standards (LE 1M, LE 2M, LE Coded) and measurements defined in the Core Specification. Both options also decode the physical layer data that is transmitted and color-encode the fields of packet in the Symbol Table for clear identification.

Pass/Fail results are provided with customizable limits and the Bluetooth presets make the different test set-ups push-button.

Below is a summary of the measurements that are automated with option SV27 and SV31 (unless noted):

  • Bluetooth Low Energy (BLE) Transmitter Measurements
    • Output power at NOC TRM-LE/CA/01/C and at EOC TRM-LE/CA/02/C
    • In-band emission at NOC TRM-LE/CA/03/C and at EOC TRM-LE/CA/04/C
    • Modulation characteristics TRM-LE/CA/05/C
    • Carrier frequency offset and drift at NOC TRM-LE/CA/06/C and at EOC TRM-LE/CA/07/C
  • Basic Rate Transmitter Measurements
    • Output power TRM/CA/01/C
    • Power Density TRM/CA/02/C (no preset)
    • Power Control TRM/CA/03/C (no preset)
    • Tx output Spectrum – Frequency Range TRM/CA/04/C (no preset)
    • Tx output spectrum - 20 dB Bandwidth TRM/CA/05/C
    • Tx output spectrum - Adjacent Channel Power TRM/CA/06/C
    • Modulation characteristics TRM/CA/07/C
    • Initial carrier frequency tolerance TRM/CA/08/C
    • Carrier frequency-drift TRM/CA/09/C

The following additional information is also available with SV27 and SV31: symbol table with color coded field information, constellation, eye diagram, frequency deviation vs time with highlighted packet and octet, frequency offset and drift detailed table, as well as packet header field decoding. Markers can be used to cross-correlate the time, vector and frequency information.

SignalVu_EN US_37W 22314 21

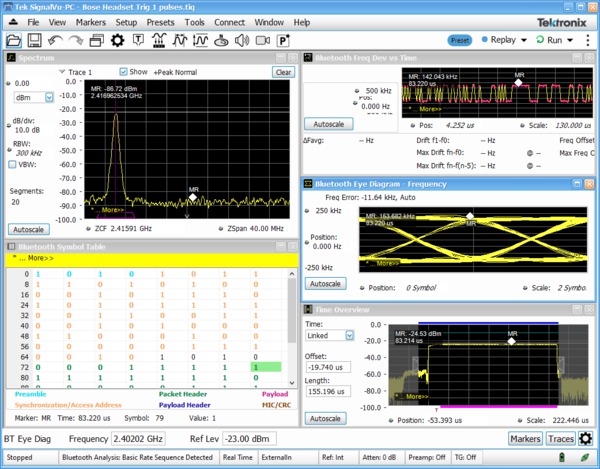

Easy validation of Bluetooth transmitter with push button preset, pass/fail information and clear correlation between displays.

5G NR modulation analysis and measurements option

5G NR is among the growing set of signal standards, applications, and modulation types supported by SignalVu Vector Signal Analysis (VSA) software. The SignalVu VSA 5G NR analysis option provides comprehensive analysis capabilities in the frequency, time, and modulation domains for signals based on the 3GPP’s 5G NR specification.

By configuring result traces of spectrum, acquisition time, and NR specific modulation quality (e.g, EVM, frequency error, I/Q error) traces and tables, engineers can identify overall signal characteristics and troubleshoot intermittent error peaks or repeated synchronization failures.

Error Vector Magnitude (EVM) is a figure of merit used to describe signal quality. It does this by measuring the difference on the I/Q plane between the ideal constellation point of the given symbol versus the actual measured point. It can be measured in dB or % of the ideal sub-symbol, normalized to the average QAM power received, and display constellation of symbols vs ideal symbol. The EVM vs Symbol or EVM vs Time gives the EVM of OFDM symbols present in the number of symbols considered or the time within a slot.

For automated testing, SCPI remote interfaces are available to accelerate design, which enables the quick transition to the design verification and manufacturing phases.

SignalVu_EN US_37W 22314 21

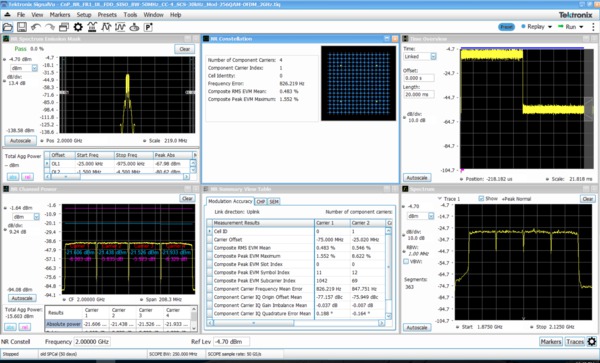

Constellation, Summary View, CHP, and SEM displays supported in option 5G NR

5G NR transmitter measurements core supported features

5G NR option (Opt. 5GNR) supports 5G NR modulation analysis measurements according to Release 15 and Release 16 of 3GPP’s TS38 specification, including:

  • Analysis of uplink and downlink frame structures
  • 5G NR measurements and displays including
    • Modulation Accuracy (ModAcc)
    • Channel Power (CHP)
    • Adjacent Channel Power (ACP)
    • Spectrum Emission Mask (SEM)
    • Occupied Bandwidth (OBW)
    • Power Vs Time (PVT)2
    • Error Vector Magnitude (EVM)
    • Summary table with all scalar results for ModAcc, SEM, CHP, ACP, OBW, PVT, and EVM measurements
  • In-depth analysis and troubleshooting with coupled measurements across domains, use multiple markers to correlate results to find root-cause.
  • Saves reports in CSV format with configuration parameters and measurement results
  • Configurable parameters of PDSCH or PUSCH for each component carrier
  • For downlink, supported test models for FDD and TDD per 3GPP specifications

LTE FDD and TDD base station transmitter RF testing

Option SV28 enables the following LTE measurements:

  • Cell ID

  • Channel Power

  • Occupied Bandwidth (OBW)

  • Adjacent Channel Leakage Ratio (ACLR)

  • Spectrum Emission Mask (SEM)

  • Transmitter Off Power for TDD

  • Reference Signal Power

There are four presets to accelerate pre-compliance testing and determine the Cell ID. These presets are defined as Cell ID, ACLR, SEM, Channel Power and TDD Toff Power. The measurements follow the definition in 3GPP TS Version 12.5 and support all base station categories, including picocells and femtocells. Pass/Fail information is reported and all channel bandwidths are supported.

The Cell ID preset displays the Primary Synchronization Signal (PSS) and the Secondary Synchronization Signal (SSS) in a Constellation diagram. It also provides Frequency Error and Reference Signal (RS) Power.

The ACLR preset measures the E-UTRA and the UTRA adjacent channels, with different chip rates for UTRA. ACLR also supports Noise Correction based on the noise measured when there is no input. Both ACLR and SEM will operate in swept mode (default) or in faster single acquisition if the instrument has enough acquisition bandwidth.

SignalVu_EN US_37W 22314 21

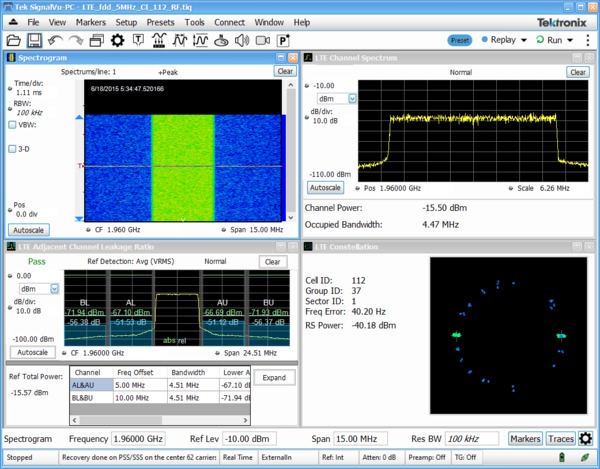

Fast validation of LTE base station transmitter with push button preset, and pass/fail information

Measurement functions

Spectrum analyzer measurements

(Opt. SVE)

Channel Power, Adjacent Channel Power, Multicarrier Adjacent Channel Power/Leakage Ratio, Occupied Bandwidth, xdB Down, dBm/Hz Marker, dBc/Hz Marker
Time domain and statistical measurements

(Opt. SVE)

RF IQ vs. Time, Amplitude vs. Time, Power vs. Time, Frequency vs. Time, Phase vs. Time, CCDF, Peak-to-Average Ratio, Amplitude, Frequency, and Phase Modulation Analysis
Spur search measurements

(Opt. SVE)

Up to 20 ranges, user-selected detectors (peak, average, CISPR peak), filters (RBW, CISPR, MIL) and VBW in each range. Linear or Log frequency scale. Measurements and violations in absolute power or relative to a carrier. Up to 999 violations identified in tabular form for export in CSV format
WLAN 802.11a/b/g/j/p measurement application (Opt. SV23) All of the RF transmitter measurements as defined in the IEEE standard, and a wide range of additional scalar measurements such as Carrier Frequency error, Symbol Timing error, Average/peak burst power, IQ Origin Offset, RMS/Peak EVM, and analysis displays, such as EVM and Phase/Magnitude Error vs time/frequency or vs symbols/ subcarriers, as well as packet header decoded information and symbol table.

Option SV23 requires Option SVE

Option SV24 requires Option SV23

Option SV25 requires Option SV24

WLAN 802.11n measurement application (Opt. SV24)
WLAN 802.11ac measurement application (Opt. SV25)
APCO P25 compliance testing and analysis application (Opt. SV26) Complete set of push-button TIA-102 standard-based transmitter measurements with pass/fail results including ACPR, transmitter power and encoder attack times, transmitter throughput delay, frequency deviation, modulation fidelity, symbol rate accuracy, and transient frequency behavior, as well as HCPM transmitter logical channel peak ACPR, off slot power, power envelope, and time alignment.

Option SV26 requires Option SVE

Bluetooth Basic LE TX SIG measurements

(Opt. SV27)

Presets for transmitter measurements defined by Bluetooth SIG for Basic Rate and Bluetooth Low Energy. Results also include Pass/Fail information. Application also provides Packet Header Field Decoding and can automatically detect the standard including Enhanced Data Rate.

LTE Downlink RF measurements (Opt. SV28)

Presets for Cell ID, ACLR, SEM, Channel Power and TDD Toff Power. Supports TDD and FDD frame format and all base stations defined by 3GPP TS version 12.5. Results include Pass/Fail information. Real-Time settings make the ACLR and the SEM measurements fast, if the connected instrument has enough bandwidth.
5G NR measurements (Opt. 5G NR)Presets for Channel Power (CHP), Adjacent Channel Power (ACP), Power Vs Time (PVT)2, Modulation Accuracy (including Error Vector Magnitude (EVM), Frequency Error, IQ Error), EVM vs. Symbol, Occupied Bandwidth (OBW), Spectral Emission Mask (SEM), Constellation Diagram, and summary table with scalar results.
WiGig IEEE 802.11ad/ay measurement application (Opt. SV30) Presets for Control PHY (802.11ad) and Single Carrier PHY (802.11ad and 802.11ay). The 802.11ay analysis results are shown for the EDMG, PreEDMG1, and PreEDMG2 regions. Both measure EVM in each of the packet fields per the standard, and decodes the header packet information. RF power, Received Channel Power Indicator, Frequency error, IQ DC origin offset, IQ Gain and Phase imbalance are reported in the Summary display. Pass/Fail results are reported using customizable limits.
AM/FM/PM modulation and audio measurements

(Opt. SVA)

Carrier Power, Frequency Error, Modulation Frequency, Modulation Parameters (±peak, peak-peak/2, RMS), SINAD, Modulation Distortion, S/N, THD, TNHD, Hum and Noise
Settling time (frequency and phase)

(Opt. SVT)

Measured Frequency, Settling Time from last settled frequency, Settling Time from last settled phase, Settling Time from Trigger. Automatic or manual reference frequency selection. User-adjustable measurement bandwidth, averaging, and smoothing. Pass/Fail Mask Testing with 3 user-settable zones
Advanced Pulse analysis (Opt.

SVP)

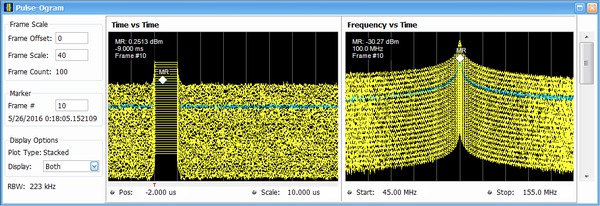

Pulse-Ogram™ waterfall display of multiple segmented captures, with amplitude vs time and spectrum of each pulse. Pulse frequency, Delta Frequency, Average on power, Peak power, Average transmitted power, Pulse width, Rise time, Fall time, Repetition interval (seconds), Repetition interval (Hz), Duty factor (%), Duty factor (ratio), Ripple (dB), Ripple (%), Droop (dB), Droop (%), Overshoot (dB), Overshoot (%), Pulse- Ref Pulse frequency difference, Pulse- Ref Pulse phase difference, Pulse- Pulse frequency difference, Pulse- Pulse phase difference, RMS frequency error, Max frequency error, RMS phase error, Max phase error, Frequency deviation, Phase deviation, Impulse response (dB), Impulse response (time), Time stamp.
Flexible OFDM analysis

(Opt. SVO)

OFDM analysis with support for WLAN 802.11a/g/j and WiMAX 802.16-2004. Constellation, Scalar Measurement Summary, EVM or Power vs. Carrier, Symbol Table (Binary or Hexadecimal)
General purpose digital modulation analysis

(Opt. SVM)

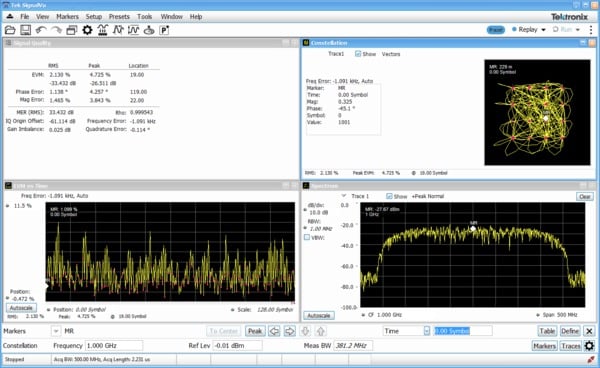

Error Vector Magnitude (EVM) (RMS, Peak, EVM vs. Time), Modulation Error Ratio (MER), Magnitude Error (RMS, Peak, Mag Error vs. Time), Phase Error (RMS, Peak, Phase Error vs. Time), Origin Offset, Frequency Error, Gain Imbalance, Quadrature Error, Rho, Constellation, Symbol Table.

FSK only: Frequency Deviation, Symbol Timing Error

SignalVu_EN US_37W 22314 21

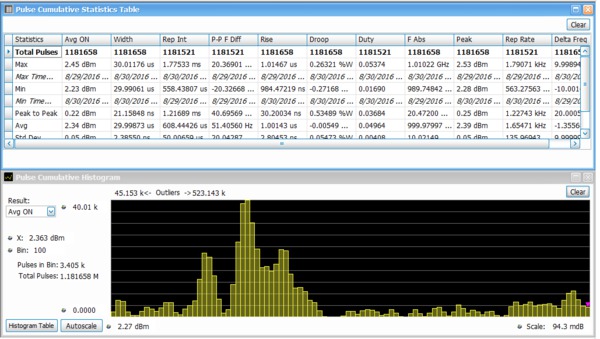

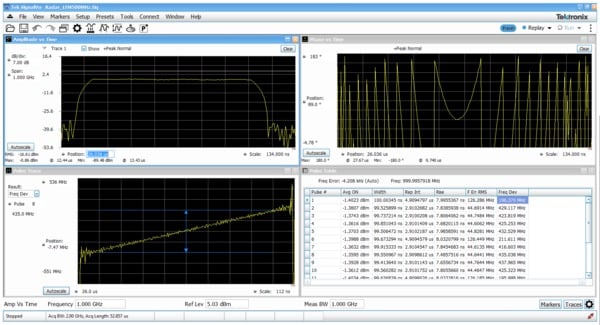

The Advanced Pulse Analysis package (Opt. SVP) provides 31 individual measurements to automatically characterize long pulse trains. An 500 MHz wide LFM chirp centered at 1 GHz is seen here with measurements for pulses 1 through 10 (lower right). The shape of the pulse can be seen in the Amplitude vs. Time plot shown in the upper left. Detailed views of pulse #8's frequency deviation and parabolic phase trajectory are shown in the other two views.

SignalVu_EN US_37W 22314 21
Settling time measurements (Opt. SVT) are easy and automated. The user can select measurement bandwidth, tolerance bands, reference frequency (auto or manual), and establish up to 3 tolerance bands vs. time for Pass/Fail testing. Settling time may be referenced to external or internal trigger, and from the last settled frequency or phase. In the illustration, frequency settling time for a hopped oscillator is measured from an external trigger point from the device under test.

SignalVu_EN US_37W 22314 21
Cumulative statistics provides timestamps for Min, Max values as well as Peak to Peak, Average and Standard deviation over multiple acquisitions, further extending the analysis. Histogram shows you outliers on the right and left.
SignalVu_EN US_37W 22314 21
Pulse-Ogram displays a waterfall of multiple segmented captures, with correlated amplitude vs time and spectrum of each pulse. Can be used with an external trigger to show target range and speed.

Specifications

Performance (typical)

The following is typical performance of SignalVu® running on any DPO70000 SX oscilloscope models, or DPO/DSA/MSO70000 Series oscilloscopes.

Frequency-related
Frequency range
See appropriate instrument data sheet
Initial center frequency setting accuracy
Equal to time-base accuracy of instrument
Center frequency setting resolution
0.1 Hz
Frequency offset range
0 Hz to the maximum bandwidth of the oscilloscope
Frequency marker readout accuracy
±(Reference Frequency Error × Marker Frequency + 0.001 × Span + 2) Hz
Span accuracy
±0.3%
Reference frequency error
Equal to oscilloscope reference frequency accuracy, aging, and drift. Refer to appropriate DPO/DSA/MSO data sheet.
Tuning Tables
Tables that present frequency selection in the form of standards-based channels are available for the following.
Cellular standards families: AMPS, NADC, NMT-450, PDC, GSM, CDMA, CDMA-2000, 1xEV-DO WCDMA, TD-SCDMA, LTE, 5G NR, WiMax
Unlicensed short range: 802.11a/b/j/g/p/n/ac, Bluetooth
Cordless phone: DECT, PHS
Broadcast: AM, FM, ATSC, DVBT/H, NTSC
Mobile radio, pagers, other: GMRS/FRS, iDEN, FLEX, P25, PWT, SMR, WiMax
3rd order inter-modulation distortion34
Center frequency MSO/DPO5000 DPO7000 DPO/DSA/MSO70000 DPO70000SX
2 GHz -38 dBc -40 dBc -55 dBc < -60 dBc
10 GHz -- -- -48 dBc < -50 dBc
18 GHz -- -- -50 dBc < -50 dBc
Residual responses5
DPO/DSA/ MSO70000DX/SX series (all spans)
–60 dBm
Displayed average noise level67
Span MSO/DPO5000 DPO7000C DPO/DSA/MSO70000 DPO70000SX
DC - 500 MHz -94 dBm -100 dBm -103 dBm < -145 dBm/Hz
>500 MHz - 3.5 GHz - -102 dBm -103 dBm < -155 dBm/Hz
>3.5 GHz - 14 GHz - - -101 dBm < -155 dBm/Hz
>14 GHz - 20 GHz - - -88 dBm < -155 dBm/Hz
>20 GHz - 25 GHz - - -87 dBm < -150 dBm/Hz
>25 GHz - 33 GHz - - -85 dBm < -150 dBm/Hz
>33 GHz - 70 GHz---< -150 dBm/Hz
Input-related
Number of inputs8
4
Input signal types
RF, I and Q (single ended), I and Q (differential)
Maximum input level
+26 dBm for 50 Ω input (5 VRMS)
Trigger-related
Trigger modes
Free Run and Triggered. Trigger sensitivity and characteristics can be found in the appropriate oscilloscope data sheet.
Acquisition-related
SignalVu provides long acquisitions of waveform captures with high time and frequency resolution. Maximum acquisition time will vary based on the oscilloscope's available memory and analog bandwidth. The following table highlights each model's single-channel capabilities given its maximum available memory configuration.
70000SX models
Oscilloscope dependentSignalVu dependencyOscilloscope dependent
Model Max span Max acquisition time at max sample rate 9 Min RBW at max sample rate Min IQ time resolution Max number of FastFrames
DPO77002SX 70 GHz 5 ms 600 Hz 20 ps SX

10 ps DX

369 K
DPO75002SX50 GHz
DPO73304SX 33 GHz 10 ms300 Hz10 ps
DPO72504SX 25 GHz 20 ps
DPO72304SX23 GHz
DPO71604SX16 GHz
DPO71304SX 13 GHz
70000D, 70000C models
Model 10 Max span Max acquisition time at max sample rate Min RBW at max sample rate Min IQ time resolution Max number of FastFrames 11
DPO/DSA73304D 33 GHz 2.5 ms 1.2 kHz 20 ps 65,535
DPO/DSA72504D 25 GHz
DPO/DSA/ MSO72004C 20 GHz
DPO/DSA/ MSO71604C 16 GHz
DPO/DSA/ MSO71254C 12.5 GHz
DPO/DSA/ MSO70804C 8 GHz 5 ms 600 Hz 80 ps
DPO/DSA/ MSO70604C 6 GHz
DPO/DSA/ MSO70404C 4 GHz
Analysis-related
Frequency (Opt. SVE)
Spectrum (Amplitude vs. Linear or Log Frequency)
Spectrogram (Amplitude vs. Frequency over Time)
Spurious (Amplitude vs. Linear or Log Frequency)
Time and statistics (Opt. SVE)
Amplitude vs. Time
Frequency vs. Time
Phase vs. Time
Amplitude Modulation vs. Time
Frequency Modulation vs. Time
Phase Modulation vs. Time
RF IQ vs. Time
Time Overview
CCDF
Peak-to-Average Ratio
Settling time, frequency, and phase (Opt. SVT)
Frequency Settling vs. Time
Phase Settling vs. Time
Advanced Pulse measurements suite (Opt. SVP)
Pulse results Table
Pulse trace (Selectable by pulse number)
Pulse statistics (Trend of pulse results, FFT of time trend and histogram)
Cumulative Statistics, Cumulative Histogram and Pulse-Ogram
Digital demod (Opt. SVM)
Constellation diagram
EVM vs. Time
Symbol table (binary or hexadecimal)
Magnitude and Phase Error vs. Time, and Signal Quality
Demodulated IQ vs. Time
Eye diagram
Trellis diagram
Frequency Deviation vs. Time
Flexible OFDM (Opt. SVO)
EVM vs. Symbol, vs. Subcarrier
Subcarrier Power vs. Symbol, vs. Subcarrier
Subcarrier constellation
Symbol data table
Mag Error vs. Symbol, vs. Subcarrier
Phase Error vs. Symbol, vs. Subcarrier
Channel frequency response
Supported file formats
SignalVu can recall saved acquisitions from MSO/DPO5000, DPO7000, DPO/DSA/MSO70000, RSA5000, and RSA6000 Series instruments. Both WFM and TIQ file extensions can be recalled for postprocessing by SignalVu.

RF and spectrum analysis performance

Resolution bandwidth
Resolution bandwidth (spectrum analysis)
1, 2, 3, 5 sequence, auto-coupled, or user selected (arbitrary)
Resolution bandwidth shape
Approximately Gaussian, shape factor 4.1:1 (60:3 dB) ±10%, typical
Resolution bandwidth accuracy
±1% (auto-coupled RBW mode)
Alternative resolution bandwidth types
Kaiser window (RBW), –6 dB Mil, CISPR, Blackman-Harris 4B window, Uniform window (none), flat-top window (CW ampl.), Hanning window
Video bandwidth
Video bandwidth range
Dependent on oscilloscope record length setting. approximately 500 Hz to 5 MHz
RBW/VBW maximum
10,000:1
RBW/VBW minimum
1:1
Resolution
5% of entered value
Accuracy (typical)
±10%
Time domain bandwidth (amplitude vs. time display)
Time domain bandwidth range
At least 1/2 to 1/10,000 of acquisition bandwidth
Time domain bandwidth shape

Approximately Gaussian, shape factor 4.1:1(60:3 dB), ±10% typical

Shape factor <2.5:1 (60:3 dB) typical for all bandwidths

Time domain bandwidth accuracy
±10%
Spectrum and Spurious display traces, detectors, and functions
Traces
Three traces + 1 math trace + 1 trace from spectrogram for spectrum display, four traces for spurious display
Detector
Peak, –peak, average, CISPR peak, and when option SVQP is enabled, CISPR quasi-peak and average (not available when connected to MDO4000B/C or MSO5/6 Series)
Trace functions
Normal, Average, Max Hold, Min Hold
Spectrum trace length
801, 2401, 4001, 8001, 10401, 16001, 32001, or 64001 points

AM/FM/PM modulation and audio measurements (SVA)

All published performance based on conditions of Input Signal: 0 dBm, Input Frequency: 100 MHz, RBW: Auto, Averaging: Off, Filters: Off. Sampling and input parameters optimized for best results.

Carrier frequency range12
1 kHz or (1/2 × audio analysis bandwidth) to maximum input frequency
Maximum audio frequency span
10 MHz
Audio filters
Low pass (kHz)
0.3, 3, 15, 30, 80, 300, and user-entered up to 0.9 × audio bandwidth
High pass (Hz)
20, 50, 300, 400, and user-entered up to 0.9 × audio bandwidth
Standard
CCITT, C-Message
De-emphasis (µs)
25, 50, 75, 750, and user-entered
File
User-supplied .TXT or .CSV file of amplitude/frequency pairs. Maximum 1000 pairs.
FM modulation analysis
FM measurements,
Carrier power, carrier frequency error, audio frequency, deviation (+peak, –peak, peak-peak/2, RMS), SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
FM deviation accuracy
±1.5% of deviation
FM rate accuracy
±1.0 Hz
Carrier frequency accuracy
±1 Hz + (transmitter frequency × reference frequency error)
Residuals (FM) (rate: 1 kHz to 10 kHz, deviation: 5 kHz)
THD

0.2% (DPO70000 Series)

SINAD

44 dB (DPO70000 Series)

AM modulation analysis
AM measurements
Carrier power, audio frequency, modulation depth (+peak, –peak, peak-peak/2), RMS, SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
AM depth accuracy (rate: 1 kHz, depth: 50%)
±1% + 0.01 × measured value
AM rate accuracy (rate: 1 kHz, depth: 50%)
±1.0 Hz
Residuals (AM)
THD

0.3% (DPO70000 Series)

SINAD

48 dB (DPO70000 Series)

PM modulation analysis
PM measurement
Carrier power, carrier frequency error, audio frequency, deviation (+peak, –peak, peak-peak/2, RMS), SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
PM deviation accuracy (rate: 1 kHz, deviation: 0.628 rad)
±100% × (0.01 + (rate / 1 MHz))
PM rate accuracy (rate: 1 kHz, deviation: 0.628 rad)
±1 Hz
Residuals (PM)
THD

0.1% (DPO70000 Series)

SINAD

48 dB (DPO70000 Series)

Direct audio input
Audio measurements
Signal power, audio frequency (+peak, –peak, peak-peak/2, RMS), SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
Direct input frequency range (for audio measurements only)

1 Hz to 10 MHz

Maximum audio frequency span

10 MHz

Audio frequency accuracy
±1 Hz
Residuals (PM)
THD
1.5%
SINAD
38 dB
Minimum audio analysis bandwidth and RBW vs. oscilloscope memory and sample rate
(Opt. SVA)
Model Sample rate: 1 GS/s Sample rate: maximum
Standard memory Maximum memory Standard memory Maximum memory
Min. Aud. BW RBW (Auto) Min. Aud. BW RBW (Auto) Min. Aud. BW RBW (Auto) Min. Aud. BW RBW (Auto)

DPO/DSA/ MSO

70000 ≥12.5 GHz BW

200 kHz

400 Hz

10 kHz

20 Hz

not recom-mended

>4 kHz

1 MHz

2 kHz

DPO/DSA/ MSO 70000 <12.5 GHz BW

200 kHz

400 Hz

20 kHz

40 Hz

not recom-mended

>4 kHz

500 kHz

1 kHz

Settling time, frequency, and phase (SVT)

Settled frequency uncertainty13
Measurement frequency: 1 GHz
Averages Frequency uncertainty at stated measurement bandwidth
1 GHz 100 MHz 10 MHz 1 MHz
Single measurement 20 kHz 2 kHz 500 Hz 100 Hz
100 averages 10 kHz 500 Hz 200 Hz 50 Hz
1000 averages 2 kHz 200 Hz 50 Hz 10 Hz
Measurement frequency: 9 GHz
Averages Frequency uncertainty at stated measurement bandwidth
1 GHz 100 MHz 10 MHz 1 MHz
Single Measurement 20 kHz 5 kHz 2 kHz 200 Hz
100 Averages 10 kHz 2 kHz 500 Hz 50 Hz
1000 Averages 2 kHz 500 Hz 200 Hz 20 Hz
Settled phase uncertainty13
Measurement frequency: 1 GHz
Averages Phase uncertainty at stated measurement bandwidth
1 GHz 100 MHz 10 MHz 1 MHz
Single measurement
100 averages 0.5° 0.5° 0.5° 0.5°
1000 averages 0.2° 0.2° 0.2° 0.2°
Measurement frequency: 9 GHz
Averages Phase uncertainty at stated measurement bandwidth
1 GHz 100 MHz 10 MHz 1 MHz
Single measurement
100 averages
1000 averages 0.5° 0.5° 0.5° 0.5°

Advanced Pulse measurement suite (Opt. SVP)

General characteristics
Measurements
Pulse-Ogram™ waterfall display of multiple segmented captures, with amplitude vs time and spectrum of each pulse. Pulse frequency, Delta Frequency, Average on power, Peak power, Average transmitted power, Pulse width, Rise time, Fall time, Repetition interval (seconds), Repetition interval (Hz), Duty factor (%), Duty factor (ratio), Ripple (dB), Ripple (%), Droop (dB), Droop (%), Overshoot (dB), Overshoot (%), Pulse- Ref Pulse frequency difference, Pulse- Ref Pulse phase difference, Pulse- Pulse frequency difference, Pulse- Pulse phase difference, RMS frequency error, Max frequency error, RMS phase error, Max phase error, Frequency deviation, Phase deviation, Impulse response (dB), Impulse response (time), Time stamp.
Number of pulses
1 to 100,000 14 in one acquisition; Supports offline analysis of more than 200,000 continuous pulses. Provides measurement statistics for millions of pulses captured over many acquisitions.
System rise time (typical)
Equal to oscilloscope rise time
Minimum pulse width for detection15
Model Minimum PW
DPO/DSA72004C

MSO72004

400 ps
DPO/DSA71604C

MSO71604

500 ps
DPO/DSA71254C

MSO71254

640 ps
DPO/DSA70804C

MSO70804

1 ns
DPO/DSA70604C

MSO70604

1.3 ns
DPO/DSA70404C

MSO70404

2 ns
DPO77002SX40 ps
DPO75002SX40 ps
DPO73304SX40 ps
DPO72504SX40 ps
DPO72304SX40 ps
DPO71604SX40 ps
DPO71304SX40 ps
Pulse measurement accuracy (typical)16
Average on power
±0.3 dB + Absolute Amplitude Accuracy of instrument
Average transmitted power
±0.4 dB + Absolute Amplitude Accuracy of instrument
Peak power
±0.4 dB + Absolute Amplitude Accuracy of instrument
Pulse width
±(3% of reading + 0.5 × sample period)
Pulse repetition rate
±(3% of reading + 0.5 × sample period)

Digital modulation analysis (SVM)

Modulation formats
π/2DBPSK, BPSK, SBPSK, QPSK, DQPSK, π/4DQPSK, D8PSK, 8PSK, OQPSK, SOQPSK, CPM, 16/32/64/128/256QAM, MSK, GMSK, GFSK, 2-FSK, 4-FSK, 8-FSK, 16-FSK, C4FM, D16PSK, 16APSK, and 32APSK
Analysis period
Up to 80,000 samples
Measurement filters
Square-root raised cosine, raised cosine, Gaussian, rectangular, IS-95, IS-95 EQ, C4FM-P25, half-sine, None, User Defined
Reference filters
Raised cosine, Gaussian, rectangular, IS-95, SBPSK-MIL, SOQPSK-MIL, SOQPSK-ARTM, None, User Defined
Alpha/B x T range
0.001 to 1, 0.001 step
Measurements

Constellation, Error Vector Magnitude (EVM) vs time, Modulation error ratio (MER), Magnitude error vs time, Phase error vs time, Signal quality, Symbol table

rhoFSK only: Frequency deviation, Symbol timing error

Symbol rate range
1 kS/s to (0.4 * Sample Rate) GS/s (modulated signal must be contained entirely within the acquisition bandwidth)
Adaptive equalizer
Type
Linear, decision-directed, feed-forward (FIR) equalizer with coefficient adaptation and adjustable convergence rate
Modulation types supported
BPSK, QPSK, OQPSK π/2 DQPSK, π/4 DQPSK, 8PSK, D8PSK, D16PSK, 16/32/64/128/256QAM
Reference filters for all modulation types except OQPSK
Raised cosine, Rectangular, None
Reference filters for OQPSK
Raised cosine, Half sine
Filter length
1-128 taps
Taps/symbol: raised cosine, half sine, no filter
1, 2, 4, 8
Taps/symbol: rectangular filter
1
Equalizer controls
Off, Train, Hold, Reset
16QAM Residual EVM (typical) for DPO/DSA/MSO70000 series17
Symbol Rate RF IQ
100 MS/s <2.0% <2.0%
312.5 MS/s <3.0% <3.0%
OFDM residual EVM, 802.11g Signal at 2.4 GHz, input level optimized for best performance
DPO/DSA/MSO70000 Series
–38 dB

WLAN IEEE802.11a/b/g/j/p (Opt. SV23)

General characteristics
Modulation formats
DBPSK (DSSS1M), DQPSK (DSSS2M), CCK5.5M, CCK11M, OFDM (BPSK, QPSK, 16 or 64QAM)
Measurements

RMS and Peak EVM for Pilots/Data, Peak EVM located per symbol and subcarrier

Packet header format information

Average power and RMS EVM per section of the header

WLAN power vs time, WLAN symbol table, WLAN constellation

Spectrum Emission Mask, Spurious

Error Vector Magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

WLAN channel frequency response vs symbol (or time), vs subcarrier (or frequency)

WLAN spectral flatness vs symbol (or time), vs subcarrier (or frequency)

WLAN IEEE802.11n (Opt. SV24)

General characteristics
Modulation formats
OFDM (BPSK, QPSK, 16 or 64 QAM), SISO
Measurements

Burst index, Burst power, Peak to average burst power, IQ origin offset, Frequency error, Common pilot error, Symbol clock error

RMS and peak EVM for Pilots/Data, peak EVM located per symbol and subcarrier

Packet header format information

Average power and RMS EVM per section of the header

WLAN power vs time, WLAN symbol table, WLAN constellation

Spectrum emission mask, spurious

Error Vector Magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

WLAN channel frequency response vs symbol (or time), vs subcarrier (or frequency)

WLAN spectral flatness vs symbol (or time), vs subcarrier (or frequency)

WLAN IEEE802.11ac (Opt. SV25)

General characteristics
Modulation formats
OFDM (BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM), SISO
Measurements

Burst index, Burst power, Peak to average burst power, IQ origin offset,Frequency error, Common pilot error, Symbol clock error

RMS and peak EVM for Pilots/Data, Peak EVM located per symbol and subcarrier

Packet header format information

Average power and RMS EVM per section of the header

WLAN Power vs time, WLAN symbol table, WLAN constellation

Spectrum emission mask, spurious

Error Vector Magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

WLAN channel frequency response vs symbol (or time), vs subcarrier (or frequency)

WLAN spectral flatness vs symbol (or time), vs subcarrier (or frequency)

WiGig 802.11ad/ay (Opt. SV30)

Modulation formats

802.11ad MCS0-12.6,

802.11ay MCS1-21

802.11ad Control PHY (pi/2 DBPSK)

802.11ad and 802.11ay Single Carrier PHY (pi/2 BPSK, pi/2 QPSK, pi/2 16QAM, pi/2 64QAM)

Measurements and displays
RF output power, Received Channel Power Indicator (RCPI), Estimated SNR, Frequency Error,

Symbol Rate Error, IQ Origin Offset, IQ Gain Imbalance, IQ Phase Imbalance, IQ Quadrature Error,

EVM results for each packet region: Packet information, 802.11ad (STF, CEF, Header, Guard, and Data), 802.11ay (LSTF, LCEF, L Header, EDMG Header-A, EDMG STF, EDMG CEF Guard and Data

include the Packet type, Preamble, Synchronization Word or Access Code, Packet

Header, Payload length, and CRC details.

Residual EVM, measured at RF (Channel 1-6) on DPO770002SX
Residual EVM
Measurement uncertainty: ± 0.3% due to pre-compensation filter and affects of the AWG70000 and upconverter.
802.11ad MCS0-12.6 802.11ay MCS1-21
Channel1-4

1.2 - 1.6%

(-38.4 to -35.9 dBc)

1.2 - 1.6%

(-38.4 to -35.9 dBc)

Channel 5-6

1.4 - 2.5%

(-37.1 to -32.0 dBc)

1.4 - 2.5%

(-37.1 to -32.0 dBc)

Channel 1-2, 2-3, 3-4

(adjacent bonded)

NA

1.2 - 1.7%

(-38.4 to -35.4 dBc)

Channel 4-5, 5-6

(adjacent bonded)

NA

< 2.5%

(< -32.0 dBc)

APCO P25 (Opt. SV26)

Modulation formats
Phase 1 (C4FM), Phase 2 (HCPM, HDQPSK)
Measurements and displays
RF output power, operating frequency accuracy, modulation emission spectrum,

unwanted emissions spurious, adjacent channel power ratio, frequency deviation,

modulation fidelity, frequency error, eye diagram, symbol table, symbol rate accuracy,

transmitter power and encoder attack time, transmitter throughput delay, frequency

deviation vs. time, power vs. time, transient frequency behavior, HCPM transmitter logical

channel peak adjacent channel power ratio, HCPM transmitter logical channel off slot power,

HCPM transmitter logical channel power envelope, HCPM transmitter logical channel time alignment

Bluetooth (Opt. SV27)

Modulation formats
Bluetooth® 4.2 Basic Rate, Bluetooth® 4.2 Low Energy, Bluetooth® 4.2 Enhanced Data Rate. Bluetooth® 5 when SV31 is enabled.
Measurements and displays

Peak Power, Average Power, Adjacent Channel Power or InBand Emission mask, -20 dB Bandwidth, Frequency Error, Modulation Characteristics including ΔF1avg (11110000), ΔF2avg (10101010), ΔF2 > 115 kHz, ΔF2/ΔF1 ratio, frequency deviation vs. time with packet and octet level measurement information, Carrier Frequency f0, Frequency Offset (Preamble and Payload), Max Frequency Offset, Frequency Drift f1-f0, Max Drift Rate fn-f0 and fn-fn-5, Center Frequency Offset Table and Frequency Drift table, color-coded Symbol table, Packet header decoding information, eye diagram, constellation diagram.

LTE Downlink (Opt. SV28)

Standard Supported
3GPP TS 36.141 Version 12.5
Frame Format supported
FDD and TDD
Measurements and Displays Supported
Adjacent Channel Leakage Ratio (ACLR), Spectrum Emission Mask (SEM), Channel Power, Occupied Bandwidth, Power vs. Time showing Transmitter OFF power for TDD signals and LTE constellation diagram for PSS, SSS with Cell ID, Group ID, Sector ID and Frequency Error.

5G NR Uplink/Downlink measurements (Opt. 5GNR)

Standard supported
TS 38.141-1 for BS and 38.521-1 for UE
Modulation accuracy
Sec 6.5.2 for BS and Sec 6.4.2 for UE.
ACP
Sec 6.6.3 for BS and Sec 6.5.2.4 for UE
Frame format supported
Uplink (FDD and TDD)
Downlink (FDD and TDD)
Measurements and displays supported
Channel Power (CHP), Adjacent Channel Power (ACP), Power Vs Time (PVT)2, Modulation Accuracy (including Error Vector Magnitude (EVM), Frequency Error, IQ Error), EVM vs. Symbol, Occupied Bandwidth (OBW), Spectral Emission Mask (SEM), Constellation Diagram, and summary table with scalar results.
EVM (typical)
1 GHz2 GHz3 GHz4 GHz5 GHz6 GHz7 GHz
0.50%0.50%0.70%0.70%0.70%0.90%0.90%
ACLR
-48 dBc at all frequencies up to 7 GHz

General characteristics

GPIB
SCPI-compatible, see programmer manual for exceptions

Ordering information

SignalVu® Vector Signal Analysis software is compatible with DPO/DSA/MSO70000 Series digital oscilloscopes with firmware version V5.1.0 or higher. SignalVu Essentials (Opt. SVE) provides basic vector signal analysis and is required for all other analysis options.

Options

Opt. SVE
SignalVu Essentials - Vector Signal Analysis Software
Opt. SV23
WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE, requires oscilloscope of bandwidth of 2.5 GHz or above)
Opt. SV24
WLAN 802.11n measurement application (requires Opt. SV23, requires oscilloscope of bandwidth of 2.5 GHz or above)
Opt. SV25
WLAN 802.11ac measurement application (requires Opt. SV24, requires oscilloscope of bandwidth of 6.0 GHz or above)
Opt. SV26
APCO P25 measurement application
Opt. SV27
Bluetooth Basic LE Tx Measurements (requires Opt. SVE, requires oscilloscope of bandwidth of 2.5 GHz or above)
Opt. SV28
LTE Downlink RF measurements (requires Opt. SVE, requires oscilloscope of bandwidth 1 GHz or above). Not available on DPO/MSO5000 Series
Opt. 5GNR
5G NR Uplink/Downlink RF analysis software (Available as upgrade only. Requires Opt. SVE)
Opt. SV30
IEEE802.11ad/ay SC Wideband Waveform Analysis (requires Opt. SVE, requires oscilloscope of bandwidth >3 GHz
Opt. SVP
Advanced Signal Analysis, including pulse measurements (requires Opt. SVE)
Opt. SVM
General Purpose Digital Modulation Analysis (requires Opt. SVE)
Opt. SVT
Settling Time, Frequency, and Phase (requires Opt. SVE)
Opt. SVO
Flexible OFDM with support for 802.11a/j/g and 802.16-2044 (fixed WiMAX) modulation types.
Opt. SVA
AM/FM/PM Modulation and Audio Measurements (requires Opt. SVE)

Option ordering nomenclature for all oscilloscopes. Option SVE is required for all other options listed.

For information on analysis software that runs on your personal computer, please see the SignalVu-PC datasheet.

New and existing models
Model Ordering on new instrument Upgrade existing instrument
DPO/DSA/MSO70000 Series ≤8 GHz Opt. SVE (Essentials) DPO-UP Opt. SVEH
DPO/DSA/MSO70000 Series >8 GHz Opt. SVE (Essentials) DPO-UP Opt. SVEU
Option SVE required for all other options listed Opt. SVT (Settling time) DPO-UP Opt. SVT
Opt. SVP (Pulse measurements) DPO-UP Opt. SVP
Opt. SVM (GP modulation analysis) DPO-UP Opt. SVM
Opt. SVO (OFDM) DPO-UP Opt. SVO
Opt. SVA (AM/FM/PM Audio) DPO-UP Opt. SVA
Opt. SV26 (APCO P25) DPO-UP Opt. SV26
DPO/DSA/MSO70000 Series ≥2.5 GHz Opt. SV23 (IEEE802.11a/b/g/j/p) DPO-UP Opt. SV23
Option SV23 required for SV24 Opt. SV24 (IEEE802.11n) DPO-UP Opt .SV24
Option SV24 required for SV25 Opt. SV25 (IEEE802.11ac) DPO-UP Opt. SV25
DPO/DSA/MSO70000 Series ≥2.5 GHz Opt. SV27 (Bluetooth) DPO-UP Opt. SV27
DPO/DSA/MSO70000 Series ≥1 GHz Opt. SV28 (LTE Downlink) DPO-UP Opt. SV28
DPO70000 SX Series onlyOpt. SV30 (IEEE 802.11ad/ay) DPO-UP Opt. SV30
DPO70000 SX Series onlyDPO-UP Opt. 5GNR18
Legacy models
DPO7000 Series, DPO/DSA/MSO70000 Series

Earlier DPO/DSA/MSO70000 Series oscilloscopes may be retrofitted with SignalVu. These instruments use a Microsoft Windows XP operating system, have oscilloscope firmware version 5.1 or above, and are compatible with SignalVu version 2.3.0072. See upgrade nomenclature table above for ordering information. Option SVO (OFDM), Option SVA (AM/FM/PM Audio), and Options SV23, SV23, SV25, SV26, SV27, SV28, SV30 (WLAN, Bluetooth, WiGig, LTE and P25) are not available on instruments with Microsoft Windows XP.

5GNR Analysis is not supported on Windows 8/8.1, Window 7, and Windows XP.
