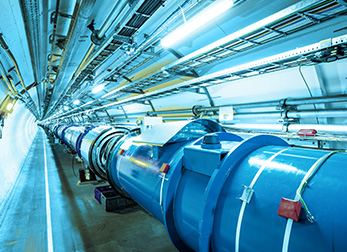

High Energy Physics

With new and compelling questions about the origin of particle masses, the nature of dark matter and the role of neutrinos, scientists need instruments that can capture or simulate fleeting events that represent the world of fundamental particles. Our oscilloscopes are used in the quest to achieve longer-duration reactions, such as high gain nuclear fusion, to capture high-speed pulses and to test the latest generation of accelerators and synchrotrons.

Recommended Equipment

5 Series Mixed Signal Oscilloscope Low Profile

5seriesmso-lowprofile-angleleft In applications that demand extreme channel density, the 5 Series MSO Low Profile oscilloscope offers 8 channels, plus auxiliary trigger input, in a space-saving 2U rack instrument – at low cost-per-channel. Each FlexChannel provides 1 GHz, 6.25GS/s with 12-bits of resolution and sets a new standard for high density performance.

Learn More »

AWG5200 Arbitrary Waveform Generator

awg5000-front-shot
The AWG5200 delivers unparalleled signal fidelity coupled with class-leading sample rate and memory depth, giving you the industry's best signal stimulus solution for complex RF baseband signal generation and precision experimental applications. With up to 10 GS/s sample rate and 16-bit vertical resolution, get easy generation of complex signals as well as accurate playback of existing captured signals.

Learn More »

MDO3000/MDO4000 Series

mdo4000-front-handle
Our Mixed Domain Oscilloscopes combine an oscilloscope and spectrum analyzer in one instrument, providing visibility in both the time and frequency domains. They include digital inputs so you can see as many as 20 analog and digital signals at once.

Learn More »



MSO/DPO70000C/DX/SX Series

DPO77002SX-70GHz-Oscilloscope_t
Achieve high-speed signal acquisition performance up to 70GHz and 200 GS/s with over 30 customizable application-specific software analysis packages.

Learn More »

AWG70000

awg70000-waveform-generator_1_0
With sample rates up to 50 GS/s, our 10-bit digital-to-analog technology enables AWG70000 Series Arbitrary Waveform Generators to cover a wide range of HEP applications, from replicating pulse detector signals to generating RF events. These signal generators can create virtually any signal - analog or digital, ideal or distorted, standard or custom.

Learn More »

Signal Pulse Generators

PSPL10050A-10060A-10070A-Pulse-Generator-Datasheet--127026-1-L_0
Tektronix pulse generators offer fast risetime and high amplitude combinations with unparalleled signal integrity. Instruments have adjustable pulse duration and are available with manual or computer control.

Learn More »



Real-Time Spectrum Analyzers

RSA7100A-Datasheet--446026-1-L
Real time spectrum analyzers are invaluable for tracking high-frequency electromagnetic interference and characterizing transient RF events.

Learn More »

Library

Title
Techniques for Extending Real-Time Oscilloscope Bandwidth
Discover how the Asynchronous Time Interleaving (ATI) technology works to provide the lowest noise, highest fidelity, and maximum performance for our ultra-high bandwidth oscilloscopes …
Title
Challenges Facing Quantum Computing and Signal Sources
This webinar looks at challenges facing quantum computing and high energy research and how researchers in these fields are using signal sources.
