3 Series MDO Mixed Domain Oscilloscope

New Series

3 Series MDO Mixed Domain Oscilloscope

Experience a big, high-definition display in a compact, portable scope. An award-winning, made-for-touch interface turns the learning curve into a step function. The unique built-in spectrum analyzer option makes it great for RF analysis.
See all oscilloscopes »

Bandwidth

Up to 1 GHz

Record length

10 Mpoints

Analog channels

2 or 4

Sample Rate

Up to 5 GS/s



The biggest display in its class, and remarkable user interface

See how the 3 Series MDO user interface helps you work better and faster.

With the same made-for-touch user interface technology as the award-winning 5 Series along with the largest display and highest resolution display in its class, the 3 Series MDO works how a scope should work.

  • 11.6-inch HD display
  • Pinch, tap, swipe capacitive touchscreen

Compact, yet packed with capabilities

See how to take great measurements and find elusive artifacts and anomalies.

It’s only 6 inches(15 cm) deep but the 3 Series MDO is a lot of oscilloscope. It gives you the tools you need to validate and troubleshoot complex embedded systems.

  • Up to 5 GS/s sample rate on each analog channel
  • More than 125 trigger combinations
  • Dozens of automated measurements
  • Wide range of available serial bus decode and trigger options
  • Optional 16 digital logic channels
  • Optional integrated 1 GHz or 3 GHz spectrum analyzer
  • Optional 50 MHz arbitrary / function generator

Specs at a glance

Input Channels

  • 2 or 4 analog
  • 16 digital1
  • 1 spectrum analyzer1

Bandwidth1

  • 100 MHz, 200 MHz, 350 MHz, 500 MHz, or 1 GHz

Sample Rate

  • 5 GS/s (1 GHz model), 2.5 GS (all other models) on analog channels
  • Up to 8.25 GS/s (121 ps resolution) on digital channels

Record Length

  • 10 Mpoints on all channels

Spectrum Analyzer1

  • 1 GHz or 3 GHz

Signal Generator1

  • Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital Voltmeter2

  • 4-digit AC RMS, DC, and AC+DC RMS voltage measurements

Trigger Frequency Counter2

  • 5-digit frequency measurements

Advanced Analysis1

  • Automated Power Measurements

Protocol Support1

  • I2C, SPI
  • RS-232, RS-422, RS-485, UART
  • CAN, CAN FD, LIN, FlexRay
  • MIL-STD-1553, ARINC 429
  • I2S, LJ, RJ, TDM
  • USB 2.0

Display

  • 11.6-inch (295 mm)
  • HD color (1920 x 1080) capacitive touchscreen

Weight

  • 11.7 lbs (5.3 kg)
Included probes and accessories

1 - Optional and upgradeable
2 - Free with product registration

A built-in spectrum analyzer

See the built-in spectrum analyzer at work.

Whether you’re a spectrum analyzer expert or an occasional user, you’ll be able to put the built-in spectrum analyzer right to work. Unlike other oscilloscopes that offer FFT “spectrum analysis”, the 3 Series has a true spectrum analyzer built right in.

3 Series vs. regular scope FFTs

  • 1 GHz or 3 GHz built-in spectrum analyzer options
  • Industry’s only true integrated spectrum analyzer hardware
  • Ultra-wide capture bandwidth up to 3 GHz

Capable. Upgradeable.

See the capability the 3 Series MDO can bring to your bench.

Get all the debug tools you need right away or add them when you need them.

  • Bandwidth up to 1 GHz
  • Digital channels: MSO option adds 16 digital channels
  • Spectrum Analyzer up to 3 GHz
  • DVM/Freq Counter (free with registration)
  • Arbitrary/Function Generator
  • Advanced Analysis
    • Serial bus decoding and triggering
    • Automated Power Measurements

Explore Tek-Recommended Collections for your Application

tek-recommended applications

Get a jump start with the exact tools you need. Our experts have preselected best fit accessories for five key applications to get you problem solving faster:

A SCOPE FOR EVERY ENGINEER

Whether you’re debugging serial buses or designing to high speed digital standards, we’ve set a new standard in scope user interface so you can get to your answers faster and easier.

Explore The Range

Discover the full range of next generation scopes

Discover the full range of next generation scopes


Models

Model Analog Bandwidth Analog Channels Digital Channels Sample Rate Record Length Spectrum Analyzer List Price
MDO32

100 MHz - 1 GHz

2

16 (optional)

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

-
Configure & Quote
MDO34

100 MHz - 1 GHz

4

16 (optional)

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

-
Configure & Quote
Model MDO32
Analog BandwidthAnalog ChannelsDigital Channels

100 MHz - 1 GHz

2

16 (optional)

Sample RateRecord LengthSpectrum Analyzer

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

Model MDO34
Analog BandwidthAnalog ChannelsDigital Channels

100 MHz - 1 GHz

4

16 (optional)

Sample RateRecord LengthSpectrum Analyzer

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

Model Analog Bandwidth Analog Channels Digital Channels Sample Rate Record Length Spectrum Analyzer List Price
MDO32

100 MHz - 1 GHz

2

16 (optional)

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

-
Configure & Quote
MDO34

100 MHz - 1 GHz

4

16 (optional)

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

-
Configure & Quote
Model MDO32
Analog BandwidthAnalog ChannelsDigital Channels

100 MHz - 1 GHz

2

16 (optional)

Sample RateRecord LengthSpectrum Analyzer

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

Model MDO34
Analog BandwidthAnalog ChannelsDigital Channels

100 MHz - 1 GHz

4

16 (optional)

Sample RateRecord LengthSpectrum Analyzer

Up to 5 GS/s

10 M

Up to 3 GHz (optional)

  Tektronix
3 Series MDO
Tektronix
MDO3000
Keysight
3000T X-Series
LeCroy
Wavesurfer 3000Z
Rohde & Schwarz
RTM3000 Series
Bandwidth 100 MHz to 1 GHz 100 MHz to 1 GHz 100 MHz to 1 GHz 100 MHz to 1 GHz 100 MHz to 1 GHz
Analog Channels 2 or 4 2 or 4 2 or 4 4 2 or 4
Digital Channels (optional) 16 16 16 16 16
Analog Sample Rate (All Channels) 2.5 GS/s or 5 GS/s 2.5 GS/s or 5 GS/s 2.5 GS/s 1 GS/s or 2 GS/s 2.5 GS/s
Standard Record Length (All Channels) 10 M 10 M 2 M 10 M 40 M
Integrated Spectrum Analyzer (optional) 1 GHz or 3 GHz Up to 3 GHz No No No
Integrated Arbitrary/Function Generator (optional) 50 MHz 50 MHz 20 MHz 25 MHz 25 MHz
Serial Bus Decode and Trigger Yes Yes Yes Yes Yes
Display 11.6-in touch
(1920 x 1080)
9-in
(800 x 480)
8.5-in touch
(800 x 480)
10.1 in touch
(1024 x 600)
10.1 in touch
(1280 x 800)
Standard Warranty 3 years 3 years 3 years 3 years 3 years

Embedded serial bus analysis

3 Series MSO Embedded Serial Bus Analysis

The 3 Series MDO helps you overcome system level challenges with automatic trigger, decode, and search options for serial buses. Options are available individually or as a cost-effective bundle.

  • I2C, SPI
  • RS-232 / 422 / 485 / UART
  • CAN/CAN FD, LIN, FlexRay
  • I2S/LJ/RJ/TDM
  • MIL-STD-1553, ARINC 429
  • USB 2.0 (LS/FS/HS)

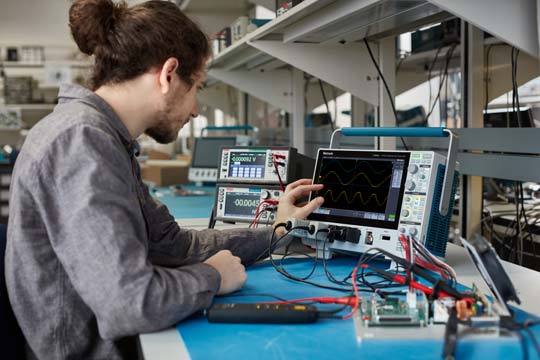

Power measurements and analysis

MDO32

The 3 Series offers power test solutions to help get fast answers in today’s world of higher switching speeds and stricter noise limits.

  • Power loss measurement at switching device
  • Measurement and analysis of ripple and noise
  • Characterization of power semiconductor devices

Electromagnetic interference (EMI) troubleshooting

EMI replay with spectrogram 4-channel

Not getting to the root cause of EMI failures can prevent you from shipping product. The 3 Series MDO with its built-in spectrum analyzer can help you sniff out sources of EMI fast.

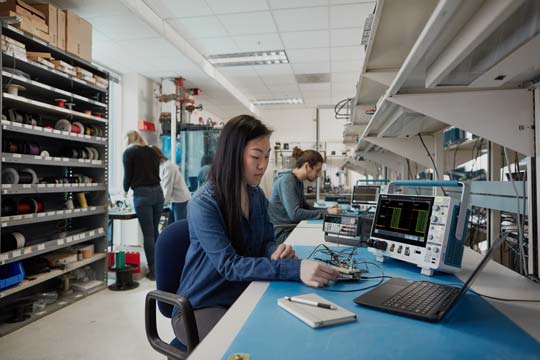

Engineering education

MDO34

Go beyond AC and DC theory to cover mixed signal designs with logic channels and built-in spectrum analyzer. Tek scopes have earned their reputation for reliability and are the brand of scope most often found in industry labs.

  • Reliable instruments with 3-year warranties
  • Professional instruments used widely in industry
  • Available with integrated function generator, spectrum analyzer, logic channels and serial bus decoding
Data SheetSoftware Package / Software OptionDescriptionConfigure and Quote
Opt. 3-AFG

Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation

Contact Us
Opt. 3-BND

Application bundle (includes all serial options and power analysis)

Contact Us
Opt. 3-MSO

16 digital channels; includes P6316 digital probe and accessories

Contact Us
Opt. 3-PWR

Power measurement and analysis

Contact Us
Opt. 3-SA1

Increase spectrum analyzer input frequency range to 9 kHz – 1 GHz and capture bandwidth to 1 GHz

Contact Us
Opt. 3-SA3

Increase spectrum analyzer input frequency range to 9 kHz – 3 GHz and capture bandwidth to 3 GHz

Contact Us
Opt. 3-SEC

Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality

Contact Us
Opt. 3-SRAERO

Aerospace serial triggering and analysis (MIL-STD-1553, ARINC429)

Contact Us
Opt. 3-SRAUDIO

Audio serial triggering and analysis (I2S, LJ, RJ, TDM)

Contact Us
Opt. 3-SRAUTO

Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay)

Contact Us

Add Instrument Functions

Upgrade Description Purchasing Details
SUP3 AFG Add arbitrary function generator Request a quote
SUP3 MSO Add 16 digital channels; includes P6316 digital probe and accessories Request a quote
SUP3 SA1 Increase spectrum analyzer input frequency range to 9 kHz – 1 GHz and capture bandwidth to 1 GHz Request a quote
SUP3 SA3 Increase spectrum analyzer input frequency range to 9 kHz – 3 GHz and capture bandwidth to 3 GHz Request a quote
SUP3 DVM Add digital voltmeter / trigger frequency counter Software upgrade license key provided upon registration.

Register now
SUP3 SEC Add enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality Request a quote

Add Protocol Analysis

Upgrade Description Purchasing Details
SUP3 BND Application bundle (includes all serial options and power analysis) Request a quote
SUP3 SRAERO Aerospace serial triggering and analysis (MIL-STD-1553, ARINC429) Request a quote
SUP3 SRAUDIO Audio serial triggering and analysis (I2S, LJ, RJ, TDM) Request a quote
SUP3 SRAUTO Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay) Request a quote
SUP3 SRCOMP Computer serial triggering and analysis (RS-232/422/485/UART) Request a quote
SUP3 SREMBD Embedded serial triggering and analysis (I2C, SPI) Request a quote
SUP3 SRUSB2 USB 2.0 serial bus triggering and analysis (LS, FS, HS) Request a quote

Add Advanced Analysis

Upgrade Description Purchasing Details
SUP3 PWR Power analysis Request a quote

Upgrade Bandwidth

Upgrade Description Purchasing Details
SUP3 BWxTy2 MSO32 bandwidth upgrade from x to y, where x and y are the hundreds of MHz
SUP3 BWxTy4 MSO34 bandwidth upgrade from x to y, where x and y are the hundreds of MHz
Current Probe
Datasheet LinkProbeDescriptionConfigure and Quote
A621

Current Probe: 50 kHz, 10 mA to 2000 A, AC, BNC

Configure & Quote
A622

Current Probe: 100 kHz, 10 mA to 100 A, AC/DC, BNC

Configure & Quote
TCP0020 Probe, AC/DC Current; 20 Amp; 50 MHz BW; TekVPI Interface; Certificate of Traceable Calibration Standard Configure & Quote
TCP0030A Probe, AC/DC Current; 30 Amp DC, DC TO 120 MHZ; with TekVPI Interface; Certificate of Traceable Calibration Standard Configure & Quote
TCP0150 Current Probe: 20 MHz, 5 mA to 212 A, AC/DC, TekVPI Configure & Quote
TCP303

PROBE; AC/DC CURRENT; DC-15MHZ,150A DC, CERTIFICATE OF TRACEABLE CALIBRATION STANDARD

Configure & Quote
TCP305A

Probe, AC/DC Current; 50Amp DC, DC-50MHZ, Certificate of Traceable Calibration Standard

Configure & Quote
TCP312A

Probe, AC/DC Current; 30 Amp DC, DC-100MHZ, Certificate of Traceable Calibration Standard

Configure & Quote
TCP404XL

PROBE; AC/DC CURRENT, DC-2MHZ, 500A DC, 750A DC DERATED WITH DUTY CYCLE,CERTIFICATE OF TRACEABLE CALIBRATION STANDARD

Configure & Quote
Low Voltage Differential Probes
Datasheet LinkProbeDescriptionConfigure and Quote
ADA400A

AMPLIFIER, DIFF; MICROVOLT, DIFFERENTIAL, - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD

Configure & Quote
TDP1500

Differential Probe: 1.5 GHz, 1X/10X, +/-8.5V, TekVPI

Configure & Quote
TDP3500

Differential Probe: 3.5 GHz, 5X, +/- 2V, TekVPI

Configure & Quote
Low Voltage Single Ended Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TAP1500 Active Probe: 1.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
TAP2500

Active Probe: 2.5 GHz, 10X, Single-ended, TekVPI

Configure & Quote
TAP3500

Active Probe: 3.5 GHz, 10X, Single-ended, TekVPI

Configure & Quote
High Voltage Differential Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TDP0500

Differential Probe: 500 MHz, 5X/50X, +/- 42V, TekVPI

Configure & Quote
TDP1000 Differential Probe: 1 GHz, 5X/50X, +/- 42V, TekVPI Configure & Quote
THDP0100 Differential PROBE; 100 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE Configure & Quote
THDP0200 Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE Configure & Quote
TMDP0200 Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL MEDIUM VOLTAGE PROBE;TMPD0200 Configure & Quote
Isolated Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TIVH02

IsoVu optically isolated differential probe, 200 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH02L

IsoVu optically isolated differential probe, 200 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH05

IsoVu optically isolated differential probe, 500 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH05L

IsoVu optically isolated differential probe, 500 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH08

IsoVu optically isolated differential probe, 800 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVH08L

IsoVu optically isolated differential probe, 800 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips

Configure & Quote
TIVM1

IsoVu optically isolated differential probe, 1 GHz, TekVPI, 3 m cable, includes 5X(IVTIP5X) and 25X(IVTIP25X) tips

Configure & Quote
TIVM1L

IsoVu optically isolated differential probe, 1 GHz, TekVPI, 10 m cable, includes 5X(IVTIP5X) and 25X(IVTIP25X) tips

Configure & Quote
Passive Probe
Datasheet LinkProbeDescriptionConfigure and Quote
TPP0100

Passive Probe: 100 MHz, 10X, BNC

Configure & Quote
TPP0200

Passive Probe: 200 MHz, 10X, BNC

Configure & Quote
TPP0250 Passive Probe: 250 MHz, 10X, TekVPI Configure & Quote
TPP0500B Passive Probe: 500 MHz, 10X, TekVPI Configure & Quote
TPP0502 Passive Probe: 500 MHz, 2X, TekVPI Configure & Quote
TPP1000 Passive Probe: 1 GHz, 10X, TekVPI Configure & Quote
High Voltage Single Ended Probes
Datasheet LinkProbeDescriptionConfigure and Quote
TPP0850 High Voltage Probe: 800 MHz, 50X, 2.5 kV, Single-ended, TekVPI Configure & Quote
Data SheetAccessoryDescription
119414600

PROBE SET; RF MEASUREMENT,NEAR FIELD PROBE SET,PASSIVE,HAND HELD

119660900

ANTENNA; RUBBER COVERED,W/BNC CONNECTOR,KD4 VHF,UNTUNED,RUBBER CAP GLUED ON

HC3

Hard transit case for the 3 Series MDO (includes front cover)

P6316

MSO PROBE; 16 CHANNEL GENERAL PURPOSE PROBE

SC3

Soft carrying case for 3 Series oscilloscopes (includes front protective cover)

TEK-DPG Accessory, Deskew Pulse Generator Signal Source with TekVPI Scope Interface
TEK-USB-488 USB TO IEEE488 (GPIB) COMMUNICATIONS ADAPTOR FOR USBTMC-USB488 COMPLIANT TEKTRONIX INSTRUMENTS
TPA-BNC Probe adapter from TekProbe-BNC to TekVPI
TPA-N-PRE External Preamp., TPA Connector, SMA input
TPA-N-VPI Probe adapter from Type-N connector to TekVPI
A side-by-side comparison of the 11.6-inch HD display on the Tektronix 3 Series MDO and the 8.5-inch VGA display on the Keysight 3000T X-Series oscilloscope. The same I2C signals are shown on both…
0h 1m 7s
The Tektronix 3 Series MDO and Keysight DSO/MSO 3000T X-Series use different techniques for making automated measurements.  The Tektronix 3 Series MDO calculates measurements and performs waveform…
0h 2m 16s
Explore a collection of test and measurement tools chosen by Tektronix experts perfect for engineers working on power integrity. From measuring ripple on DC power rails to seeing noise on your power…
Do you have trouble making accurate current or voltage measurements? Are you able to make repeatable single ended, differential, and common mode measurements? Start making reliable power measurements…
0h 1m 25s
Aspiring electrical engineers from Queensborough Community College got an early preview of the 3 Series MDO after using an earlier generation Tek scope in their lab class.  See (and hear) their…
0h 1m 39s
The 3 Series MDO is a versatile addition to any bench.  Find out how digital channels can expand your visibility into your designs. Learn about the built-in spectrum analyzer options.  See serial bus…
0h 5m 39s
Learn how the 1 GHz or 3 GHz built-in spectrum analyzers available in the 3 Series MDO can take the place of a stand-alone spectrum analyzer.  Learn about specifications, markers, spectrogram…
0h 3m 0s
The 3 Series MDO offers impressive specifications and supports powerful measurement tools.   See how to make cursor measurements and automated measurements like peak-to-peak voltage,  period, and…
0h 2m 47s
In just a few minutes you'll learn everything you need to know to be able to operate the 3 Series MDO.  You'll get a guided tour of the high-definition display, learn how to use the touchscreen to…
0h 2m 37s
Get an overview of the 3 Series MDO.  See how to operate the controls -- after the first 3 minutes you'll know everything you need to know to be able to operate the instrument.  Learn about making…
0h 13m 33s
KickStart Instrument Control Software Version 2.1.1 (Windows 10, 8, 7 compatible)
"""KickStart Software for the PC enables quick test setup and data visualization when using one or more instruments. Key Features• Save time by automating data collection of millions of readings.• Set up a multi-instrument test with the ability to…
Part number: KICKSTART-2.1.1
Application
Measuring Power Supply Switching Loss with an Oscilloscope
This application note explains how to measure switching loss and conduction loss in power supply switches using an oscilloscope equipped with a current probe and differential voltage probe. It covers both manual and automated techniques, along with…
Literature number: 46W-60010-3
Application Note 17 Sep 2019
3 Series Mixed Domain Oscilloscope 3 Series MDO Specifications and Performance Verification
Revision B. This document contains the specifications and performance verification procedures for the 3 Series MDO instruments.
Part number: 077149900 Rev A
Performance Verification
Oscilloscope Selection Guide
From basic signal-checking to high-performance analysis, this selection guide gives an overview of the complete range of oscilloscopes from Tektronix.
Literature number: 46W-31080-5
Selection Guide 29 Aug 2019
TEKVISA Connectivity Software - V4.2.0
TekVISA is the Tektronix implementation of VISA (Virtual Instrument Software Architecture), an industry-standard communication protocol.When installed on a PC, TekVISA provides communication with instruments that are connected to the PC via various…
Part number: 066093812
Driver
3 Series MDO vs. MDO3000 Series
This fact sheet compares important specifications and features of the Tektronix 3 Series MDO Mixed Domain Oscilloscope to those of the Tektronix MDO3000 Series Oscilloscopes.
Literature number: 48W-61605-0
Fact Sheet 19 Aug 2019
DPO2000, MSO2000, DPO3000 and DPO4000, MSO3000 and MSO4000, MDO3000 and MDO4000 and MDO3 IVI Driver - V1.5
The Tektronix MSO/DPO2000, MDO/MSO/DPO3000, MDO/MSO/DPO4000 and MDO3 IVI Driver is an IVI class-compliant driver. It complies with Scope Class specifications (IVI-4.1) as defined by the IVI foundation. An IVI class-compliant specific driver for an…
Part number: 066133104
Driver
Basic Oscilloscope Training
This document covers the basics of oscilloscopes including history and general operation, in this training presentation developed by a Tektronix Applications Engineer. Learn the XYZ's of Oscilloscopes »
FAQ ID: 778971 13 Aug 2019
3 Series MDO
Mixed Domain Oscilloscopes
Literature number: 48W-61535-2
Datasheet

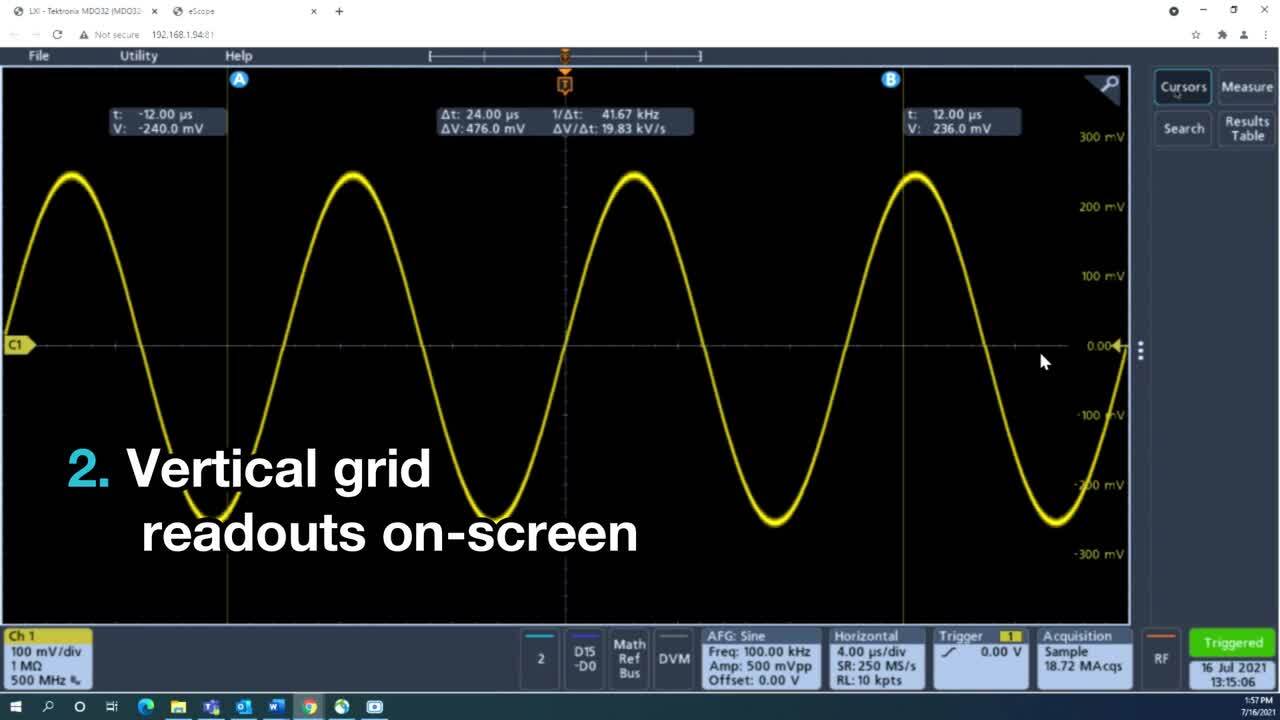

3 Series MDO Firmware - V1.6.0
Download this firmware to install the latest updates for the 3 Series MDO oscilloscopes.
Part number: 066201202
Firmware
Debugging CAN, LIN and FlexRay Automotive Buses with an Oscilloscope
Explains the physical layer basics of CAN, LIN, and FlexRay serial buses to troubleshoot bus problems or system issues. Learn how to use automated decoding, triggering, and search on an oscilloscope equipped with automotive bus analysis capability.
Literature number: 55W-61098-3
Application Note 12 Aug 2019
Power Supply Measurement and Analysis with 3-PWR
Read this application note on Power Supply Measurement and Analysis with 3-PWR
Literature number: 48W-61574-0
Application Note 01 Aug 2019
Serial Support Using Tektronix Oscilloscopes and Optional Software
Tektronix oscilloscopes offer a portfolio of optional analysis capabilities to simplify serial bus debug or compliance verification. This selection matrix shows which serial standards are supported by each of the oscilloscope series.
Literature number: 55W-29028-12
Selection Guide 30 Jul 2019
How to Troubleshoot System Problems Using an Oscilloscope with I2C and SPI Decoding
Learn about the physical layers of the most common interchip buses - I2C and SPI - to enable you to troubleshoot bus problems or system issues.  Learn how to set up and interpret the results when you use automated decoding, triggering, and search on an…
Literature number: 55W-61091-1
Application Note 29 Jul 2019
3 Series MDO Upgrade Guide
Many of the features of the 3 Series MDO are field-upgradable, including bandwidth, arbitrary/function generator, digital channels, and serial decode support.  This 2-page fact sheet lists all available post-purchase upgrades.
Literature number: 48W-61569-1
Fact Sheet 20 Jun 2019
Next-Generation Oscilloscopes Brochure - 3 Series MDO, 4 Series MSO, 5 Series MSO, 6 Series MSO
The 3 Series MDO and 4, 5 and 6 Series MSOs offer the largest displays and the greatest user experience of any oscilloscope.  This brochure gives an overview of the platforms, with the similarities and differences between the four series.
Literature number: 48W-61573-0
Brochure 20 Jun 2019
3 Series Mixed Domain Oscilloscope 3 Series MDO Service Manual
This manual provides theory of operation, service instructions, and a list of replaceable parts for the 3 Series MDO.
Part number: 077150000 Rev A
Service
3 Series Mixed Domain Oscilloscope 3 Series MDO Programmer Manual
This programmer manual provides you with the information required to use Programmable Interface commands for remotely controlling your instrument.
Part number: 077149800 Rev A
Programmer
3 Series Mixed Domain Oscilloscope 3 Series MDO Installation and Safety
This manual describes installing and setting up the 3 Series MDO, and introduces the User Interface and basic oscilloscope operations.
Part number: 071360800
Primary User
3 Series Mixed Domain Oscilloscope Printable Instrument Help
This is a printable version of the 3 Series MDO (MDO32, MDO34) on-instrument help system.
Part number: 077149700
Primary User
Downloads
Download

Download Manuals, Datasheets, Software and more:

Go to top
