PSPL5336 -- 6 dB Power Splitter, 20 GHz, Datasheet
PSPL5336 Datasheet
このデータ・シートの製品は、テクトロニクスでは販売終了となっています。
Tektronix Encoreプレミアム再生品を見るbr/>
上記製品のサポートと保証のステータスをチェックする
The PSPL5336 6 dB Power Splitter is a very broadband, resistive tee. It is useful for splitting a signal into two identical signals. The output is attenuated by 6 dB. This is an impedance-matched tee that presents a 50 Ω input impedance when both outputs are terminated in 50 Ω. Power splitter tees are built using two 50 Ω resistors and present a 50 Ω impedance only at the input port. The resistors in this tee have 1% tolerance so it has excellent symmetry and very close impedance match to 50 Ω. It has a rise time of 20 ps and bandwidth from DC to >20 GHz.
Typical performance
Frequency responses from 40 MHz to 20 GHz, linear sweep at 2 GHz/div.

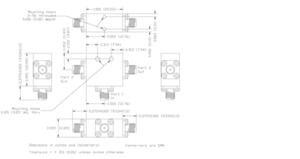

Mechanical dimensions
Specifications
| Parameter 1 | Description | |||
|---|---|---|---|---|
| Rise time | ≤20 ps | |||
| Insertion loss (-3 dB) | DC to 20 GHz | |||
| Insertion loss 2, DC | 6.02 dB ±0.05 dB maximum | |||
| Insertion loss, AC | 6.0 dB ±0.05 dB maximum, for f 21 plots | |||
| Insertion loss, Asymmetry | 0.09 dB, maximum, DC
2
| |||
| Phase tracking | ||||
| Delay | 180 ps | |||
| Input impedance, DC 2 | 50 Ω, ±3 Ω naximum | |||
| S11 Return loss | See S11 plots for typical vs. frequency | |||
| Maximum input power, average | 1 W | |||
| Power temperature curve | Full power up to +70 °C, linerly derated to 0 W at +125 °C | |||
| Peak power | 50 W t | |||
| Connectors | SMA jacks (f) | |||
| Warranty | One year | |||
1 All parameters listed are typical unless maximum or minimum guaranteed limits are provided.
2 The DC specifications are based upon resistor tolerances and only when used with 50 Ω source and terminations.
Ordering information
Models
- PSPL5336
- Power Splitter, 6 dB
