PSPL5336 -- 6 dB Power Splitter, 20 GHz, Datasheet

PSPL5336 Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

More Information

Read Online:

PSPL5336 Datasheet

The PSPL5336 6 dB Power Splitter is a very broadband, resistive tee. It is useful for splitting a signal into two identical signals. The output is attenuated by 6 dB. This is an impedance-matched tee that presents a 50 Ω input impedance when both outputs are terminated in 50 Ω. Power splitter tees are built using two 50 Ω resistors and present a 50 Ω impedance only at the input port. The resistors in this tee have 1% tolerance so it has excellent symmetry and very close impedance match to 50 Ω. It has a rise time of 20 ps and bandwidth from DC to >20 GHz.

Typical performance

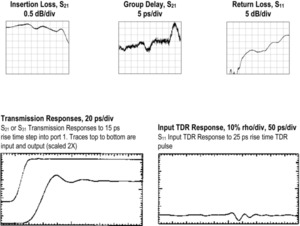

Frequency responses from 40 MHz to 20 GHz, linear sweep at 2 GHz/div.


Mechanical dimensions



Parameter 1 Description
Rise time ≤20 ps
Insertion loss (-3 dB) DC to 20 GHz
Insertion loss 2, DC 6.02 dB ±0.05 dB maximum
Insertion loss, AC 6.0 dB ±0.05 dB maximum, for f 21 plots
Insertion loss, Asymmetry 0.09 dB, maximum, DC 2
Phase tracking
Delay 180 ps
Input impedance, DC 2 50 Ω, ±3 Ω naximum
S11 Return loss See S11 plots for typical vs. frequency
Maximum input power, average 1 W
Power temperature curve Full power up to +70 °C, linerly derated to 0 W at +125 °C
Peak power 50 W t
Connectors SMA jacks (f)
Warranty One year

1 All parameters listed are typical unless maximum or minimum guaranteed limits are provided.

2 The DC specifications are based upon resistor tolerances and only when used with 50 Ω source and terminations.

Ordering information

Power Splitter, 6 dB
