3D Sensing driving need for Electrical Test of VCSELs, laser diodes and photo diodes
3D sensing augments a camera's object & facial recognition.
3D sensing is a depth sensing technology that augments camera capabilities for facial and object recognition in augmented reality, gaming, autonomous driving and a wide range of applications.
- One way to sense 3D is using structured light. Coherent infrared light is transmitted onto an object with a structured pattern. The reflected light can be decoded to construct a 3D image.
- Another way to sense 3D is to use Time of Flight (ToF). A light source transmits a series of infrared light and the photon phase difference to the light bounced off an object is used to sense the proximity of an object.
Get 2 in-depth application notes:
- Laser Diode Array Test for 3D Sensing
- Enhancing Trigger Synchronization for High Volume Production Testing of VCSELs
Diode-based optical devices enable 3D sensing.
Diode-based devices such as laser diodes, high brightness LEDs (HBLED), and photodiodes (PD) are key optical devices that enable 3D sensing.
- Laser diodes are capable of outputting a narrow and coherent light beam. Two common types of laser diodes are edge emitter laser (EEL) and the fast-growing VCSEL (vertical cavity surface emitting laser). VCSEL combines the advantage of low cost manufacturability, optical efficiency, temperature stability, and large 2D arrays for increased power. EEL operates at a higher frequency that can travel hundreds of miles without loss in a fiber medium commonly for optical communication.
- HBLEDs or LEDs disperse incoherent light in a wide pattern. They are the most efficient source of high quality white light, hence great for illumination. Efficiency droop, limited modulation capability, and resolution make them only suitable for some applications.
- PDs detect and convert light into current. Very sensitive instruments for low PD current measurement are required to characterize the full range light intensity of the light source properly.
Learn 10 tests for the laser diodes at the heart of 3D sensing.

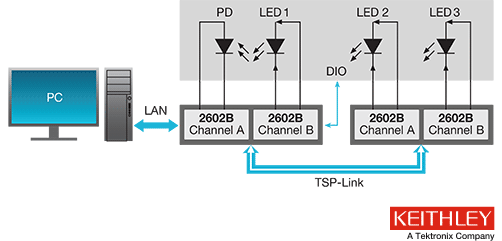

Keithley instruments perform electrical testing on diode-based devices.
Wavelength stability over the entire operating temperature of these devices is critical to maintaining precision and minimize noise in received signals. Electrical efficiency measurement through precision trigger and synchronization of pulse width and duty cycle further optimize the required intensity and resolution of illumination. These directly impact the heat dissipation, power consumption, and battery life of the end system.
Keithley Source Measure Unit instruments perform such electrical tests as light intensity, forward voltage, lasing threshold current, quantum efficiency, dark current, the presence of “kink” or kink test, slope efficiency, thermistor resistance, temperature, capacitance, and L-I-V pulse testing.
Watch our webinar and learn 10 test methods for a variety of devices, including those used for 3D sensing.
Get our application note, Laser Diode Array Test for 3D Sensing.
Get our application note, Enhancing Trigger Synchronization for High Volume Production Testing of VCSELs.
This white paper offers an overview on using an integrating sphere to measure the optical power of radiant sources in a production environment.
This white paper explores how to eliminate sources of error when pulse testing VCSELs or laser diodes and how to obtain shorter test times, more accurate results, and lower reject rates.
This application note offers techniques to increase throughput, maximize synchronization, and reduce overhead in laser diode production test.
2601B-PULSE 10 μs Pulser/SMU
The 2601B-PULSE System SourceMeter® 10 μs Pulser/SMU Instrument offers leading 10 A current pulse output at 10 V with a pulse width minimum of 10 μs for laser diode (VCSEL) production test for ToF/LIDAR applications and simplified pulsed/DC I/V characterization of LEDs.

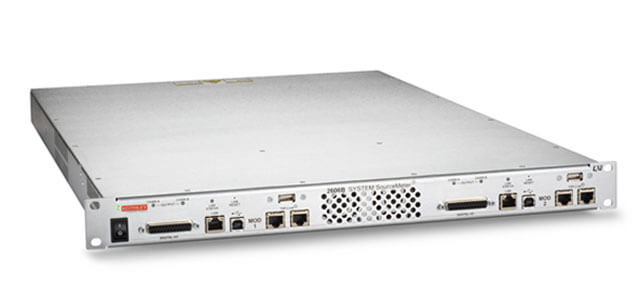

Series 2600B SMU
The best system for laser diode testing, Series 2600B instruments boast high speed and high accuracy for both pulse current sourcing and voltage-current monitoring for highly automated and synchronized production test.
DMM7510 7½-Digit Graphical Sampling Multimeter
Keithley's DMM7510 combines a precision, high-resolution digital multimeter (DMM) for thermistor resistance and temperature measurement of a laser diode module with a graphical touchscreen display and high-speed, high-resolution digitizer with pA-level sensitivity and 1Msample/s sampling for dark current to full short pulses of lasing power.
2510 and 2510-AT TEC Instruments
Keithley's 2510 and 2510-AT TEC SourceMeter SMU Instruments regulate the operation of a laser diode module’s thermo-electric cooler to ensure accurate, tight temperature control of the device under test.
2651A High Power SMU Max 50A
Keithley’s 2651A High Power SourceMeter SMU Instrument offers up to 2000W of pulsed current (±40V, ±50A) to improve productivity in HBLED and optical device characterization and testing.
6485 5½-Digit Picoammeter
For dark current to full lasing power, Keithley's cost-effective 6485 Picoammeter can measure photodiode currents from 20 fA to 20 mA at speeds up to 1000 readings per second.
The Next Big LED Testing Challenge: High Power LED Modules
Instrumenting DWDM Laser Diode Production Tests
Dense Wavelength-Division Multiplexing (DWDM) fiber optic communications is the current, if not the ultimate, solution to our voracious bandwidth appetite in the Internet Age.
Photodetectors - Choose and Use Wisely for Best Results in Pulsed Laser Diode Test Systems
Pulse Testing High Brightness LEDs Accurately using the 2461 High Current SourceMeter® SMU Instrument
This application note provides information on typical HBLED tests and how to perform them using the pulse functionality of the 2461. Directions on how to set up the tests from the front panel are …
Enhancing Trigger Synchronization for High Volume Production Testing of VCSELs
This application note uncovers several effective test methodologies for achieving a highly synchronized trigger system on a Keithley Series 2600B SMU instrument.
Laser Diode Array Test for 3D Sensing
This application note describes how to integrate bench instruments effortlessly into a holistic system and achieve industry’s best trigger synchronization and maximum throughput for any automated or …
#2273 VCSEL Testing with the Model 2400 SourceMeter Instrument
Application Note Number 2273 VCSEL Testing with the Model 2400 SourceMeter Instrument The recent commercialization of vertical-cavity surface-emitting lasers (VCSELs, pronounced "vixsels") into areas …
Application Overview: Simplified I/V Characterization of LEDs
Testing High Brightness LEDs Accurately Using the Model 2460 High Current SourceMeter SMU Instrument
Testing High Brightness LEDs under Pulse Width Modulation Using the Model 2651A High Power SourceMeter Instrument
