PSPL5310R Phase-Matched Balun Datasheet
PSPL5310R Datasheet
このデータ・シートの製品は、テクトロニクスでは販売終了となっています。
Tektronix Encoreプレミアム再生品を見るbr/>
上記製品のサポートと保証のステータスをチェックする
The PSPL5310R Phase-Matched Balun is a broadband differential pulse splitter. A signal fed into the 50 Ω input is split equally into two 50 Ω outputs. One output is the same polarity as the input while the other is inverted in polarity. The PSPL5310R uses proprietary technology that provides exceptional phase and amplitude matching. Popular uses for the PSPL5310R are in Analog-Digital-Converter (ADC) and differential Test & Measurement applications.
Key performance specifications
-
Excellent Phase and Amplitude Balance from 100 MHz to 4 GHz
- Operating range 4 MHz to 6.5 GHz
- Designed for use with ADCs
- Maximum input power > +20 dBm

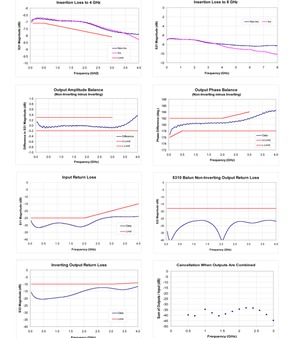

Typical performance

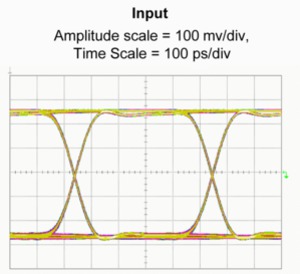

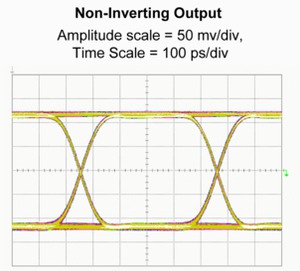

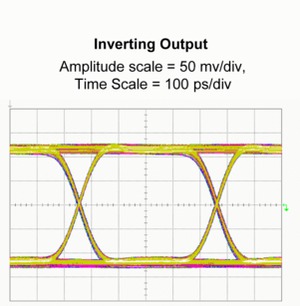

Response to 2 Gb/s NRZ signal with 27-1 PRBS pattern
Specifications
| Parameter | Test Condition | Minimum | Typical | Maximum |
|---|---|---|---|---|
| Risetime | 10% to 90% | 54 ps | ||
| Bandwidth | -3 dB | 6.5 GHz | ||
| Low Frequency Cutoff | -3 dB | 4 MHz | ||
| Insertion Loss | 100 MHz
1 GHz 2 GHz 3 GHz |
6.9 dB
6.9 dB 7.1 dB 7.6 dB |
7.1 dB
7.3 dB 7.7 dB 8.1 dB |
|
| Impedance | 50 Ohms | |||
| Return Loss
Input Non-Inverting Output Inverting Output |
100 MHz – 2 GHz |
-30 dB -30 dB -15 dB |
-25 dB -18 dB -10 dB |
|
| Delay | 320 ps | |||
| Differential Amplitude
Balance |
100 MHz – 3.0 GHz | ±0.1 dB | +0.3 dB
-0.2 dB |
|
| Differential Phase
Balance |
500 MHz – 2.0 GHz | ±0.5 degree | ±2 degrees | |
| Maximum Input | 100 MHz | +20 dBm | ||
| Connectors | SMA jacks (f) | |||
| Weight | 1.4 oz. (40 grams) | |||
| Temperature Range | 0 to +70 °C operating, -40 to +125 °C storage | |||
| Warranty | One Year | |||

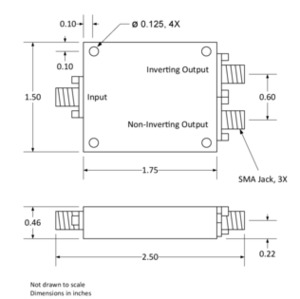

- Mechanical dimensions
-
Ordering information
Models
- PSPL5310R
- Phase-Matched Balun
