Option 6-CMDPHY (6 Series MSO) and Option DPHY12 (DPO/MSO70K C/⁠DX/SX) Datasheet

MIPI D-PHY Transmitter Test Application

Read Online:


D-PHY-Transmitter-Test-Solution-Software-on-6-Series-MSO-Datasheet


D-PHY or MIPI Display Phy is a standardized physical layer interface for connecting the Camera/Display to the Processor. This interface is predominantly used in mobile devices, infotainment systems and biometric sensors. This is a unidirectional bus with an explicit clock, up to 4 data lanes and consists of High Speed mode and Low Power mode. The High Speed mode is for fast data transfer and Low Power mode is for power saving to extend the battery life. The data flow in a display interface is from processor to the display device and from camera to the processor in the camera interface. The MIPI D-PHY Specification testing is done based on the Compliance Test Specification (CTS) and requires a board with dynamic switching of termination between Low power state and high speed mode.

The Tektronix TekExpress® D-PHY application offers a complete physical layer test solution for transmitter conformance and characterization as defined in the MIPI D-PHY v1.2 specification. The D-PHYTX automated test solution, along with a Tektronix 6 Series MSO oscilloscope, provides an easy way to test, debug and characterize the electrical and timing measurements of D-PHY data links.

Key features
  • Fully automated solution
    • Performs D-PHY transmitter test with single-button click across High Speed (HS), Low Power (LP), Low Power-High Speed (LP-HS), and Ultra-Low Power State (ULPS) sequences in the D-PHY signal.
    • Select individual tests or groups of tests
    • Improved test run time
  • Eye Diagram Capability
    • Displays the eye diagram of the High Speed signal with option DJA enabled on the scope for test 1.5.4, Data to clock skew test.
  • Image Snapshot
    • Option of including the snapshot of the first reference region of analysis in the captured waveform.
  • 100% test coverage as per D-PHY v1.2, CTS v1.2
    • Performs fully-automated tests including Bus Turn Around (BTA) and Ultra-Low Power State (ULPS) measurements, as per D-PHY specifications up to v1.2.
  • Measurement variety
    • D-PHY runs multiple scenarios like Continuous or Burst mode, Termination variations, and varying idle time.
  • Transmitter conformance test and beyond (Debug)
    • Easily modify limits of test parameters in TekExpress for debug, margin, and characterization testing
    • Performs characterization by running TekExpress application in continuous mode to collect data
  • Signal access
    • Use the low loading, single-ended or differential Tektronix TDP7700 (for 6 Series MSO) or P7700 (for 70K C/DX/SX Oscilloscopes) Series High Impedance TriMode probe to measure MIPI signals

    • Supports TekFlex™ accessories for flexible probing

  • Offline and remote analysis
    • Analyze live or pre-acquired waveforms
    • Allows remote execution of tests
Applications
  • Automotive camera and display
  • Mobile camera and display
  • D-PHY interface design
  • System validation and integration
  • Manufacturing test

Single-button fully automated D-PHY testing

The Tektronix TekExpress D-PHY application runs on 6 Series MSO with Option 6-WIN installed (Windows 10 operating system) and DPO/MSO 7000 C/DX/SX Series Oscilloscope. The close integration of the oscilloscope and test software provides an automated, simple, and efficient way to test D-PHY transmitter interfaces and devices consistent to the requirements of the DPHY Conformance Test Specification revision 1.2.

Measurement setup and test execution is simple with the D-PHYTX software. The intuitive Graphical User Interface (GUI) is laid out to represent the workflow from setup through testing, letting you focus on design and debug instead of setting up the measurements.


D-PHY-Transmitter-Test-Solution-Software-on-6-Series-MSO-Datasheet

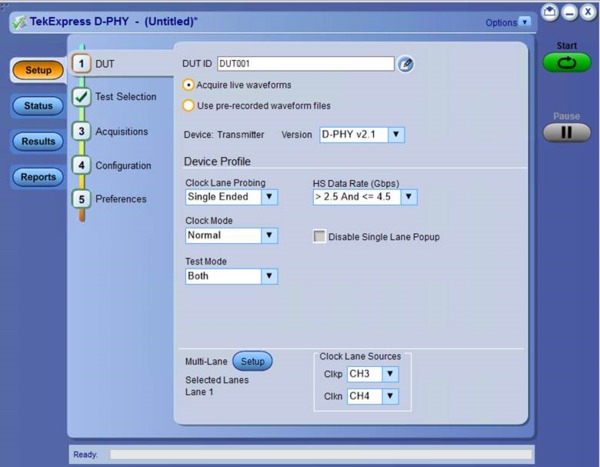

A well-designed workflow-based user interface steps you through test setup and execution.

Simply select tests from the menu for HS, LP, and HS-LP groups as per specifications.

D-PHY-Transmitter-Test-Solution-Software-on-6-Series-MSO-Datasheet

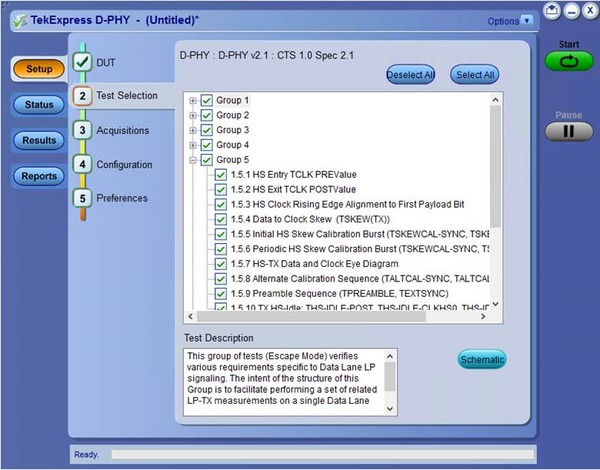

Select test groups or individual tests from the Test Selection menu.

You can view the schematic of the selected test with a push of a button. You can also display a test connection diagram to avoid setup errors.

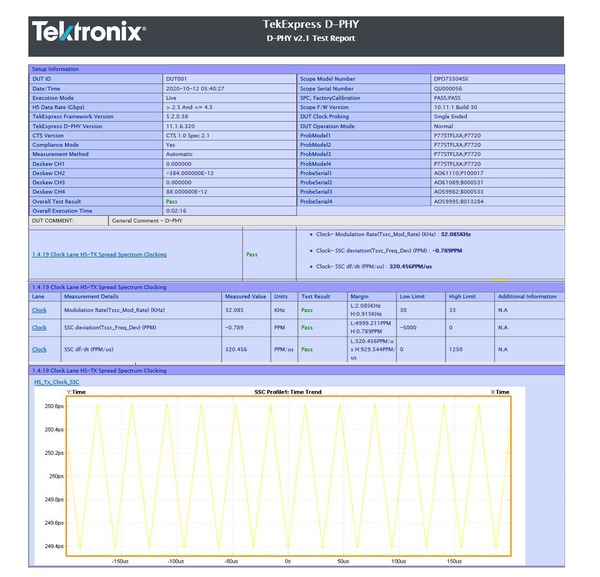

Pass/Fail report

The report tab provides a view of the complete test results, pass or fail status, test margin, and images supporting the test results, for each lane of the DUT.


D-PHY-Transmitter-Test-Solution-Software-on-6-Series-MSO-Datasheet


A detailed report provides a record of test results.


D-PHY-Transmitter-Test-Solution-Software-on-6-Series-MSO-Datasheet

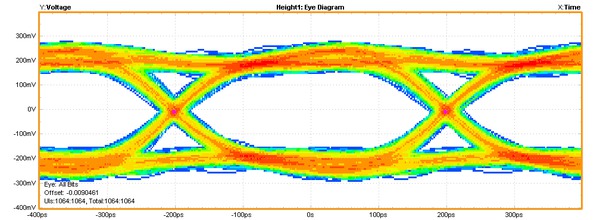

Eye diagram for Test ID 1.5.4 Data to clock skew test

TDP7700/P7700 series TriMode probes for MIPI D-PHY TX measurements

MIPI D-PHY applications have special probing requirements due to the different signal measurement sources in High Speed and Low Power modes. In High Speed mode, D-PHY signals operate in terminated mode with differential signaling. In Low Power mode, D-PHY signals operate in unterminated mode with single-ended signals. Therefore, MIPI D-PHY has two key probing requirements:

  • Provide a high impedance to minimize signal loading
  • Need both Differential and single-ended mode probing

The Tektronix TDP7700/P7700 Series TriMode probes are designed to meet this measurement challenge. The TDP7700 (for 6 Series MSO) and P7700 (for 70K C/DX/SX) works with full AC calibration of the probe and tip's signal path, to provide the highest probe fidelity available for real-time oscilloscopes. The innovative new probe design uses SiGe technology to provide the bandwidth and fidelity needed today and in the future.


D-PHY-Transmitter-Test-Solution-Software-on-6-Series-MSO-Datasheet

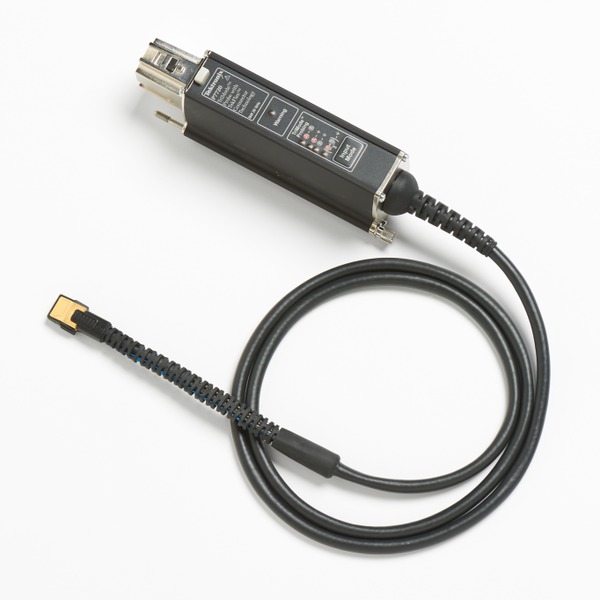

The P7700 Series TriMode probes provide the highest probe fidelity available for real-time oscilloscopes.


D-PHY-Transmitter-Test-Solution-Software-on-6-Series-MSO-Datasheet

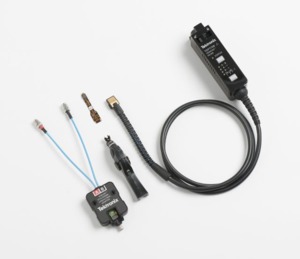

The TDP7708 probe with high impedance inputs and TriMode capability reduces the number of probes needed to take D-PHY measurements.

TriMode probing lets one probe setup take differential, single ended, and common mode measurements accurately, increasing your efficiency. This unique capability lets you switch between differential, single ended and common mode measurements on the oscilloscope, without moving the probe's connection point.

A key TDP7700/P7700 connectivity innovation is using solder-down probe tips with the probe's input buffer mounted only a few millimeters from the tip. This approach provides unmatched usability for connecting to MIPI D-PHY circuits.

Other TDP7700/P7700 Series probe characteristics include:

  • An active buffer amplifier on the probe tips with the probe input only 3.2 mm from the buffer.
  • Excellent step response and low insertion loss up to 8 GHz
  • Low-DUT loading with 100 kΩ (DC) and 0.4 pF (AC) performance
  • High Common-Mode Rejection Ratio (CMRR)
  • Low noise

Specifications


D-PHY base specification
Revision 1.2
D-PHY CTS
Revision 1.2
Measurements
Both High Speed and Low Power modes, including ULPS and BTA.
Group 1 tests
Data lane LP-TX signaling
1.1.1
Data lane LP-TX Thevenin output high level voltage (VOH)
1.1.2
Data lane LP-TX Thevenin output low level voltage (VOL)
1.1.3
Data lane rise time
1.1.4
Data lane fall time
1.1.5
Data lane LP-TX slew rate versus CLOAD (δV/δtSR)
1.1.6
Data lane LP-TX pulse width of exclusive-OR clock (TLP-PULSE-TX)
1.1.7
Data lane LP-TX period of exclusive-OR clock (TLP-PER-TX)
Group 2 tests
Clock lane LP-TX signaling
1.2.1
Clock lane LP-TX Thevenin output high level voltage (VOH)
1.2.2
Clock lane LP-TX Thevenin output low level voltage (VOL)
1.2.3
Clock lane rise time
1.2.4
Clock lane fall time
1.2.5
Clock lane LP-TX slew rate vs. CLOAD (δV/δtSR)
Group 3 tests
Data lane HS-TX signaling
1.3.1
Data lane HS entry: data lane TLPX value
1.3.2
Data lane HS entry: THS-PREPARE value
1.3.3
Data lane HS entry: THS-PREPARE + THS-ZERO value
1.3.4
Data lane HS-TX differential voltages (VOD(0), VOD(1))
1.3.5
Data lane HS-TX differential voltage mismatch (ΔVOD)
1.3.6
Data lane HS-TX single ended output high voltages (VOHHS(DP), VOHHS(DN))
1.3.7
Data lane HS-TX common-mode voltages (VCMTX(1), VCMTX(0))
1.3.8
Data lane HS-TX common-mode voltage mismatch (ΔVCMTX(1,0))
1.3.9
Data lane HS-TX dynamic common-level variations between 50-450 MHz (ΔVCMTX(LF))
1.3.10
Data lane HS-TX dynamic common-level variations above 450 MHz (ΔVCMTX(HF))
1.3.11
Data lane HS-TX 20%-80% rise time (tR)
1.3.12
Data lane HS-TX 80%-20% fall time (tR)
1.3.13
Data lane HS exit: THS-TRAIL value
1.3.14
Data lane HS exit: 30%-80% Post-EoT rise time (TREOT) value
1.3.15
Data lane HS exit: TEOT value
1.3.16
Data lane HS exit: THS-EXIT value
Group 4 tests
Clock lane HS-TX signaling
1.4.1
Clock lane HS entry: TLPX value
1.4.2
Clock lane HS entry: TCLK-PREPARE value
1.4.3
Clock lane HS entry: TCLK-PREPARE + TZERO value
1.4.4
Clock lane HS-TX differential voltages (VOD(0), VOD(1))
1.4.5
Clock lane HS-TX differential voltage mismatch (ΔVOD)
1.4.6
Clock lane HS-TX single ended output high voltages (VOHHS(DP), VOHHS(DN))
1.4.7
Clock lane HS-TX common-mode voltages (VCMTX(1), VCMTX(0))
1.4.8
Clock lane HS-TX common-mode voltage mismatch (ΔVCMTX(1,0))
1.4.9
Clock lane HS-TX dynamic common-level variations between 50-450 MHz (ΔVCMTX(LF))
1.4.10
Clock lane HS-TX dynamic common-level variations above 450 MHz (ΔVCMTX(HF))
1.4.11
Clock lane HS-TX 20%-80% rise time (tR)
1.4.12
Clock lane HS-TX 80%-20% fall time (tR)
1.4.13
Clock lane HS exit: TCLK-TRAIL value
1.4.14
Clock lane HS exit: 30%-80% Post-EoT rise time (TREOT) value
1.4.15
Clock lane HS exit: TEOT value
1.4.16
Clock lane HS exit: THS-EXIT value
1.4.17
Clock lane HS clock instantaneous (UIINST)
1.4.18
Clock Lane HS Clock Delta UI (ΔUI)
Group 5 tests
HS-TX Clock-to-Data lane timing
1.5.1
HS entry TCLK-PREValue
1.5.2
HS exit TCLK-POST value
1.5.3
HS clock rising edge alignment to first payload bit
1.5.4
Data-to-Clock skew (TSKEW (TX))
1.5.5
Initial HS Skew Calibration Burst (TSKEWCAL-SYNC, TSKEWCAL)
1.5.6
Periodic HS Skew Calibration Burst (TSKEWCAL-SYNC, TSKEWCAL)
Group 6 tests
LP-TX INIT, ULPS and BTA requirements
1.6.1
INIT: LP-TX initialization period (TINIT, MASTER)
1.6.2
ULPS entry: verification of clock lane LP-TX ULPS support
1.6.3
ULPS exit: transmitted TWAKEUP interval
1.6.4
BTA: TX-Side TTA-GO interval value
1.6.5
BTA: RX-Side TTA-SURE interval value
1.6.6
BTA: RX-Side TTA-GET interval value
Probing configuration
Single-ended and differential acquisition
Triggering
Edge trigger for clock lane tests in clock continuous mode. Choice of width trigger and transition trigger for all other tests and all other modes
Reports
CSV, PDF, and MHT formats with images of all acquired waveforms

Ordering information

Required hardware
Models

6 Series MSO Oscilloscope (MSO64) with bandwidth 4 GHz and above

MSO/DPO70000 C/DX Series Oscilloscope with bandwidth 4 GHz and above

DPO70000 SX Series Oscilloscope models (Four channel) with bandwidth upto 33 GHz

Required software
Options for 6 Series MSO
Application Option License type
MIPI D-PHY 1.2 Automated Compliance Solution 6-CMDPHY New instrument license
SUP6-CMDPHY Upgrade license
SUP6-CMDPHY-FL Floating license
Options for DPO/MSO70000 C/DX/SX Series oscilloscopes
Application Option License type
MIPI D-PHY 1.2 Automated Compliance Solution DPHY12 New instrument license
DPO-UP DPHY12 Upgrade license
DPOFL-DPHY12 Floating license
Recommended probes
Oscilloscope Probe Quantity
6 Series MSO TDP7708 Series Tri-mode probe with P77STFLXA solder−in tip with TekFlex connector technology Four (recommended for connecting Dp, Dn, Cp, and Cn)
DPO/MSO70000 C/DX/SX Series P7700 Tri-mode probe with P77STFLXA solder-in tip with TekFlex connector
Recommended test fixtures
Text fixtures Vendor
TMPC−CTB D-PHY Termination Board (from The Moving Pixel Company) TMPC 1

1Contact your local Tektronix sales representative for details.
