Verifying Power Supply Sequencing with an 8-Channel Oscilloscope

Verifying Power Supply Sequencing with an 8-Channel Oscilloscope

THIS APPLICATION NOTE
  • Explains how to measure turn-on and turn-off delays when the power supply is controlled by connecting and disconnecting the AC mains input
  • Explains how to make turn-on and turn-off timing measurements when the power supply is controlled by a remote on/off signal
  • Explains how to make automated timing measurements between many point-of-load regulated supplies

The instrument used in this application note is a 5 Series Mixed Signal Oscilloscope equipped with 8 FlexChannel® inputs. An 8-channel 6 Series B MSO will operate almost identically. Each FlexChannel input can measure one high-resolution analog signal, or by connecting a TLP058 logic probe measure 8 digital logic inputs.

Introduction

In systems that rely on multiple power rails, power-on sequencing and power-off sequencing can be critical. If the power supplies do not turn on and off in the proper order, or if the rise-times of the power supplies are too fast or slow, the system may malfunction or components may be damaged.

The traditional method of evaluating the sequence is to measure the timing between supplies with a 4-channel oscilloscope. When more than 4 signals need to be verified, multiple captures must be taken or two oscilloscopes must be used, usually by triggering on a common power good / fail signal. In both cases the measurements must be synchronized and combined to get a complete picture.

With an 8-channel oscilloscope, power supplies with up to 8 power rails can be characterized using analog probes. To measure turn-on and turn-off timing relationships on power supplies with more than 8 power rails, a mixed signal oscilloscope with digital signal inputs and independently adjustable thresholds may be used.

2001 SPECIFIED CALIBRATION INTERVALS
3-phase motor drive turn-on delay measurement after AC mains was connected

Turn-on and Turn-off Delays with AC Mains Input

The first example is a 3-phase motor drive that is controlled by connecting and disconnecting the AC mains. After the circuit is powered up, the Run/ Stop signal goes high, and the 3-phase pulse-width-modulated motor drive signals start. The oscilloscope’s window trigger starts the signal capture when either phase of the AC line voltage exceeds ±10V and waveform cursors provide the turn-on delay measurement.

2001 SPECIFIED CALIBRATION INTERVALS

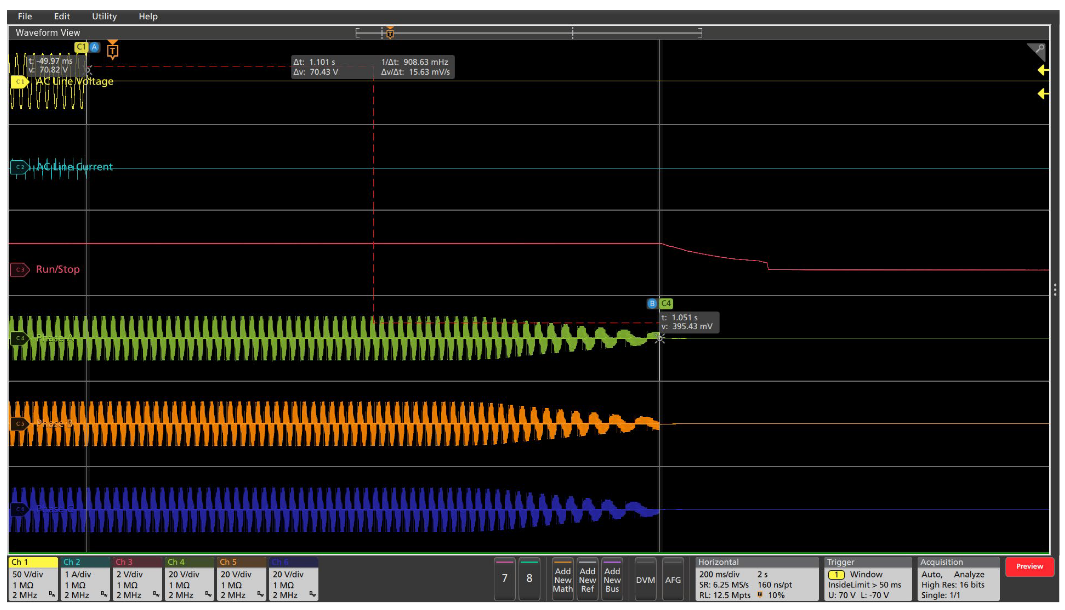

3-phase motor drive turn-off delay measurement after AC mains was disconnected

After the AC line voltage is disconnected, the stored energy in the drive allows the motor to continue to run for a short time. In this case, the oscilloscope’s window trigger starts the signal capture when the peaks of the AC line voltage drop by at least 30% for at least 50 ms. Waveform cursors measure the turn-off delay for this unloaded motor to be just over 1 second.

2001 SPECIFIED CALIBRATION INTERVALS

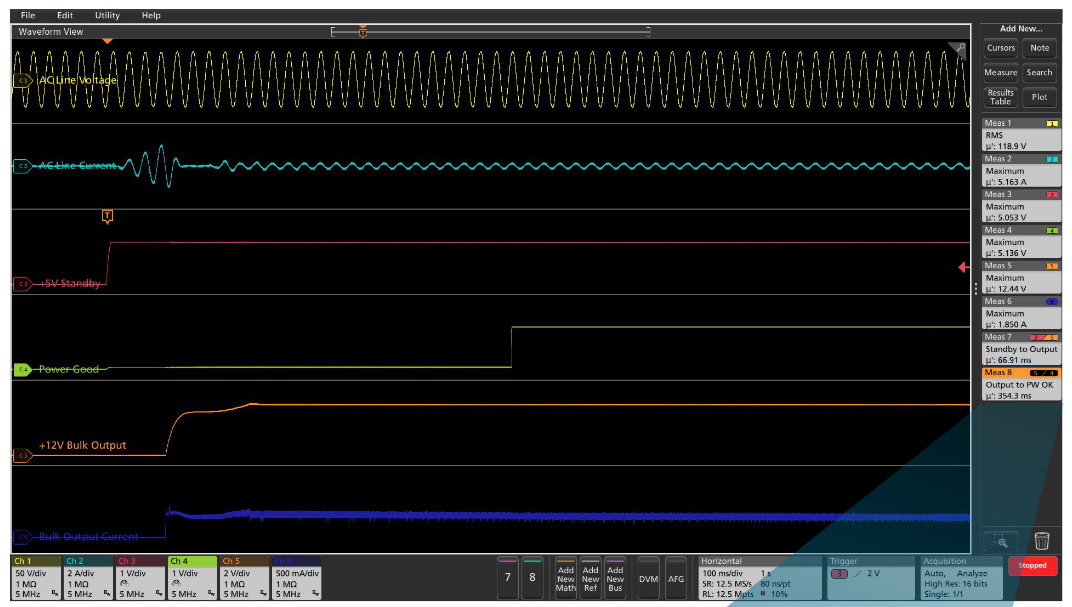

AC/DC switching power supply turn-on after front-panel switch was pressed

Turn-on and Turn-off Delays with Remote On/Off

The next example is an off-the-shelf switching power supply that produces a high-current, regulated 12 VDC output. This power supply is remotely controlled with a switch on the front panel of the instrument. Shortly after the switch is pressed, the +5V standby voltage is turned on, enabling the switching converter to start. After the +12V output is in regulation, the Power Good (PW OK) signal goes high to indicate to the load that the supply is reliable.

The +5 V standby voltage signal provides a simple rising edge trigger for the acquisition of the relevant signals. Automatic measurements verify that the delay to the output voltage turn-on is <100 ms,="" and="" the="" delay="" from="" output="" voltage="" turn-on="" to="" pw="" ok="" is="" in="" the="" specification="" range="" of="" 100="" –="" 500="">

2001 SPECIFIED CALIBRATION INTERVALS
2001 SPECIFIED CALIBRATION INTERVALS
Switching power supply power fail pre-warning timing measurement

After the power supply’s main switch is turned off, the switching converter is turned off and the output voltage decreases. The power supply is specified to remain in regulation for at least 20 ms after the switch is pressed. Most importantly, the PW OK signal is specified to fall 5 – 7 ms before the +12 V output voltage falls out of regulation, allowing the load time to react and shut down cleanly.

The PW OK signal provides a falling edge trigger for the acquisition of the relevant signals. The waveform cursor measurement verifies that the PW OK pre-warning signal is operating as specified.

2001 SPECIFIED CALIBRATION INTERVALS
2001 SPECIFIED CALIBRATION INTERVALS
Repetitive turn-on timing measurements with infinite persistence and measurement statistics

To verify that the power supply turn-on timing remains within specifications over multiple power cycles, infinite persistence is used to display the signal timing variations and statistics displays of automated timing measurements quantify the variations. In this setup, the 50% point of the +5 V Standby voltage is used as the timing reference. The turn-on sequence is repeated 10 times and the timing variations over the 10 turn-on cycles are within a little over 1%.

2001 SPECIFIED CALIBRATION INTERVALS
2001 SPECIFIED CALIBRATION INTERVALS

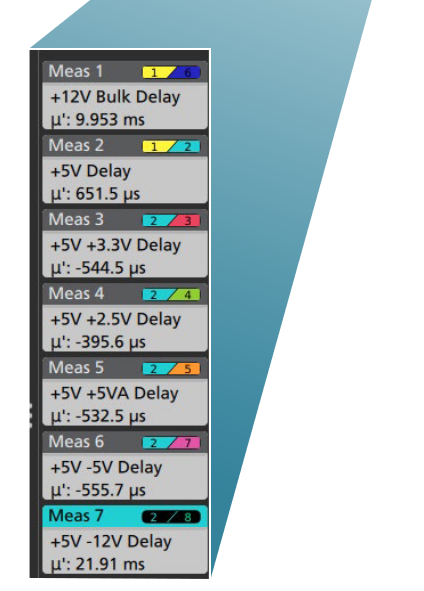

Turn-on timing of seven of the regulated power supplies in the product
