The Tektronix PA1000 is a single-phase power analyzer optimized for easy and accurate energy consumption, standby power and harmonic testing to international standards such as IEC62301 and IEC61000. Default application modes and powerful software features allow you to quickly set up, analyze and document all critical power parameters.

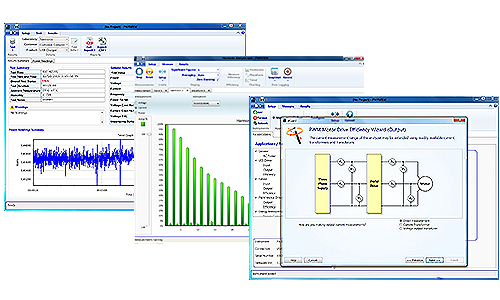

Powerful analysis software, on us
With the free PWRVIEW Software Suite and Tektronix Power Analyzers, you’ll have a powerful analysis tool that eliminates the need to write and maintain your own software for testing energy consumption, standby power, AC or DC power analysis or harmonic analysis for regulatory standards.
- Remotely monitor, analyze, and log results
- Set up and run custom pass/fail tests
- Default Applications menu for easy setup
- View waveforms, harmonic graphs and trend charts
Power or energy consumption testing, done right
PA1000 works as an energy meter with default integrator mode, so you can test energy consumption to regulatory standards such as Energy star, California Energy Commission (CEC), Blue Angel and others, on various AC mains powered home appliances, consumer electronics, battery chargers, LED drivers and power supplies.
- Default power integrator mode for consumption test
- Smart auto-up ranging for handling variable loads
- Calculate ‘dollar savings’ value for energy in real time with formula function
- Wide power range (5 mW to MWs) supports a variety of loads

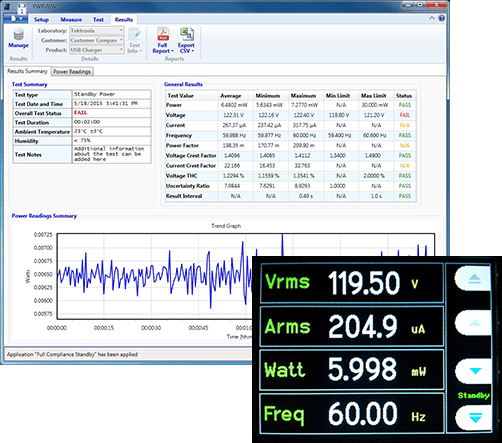

Industry-leading standby power testing to 5 mW
PA1000 with PWRVIEW software offers full-compliance IEC62301 standby power testing, standard, with industry-leading 5 mW measuring range—making it the best choice for measuring power supplies, battery chargers, LED drivers and appliances with seriously low standby power.
- 1 A shunt for measurement down to 20 µA
- PDF reports with .xls and .csv data output
- Auto-up ranging for distorted low current signal
- Realtime uncertainity reading, per the standard

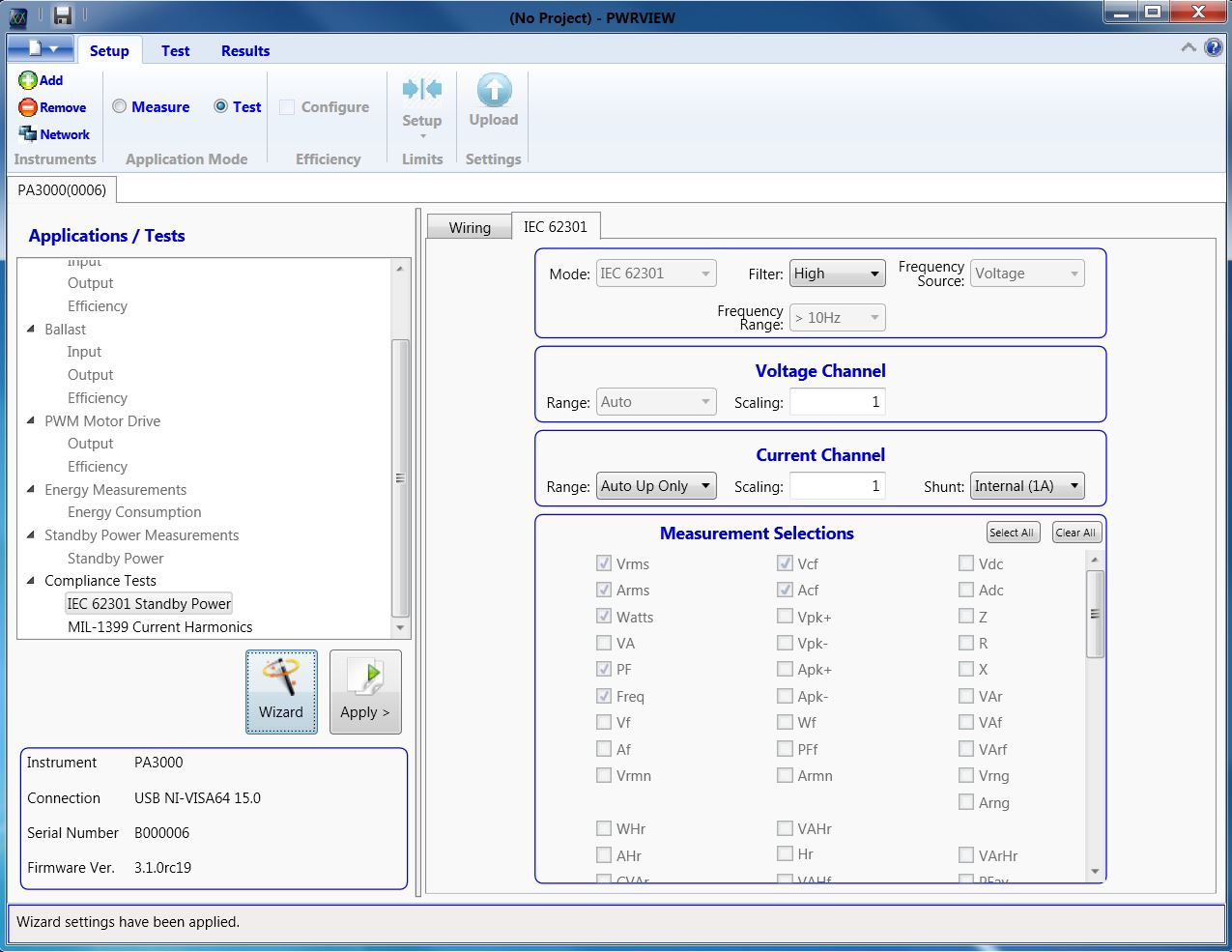

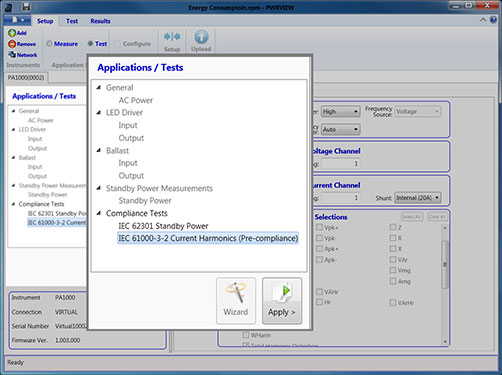

Default applications for easy and repeatable setup
PA1000 Power Analyzer with PWRVIEW software is an application-centered solution with default application modes that take care of all the complex setup, enabling easy, accurate and repeatable measurements every time.
- Modes: Integrator, Standby Power, Inrush and Ballast
- Tests: IEC62301 Standby Power, IEC61000-3-2 Current Harmonics
- PDF reporting, smart logging, .xls and .csv file exports
|Description||Multi channel Power Analyzer optimized for single and three phase efficiency testing, power and harmonic analysis on AC-DC power supply, LED lighting, UPS Systems, Inverters, power converters and PWM motor drives.||Single channel Power Analyzer optimized for energy consumption, input AC power and harmonic analysis on home and office appliances, power supplies, lighting products and consumer electronics.|
|Applications||1-3Ph - Efficiency Testing, Three phase power analysis, Harmonic analysis, Energy consumption testing, Standby power testing, Torque, Speed, Humidity and Temp monitoring.||1ph - Energy consumption testing, Input power analysis, Standby power testing, Current harmonics testing.|
|Free PWRVIEW Software||Remote operation, Logging, Application wizards, Effciency Testing, Result grid, Harmonics chart, waveforms, Trend, Pass/Fail limits, Custom formulas, IEC62301 ED 2 test, MIL-1399 test||Remote operation, Logging, Application wizards, Result grid, Harmonics chart, waveforms, Trend, Pass/Fail limits, Custom formual, IEC62301 ED 2 test, IEC61000-3-2 test|
|Channels||1, 2, 3 or 4 (Optional)||1|
|Voltage Ratings||600Vrms Cat II||600Vrms Cat II|
|Current Ratings||30Arms and 1Arms Internal Shunts||20Arms and 1Arms Internal Shunts|
|External Current Inputs||20Vpk (2mm Banana Plug)||1.25Vpk (2mm Banana Plug)|
|AC Voltage and Current Accuracy (45Hz - 850Hz)||0.04% rdg + 0.04% range||0.04%rdg+0.04% range|
|DC Voltage and Current Accuracy||0.05% rdg + 0.1% range||0.1% reading + 0.1% range|
|Power Accuracy (45Hz - 850Hz)||± (Vrmsacc × Arms) ± (Armsacc × Vrms)||± 0.075% of Reading ± 0.075% of Range|
|Sampling Rate||1 Million Samples per Second||1 Million Samples per Second|
|Voltage Ranges (Peak)||5 V, 10 V, 20 V, 50 V, 100 V, 200 V, 500 V, 1000 V, 2000 V||10 V, 20 V, 50 V, 100 V, 200 V, 500 V, 1000 V|
|Current Ranges (Peak)||30 A shunt: 500mA, 1 A, 2 A, 5 A, 10 A, 20 A, 50 A, 100 A, 200A
1A shunt: 12.5 mA, 25 mA, 50 mA, 125 mA, 250 mA, 500 mA, 1.25 A, 2.5 A, 5 A
|20A Shunt: 100mA, 200 mA, 500m A, 1 A, 2 A, 5 A, 10 A, 20 A, 50 A, 100 A
1A Shunt: 2mA, 4mA, 10mA, 20mA, 40mA, 100mA, 200mA, 400mA, 1A, 2A
|Ext Current Input Ranges (peak)||50 mV, 100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V, 20 V||12.5 mV, 25 mV, 62.5 mV, 125 mV, 250 mV, 625 mV, 1.25 V|
|Default Application Modes||PWM Motor, Integrator, Standby Power, Ballast, Normal||Integrator, Standby Power, Inrush, Ballast, Normal|
|Harmonics||up to 100th order||upto 50th order|
|Wiring Configurations||1ph-2w, 1ph-3w, 3ph-3w, 3ph-4w, 3ph-3w(3V3A)||1ph-2w|
|Display Screen||5.75" Graphical Color Display||3.5" Graphical Color Display|
|Auxiliary Inputs (Torque, Speed, Temperature, etc)||4 Analog inputs: +10 V to -10 V
2 Counter inputs: +10 V to -10V ; 1Mhz
4 Digital outputs: +5 V TTL with 10 kΩ output impedance
|Communication Ports||USB Host, USB, Ethernet, RS232, GPIB (optional)||USB Host, USB, Ethernet, GPIB|
|Trasducer Power Supply||± 15 V, Max current 250 mA per channel||N/A|
|Power Input||100 V to 240 V AC, 50 Hz or 60 Hz, 120 VA maximum||100 V to 240 V AC, 50 Hz or 60 Hz, 25 VA maximum|
|Warranty||3 Years||3 Years|
|EMC||Conforms to European Union EMC Directive||Conforms to European Union EMC Directive|
|Safety||Conforms to European Union Low Voltage Directive||Conforms to European Union Low Voltage Directive|
|Dimension (Without Handle)||13.2 cm high × 42 cm wide × 33.5 cm deep (5.2” × 16.5” × 13.2”)||10.2cm high x 22.3cm wide x 28.5cm deep ( 4.0" x 8.7" x 11.2")|
|Weight||9.5 kg (20.9 lb.) – 4 Ch with GPIB||3.2 kg (7.0 lb.)|
|Datasheet||BB1000-EU||Breakout Box for Power Analyzers, Europe configuration||Request a quote|
|Datasheet||BB1000-NA||Breakout Box for Power Analyzers, North American configuration||Request a quote|
|Datasheet||BB1000-UK||Breakout Box for Power Analyzers, United Kingdom configuration||Request a quote|
|Datasheet||BB1000-UN||Breakout box with universal power receptacle||Request a quote|
|Datasheet||CL1200||Current Clamp, 0.1A - 1200A||Request a quote|
|Datasheet||CL200||Current Clamp, 0.5A - 200A||Request a quote|
|Datasheet||CT-100-M||Fixed-Core Current Transducer, Hall Effect, up to 100A||Request a quote|
|Datasheet||CT-1000-M||Fixed-Core Current Transducer, Hall Effect, up to 1000A||Request a quote|
|Datasheet||CT-1000-S||Fixed-Core Current Transducer, High Accuracy, up to 1000A (requires external power supply)||Request a quote|
|Datasheet||CT-200-M||Fixed-Core Current Transducer, Hall Effect, up to 200A||Request a quote|
|Datasheet||CT-200-S||Fixed-Core Current Transducer, High Accuracy, up to 200A||Request a quote|
|Datasheet||CT-60-S||Fixed-Core Current Transducer, High Accuracy, up to 60A||Request a quote|
|Datasheet||PA-LEADSET||STACKABLE BANANA TEST LEADS, SET OF 4, SAFETY SHROUDED WITH INSULATED ALLIGATOR CLIPS, 1000V CAT II, 30A||Request a quote|
|Datasheet||PA-EXT-LEADSET||STACKABLE 2mm TEST LEADS FOR EXTERNAL CURRENT SENSOR INPUT||Request a quote|
PWRVIEW Software: Complete power analysis software suite
PWRVIEW is a feature packed, power analysis software suite designed specifically to provide greater insight in to critical power measurements while making the setup and automation easy and productive. Just plug and play!
PWRVIEW complements and enhances the functionality of Tektronix Power Analyzers and makes it an ideal solution for efficiency testing and power analysis on all single and three phase power applications like AC-DC Power Supplies, Battery chargers, LED Drivers, Home and Office Appliances, UPS Systems, Inverters, Converters, Motor Drives and more.
PWRVIEW Analysis Software - 32 Bit - V3.1.0
Power Analyzer Firmware Update Utility, V3.1.0
Automated test features in PWRVIEW, makes it easy to setup compliance tests for efficiency, standby power and harmonics regulated by regional and international committees such as DOE, CEC, Energy Star, CE, IEC, Eco Design, EU Directive, Erp Directive, CoC, CQC, CECP, NRCan, etc.
With its intuitive design, application setup wizards and a slew of customizable features, PWRVIEW helps test, validation and design engineers to do the following:
- Setup and automate efficiency testing on all single and three phase products
- Test power and energy consumption on multiple products simultaneously.

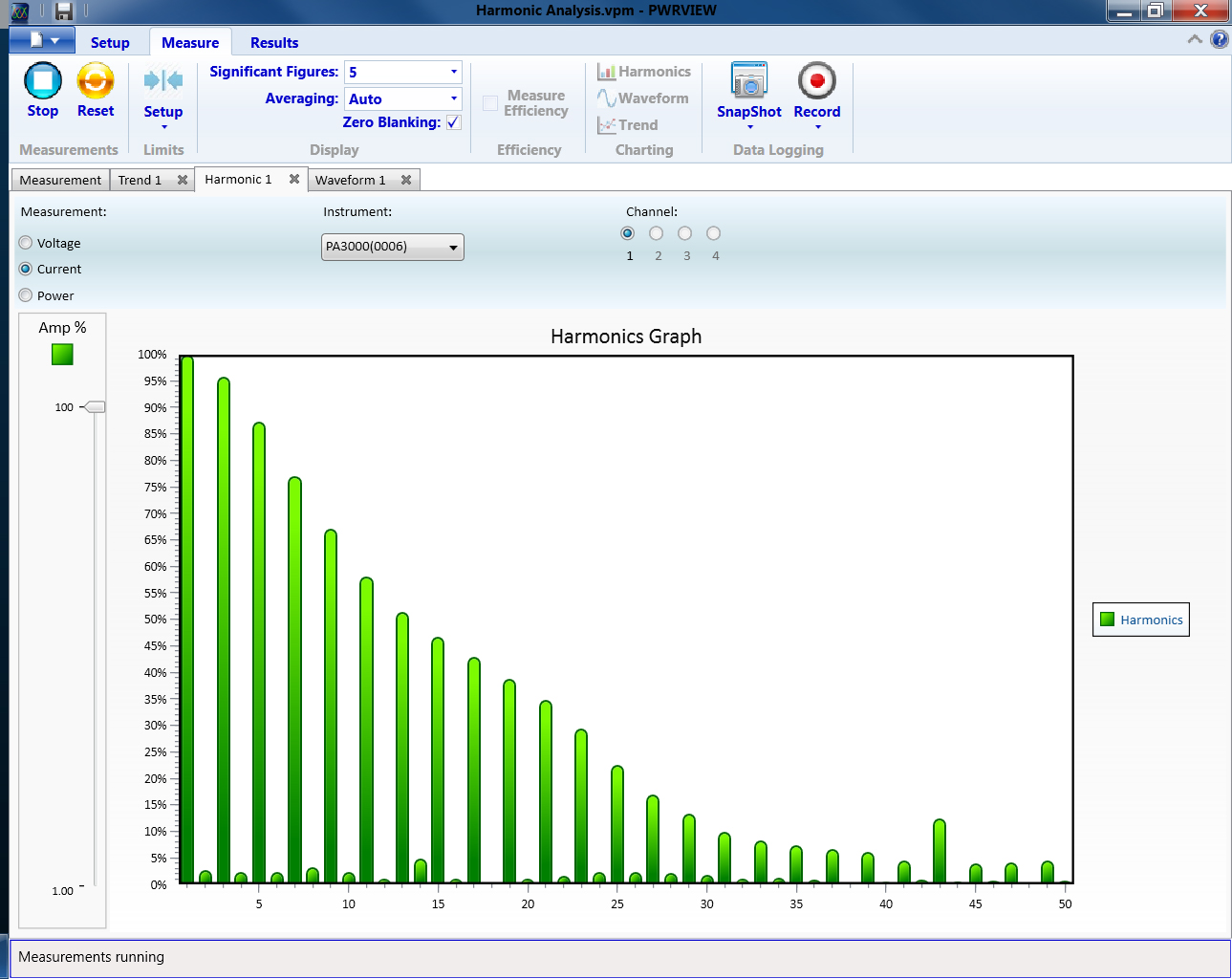

- Analyze harmonics up to 100th order with graphical bar charts on all available channels
- Analyze waveforms and trends graphically.
- Log real time data, locally archive and export to .csv or .xls (Excel)
- Setup pass/fail tests using custom limits for specifications and standards.
- Define custom formulas for power conversion efficiency and other related parameters
- Get real time readings from external transducers such as temperature, humidity, torque and speed for co-relation studies andcomputing system efficiency.

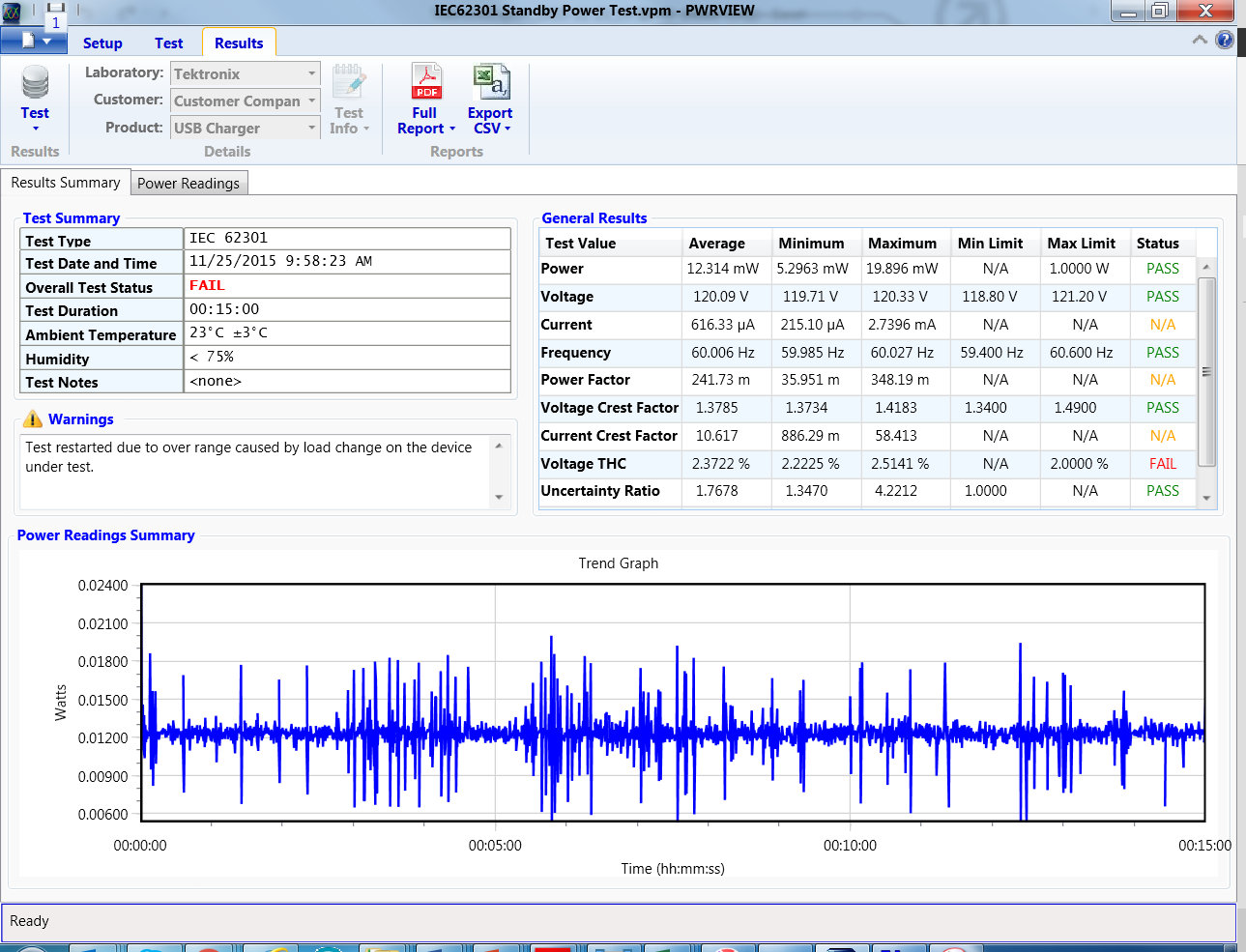

- Run compliance testing for efficiency per LEVEL VI, low standby power per IEC 62301 ED 2.0., current harmonics per IEC 61000 -3-2 (PA1000 Only), current harmonics per MIL-STD-1399-Section 300B and create reports for archiving and reporting.
- Remotely control and transfer data form multiple Tektronix Power Analyzers simultaneously over any of the instrument's communication ports (USB, LAN, GPIB, RS-232)
- Save and recall multiple configurations for different test setups.
Additional information for using PWRVIEW is available in the built-in online help or can be downloaded as a PDF file from the Tektronix Web site. Go to Tek.com/manual/downloads and search for PWRVIEW Online Help (Tektronix part number 077-1165-00).
|PWRVIEW Analysis Software - 64 Bit - V3.1.0||PWRVIEW control and analysis software for PA1000, PA3000, and PA4000 power analyzers. Includes virtual instruments that can be used for demonstration without a connected power analyzer. Refer to the Release Notes for more information.|
|PWRVIEW Analysis Software - 32 Bit - V3.1.0||PWRVIEW control and analysis software for PA1000, PA3000, and PA4000 power analyzers. Includes virtual instruments that can be used for demonstration without a connected power analyzer. Refer to the Release Notes for more information.|
|Power Analyzer Firmware Update Utility, V3.1.0||A software utility program that is used to update the firmware on PA1000, PA3000, and PA4000 Power Analyzer instruments. Firmware is available from tek.com and the latest version should always be installed to ensure the best performance and features.|
