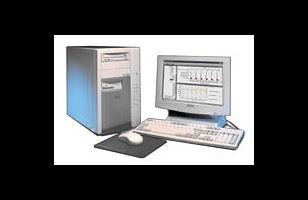

MPEG Data Broadcasting Test System
AD960
このデータ・シートの製品は、テクトロニクスでは販売終了となっています。
Tektronix Encoreプレミアム再生品を見るbr/>
上記製品のサポートと保証のステータスをチェックする

Features & Benefits
- In-depth Off-line Analysis of MPEG-2, DVB, and ISDB Transport Streams Containing DSMCC Data Broadcast Protocols Including IP, Data, and Object Carousels Lets You Fully Verify Product, System Design, and Performance
- Powerful Tools to Capture, Manipulate, and Play Out Transport Streams Containing Data Broadcasting Protocols Helps You Build and Apply Sophisticated Test Sequences To Extensively Exercise All Design and Performance Parameters
- High Performance Processing Power Combined With a Large Collection of Input/Output Interfaces Offers the Flexibility Needed for Use in a Wide Range of Design and Manufacturing Applications
- New Carousel Generator Option Available
Applications
- Interactive Television
- Software Development
- MHP Set Top Box Design
- Carousel Multiplexing
- Data Broadcasting Systems Installation and Integration
- Equipment Design and Verification
The Solution for High Performance Data Analysis of MPEG-2, DVB, and ARIB Transport Streams.
Stream Analysis
- DVB data and object carousel analysis
- Bit rate and repetition rate display of blocks, modules, objects, UN messages, SI tables, and video/audio PIDs
- BIOP, DSI, DII, DDB, and DSM-CC section display and interpretation
- Display of MHP AIT table
- ARIB B15/B24 Data Carousel Analysis
- MPE analysis including syntax of datagram sections
- Display of PSI/SI/PSIP tables with Huffman decoding
- Transport stream packet content
- PCR timing information
- Real-time MPE sessions (M+ option)



Stream Creation
- Multiplexer/Demultiplexer to create multi-program transport streams with custom SI for both DVB and ATSC
- Import of transport packets containing DSM-CC sections
Stream Manipulation
- Stream cutter
- Packet editor
- PSI/SI/PSIP editor
Stream Playout and Recording
- Record, play at 90 Mb/s
- Continuous playout of looped streams with automatic updating of timestamps
- Simultaneous play and record (optional)
Hardware
- Fast, Pentium III platform with 17" monitor and DVD/CD-ROM
- SCSI hard disk for stream storage (18 GB expandable) with sample test streams
- Wide range of interfaces including: DVB-SPI, ASI, DHEI, M2S, SMPTE 310M, L-Band, etc.
Characteristics
Record
Maximum Record Time at the Rate of 60 Mb/s with Standard Hard Disk - 36 minutes.
Maximum Data Rate - 90 Mb/s. (Trig Rec/Monitor: 60 Mb/s.)
Minimum Data Rate - 250 kB/s.
Playout
Maximum Playout Time at 60 Mb/s - 36 minutes.
Maximum Data Rate - 90 Mb/s.
Minimum Data Rate - Using internal clock: 2.5 Mb/s.
Using external clock: 250 kB/s.
Bit Rate Resolution - 1 bit/s.
Frequency Resolution - 0.03 Hz.
Clock Accuracy - ±1 ppm.
Aging and Drift - <1 ppm per year.
Packet Handling -
Record
Input Format |
Storage Format |
|
---|---|---|
|
188 byte |
204 byte |
188 byte |
Yes |
|
204 byte |
Yes |
Yes |
208 byte (GPSI) |
Yes |
Yes |
Playout
Storage Format |
Output Format |
||
---|---|---|---|
|
188 byte |
204 byte |
208 byte (GPSI) |
188 byte |
Yes |
Yes (Dummy RS) |
Yes (Zero RS) |
204 byte |
Yes |
Yes |
|
Receive and Monitoring - 208 byte with GPSI interface options.
Electrical
External Triggering - Input and output.
Triggering on Input - Edge sensitive.
Connector Format - 15 Way D type.
Specification - TTL.
External Clock
Signal Input - AC coupled.
Minimum Signal Level - 200 mV.
Input Impedance - 50 Ω.
Connector Format - BNC.
Hardware Configuration
- 18 GB SCSI disk for stream storage DVD (tower only)
- Ultra wide SCSI port for external storage
- 100Base-T Ethernet
Display
Display (tower) - 17" 1280x1024.
SVGA Color.
CRT monitor.
Power Requirement
Voltage Range - 100 to 260 VRMS (switchable).
Frequency Range - 45 to 65 Hz.
Power Consumption (max) - 300 VA.
Environmental Specifications
Operating Temperature |
10°C min. 40°C max. |
Storage Temperature |
-20°C min. 70°C max. |
Humidity |
70% noncondensing |
Electrical Interfaces
Transport Stream
Parallel Input and Output Port - Connector Format Input: 25 way D type.
Connector Format Output: 25 way D type.
Electrical Specification: LVDS (differential).
Input Impedance: 100 Ω.
Output Impedance: 100 Ω.
Physical Characteristics
Dimensions |
cm |
in. |
---|---|---|
Weight (system unit) |
kg |
lb. |
Width |
23.5 |
9.3 |
Height |
44 |
17.3 |
Depth |
43 |
16.9 |
Net |
16.9 |
37.3 |
Ordering Information
AD960
MPEG Data Broadcasting Test System.
AD960 Platform – Options
Interface Card Options |
Modes |
Bit Rate |
Connector |
Tolerance |
---|---|---|---|---|
GPSI Interface |
SMPTE310M |
19.392 Mb/s and 38.785 Mb/s (support for 8 VSB & 16 VSB) |
BNC in BNC out |
±2.8 ppm |
DHEI |
to 48 Mb/s |
|
|
|
ECL (AC) I |
To 50 Mb/s |
|
|
|
ECL (DC) |
To 50 Mb/s |
26 Way High Density D |
|
|
RS422 differential |
20 Mb/s |
26 Way High Density D |
|
|
SSI (DVB serial) |
1 to 44 Mb/s |
BNC |
Clock & data recovery |
|
L-Band/RF input |
See separate data sheet |
15 to 30 Msymb/s |
F-Type |
|
ASI and M2S (DIVICOM) |
Data, packet burst |
270 Mb/s tx rate 0 to 90 Mb/s data rate 100 Mb/s transmission rate |
0 to 90 Mb/s data rate |
|
Note: Only one interface can be fitted in addition to the parallel port.
Options
MICS - MIC 1.1S (with accurate clock circuit) only for applications mentioned below.
ASPC - ASI/M2S Interface.
LBPC - L-Band + card.
GPPC - GPSI II Card (SMPTE 310M, RS422 Serial, DVB SSI, DHEI).
MPLUS - DVB/ATSC/ARIB Monitor Plus (Only series II machines).
DU - Duplex Operation Player/Monitor or Player/Recorder - (Only series II machines) Excluding portables.
IN - ES Analyzer with AAC Player and 608 CC and 708 CC (V6.3 minimum).
AA - AAC Player stand alone - no ES Analyzer.
CC - CC stand alone - no ES Analyzer.
BA/ZB - DVB/ATSC Buffer analyzer software.
PA/ZP - DVB/ATSC PES analyzer.
SM/ZM - DVb/ATSC Recorder/Monitor software.
IX - BS Digital Multiplexer (JAPAN).
VI - Viaccess analysis. Approved customers only.
OP - Open TV analysis. Approved customers only.
XS - XSI Analysis software.
18GB - Internal 18 GB Disk Drive (REPLACE CURRENT DRIVE).
18GBA - Internal 18 GB Disk Drive (in addition to standard drive).
36GB - Internal 36 GB Disk Drive (REPLACE CURRENT DRIVE).
36GBA - Internal 36 GB Disk Drive (in addition to standard drive).
CDW - Internal CD ROM Writer plus adaptec Easy CD Creator software.
FCT - Flight Case for AD960 (tower version).
