EA-EL/ELR Electronic Loads

The EA electronic loads and regenerative electronic loads bring a host of capabilities and efficiencies to your application. Regenerative loads recover energy and feed it back into the grid with >96% efficiency as well as reduce heat, noise and HVAC costs, making them cost-effective and environmentally friendly. True autoranging allows the sinking of maximum power along a wider range of voltage and current values while a suite of optional control interfaces allow computer control in near any manufacturing environment.

These DC electronic loads feature high power density and input power ratings ranging from 1500W to 30kW with a maximum of 2000VDC. They come standard with a built-in function generator capable of creating arbitrary waveforms for dynamic testing of sources. The regenerative loads can be easily paralleled in racks to achieve 3.84MW of power.

Learn how fast your investment pays off—try the ROI Calculator.

Power

Up to 30 kW

Voltage

Up to 2000 V

Current

Up to 1000 A

EA 10000 Series Regenerative Electronic Loads

Conventional and Regenerative Programmable Loads

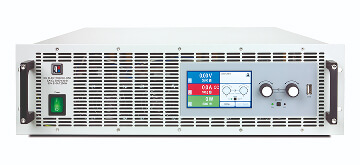

Series EL / Dissipative

Series EL / Dissipative

Technical Specifications

  • Power: from 1500 W to 4500 W
  • Voltages: 0-80 V DC to 0-750 V DC
  • Current: 0-20 A to 0-510 A

Highlights

  • Autoranging
  • Color Touchscreen
  • Two-quadrant expansion
  • 19″ Full slide-in, 2 height units
  • Analog- und USB-interface
Series ELR / Power regeneration

Series ELR / Power regeneration

Technical Specifications

  • Power: from 0-1500 W to 0-30 kW
  • Voltages: 0-80 V to 0-2000 V
  • Current: 0-6 A to 0-1000 A

Highlights

  • Autoranging
  • Color Touchscreen
Autoranging Gives Flexibility

Autoranging Gives Flexibility

EA Elektro-Automatik products have autoranging, which allows the supply or load to operate at max power across a range of voltages and currents, down to 33% of the rated output maximum.

Compare this to traditional power supplies, which can only output their rated power at their max voltage and max current. Applying the maximum voltage to a device under test (DUT) is rare, which means most of the time, that supply is not being used to its full potential.

How does it work? EA sources automatically offer more current at lower voltages (or more voltage at lower currents), allowing the supply to continue outputting the rated power. This allows a single source to address multiple voltage and current combinations that would otherwise require multiple supplies.

Regeneration turns waste into savings

EA regenerative electronic loads and bidirectional supplies can recover up to 96% of the energy they sink, that means the AC mains connection is also used as output for the back-feed of the supplied DC energy.

Traditional electronic loads or resistor banks dissipate their sunk power by turning it into heat. This can require large cooling/HVAC solutions and that sunk energy is then lost forever as waste, reducing test and facility efficiency.

Energy recovered by EA loads is fed back into the local facility grid with a mains-synchronized inverter, where that energy can be used by other devices in the facility. If more energy is recovered than used by the facility (a possibility when testing fuel cell output, for example), the energy can be fed back out to the public grid.
function generator ea 10000 series

Built-In Function Generator Simplifies Setups

Many EA supplies and loads include an integrated function generator that can be used to drive the voltage or current output. All the typical AFG waveforms are available as well as arbitrary capability with sequencing for creating more custom output waveforms. This AFG capability scales with multiple supplies in parallel.
The function generator allows the supply to simulate or test complex behaviors like:

  • Simulating a solar cell with accurate open circuit voltage, short circuit current, and maximum power point (MPP) voltage and current.
  • Testing inverter efficiency to CSN EN 50530 standards.
  • Testing LV123, LV124 and LV148 standards for automotive suppliers.

Control the way you Control

Using the right control interface simplifies setup and reduces troubleshooting, so the EA-10000 Series supports the AnyBus system allowing for field installable communication options for common industrial interfaces like ProfiNet, CANopen, Modbus-TCP, DeviceNet, EtherCAT, RS-232, and more. These are in addition to standard included interfaces like USB and Ethernet.

Control-communications-ea-10000-series
industrial ea 10000 series

Industrial Series for Most Demanding Power Needs

For the highest energy density needs and future-oriented applications, the EA-10000 Industrial Series is available. 6U form factors offer up to 60kW of power, and 19” rack solutions mean you can deliver 300kW of power from only 0.6 m2 of floor space. Combine up to 13 racks for 3.84MW of bidirectional power delivery and recovery. The industrial series are available as a unidirectional power supply (PU), bidirectional power supply  (PUB), and regenerative electronic load (PUL).

Learn more about EA Industrial Series

Optional Water Cooling available for 4U and 6U models

Industrial environments can be harsh with high ambient temperatures, dust, and other contaminants. In addition, industrial facilities often have to comply with stringent environmental regulations regarding heat and noise emissions. Water-cooled systems can provide stable operation in such conditions, as the cooling efficiency is less affected by the external environment compared to air cooling. Furthermore, water-cooled power supplies can help to meet the standards required by reduced noise levels. Learn more in this video.

  • Efficient Heat Dissipation

  • Reduced Noise and Heat Impact

  • Reliable in Harsh Conditions

EA water cooling box

Regenerative Loads Pay for Themselves

See how fast your EA electronic load could pay for itself.
Try our ROI calculator to find out.

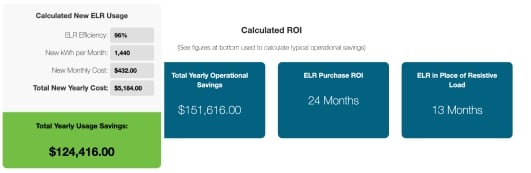

An image that is representative of a Tektronix Elektro Automatik ROI calculator tool
