10BASE-T1L Industrial Ethernet Compliance Test Solution
Option 5-CMINDUEN10 and 6-CMINDUEN10 Datasheet

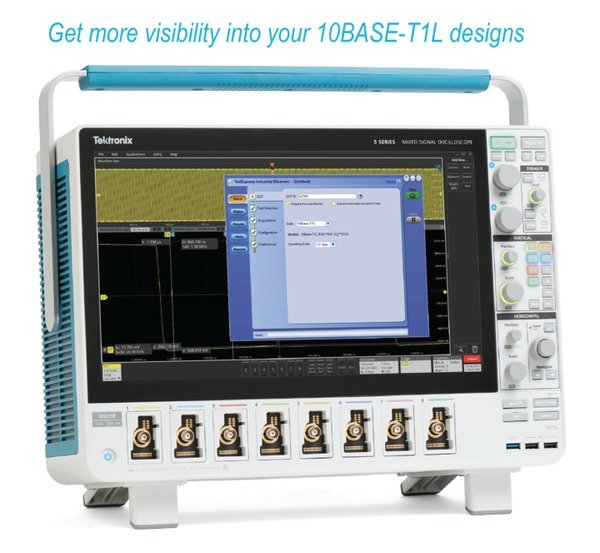

Get more visibility into your Ethernet designs with the 10BASE-T1L Industrial Ethernet Compliance Test Solution for the 5 Series and 6 Series B MSOs. The combination of the oscilloscope, analysis software, and a wide range of available analog probes enables you to perform detailed and accurate amplitude and timing measurements on your designs.
- Test Time: Fully automated with a setup wizard to perform compliance testing as per the 10BASE-T1L (IEEE 802.3cg™) standard. Highly optimized and intuitive user interface for quick test configuration and validation of electrical signals. The software automatically configures equipment per the test requirements which reduces overall test execution time.
- Test Coverage: The TekExpress Industrial Ethernet solution for 10BASE-T1L is designed to comply with the IEEE 802.3cg specification covering transmitter test.
- Validation and Debug: Tools such as Advanced Jitter Analysis (DJA) let you identify problems before compliance testing or in the event of failure.
- Comprehensive Report: Automated reporting with Pass/Fail status and screenshots of the waveforms.
- Measurement Accuracy: Tektronix 5 series and 6 series B Mixed Signal Oscilloscopes offer analog bandwidth up to 8 GHz, sample rates up to 25 GS/s and 12-bit analog-to-digital converters (ADC), delivering the performance needed to capture waveforms with high signal fidelity and resolution. Tektronix' patented measurement approach in the TekExpress Industrial Ethernet Test Solution enables designers to perform return loss measurements using an oscilloscope, reducing the need for additional test equipment.
- Domain measurements: Time domain and frequency domain measurements (Return Loss and Power Spectral Density) can be made with a single instrument.
- Performance Verification: The Industrial Ethernet application enables you to easily run tests multiple times. The statistics in the reports display Pass/Fail status for each run, to help study device performance over different runs.
Fully automated compliance testing
The Tektronix Industrial Ethernet Solution is a fully automated compliance test application for the 10BASE-T1L (802.3cg) standard. Executing all the measurements manually is extremely time-consuming. The TekExpress Industrial Ethernet application provides an automation framework, that enables you to execute all the measurements with less intervention, only when you need to change connections.
The physical layer compliance tests are defined to ensure interoperability between different designs and hardware vendors. The requirements to perform these tests have been expanded and now cover Industrial Ethernet 10BASE-T1L (802.3cg) standards.
The test suite runs on 5 Series and 6 Series B MSOs, and lets you to take full advantage of the oscilloscope validation and debug capabilities in addition to compliance testing. The integration of Industrial Ethernet is placing greater demands on technology and comprehensive design validation to ensure interoperability. The Tektronix Industrial Ethernet Solution provides greater confidence in design margins under real world conditions by ensuring that your designs pass the strict 10BASE-T1L compliance tests.
|Test Name||Test Mode||Instrument|
Transmitter Output Droop
|2||350 MHz Oscilloscope|
Transmitter Timing Jitter
Transmitter Power Spectral Density (PSD)
Transmitter Clock Frequency
Peak Differential Output
MDI Return Loss
|Slave||350 MHz Oscilloscope and AFG or Tektronix VNA|
TekExpress Industrial Ethernet software allows for complete or selective testing of any of the transmitter electrical specifications. Tests are configured by following a step-by-step process. Software navigation follows a logical workflow for quick test setups, configurations, and review of test results. The software sets up the oscilloscope and automates the tests, guiding you to accurate and repeatable results.
Test setup configurations vary greatly in terms of connections to the device under test, probing, test fixtures, calibration, and use of the oscilloscope and signal generator. To help you to correctly set up for a measurement, the Industrial Ethernet software provides setup instructions for each test, with images and reference illustrations, to ensure the correct setup.
The application generates a comprehensive, date-stamped test report with pass/fail results, waveforms, and data plots.
The TekExpress Industrial Ethernet compliance software requires a Tektronix 5 Series or 6 Series B MSOs with Option 5-WIN/6-WIN or SUP5-WIN/SUP6-WIN (Microsoft Windows 10). Since it operates as a Windows application, the software shares the oscilloscope display. For convenience, we recommend that you add an external monitor to display the compliance software and test reports separately from the oscilloscope screen.
Return loss measurement
The MDI return loss test determines the impedance mismatch between PHY and reference MDI Connector from the differential impedance specification of 100 Ω, which will affect hardware interoperability. Return Loss is a frequency domain measurement and generally requires an additional frequency domain test instrument to run the measurement. The Tektronix 5-CMINCUEN10/6-CMINDUEN10 solution can perform this test with an oscilloscope using a patented measurement approach that eliminates the need for additional test instruments.
Transmiter clock frequency and jitter measurements
Jitter tests quantify the timing variations of the edges of the signal, using specified test patterns. These jitter measurements include contributions from duty cycle distortion and baseline wander. Jitter is determined by accumulating waveforms and measuring the width of the accumulated points at the eye crossing. The jitter peak-to-peak measurement is determined by the minimum and maximum values in the tails of the histogram. The PHY has a symbol clock output, configured at Test Mode1.
The droop measurements are performed by determining the positive and negative waveform peak voltages. The PHY has a symbol clock output, configured at Test Mode2.
Power spectral density (PSD) measurement
Power spectral density is a frequency domain measurement that may require a spectrum analyzer. The Tektronix 5 Series and 6 Series B MSOs, with 12-bit analog-to-digital converters (ADC) and outstanding noise performance, provides accuracy similar to a spectrum analyzer. The spectrum of an input signal in test mode is computed using built-in oscilloscope math functions. The post-processing is done on the signal to determine the PSD. The computed PSD is then compared with the specification by using lower and upper masks to arrive at the final result.
10BASE-T1L Ethernet operates at 1 Vpp or 2.4 Vpp levels and the limits are defined accordingly. The TekExpress Industrial Ethernet Application allows you to configure operating voltage and selects the limit accordingly. The application can work in Compliance mode, where limits are defined are per compliance specification, or in User Defined mode, which allows you to edit the limits to perform characterization of the Device under Test (DUT).
Validation and debug
Validation and debugging are easily accomplished early in the design process and ahead of final compliance testing with the 5 Series and 6 Series B MSOs. The oscilloscope’s standard measurement set, along with the optional 5-DJA/6-DJA (Advanced Jitter and Timing Analysis) software supports several of the key compliance tests including:
Transmitter Amplitude with Histogram
Trend Analysis Positive
Negative Droop measurements
Full characterization of Jitter performance including TIE
Eye diagram analysis of PAM3 signals
This type of early testing increases the likelihood of passing compliance tests, while allowing more complete characterization and determination of design margins. Master and slave jitter measurements can be particularly challenging given the tight compliance limits and the need to eliminate any possible sources of random or deterministic jitter.
The TekExpress Industrial Ethernet application creates compliance test documentation quickly with a summary report in MHL or PDF format. The software automatically generates a report after test execution is complete, and includes Pass/Fail status to help you quickly analyze the test results. The report also includes test configuration details, waveform plots, oscilloscope display scren shots, and margin analysis to provide more insights into your design.
6 Series B MSO Oscilloscope
With up to 10 GHz analog bandwidth, 50 GS/s sample rates, lowest noise and highest resolution, the 6 Series B MSO oscilloscope has the performance you need to capture waveforms with the best possible signal fidelity.
At the heart of the 6 Series B MSO oscilloscope are 12-bit analog-to digital converters (ADCs) that provide 16 times the vertical resolution of traditional 8-bit ADCs. This resolution, combined with an extremely low-noise front end, allows you capture small signal details even on relatively large signals.
Test fixtures and probing test points
Accurate and repeatable compliance testing requires access to the PHY transmitter output. The recommended approach is to use the Tektronix TF-XGbT Ethernet fixture. These fixtures can support all test setups while providing convenient test points for probing.
Measurement names and required hardware
Transmitter Output Droop
Transmitter Timing Jitter
Transmitter Clock Frequency
Transmitter Power Spectral Density
|5 Series or 6 Series B MSOs with a probe (TDP1500, P6247 or P6248)|
5 Series or 6 Series B MSOs
Two TDP1500, P6247 or P6248 probes
- Required hardware
5 Series MSO with minimum bandwidth of 350 MHz (Option 5-BW-350, 5-BW-500, 5-BW-1000, 5-BW-2000) or 6 Series B MSO oscilloscope with minimum bandwidth of 1 GHz (Option 6-BW-1000 6-BW-2500, 6-BW-4000, 6-BW-6000, 6-BW-8000, 6-BW-10000)
Option 5-WIN/6-WIN or SUP5-WIN/SUP6-WIN (removable SSD with Microsoft Windows 10 operating system)
- TekExpress Industrial Ethernet Compliance Analysis Solution
- Option 5-CMINDUEN10/6-CMINDUEN10 or SUP5-CMINDUEN10/SUP6-CMINDUEN10
- Advanced Jitter and Eye Analysis
- Option 5-DJA/6-DJA or SUP5-DJA/SUP6-DJA
- 125 M Record Length
- Option 5-RL-125M/6-RL-1/6-RL-2 or SUP5-RL-125M/SUP6-RL-1/SUP6-RL-2
Required signal generators
- Signal source
- Tektronix AFG31052 (50 MHz and above)
- TDP1500, P6247 or P6248 (requires use of TPA-BNC adapter)
- Test fixture
- External PC monitor
Two pairs of 50 Ω high-quality SMA or coaxial cables for AFG signal sources; all cables must be of same length
