Question :
What cart does my scope use?
Answer :
Below are the Instrument Carts that can be purchased from Tektronix.

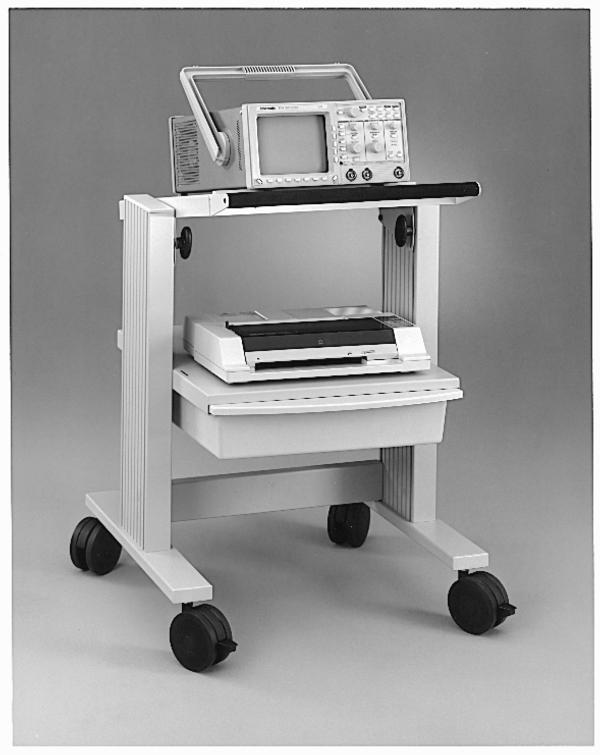

K4000 K420

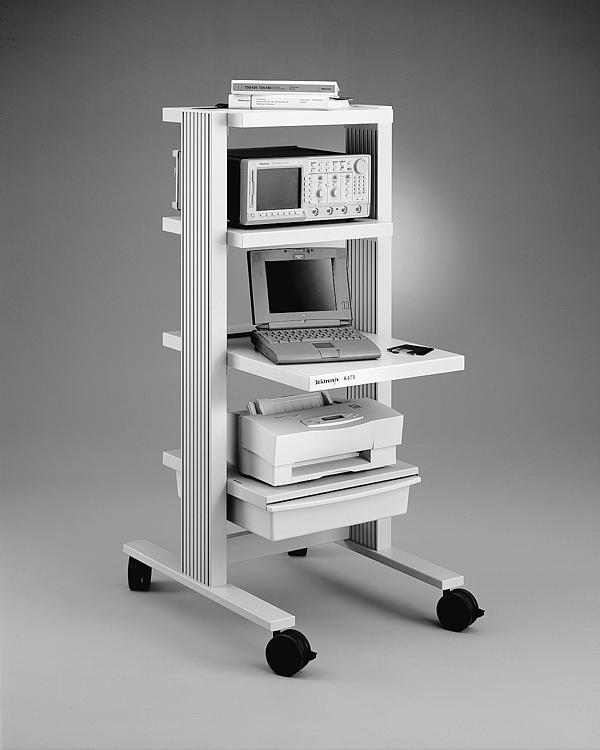

K475
More information can be found on the Instrument Cart Datasheet Page
| Oscilloscope Family | Cart |
| TDS1000B/TDS2000B/TDS2000C | K420 |
| TDS3000B/TDS3000C | K420 |
| MSO2000/ MSO2000B | K420 |
| DPO2000/ DPO2000B | K420 |
| MSO3000 | K420 |
| DPO3000 | K420 |
| MDO3000 | K420 |
| MSO4000/MSO4000B | K420 |
| DPO4000/DPO4000B | K420 |
| MDO4000/ MDO4000B/ MDO4000C | K420 |
| MSO5000 /MSO5000B | K420 |
| DPO5000 /DPO5000B | K420 |
| TDS5000B | K420 with bracket set part number 407-4996-00 |
| TDS6000B/TDS6000C | K4000 |
| CSA7000B | K4000 |
| TDS7000B | K4000 |
| DPO7000 | K420 with bracket set part number 407-5192-01 |
| DPO7000C | K420 with bracket set part number 407-5192-01 |
| DPO/DSA70000 | K4000 with bracket set part number 407-5446-00 |
| DPO70000B/DSA70000B | K4000 with bracket set part number 407-5446-00 |
| DPO70000C/DSA70000C | K4000 with bracket set part number 407-5446-00 |
| MSO70000/MSO70000C | K4000 with bracket set part number 407-5446-00 |
| DSA8200 | K4000 |
| DSA8300 | K4000 |
This FAQ Applies to:
Product Series: TPS2000B Digital Storage Oscilloscope (Discontinued) TDS3000C Digital Phosphor Oscilloscope (Discontinued) MSO3000 / DPO3000 MSO/DPO70000DX Mixed Signal/Digital Phosphor Oscilloscopes TDS2000C Digital Storage Oscilloscope (Discontinued) MSO/DPO5000B Mixed Signal Oscilloscope (Discontinued) MSO/DPO4000 Mixed Signal Oscilloscope (Discontinued) DPO7000 DSA8300 Digital Sampling Oscilloscope (Discontinued) MDO3000 Mixed Domain Oscilloscope MDO4000C Mixed Domain Oscilloscope
