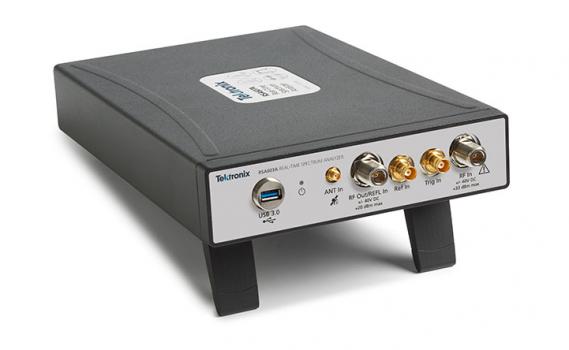

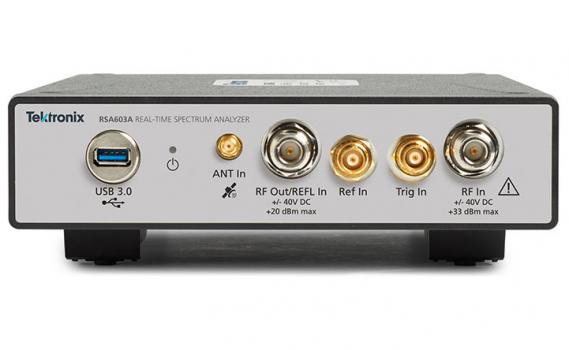

RSA600 Series Real Time Spectrum Analyzers

Visualize and characterize your device or component with the precise and accurate RSA603A and RSA607A USB Spectrum Analyzers, packed with features to aid in wireless integration, EMI, and IoT projects. See all spectrum analyzers »



Base Price
US $7,450 - US $12,400
Buy/Quote Questions? Chat Now
Maximum Frequency Range

9 kHz to 7.5 GHz

Capture Bandwidth

40 MHz

Dynamic Range

-160 dBm to +20 dBm



See more with proprietary DPX® technology.

Thumbnail

Discover the most difficult, hard-to-find problems with the powerful real-time architecture of the RSA Series. With the advanced DPX® technology, you can see RF characteristics that are practically invisible to a conventional spectrum analyzer.

Powerful and intuitive. Measurement insight at your fingertips.

Thumbnail

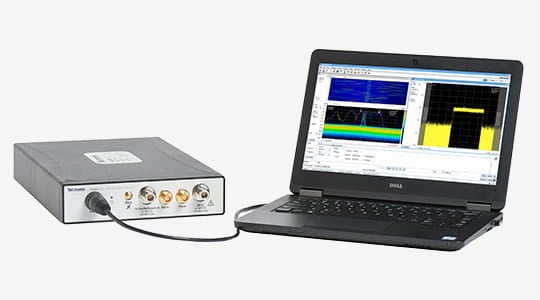

The RSA600 is powered by SignalVu-PC Vector Signal Analysis software – the same software used on the full-line of Tektronix Real-time Spectrum Analyzers. Delivering unlimited access to advanced measurement and analysis capabilities that you can save, customize or share with peers. Over 15 packages cover common wireless standards, spectrum management, pulse measurements and more.

Unequaled size. Unlimited flexibility.

Thumbnail

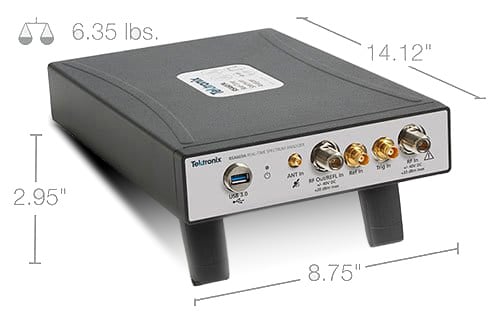

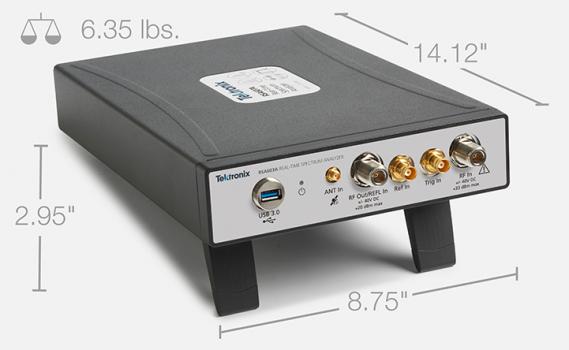

The RSA600 is conveniently sized to easily fit on your bench or in your lab. It’s powered by your laptop or tablet giving you the ultimate flexibility and convenience. You choose the display and connectivity that you prefer.

Powerful tools to integrate IoT devices.

Thumbnail

With modulation analysis for WLAN, Bluetooth, LTE, and more, the RSA600 enables straightforward design characterization, troubleshooting, and certification at a low price. The internal tracking generator allows you to characterize RF components and systems.

Model Frequency Range Real-Time Bandwidth Minimum Event Duration for 100% POI SFDR (typical) List Price
RSA603A 9 kHz-3.0 GHz 40 MHz 100 μs 70 dBc US $7,450
Configure & Quote
RSA607A 9 kHz-7.5 GHz 40 MHz 100 μs 70 dBc US $12,400
Configure & Quote

Spectrum Monitoring and Interference hunting

The migration to mobile communications is creating unprecedented pressure for more spectrum capacity in a complex and crowded signal environment. Tek’s Real-Time Spectrum Analyzers help you discover and examine sources of interference quickly so you can locate and identify unwanted activity. You can ensure your signal integrity and adherence to compliance standards using the RSA306B, RSA500, or RSA600 for real-time spectrum insights.

Highlights

  • The RSA600 spectrum analyzer's proprietary DPX technology enables precise, real-time measurements packaged in a portable, rugged form factor and easy-to-use software interface.
  • The RSA600 spectrum analyzer covers up to 7.5 GHz, with 40 MHz bandwidth capture

EMI/EMC pre-compliance Testing

Save cost and precious time by performing pre-compliance testing in your lab with our Real-Time Spectrum Analyzers. You can use peak detection with a free version of SignalVu-PC. You also get more accurate results with quasi-peak and average detection by purchasing the additional option EMCVu. Learn more about EMI/EMC pre-compliance testing at our application page.

Reduce manufacturing costs and test time with better test flexibility

The USB RSA’s are a great choice for manufacturers looking for greater throughput and product quality, all while controlling testing costs. The RSA 306B, 500, and 600 units offer support for major Internet of Things (IoT) standards in SignalVu-PC software, come with a complete offering of drivers and code examples, and include testing support for IoT technologies such as WiFi and the new Bluetooth 5.0.

Maximize your student’s learning

With our full featured and affordable Real-time Spectrum Analyzers, your students can capture results of experiments, perform analysis, and generate lab reports on their laptops, saving time and optimizing learning opportunities. It’s compact and portable size makes it easy to conduct experiments away from the lab in real world environments.

Model Frequency Range Real-Time Bandwidth Minimum Event Duration for 100% POI SFDR (typical) List Price
RSA603A 9 kHz-3.0 GHz 40 MHz 100 μs 70 dBc US $7,450
Configure & Quote
RSA607A 9 kHz-7.5 GHz 40 MHz 100 μs 70 dBc US $12,400
Configure & Quote
  Tektronix
RSA600
Tektronix
RSA306B
Keysight
CXA N9000B
Keysight
EXA N9010B
R&S
FSL
Rigol
DSA800
Maximum Frequency Ranges 9 kHz to 3 and 7.5 GHz 9 kHz to 6.2 GHz 9 kHz to 3, 7.5, 13.6, and 26.5 GHz 9 kHz to 3.6, 7, 13.6, 26.5, 32, 44 GHz 9 kHz to 3, 6, 18 GHz 9 kHz to 1.5, 3.2, or 7.5 GHz
Capture Bandwidth 40 MHz Standard 40 MHz Standard 25 MHz (Opt) 25 MHz
40 MHz (Opt)
28 MHz (Opt)
Dynamic Range
(DANL to Max Imput)
-161 dBm to +33 dBm -160 dBm to +23 dBm -163 dBm (DANL @ 1 GHz) -163 dBm (DANL @ 1 GHz) -177 dB (with 300 Hz RBW) <-134 dBm/Hz
Real Time Capabilities Yes, including DPX Spectrum, S’gram Yes, including DPX Spectrum, S’gram No, S’gram extra No, S’gram extra No No
3GPP ACLR Dynamic Range With Noise Correction -60 dB ** -60 dB ** -73 dB -73 dB -60 dB unspec'd
Cable/Antenna Testing: VSWR, DTF, Return Loss Measurements Yes No No – Scalar Tracking Generator only None No – Scalar Tracking Generator only No – Scalar Tracking Generator only
Analysis Options Highlights SA, VSA, TG, Pulse, some wireless standards SA, VSA, Pulse, some wireless standards SA, VSA, TG, Pulse, Wireless Standards SA, VSA, TG, Pulse, Wireless Standards SA, VSA, TG, Pulse, Wireless Standards SA and TG
Preamp Std Std Opt Opt Opt Opt
Power Consumption 45 W Maximum + PC 45 W Maximum + PC 270 W maximum, 20 W standby 350 W maximum, 20 W standby 45 W base unit, 65W with options 50 W maximum, 35 W typical
Size (LxWxD) 359 mm x 75 mm x 222 mm 140mm x 32 mm x 190.5 mm 177 mm x 426 mm x 368 mm 177 mm x 426 mm x 368 mm 342.3 mm × 158.1 mm × 367.0 mm 363 mm x 179 mm x 128 mm
Weight (base unit) 2.79 kg 0.73 kg 15.4 kg 16 kg <7 kg 4.25 kg



SignalVu-PC software brings benchtop and field features to the RSA600A

Thumbnail

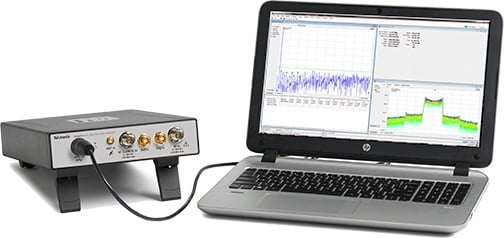

RSA600A operates with SignalVu-PC, a powerful program that is the basis of Tektronix performance signal analyzers. The software controls the spectrum analyzer acquisition and updates measurement displays continuously.

The base version ships free with the product; add options to configure the software for your application.

Highlights

  • Free base version has 17 signal analysis and real-time spectrum analysis measurements
  • Paid add-on options for more than 15 advanced measurements including WLAN testing, P25 compliance testing, pulse analysis, modulation analysis and more

Instrument controller for USB spectrum analyzers

Thumbnail

For field operations, a complete solution requires a Windows Tablet or laptop for instrument operation, record keeping and communication. Tektronix recommends the Panasonic FZ-G1 tablet computer for controlling the RSA500 series and as a standalone unit.

The Panasonic FZ-G1 tablet computer is sold separately and is available for purchase from Panasonic at their website here, and a variety of third party vendors. Tektronix recommends the FZ-G1 over other tablets because of its performance, portability, and ruggedized form-factor and it has been tested to work with all USB RSA products.

EMI and EMC testing accessories

Tektronix offers a complete set of validated EMI and EMC accessories including antennas, Line Impedance Stabilization Networks and pre-amplifiers for both conducted and radiated tests. All of these accessories are pre-loaded into EMCVu, Tektronix’ new software option for SignalVu. This means loss and gain of accessories are already captured in the software and are taken into account during the measurement. We’ve done this to help speed up setup and help you get more accurate results.

Full set of accessories are below:

Accessory Product Number Datasheet
Biconical Antenna EMI-BICON-ANT Download Now
LPDA Antenna EMI-CLP-ANT Download Now
5 uH LISN EMI-LISN5UH Download Now
50 uH LISN EMI-LISN50UH Download Now
20 dB near field amp EMI-NF-AMP Download Now
Near field probes EMI-NF-PROBE (TEKBOX TBPS01) Download Now
Preamplifier EMI-PREAMP (Com-Power PAM-103) Download Now
Transient Limiter EMI-TRANS-LIMIT (Com-Power LIT-153A) Download Now
Antenna Tripod EMI-TRIPOD (Com-Power AT-812) Download Now

Tracking Generator

Single solution for maintenance, troubleshooting, interference hunting. Factory calibration minimizes measurement setup time and errors.

Part Number Description
OPT 04 Tracking Generator: 10 MHz - to maximum range of instrument

Calibration kits and phase-stable cables

These calibration kits and phase-stable cables are used with the tracking generator and SV60xx-SVPC when making VSWR, return loss, distance to fault and cable loss measurements.

Part Number Description
CALOSLNM Calibration kit, 3-in-1, open, short, load,  DC to 6 GHz, Type-N(m), 50 ohm
CALOSLNF Calibration kit, 3-in-1, open, short, load, DC to 6 GHz, Type-N(f), 50 ohm
CALOSL716M Calibration kit, 3-in-1, open, short, load, DC to 6 GHz, 7/16 DIN(m)
CALOSL716F Calibration kit, 3-in-1, open, short, load, DC to 6 GHz, 7/16 DIN(f)
CALSOLTNF Calibration kit, 4-in-1 Type-N  (f) short, open, load, through, 9 GHz
CALSOLTNM Calibration kit, 4-in-1 Type-N  (m) short, open, load, through, 9 GHz
CALSOLT35F Calibration kit, 4-in-1 3.5 mm (f)short, open, load, through,  13 GHz
CALSOLT35M Calibration kit, 4-in-1 3.5 mm (m) short, open, load, through, 13 GHz
CALSOLT716F Calibration kit, 4-in-1 7/16 (f) short, open, load, through, 6 GHz
CALSOLT716M Calibration kit, 4-in-1 7/16 (m) short, open, load, through, 6 GHz
CALSOLTNF-75 Calibration kit, 4-in-1 Type-N  (f) short, open, load, through, 75 Ohm, 3 GHz
CALSOLTNM-75 Calibration kit, 4-in-1 Type-N  (m)short, open, load, through, 75 Ohm, 3 GHz
012-1768-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-N(m), 60 cm
012-1765-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-N(f),  60cm
012-1767-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-N(m), 3.28 ft or 1 m
012-1766-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-N(f), 3.28 ft or 1 m
012-1746-00 Cable, Rugged, Phase-stable, Type-N (m) to Type-N (m),  5 ft or 1.5 m
012-1745-00 Cable, Rugged, Phase-stable, Type-N (m) to Type-N (f), 5 ft or 1.5 m
012-1747-00 Cable, Rugged, Phase-stable, Type-N(m) to 7/16(f),  60 cm
012-1752-00 Cable, Rugged, Phase-stable, Type-N(m) to 7/16(m), 60 cm
012-1750-00 Cable, Rugged, Phase-stable, Type-N(m) to 7/16(m), 3.28 ft or 1 m
012-1748-00 Cable, Rugged, Phase-stable, Type-N(m) to 7/16(f), 3.28 ft or 1 m
012-1751-00 Cable, Rugged, Phase-stable, Type-N(m) to 7/16(m), 5 ft or 1.5 m
012-1749-00 Cable, Rugged, Phase-stable, Type-N(m) to 7/16(f), 5 ft or 1.5 m
012-1753-00 Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(f),  60 cm
012-1758-00 Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(m), 60 cm
012-1756-00 Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(m), 3.28 ft or 1 m
012-1754-00 Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(f), 3.28 ft or 1 m
012-1757-00 Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(m), 5 ft or 1.5 m
012-1755-00 Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(f), 5 ft or 1.5 m
012-1762-00 Cable, Rugged, Phase-stable, Type-N(m) to TNC(m),  60 cm
012-1761-00 Cable, Rugged, Phase-stable, Type-N(m) to TNC(f), 60 cm
012-1763-00 Cable, Rugged, Phase-stable, Type-N(m) to TNC(m), 3.28 ft or 1 m
012-1759-00 Cable, Rugged, Phase-stable, Type-N(m) to TNC(f), 3.28 ft or 1 m
012-1764-00 Cable, Rugged, Phase-stable, Type-N(m) to TNC(m), 5 ft or 1.5 m
012-1760-00 Cable, Rugged, Phase-stable, Type-N(m) to TNC(f), 5 ft or 1.5 m
012-1772-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(m) 60 cm
012-1769-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(f),  60 cm
012-1773-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(m), 3.28 ft or 1 m
012-1770-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(f), 3.28 ft or 1 m
012-1774-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(m), 5 ft or 1.5 m
012-1771-00 Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(f), 5 ft or 1.5 m

RF Accessories

We have a wide variety of RF accessories to make one-stop shopping easily.  Listed below are RF cables, adapters, attenuators, filters and other items.

Part Number Description
013-0410-00 Adapter, Coaxial, 50 Ohm Type-N (f) to Type-N (f)
013-0411-00 Adapter, Coaxial, 50 Ohm Type-N (m) to Type-N (f)
013-0412-00 Adapter, Coaxial, 50 Ohm, Type-N(m) to Type-N(m)
013-0402-00 Adapter, Coaxial,  50 Ohm Type-N (m) to Type-N 7/16(m)
013-0404-00 Adapter, Coaxial,  50 Ohm Type-N(m) to Type-7/16 (f)
013-0403-00 Adapter, Coaxial,  50 Ohm Type-N(m) to Type DIN 9.5(m)
013-0405-00 Adapter, Coaxial,  50 Ohm Type-N(m) to Type-DIN 9.5(f)
013-0406-00 Adapter, Coaxial,  50 Ohm Type-N(m) to Type-SMA(f)
013-0407-00 Adapter, Coaxial,  50 Ohm Type-N(m) to Type-SMA(m)
013-0408-00 Adapter, Coaxial,  50 Ohm Type-N(m) to Type-TNC(f)
013-0409-00 Adapter, Coaxial,  50 Ohm Type-N(m) to Type-TNC(m)
012-1738-00 CABLE ASSY; COAX,RFD,50 OHM,40INCH,N TYPE,BOTH ENDS,MALE
013-0422-00 Pad, 50/75 Ohm, Minimum Loss, Type-N(m) 50 Ohm to Type-BNC(f) 75 Ohm
013-0413-00 Pad, 50/75 Ohm, Minimum Loss, Type-N(m) 50 Ohm to Type-BNC(m) 75 Ohm
013-0415-00 Pad, 50/75 Ohm, Minimum Loss, Type-N(m) 50 Ohm to Type-F(m) 75 Ohm
015-0787-00 Pad, 50/75 Ohm, Minimum Loss, Type-N(m) 50 Ohm to Type-F(f) 75 Ohm
015-0788-00 Pad, 50/75 Ohm, Minimum Loss, Type-N(m) 50 Ohm to Type-N(f) 75 Ohm
119-7246-xx Pre-filter, general purpose, 824 to 2500 MHz, Type-N (f) connector
119-7426-xx Pre-filter, general purpose, 2400 to 6200 MHz, Type-N (f) connector
011-0227-00 Bias-T, Type N(m) RF, Type N(f) RF+DC, BNC(f) Bias, 1W, 0.5A, 2.5 MHz-6 GHz
011-0222-00 Attenuator, Fixed, 10 dB, 2 W, DC-8 GHz, Type-N(f) to Type-N(f)
011-0223-00 Attenuator, Fixed, 10 dB, 2 W, DC-8 GHz, Type-N(m) to Type-N(f)
011-0224-00 Attenuator, Fixed, 10 dB, 2 W, DC-8 GHz, Type-N(m) to Type-N(m)
011-0228-00 Attenuator, Fixed, 3 dB, 2 W, DC-18 GHz, Type-N(m) to Type-N(f)
011-0225-00 Attenuator, Fixed, 40 dB, 100 W, DC-3 GHz, Type-N(m) to Type-N(f)
011-0226-00 Attenuator, Fixed, 40 dB, 50 W, DC-8.5 GHz, Type-N(m) to Type-N(f)
119-8733-00 Antenna, Active, GPS GLONASS
119-8734-00 Antenna, Active, GPS, Beidou
