A low voltage single-ended probe is typically used for measuring high-speed, ground referenced signals up to 12 V. These low voltage probes are the best choice for making measurements on high impedance, high frequency circuit elements which require minimal probe loading.  Users should select probes with a low input capacitance specification (~1 pF) to minimize the probe’s loading effect on the circuit.  A probe with lower input capacitance will offer higher input impedance at higher frequencies.

Tektronix Low Voltage Single-ended Probe solutions offer:

  • Bandwidths up to 4 GHz.
  • Very high input impedance with low input capacitance (<1 pF)
  • Most extensive set of probe accessories for optimum measurement performance

See more probes »

Low Voltage Single Ended Probes
Model Attenuation Bandwidth Input Impedance Maximum Voltage List Price

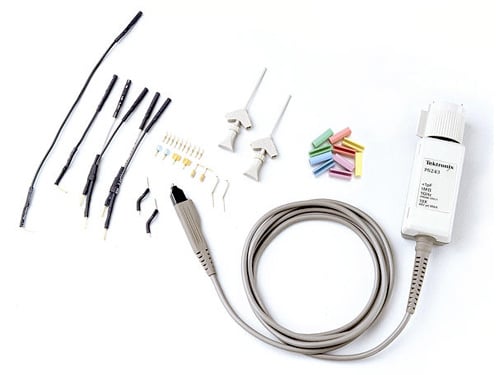

P6243
View Compatible Instruments
DPO7000CTPA-BNC Adapter required
MDO3000TPA-BNC Adapter required
MDO4000CTPA-BNC Adapter required
MSO/DPO2000TPA-BNC Adapter and TekVPI® External Power Supply (119-8726-xx) required
MSO/DPO2000BTPA-BNC Adapter and TekVPI® External Power Supply (119-8726-xx) required
MSO/DPO3000TPA-BNC Adapter required
MSO/DPO4000TPA-BNC Adapter required
MSO/DPO5000TPA-BNC Adapter required
MSO/DPO5000BTPA-BNC Adapter required
MSO4000BTPA-BNC Adapter required
TDS3000Fully Compatible
TDS5000Fully Compatible



10X 1 GHz

1 MΩ || ≤ 1 pF

± 8 V

-
Configure & Quote
P6245
View Compatible Instruments
DPO7000CTPA-BNC Adapter required
MDO3000TPA-BNC Adapter required
MDO4000CTPA-BNC Adapter required
MSO/DPO2000TPA-BNC Adapter and TekVPI® External Power Supply (119-8726-xx) required
MSO/DPO2000BTPA-BNC Adapter and TekVPI® External Power Supply (119-8726-xx) required
MSO/DPO3000TPA-BNC Adapter required
MSO/DPO4000TPA-BNC Adapter required
MSO/DPO5000TPA-BNC Adapter required
MSO/DPO5000BTPA-BNC Adapter required
MSO4000BTPA-BNC Adapter required
TDS3000Fully Compatible
TDS5000Fully Compatible



10X 1.5 GHz

1 MΩ || ≤ 1 pF

± 8 V

-
Configure & Quote

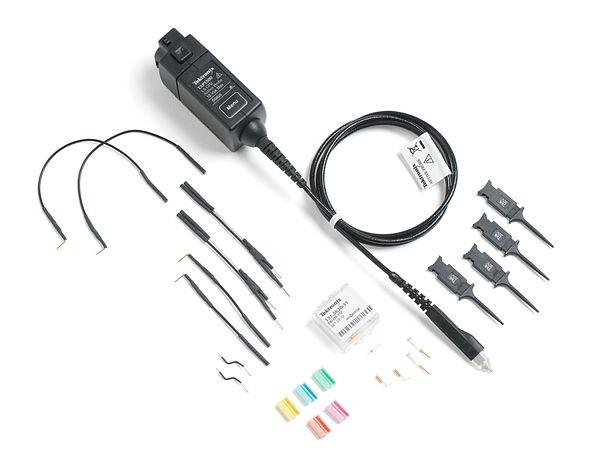

TAP1500
View Compatible Instruments
5 Series MSOFully Compatible
5 Series MSO Low ProfileFully Compatible
DPO/DSA/MSO70000TCA-VPI50 Adapter required
DPO7000CFully Compatible
MDO3000Fully compatible and probe supported on RF Input with required TPA-N-VPI Adapter
MDO4000CFully compatible and probe supported on RF Input with required TPA-N-VPI Adapter
MSO/DPO2000TekVPI® External Power Supply (119-8726-xx) required
MSO/DPO2000BTekVPI® External Power Supply (119-8726-xx) required
MSO/DPO3000Fully Compatible
MSO/DPO4000Fully Compatible
MSO/DPO5000Fully Compatible
MSO/DPO5000BFully Compatible
MSO4000BFully Compatible
TBS2000Fully Compatible



10X

1.5 GHz

1 MΩ || ≤ 1 pF

± 8 V

-
Configure & Quote
TAP2500
View Compatible Instruments
5 Series MSOFully Compatible
5 Series MSO Low ProfileFully Compatible
DPO/DSA/MSO70000TCA-VPI50 Adapter required
DPO7000CFully Compatible
MDO3000Fully compatible and probe supported on RF Input with required TPA-N-VPI Adapter
MDO4000CFully compatible and probe supported on RF Input with required TPA-N-VPI Adapter
MSO/DPO2000TekVPI® External Power Supply (119-8726-xx) required
MSO/DPO2000BTekVPI® External Power Supply (119-8726-xx) required
MSO/DPO3000Fully Compatible
MSO/DPO4000Fully Compatible
MSO/DPO5000Fully Compatible
MSO/DPO5000BFully Compatible
MSO4000BFully Compatible
TBS2000TekVPI® External Power Supply (119-8726-xx) required



10X

2.5 GHz

40 kΩ || ≤ 0.8 pF

± 4 V

-
Configure & Quote
TAP3500
View Compatible Instruments
DPO/DSA/MSO70000TCA-VPI50 Adapter required
DPO7000CFully Compatible
MDO3000Fully compatible and probe supported on RF Input with required TPA-N-VPI Adapter
MDO4000CFully compatible and probe supported on RF Input with required TPA-N-VPI Adapter
MSO/DPO2000TekVPI® External Power Supply (119-8726-xx) required
MSO/DPO2000BTekVPI® External Power Supply (119-8726-xx) required
MSO/DPO3000Fully Compatible
MSO/DPO4000Fully Compatible
MSO/DPO5000Fully Compatible
MSO/DPO5000BFully Compatible
MSO4000BFully Compatible
TBS2000TekVPI® External Power Supply (119-8726-xx) required



10X

3.5 GHz

40 kΩ || ≤ 0.8 pF

± 4 V

-
Configure & Quote
TAP4000

10X

4 GHz

40 kΩ || ≤ 0.8 pF

± 4 V

-
Configure & Quote
P7240
View Compatible Instruments
DPO/DSA/MSO70000Fully Compatible
TDS6000Fully Compatible
TDS7000Fully Compatible
5X

4 GHz

20 kΩ || ≤ 0.8 pF

± 2 V

-
Configure & Quote
Model P6243
AttenuationBandwidthInput Impedance
10X1 GHz

1 MΩ || ≤ 1 pF

Maximum Voltage

± 8 V

Model P6245
AttenuationBandwidthInput Impedance
10X1.5 GHz

1 MΩ || ≤ 1 pF

Maximum Voltage

± 8 V

Model TAP1500
AttenuationBandwidthInput Impedance
10X

1.5 GHz

1 MΩ || ≤ 1 pF

Maximum Voltage

± 8 V

Model TAP2500
AttenuationBandwidthInput Impedance
10X

2.5 GHz

40 kΩ || ≤ 0.8 pF

Maximum Voltage

± 4 V

Model TAP3500
AttenuationBandwidthInput Impedance
10X

3.5 GHz

40 kΩ || ≤ 0.8 pF

Maximum Voltage

± 4 V

Model TAP4000
AttenuationBandwidthInput Impedance

10X

4 GHz

40 kΩ || ≤ 0.8 pF

Maximum Voltage

± 4 V

Model P7240
AttenuationBandwidthInput Impedance
5X

4 GHz

20 kΩ || ≤ 0.8 pF

Maximum Voltage

± 2 V
