2600B Series SMU
Keithley’s Series 2600B System SMU instruments are the industry standard current-voltage source and measure solution for highly automated production test applications. Both dual- and single-channel models tightly integrate a precision power supply, true current source, DMM, and electronic load with pulse generating capabilities. Plus, TSP® technology runs complete test programs for automated system applications, and TSP-Link® technology enables daisy-chaining up to 64 channels for high volume parallel test.
Channels
2 or 1
Min V/I Pulse Source
<100 µs
0.1% settled
V/I range
0.1 fA to 10 A,
100 nV to 200 V
Max Speed
20k readings/s to buffer
SMU 2600B Series SourceMeter
Complete production test without sacrificing footprint
Meet all your production test needs with two completely isolated channels of wide dynamic source and measure within the same footprint. Each 40 W channel provides 6½-digit precision resolution source and measure from 10 A pulse to 0.1 fA and 200 V to 100 nV at less than 100 µs pulse width and within 0.1% of settled value.
Simplifying FET Testing with 2600B
Highlights
- Up to 2 channels in the same footprint
- Widest dynamic range of voltage and current
- Highly accurate 100 µs pulse expanding DC production test capabilities
Embedded scripting for unmatched production throughput
Test Script Processor (TSP®) technology embeds and executes complete test programs inside the SMU instrument to deliver industry-best performance.
Diode Production Testing with Series 2600B
Highlights
- Eliminates time-consuming bus communications to and from the PC
- Advanced data processing and flow control
- Versatile prober/handler control
System performance, without a mainframe
TSP-Link® technology enables expansion up to 64 channels for high-speed, SMU-per-pin parallel testing without a mainframe. All channels are simultaneously and independently controlled at a tight <500 ns.
Increasing Production Throughput of Multi-pin Devices with Keithley Series 2600B
Highlights
- Supports <500 ns channel-to-channel synchronization
- Up to 32 SMUs or 64 independent SMU channels
- Reconfigure easily as test requirements change
Best low current performance for production
The 2635B and 2636B SMUs provide 0.1 fA, 10-16 resolution on the lowest 100 pA range, reducing ultra-low level sample characterization worries and assuring production success.
Highlights
- 7x faster settling time on the lowest current range
- Best low current resolution on the market
- Direct triax connection simplifies setup
Learn more. Gain more.
Source Measure Unit Tutorial Learning Center brings together a wealth of information on Keithley SMUs and other products in an all-in-one, convenient location. We provide links to a wide variety of content related to the applications and industries we serve.
| Model | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution (Current / Voltage) | Power | List Price |
|---|---|---|---|---|---|---|
| 2601B | 1 | 10A | 40V | 100fA / 100nV | 200 W | US $7,550 Configure & Quote |
| 2611B | 1 | 10A | 200V | 100fA / 100nV | 200 W | US $7,550 Configure & Quote |
| 2614B | 2 | 10A | 200V | 100fA / 100nV | 200 W | US $10,100 Configure & Quote |
| 2604B | 2 | 10A | 40V | 100fA / 100nV | 200 W | US $10,100 Configure & Quote |
| 2612B | 2 | 10A | 200V | 100fA / 100nV | 200 W | US $11,100 Configure & Quote |
| 2602B | 2 | 10A | 40V | 100fA / 100nV | 200 W | US $11,100 Configure & Quote |
| 2635B | 1 | 10A | 200V | 0.1fA / 100nV | 200 W | US $12,000 Configure & Quote |
| 2634B | 2 | 10A | 200V | 1fA / 100nV | 200 W | US $15,900 Configure & Quote |
| 2636B | 2 | 10A | 200V | 0.1fA / 100nV | 200 W | US $18,100 Configure & Quote |
| Model | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution (Current / Voltage) | Power | List Price |
|---|---|---|---|---|---|---|
| 2601B | 1 | 10A | 40V | 100fA / 100nV | 200 W | US $7,550 Configure & Quote |
| 2611B | 1 | 10A | 200V | 100fA / 100nV | 200 W | US $7,550 Configure & Quote |
| 2614B | 2 | 10A | 200V | 100fA / 100nV | 200 W | US $10,100 Configure & Quote |
| 2604B | 2 | 10A | 40V | 100fA / 100nV | 200 W | US $10,100 Configure & Quote |
| 2612B | 2 | 10A | 200V | 100fA / 100nV | 200 W | US $11,100 Configure & Quote |
| 2602B | 2 | 10A | 40V | 100fA / 100nV | 200 W | US $11,100 Configure & Quote |
| 2635B | 1 | 10A | 200V | 0.1fA / 100nV | 200 W | US $12,000 Configure & Quote |
| 2634B | 2 | 10A | 200V | 1fA / 100nV | 200 W | US $15,900 Configure & Quote |
| 2636B | 2 | 10A | 200V | 0.1fA / 100nV | 200 W | US $18,100 Configure & Quote |
| Keithley 2600B Series |
Keithley 2400 Series |
|||||||||||||||||
| 2601B | 2602B | 2604B | 2606B | 2611B | 2612B | 2614B | 2635B | 2636B | 2634B* | 2450 | 2460 | 2461 | 2400 | 2401* | 2410 | 2420 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Touch Screen | No | Yes | No | |||||||||||||||
| Channels | 1 | 2 | 4 | 1 | 2 | 1 | 2 | 1 | ||||||||||
| Max Power Output | 40 W/channel | 20 W/channel | 30 W/channel | 30 W/channel | 20 W | 100 W | 1,000 W Pulse 100 W DC |
22 W | 66 W | |||||||||
| I | min | ±100 fA | ±100 fA | ±0.1 fA 1 fA* |
±10 fA | ±1pA | ±1pA | ±1pA | ±1pA | ±1pA | ±10 pA | |||||||
| max | 10 A Pulse ±3 A DC / channel |
3 A Pulse ±3 A DC / channel |
10 A Pulse ±1.5 A DC / channel |
10 A Pulse ±1.5 A DC / channel |
±1.05 A | ±7.35 A | ±10 A | ±1.05 A | ±1.05 A | ±1.05 A | ±3.15 A | |||||||
| V | min | ±100 nV | ±100 nV | ±100 nV | ±10 nV | ±100 nV | ±100 nV | ±100 nV | ±100 nV | ±100 nV | ±100 nV | |||||||
| max | ±40 V | ±20 V | ±200 V | ±200 V | ±210 V | ±105 V | ±100 V | ±210 V | ±21 V* | ±1100 V | ±63 V | |||||||
| Basic Accuracy | I | 0.02% | 0.02% | 0.04% | ||||||||||||||
| V | 0.02% | 0.01% | 0.02% | |||||||||||||||
| Reading Speed | 20,000 rdgs/s | 3,130 rdgs/s | 3,000 rdgs/s | 3,000 rdgs/s 1MS/s digitizer |
2,081 rdgs/s | |||||||||||||
| Contact Check | Yes | No | Yes | Yes | No | Yes | No | No | Yes | No | ||||||||
| TSP-Link | Yes | No | Yes | Yes | No | Yes | No | Yes | No | |||||||||
| Digital I/O | Yes | No | Yes | Yes | No | Yes | No | Yes | No | Yes | ||||||||
| Computer Interface | USB 2.0 LAN/LXI-C IEEE-488 RS-232 |
USB 2.0 LAN/LXI-C only |
USB 2.0 LAN/LXI-C IEEE-488 RS-232 |
USB 2.0 LAN/LXI 1.4 IEEE-488 |
IEEE-488 RS-232 |
|||||||||||||
| Compliance | CE, UL | CE, NRTL listed | CE, UL | CE | ||||||||||||||

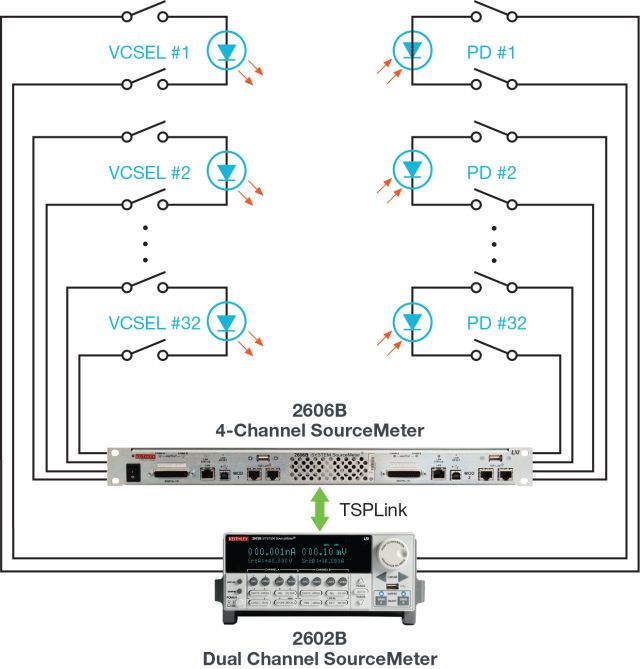

Laser Diode (VCSEL) Production Test
Industry's best DC test system for Laser Diode (LD) production test uses high speed and high accuracy SMUs for both current sourcing and voltage-current monitoring of laser diode modules, photodiode current. SMUs are the most cost-effective LIV instrumentation with high system synchroization and throughput.
High Throughput DC Production Testing of Laser Diode Modules and VCSELs
Highlights
- Programmable current source up to 10 A and 100 µs
- Voltage and current measure resolution at 100 nV and 0.1 fA
- Built-in TSP processing capability reduces PC-instrument bus communication

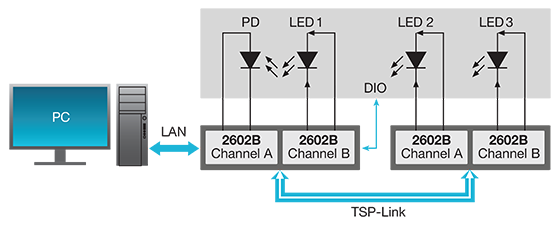

Simplified I/V Characterization of LEDs
2600B Series SMUs are the industry's leading instrument for LED DC characterization and production test. They're configurable to source current or voltage coupled with voltage and current measurement at 0.02% accuracy for a variety of test needs. In addition, their Test Script Processor (TSP®) technology provides throughput advantages.
Simplified I/V Characterization of LEDs

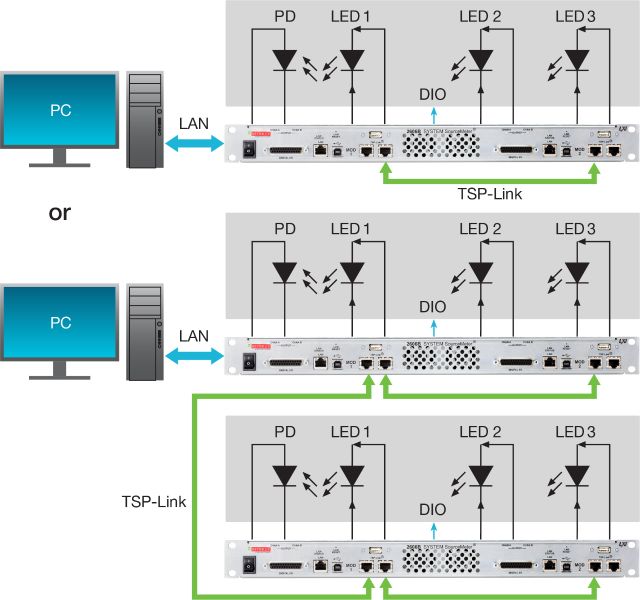

High Speed Testing of High Brightness LEDs
Cost effective and accurate production test of LEDs
Highlights
- Programmable current source up to 10 A and 100 µs
- Voltage and current measure resolution at 100 nV and 0.1 fA
- Built-in TSP processing capability reduces PC-instrument bus communication

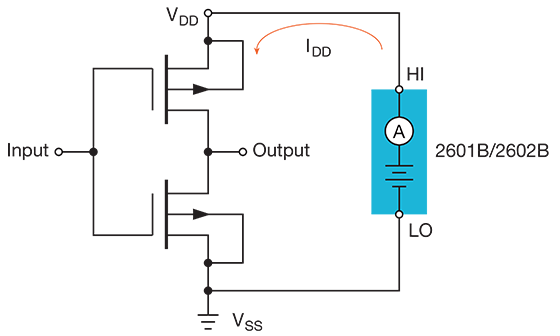

IDDQ Testing and Standby Current Testing
Keithley's 2636B/35B models feature industry's best low currrent sensitivity designed for the throughput requirement of a production environment. It is ideal for measuring quiescent (standby)current, aka leakage currents or IDDQ for manufacturers of CMOS integrated circuits and electronic products in order to check for shorted gate oxide and other defects that may cause a failure over time.
IDDQ Testing and Standby Current Testing
Highlights
- 0.1 fA resolution
- 7x faster settling time than competition

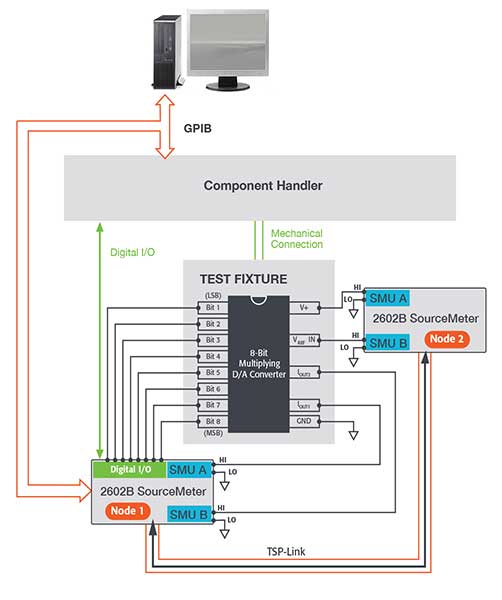

Highly syncrhonized multi-pin, multi-channel mainframe-less production system
Keithley’s Series 2600B System SourceMeter® SMU instruments combines the scalability and flexibility of rack-and-stack instruments with the integration and high throughput of mainframe-based systems, using TSP and TSP-Link technologies to reduce manufacturing footprint and cost of test.
Creating Scaleable, Multipin, MultiFunction IC Test Systems
Highlights
- Built-in TSP processing capability reduces PC-instrument bus communication
- TSP-Link up to 32 instruments at 500 ns synchronization with other Keithley TSP instruments

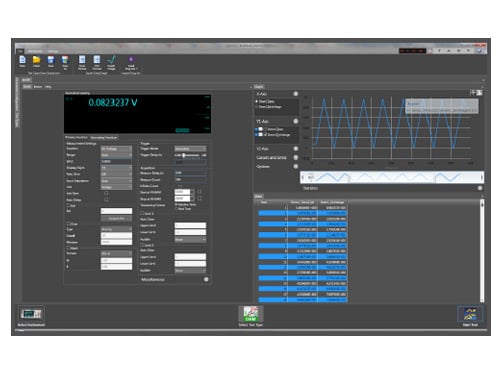

Keithley KickStart Instrument Control Software. No Programming Required.
Making measurements is easy with KickStart. Characterize your devices and materials quickly and easily without programming. Visualize real-time results in graphical and tabular format. Export data tables or graphs for quick reporting or additional analysis in Excel.
Download a 60-Day Trial version of Keithley KickStart
Highlights
- GPIB, USB, Ethernet connectivity on Windows OS
- I-V characterization application to support up to 4 source measure unit (SMU) instruments
- Generate linear, log, list, and dual sweeps of voltage and current source with simultaneous measurement
Keithley IVy - Wireless I-V characterization on a mobile device
Keithley IVy is the fastest and easiest way to perform current-voltage characterization, troubleshoot your device under test (DUT), and share the measurement results without programming, while gaining a deeper undersstanding of your DUT!
How-to connect a 2600B SMU to your mobile device
Click here to download IVy app for iOS
Click here to download IVy app for Andriod
Highlights
- Compatible with Keithley Series 2600B SourceMeter SMU Instruments
- Visualize two-terminal devices in I-V mode
- View your device’s behavior in time mode
- Share your data instantly via e-mail, Dropbox, or Google Drive

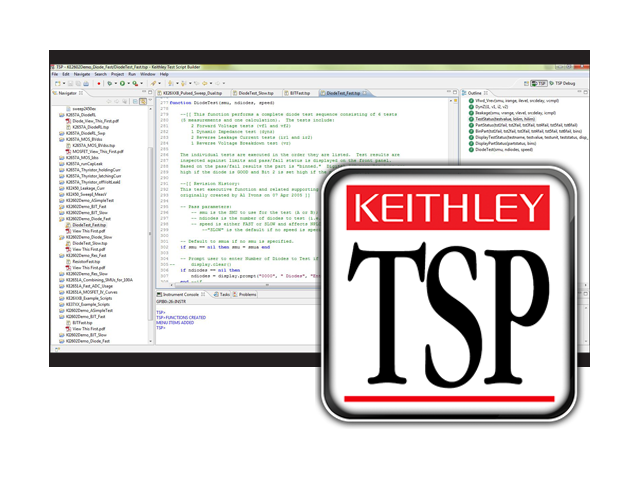

FREE script developer environment to maximize instrument performance
Test Script Builder (TSB) is a software tool that simplifies building test scripts for Keithley’s Test Script Processor (TSP®)-enabled instruments.
Highlights
- Send commands and receive responses from the instrument
- Create, manage, and run user scripts
- Debug scripts
- Import factory scripts to view or edit and convert to user scripts
