PSPL5315 17 GHz Differential Pulse Splitter Datasheet

PSPL5315 Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

Read Online:

The PSPL5315 BALUN is a broadband differential pulse splitter. A signal fed into the 50 Ω input is split equally into two 50 Ω outputs. One output is the same polarity as the input, while the other output is inverted in polarity. The PSPL5315 BALUN has a very fast 21 ps rise time and a bandwidth of 17 GHz. One application of the PSPL5315 is to provide push-pull, balanced drive signals for the deflection plates of ultra-wideband, traveling-wave oscilloscopes.

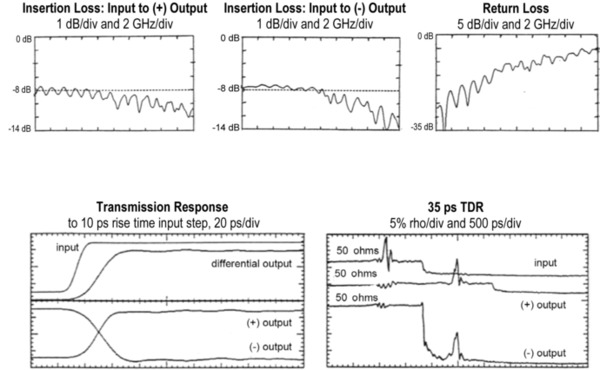

Typical performance



Parameter 1 Value
Rise time (10%-90%) 21 ps typical, 25 ps max.
Bandwidth (-3 dB) 17 GHz typical
Low Frequency Cutoff 200 kHz (-3 dB)
Insertion Loss 8 dB, nominal
Impedance 50 Ω
Refl. Coeff. (35 ps TDR)
(+) output
(-) input
-4%, t > 1 ns
-4%, t > 3 ns
-15%, t > 2 ns
Return Loss 0.1  20 dB -2.5 dB/GHz*f (GHz)
2  15 dB -1.25 dB/GHz*f (GHz)
Sag Time Constant 800 ns (1/e)
Delay 0.9 ns
Diff. Delay Balance (step response) ±2 ps max.
Diff. Balance (step response) 1 ns
Max. Input 0.75 Watts
Connectors SMA jacks (f)
Weight 0.5 lbs. (0.2 kg)
Dimensions 6 in x 3.7 in x 1.1 in (15 cm x 9.4 cm x 2.8 cm)
Warranty One year

1 All parameters listed are typical unless max/min guaranteed limits are provided. Due to internal reflections, the PSPL5315 is NOT recommended for use with gigabit logic signals nor in a differential network analyzer.

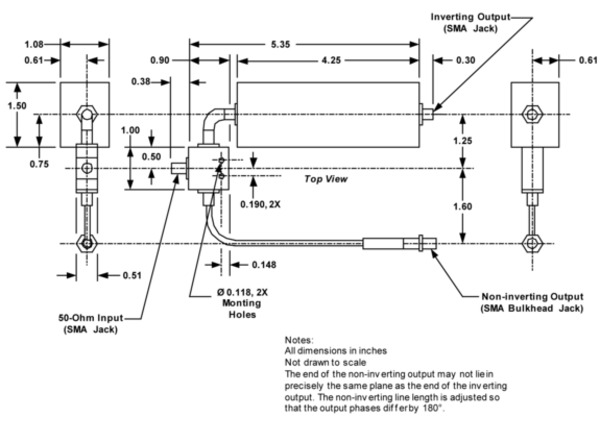

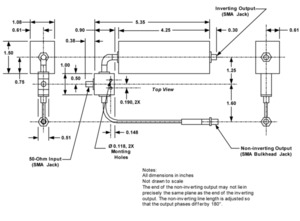

Mechanical dimensions

Ordering information

Diff pulse splitter-Balun, SMA J-J-J
