USB 3.2 Transmitter Solutions

USBSSP-TX and USB-TX Datasheet

Read Online:

The Tektronix USBSSP-TX and USB-TX Automated Transmitter solutions provide an easy way to validate and characterize emerging USB 3.2 Type-C host controllers, hubs and devices with Tektronix MSO/DPO/70000DX/SX series oscilloscopes.

Key Offerings

  • Transmitter testing
    • Provides a comprehensive automated and manual toolset for USB 3.2 Gen1 (5 Gbps) and Gen2 (10 Gbps) verification, characterization, debug, and compliance test.
    • Supports Type-C, Standard and Micro connectors for USB 3.2 Specification.
    • Provides automatic processing of USB-IF SIGTEST results without manual intervention.
    • Auto selection of sources (channels) based on the probe type selected.
    • Includes support for captive devices and their associated channels as per CTS.
    • Uses pre-recorded mode to run measurements for offline analysis and collaboration with the globally dispersed teams.
    • DPOJET plugin for USB 3.2 Type-C, Standard and Micro connectors which supports USB 3.2 specification and CTS (Gen1 & Gen2) with setup files and MOI.
    • Automatic DUT control and pattern validation to capture all required data patterns (CP0, CP1, CP9, CP10, etc.).
    • Support embedding all Channels and their respective filter files for Type-C, Standard and Micro Connectors using SDLA .
    • Quickly validate test status with comprehensive reporting that details test margins, pass/fail results, and plots in PDF, MHT and CSV formats.
    • Manual Lane Switching – Support for reversible Type-C connector.

Applications

USB transmitter testing

  • Host and Device silicon validation
  • System, peripheral, and hub validation and integration
  • Manufacturing test

Complete automation for USB testing

The automated solution for USB 3.2 simplifies transmitter testing. No longer is it a requirement that the end user be an expert in USB. The process of defining test parameters, power on/off DUT, capturing the LFPS signal, toggling the compliance patterns, making sure the compliance pattern captured is correct, showing results after each measurement is executed, and saving the test results, is fully automated in the Tektronix USB 3.2 automated test solution.

USB Transmitter Solutions 55W2392922

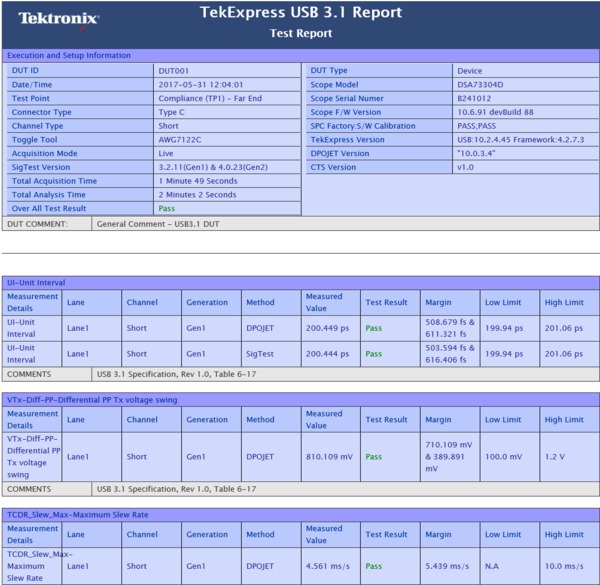

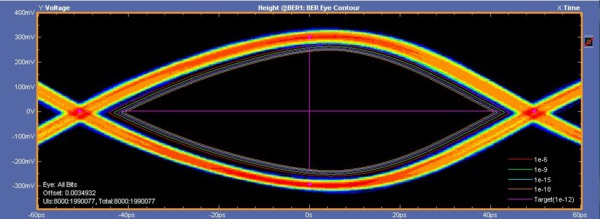

TekExpress sample report in MHT format

Required test procedures (MOI) can be found at: tek.com/usb.

USB Transmitter Solutions 55W2392922
TekExpress automated framework configuration panel

Key differences between USB-TX and USBSSP-TX

FeatureUSB-TXUSBSSP-TX
Automatic measurement selections based on device type, test type, test points, and selected probesXX
Automatic selection of receiver CTLE filterCTLE onlyCTLE/DFE
Automatic selection of Tx channel modeling for software channel emulationXX
Complete coverage of USB 3.2 Normative and Informative tests (see next table)Gen1 (5 Gb/s)Gen1 (5 Gb/s) and Gen2 (10 Gb/s)
Automatically save test reports and waveformsXX
Re-analyze prerecorded waveformsXX
Single test report for all measurementsGen1 (5 Gb/s)Gen1 (5 Gb/s) and Gen2 (10 Gb/s)
Automated LFPS measurements (setup files only)XX
Automated DUT toggleXX
Automated SIGTEST measurementsXX

Ordering Information

Automated TekExpress USB 3.2 (5 Gb/s and 10 Gb/s) transmitter measurements

DPO/MSO700001
Tektronix DPO (Digital Phosphor Oscilloscope) or MSO (Mixed Signal Oscilloscope) Oscilloscopes – 16 GHz and above with DPOJET and SDLA64 installed
DPO/MSO70000 Opt. USBSSP-TX2
USB 3.2 5 and 10 Gb/s Transmitter Normative and Informative Tests for TekExpress Automated Compliance Test Software
USBSSP-UP
Upgrade USB-TX (Supports 5G only) software to USBSSP-TX software package (Supports 5G & 10G)
DPOFL-USBSSP-TX2
Floating license upgrade for USB 3.2 5 Gb/s and 10 Gb/s Transmitter Normative and Informative Tests for TekExpress Automated Compliance Test Software
DPO-UP USBSSP-TX
Upgrade for USB 3.2 5 Gb/s and 10 Gb/s Transmitter Normative and Informative Tests for TekExpress Automated Compliance Test Software
DPOFL-USBSSP-UP
Upgrade from Floating USB TX to Floating USB SSP TX
Recommended test fixtures, cables, and tools
ItemVendorQuantity
USB3ET Type A and Micro B Gen1 test fixturesUSB-IF1
USB31AET Type A & Micro B Gen2 test fixture kitUSB-IF1
USB31CET Type C Gen1 and Gen2 test fixtureUSB-IF1
PMCABLE1M Phase Matched SMA cable setTektronix2
AFG3k or AFG31k 50MHz or higher, AWG5000C, AWG7000C or AWG70000 (DUT State Control)Tektronix1
015-0572-00 BNC to SMA adapterTektronix2
PWS4000 Tektronix Power Supply (optional for automatic power cycling)Tektronix1

Automated TekExpress USB 3.2 (5 Gb/s) transmitter measurements

DPO/MSO700001
Tektronix DPO (Digital Phosphor Oscilloscope) or MSO (Mixed Signal Oscilloscope) Oscilloscopes – 12.5 GHz and above with DPOJET and SDLA64 installed
DPO/MSO70000 Opt. USB-TX3
USB 3.2 5 Gb/s Transmitter Normative and Informative Tests for TekExpress Automated Compliance Test Software
DPOFL-USB-TX3
Floating license upgrade for USB 3.2 5 Gb/s Transmitter Normative and Informative Tests for TekExpress Automated Compliance Test Software
DPO-UP USB-TX3
Upgrade for USB 3.2 5 Gb/s Transmitter Normative and Informative Tests for TekExpress Automated Compliance Test Software
USB-TX-UP
Upgrade USB TX solution from dongle based license to software node locked license.
Recommended test fixtures, cables, and tools
ItemVendorQuantity
USB3ET Type A & Micro B Gen1 test fixture kitUSB-IF1
USB31CET Type C test fixture kitUSB-IF1
PMCABLE1M Phase Matched SMA cable setTektronix2
AFG3k or AFG31k 50MHz or higher, AWG5000C, AWG7000C or AWG70000 (DUT State Control)Tektronix1
015-0572-00 BNC to SMA adapterTektronix2

Prerequisite host system software requirements

For USBSSP-TX and USB-TX
DPO/MSO70000 Series oscilloscope with Microsoft Windows 10

Required equipment for USB 3.2 testing

For complete list of required equipment's, go to tek.com/usb.

1Requires scope BW ≥16GHz for USB 3.2 Gen2 (10Gbps) and ≥12.5 GHz for USB 3.2 Gen1 (5Gbps).

2Requires DPOJET Jitter and Eye Analysis Tools (Opt. DJA) and ≥16 GHz oscilloscope and SDLA Visualizer (SDLA64).

3Requires oscilloscope with bandwidth ≥12.5 GHz and DPOJET Jitter and Eye Analysis Tools (Opt. DJA).
