DPO-MSO70000 Option PCE3-PCE4 Datasheet

PCI Express® Transmitter Compliance/Debug Solution

Read Online:

The Tektronix Option PCE3 (Gen 1/2/3) and Option PCE4 (Gen 1/2/3/4) applications provide the most comprehensive solution for PCI Express Transmitter compliance testing as well as debug and validation of PCI Express devices against the PCI-SIG® specifications.

Features and benefits
  • PCIe test support. Supports compliance and validation of PCIe Gen1/2/3/4 interfaces based on PCIe Base and CEM specifications for Tektronix DPO/MSO70000 Series oscilloscopes
  • Automated setup. Automatically sets up the oscilloscope horizontal and vertical scales to optimize signal quality for accurate analysis
  • Automated acquisition / waveform management. Automatically acquires and saves the waveform per the PCI-SIG®-recommended naming convention to manage numerous waveforms that need to be acquired per lane for completing the Transmitter (Tx) test
  • Automated DUT control. Automatically controls the DUT and steps it through the various supported speeds and presets necessary for Tx testing
  • RF switch automation of PCIe test solution, supporting up to x16 lanes
  • Support for NVMe physical layer testing, via add-in card device, or through a U.2 or M.2 connector

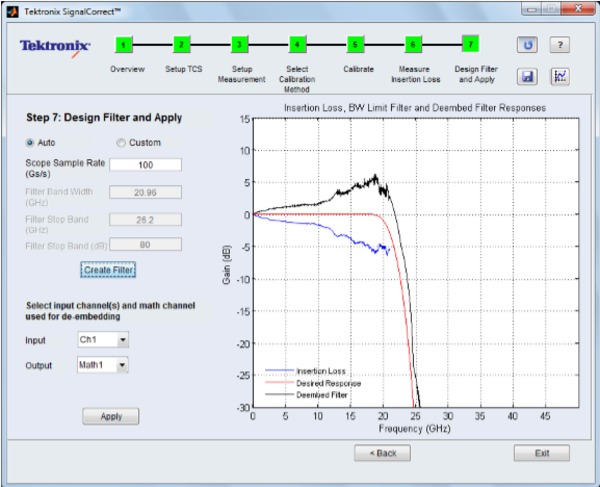

  • De-embedding. De-embeds the effects of the channel, test fixtures, and cables to provide results that more accurately represent the signal (requires Option SDLA64 Serial Data Link Analysis)
  • Test selection. Select the specification against which to perform the analysis, and select individual tests or groups of tests to perform targeted compliance analysis for failing tests
  • SigTest integration. Uses SigTest EXE (using command line interface) to perform the analysis of acquired waveforms, providing the ability to test a system using the PCI-SIG®-recommended analysis tool
  • Reporting. Compiles all test results into a customizable report with Pass/Fail results for easy analysis and record keeping
  • Pattern matching. Verifies that the correct set of compliance patterns are sent by the transmitter before acquiring signals for compliance analysis

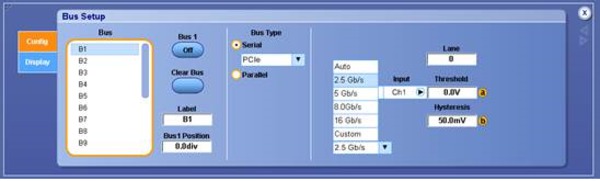

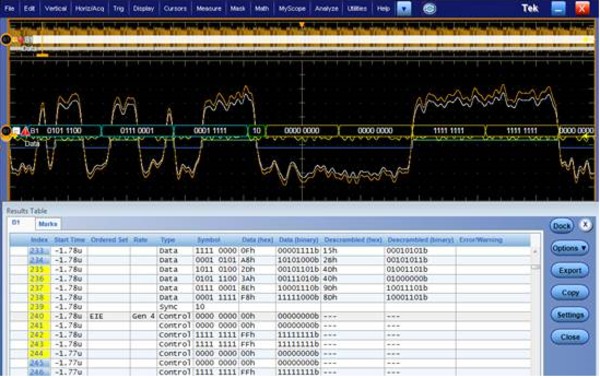

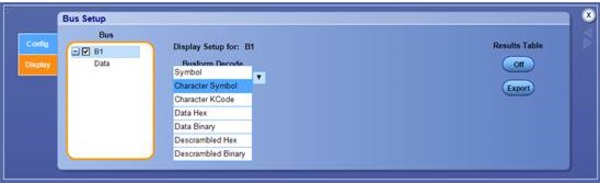

  • PHY level protocol decode. Decodes and displays the PCIe data in a protocol-aware view. A time-correlated event table view with waveforms allows for quickly searching through events of interest
  • Multi-lane testing. Perform analysis on multiple lanes of PCI express data to speed up the Tx analysis in a multi-lane system

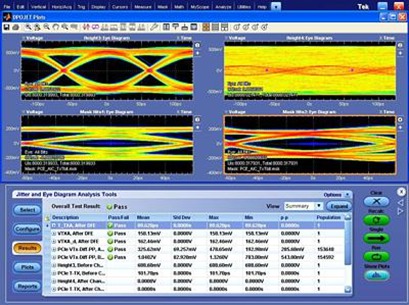

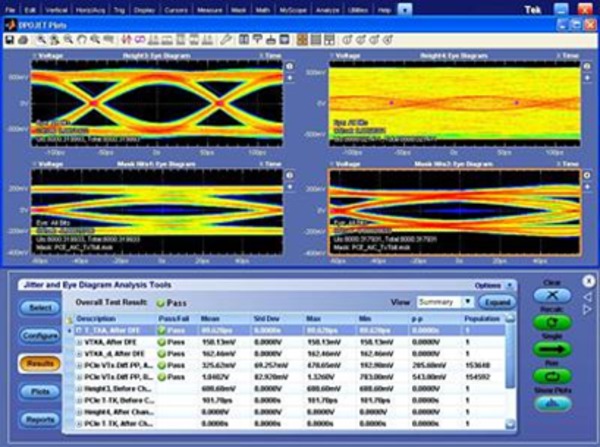

  • Compliance and debug. Provides a toolkit of DPOJET-based setups to quickly switch into debug and validation mode when a DUT fails compliance
  • Analysis and debug tools. Tektronix provides a broad range of compliance, debug, and validation tools for Transmitter (Tx), Receiver (Rx), and protocol testing
  • Comprehensive programmatic interface. Enables automation programs and scripts to call PCIe functions

Applications

Tektronix provides the most comprehensive solutions to serve the needs of engineers designing PCI Express silicon for computer systems, add-in cards, and embedded systems, as well as those validating the physical-layer compliance of PCI Express devices to the PCI Express Compliance Test Specification.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

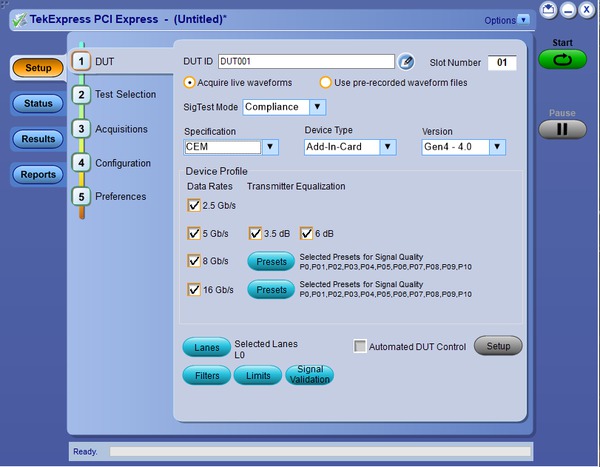

TekExpress PCIe test selection for compliance test analysis



The Tektronix Option PCE3 (Gen1/2/3) and PCE4 (Gen 1/2/3/4) includes compliance and debug testing and electrical validation for the following:

  • Root complex
  • Endpoints
  • Switches
  • Bridges
  • Add-In cards
  • System boards
  • Embedded systems
  • Express module



The Tektronix Option PCE3 and PCE4 applications include a TekExpress™ compliance automation solution that integrates SigTest from the PCI-SIG as well as Tektronix DPOJET-based PCI Express Jitter and Eye Diagram analysis tools for debug purposes in a single software package.

TekExpress compliance automation is available now for PCIe Gen1-3 CEM and Base testing via option PCE3, and for PCIe Gen1-4 Base and PCIe1-3 CEM via option PCE4.

The Tektronix Option PCE3 and Option PCE4 applications are compatible with Tektronix DPO/MSO70000 series oscilloscopes that are designed to meet the challenges of the next generation of serial data standards such as PCI Express. These oscilloscopes provide the industry's leading vertical noise performance with the highest number of effective bits (ENOB) and flattest frequency response for oscilloscopes in their class. The Tektronix DPO/MSO70000 series of oscilloscopes have been approved by PCI-SIG for compliance testing.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet



TekExpress oscilloscope acquisition setup



Compliance testing

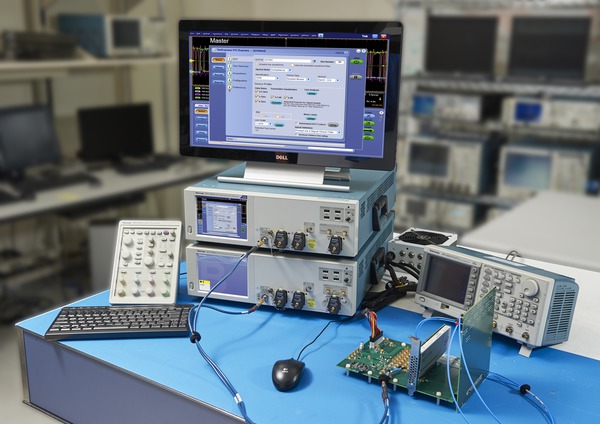

The PCI-SIG provides PCI Express compliance tests for testing PCI Express systems and add-in cards. For a PCI Express system or a device to be placed on the Integrators List, the system or device must pass interoperability and compliance testing. For electrical validation, the PCI-SIG uses SigTest Post Capture Analysis Software that uses acquisitions from an oscilloscope connected to the PCI-SIG's CBB (main board + riser) test fixture for add-in cards or CLB test fixture for systems to perform the analysis. Manually capturing the required waveforms and analyzing them is tedious, time consuming, and error prone.

The Tektronix Option PCE3 and Option PCE4 TekExpress Automation for PCI Express Transmitter Compliance reduces the effort and accelerates the compliance testing for PCI Express systems and devices with several unique and innovative capabilities. These options ultimately allow the testing of devices that support various technologies, such as NVMe, which is supported as an add-in card device, or through a U.2 or M.2 connector.

The Option PCE3 and Option PCE4 TekExpress Automation software can control the DUT using selected models of a Tektronix AFG or AWG pattern source and automatically cycle it through various speeds, de-emphasis, and presets that are necessary for the compliance test. This eliminates the error-prone manual push button approach normally used for DUT control on the CBB and CLB test fixtures.

A complete test run requires multiple waveforms to be acquired at different DUT settings per lane. This waveform set will increase by the number of lanes that need to be analyzed. The ability to manage and store the required data for analysis and future reference is an important criterion for any compliance solution. The Option PCE3 and Option PCE4 TekExpress automation software, apart from adjusting the horizontal and vertical settings as well as the acquisition depth for optimal signal quality for accurate analysis, provides easy analysis to manage multiple acquired waveforms.



DPO-MSO70000-Option-PCE3-PCE4-Datasheet

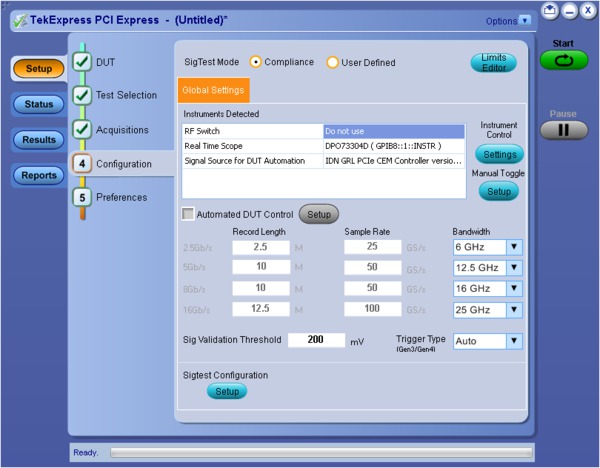

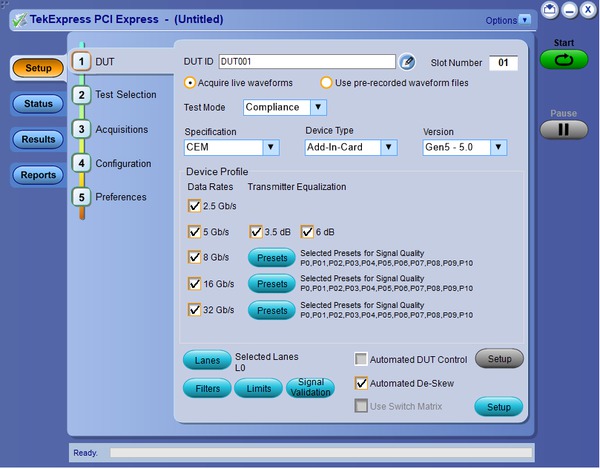

TekExpress setup configuration





DPO-MSO70000-Option-PCE3-PCE4-Datasheet

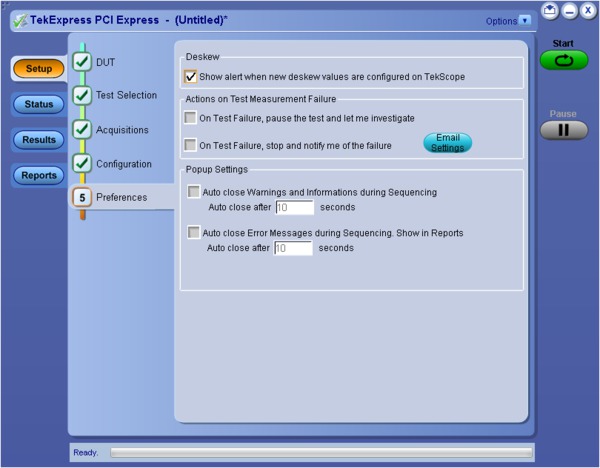

TekExpress setup preferences

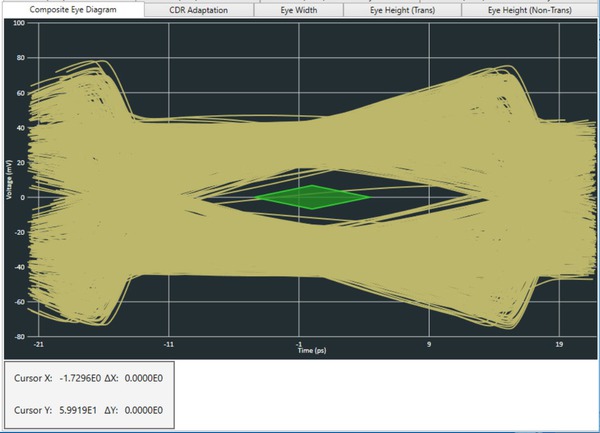

This makes the PCI-SIG's SigTest EXE is used to analyze the acquired waveforms. The makes results of the analysis consistent with the SigTest post-capture analysis software used at PCI-SIG workshops for compliance testing.

The Option PCE3 and Option PCE4 TekExpress automation software provides flexibility in selecting data rates, voltage swing, presets, and the tests to run. It also provides the option to de-embed the effects of the channel and the test fixtures and provide an accurate representation of the signal at the pins as required by the specification.

All the analysis results are compiled in a PDF/HTML formatted report that can include pass/fail summary, eye diagrams, setup configuration, and user comments. The contents of the report can be customized to include information of interest such as append results and custom report generation based on test name/pass fail/equalization.



DPO-MSO70000-Option-PCE3-PCE4-Datasheet

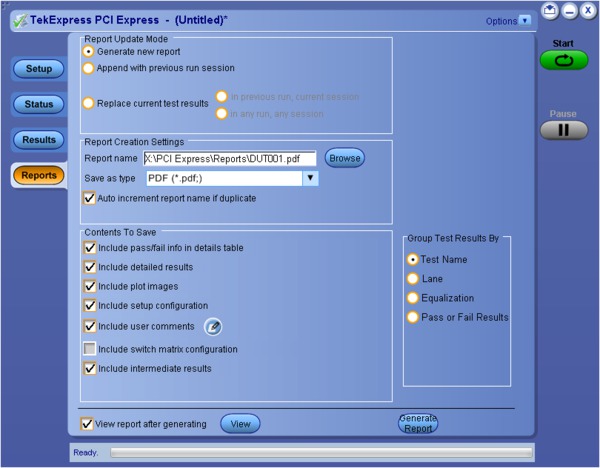

TekExpress report generation preferences



DPO-MSO70000-Option-PCE3-PCE4-Datasheet

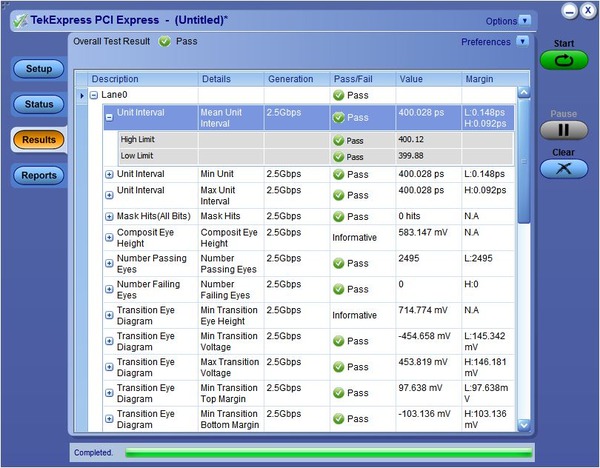

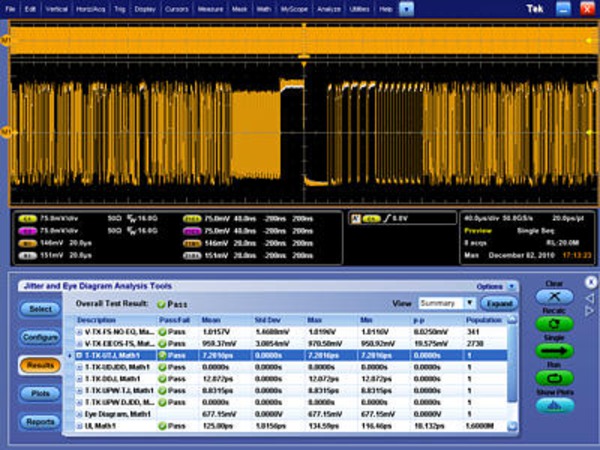

TekExpress results summary

Switch Matrix automation

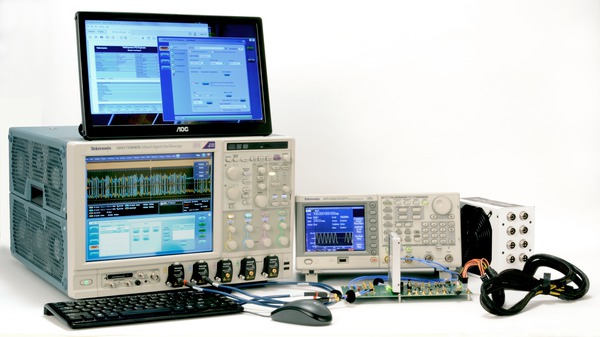

Switch Matrix application allows to configure and setup automated multi-lane testing using RF switch. The solution allows you to map each of the several transmitter signals and forward the selected input either to another relay or to the oscilloscope channel. Option SWX-PCE supports x12 and x16 lanes using Keithley and Gigatronics switches respectively, and enhances throughput and automated test speed.



DPO-MSO70000-Option-PCE3-PCE4-Datasheet



Switch Matrix application settings



DPO-MSO70000-Option-PCE3-PCE4-Datasheet

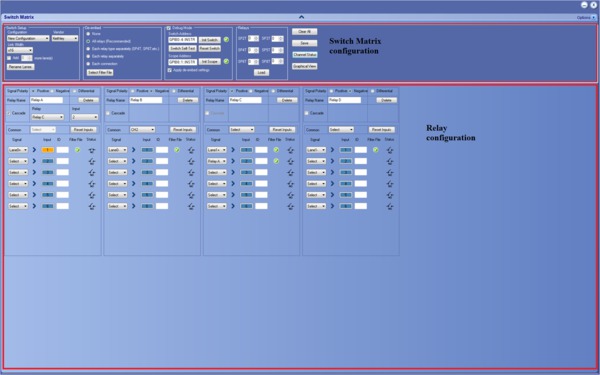

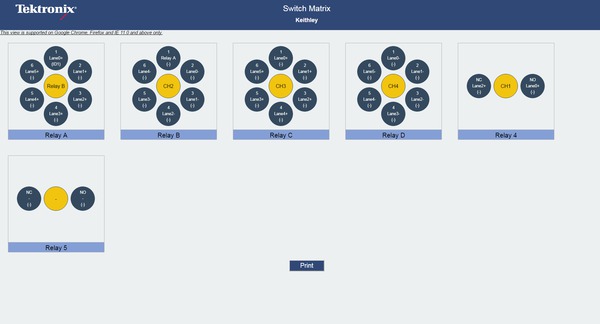

Switch configuration example

Debug and validation

If a DUT or Add-In card fails any portion of the compliance test, the application includes a DPOJET-based debug and analysis tool kit customized for debug and validation of PCI Express interfaces.

The new jitter measurements introduced with PCIe Gen3 and Gen 4 provide separate limits for data dependent (DDJ) and uncorrelated deterministic jitter (UDJDD). It is important to separate DDJ (which can be compensated with transmitter and receiver equalization) and UDJDD (which can be caused by effects such as crosstalk and power supply noise).

Apart from the above Jitter measurements, Pulse Width Jitter (PWJ) is a new measurement that addresses the increased channel loss at 8 to 16 Gb/s. The purpose of the PWJ measurement is to ensure that lone bits meet minimum pulse width requirements. All new jitter measurements implement Q-scale extrapolation as defined in the base specification. Option PCE3 and Option PCE4 provide the complete set of PCI Express 3.0 and 4.0 Base Spec jitter measurements enabling silicon designers to verify that their silicon meets the base specification requirements.

Furthermore, the base specification requirements are defined at the pins of the transmitter. Before the measurements are computed the test channel must be de-embedded. De-embed filters can be easily created using the Tektronix Option SDLA64 Serial Data Link Analysis software and then quickly entered into the Option PCE3 and Option PCE4 base specification measurement setup and saved for future use. In addition to jitter, Option PCE3 and Option PCE4 also provide voltage, package loss, and transmitter equalization measurements.

Option PCE3 and Option PCE4 leverage the channel modeling and receiver equalization functionality of the Tektronix Option SDLA64 software to support CEM measurements. Unlike other solutions, Option PCE3 and Option PCE4 provide full visibility to the signal as it has been modified to embed the compliance channel and provide receiver equalization. Eye diagrams and measurements can be set up to visually see the results of channel embedding, CTLE application, and DFE. For example, when determining the optimal Rx Equalization settings (CTLE setting and DFE tap value) the resulting eye diagrams and measurements show the effects of post processing on the acquired signal. Compliance measurements can then be taken on the waveform.



DPO-MSO70000-Option-PCE3-PCE4-Datasheet

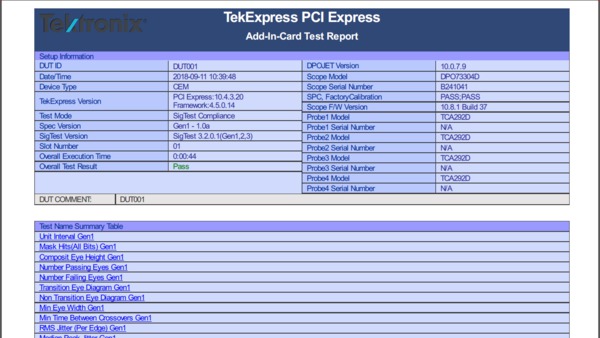

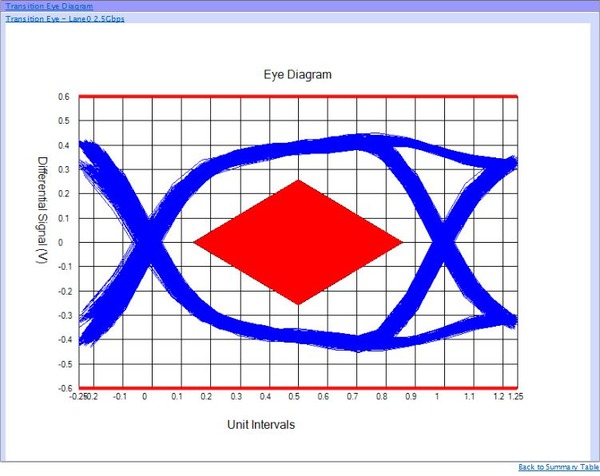

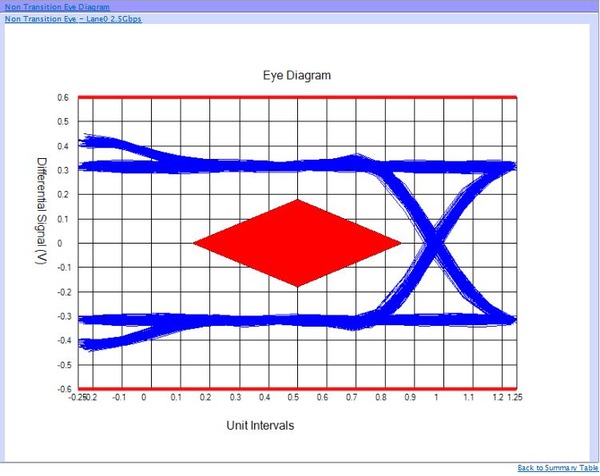

TekExpress PCI Express test report


DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Specifications

All specifications apply to all models unless noted otherwise.

Supported Reference clock measurements
Supported Reference clock measurements
Generation Architecture Measurements Limits
PCIe 1.1  Common clock T-CC- RCLK Specified
T-WST-CC- RCLK Specified
Independent RefClock IR2.5GBPS Specified
PCIe 2.1  Common clock T-RMSCC-RCLK-5GBPS Specified
T-WST-RMSCC-RCLK-5GBPS Specified
Independent RefClock IR5GBPS Specified
PCIe 3.1  Common clock T-RMSCC-RCLK Specified
T-WST-RMSCC-RCLK Specified
Independent RefClock IR8GBPS Specified
PCI4 4.0  Common clock PCIE4_T-RMSCC-REFCLK Specified
PCIE4_T-WST-RMSCC-REFCLK Specified
Independent RefClock IR16GBPS Specified
Supported base specification measurements
Supported PCI Express 4.0 Base Transmitter measurements
Parameter DPOJET measurement 8.0 GT/s, Rev 3.0  16.0 GT/s, Rev 0.7
Unit interval UI Specified Specified
Full Swing Tx voltage with noTxEq V-TX-FS-NO-EQ Specified Specified
Reduced Swing Tx voltage with noTxEq V-TX-RS-NO-EQ Specified Specified
Min swing during EIEOS for full swing V-TX-EIEOS-FS Specified Specified
Min swing during EIEOS for reduced swing V-TX-EIEOS-RS Specified Specified
Pseudo package loss Root device ps21TXRootdevice Specified Specified
Pseudo package loss AIC device ps21TXAICdevice NA Specified
Tx uncorrelated total Jitter T-TX-UTJ Specified Specified
Tx uncorrelated deterministic jitter T-TX-UDJDD Specified Specified
Data dependent jitter T-TX-DDJ Specified NA
Total uncorrelated PWJ T-TX-UPW-TJ Specified Specified
Deterministic DjDD uncorrelated PWJ T-TX-UPW-DJDD Specified Specified
Maximum Boost voltage ratio for full swing V-TX-FS-BOOST Specified Specified
Maximum Boost voltage ratio for reduced swing V-TX-RS-BOOST Specified Specified
Differential transmitter (Tx) output measurements
Parameter Symbol(s) 2.5 GT/s Rev 1.1/2.0  5 GT/s Rev 2.0
Clock Recovery NA Specified Specified
Unit Interval UI Specified Specified
Differential Peak-to-Peak Tx Voltage Swing VTX-DIFF-P-P
VTX-SWING
VTX-EYE-FULL
Specified Specified
Low-power Differential Peak-to-Peak Tx Voltage Swing VTX-SWING-LOW
VTX-EYE-HALF
Specified Specified
De-emphasized Output Voltage Ratio VTX-DE-RATIO Not Specified Specified
Instantaneous Lane Pulse Width TMIN-PULSE Not Specified Specified
Transmitter Eye including All Jitter Sources TTX-EYE
TTX-EYE-TJ
Specified Specified
Maximum Time between the Jitter Median and Maximum Deviation from the Median TTX-EYEMEDIAN-to-MAXJITTER Specified Specified
Deterministic Jitter TTX-DJ-DD Not Specified Specified
Tx RMS Jitter <1.5 MHz TTX-LF-RMS Not Specified Specified
D+/D– Tx Output Rise/Fall Time TTX-RISE
TTX-FALL
Specified Specified
Tx Rise/Fall Mismatch TRF-MISMATCH Not Specified Specified
AC Peak-to-Peak Common Mode Output Voltage VTX-CM-AC-PP Not Specified Specified
AC Peak Common Mode Output Voltage VTX-CM-AC-P Specified Specified
Absolute Delta of DC Common Mode Voltage between D+ and D– VTX-CM-DC-LINE-DELTA Specified Specified
Differential receiver (Rx) input measurements 1
Parameter Symbols 2.5 GT/s Rev 1.1/2.0  5 GT/s Rev 2.0
Clock Recovery NA Specified Not Specified
Unit Interval UI Specified Specified
Minimum Receiver Eye Opening VRX_EYE Specified Specified
Receiver Deterministic Jitter – DJ TRX_DJ_DD Not Specified Specified
Minimum Width Pulse at Rx TRX-MIN-PULSE Not Specified Specified
Maximum Time between the Jitter Median and Maximum Deviation from the Median TTX-EYEMEDIAN-to-MAXJITTER Specified Not Specified
Rx AC Common Mode Voltage VRX-CM-AC-P Specified Specified

1The Rx input measurements are not specified for 8 GT/s and 16 GT/s.

Supported CEM specification measurements
Add-in Card 8 GT/s transmitter path compliance measurements
Parameter Symbol
Transition Eye Voltage PCIe V-TXA
Nontransition Eye Voltage PCIe V-TXA-d
Eye Width PCIe T-TXA
Add-in Card transmitter path compliance measurements
Parameter Symbol(s) 2.5 Gt/s Rev 1.1/2.0  5 GT/s Rev 2.0
Clock Recovery NA Specified Specified
Unit Interval UI Specified Specified
Eye Height of Transition Bits VTXA Specified Specified
Eye Height of Nontransition Bits VTXA_d Specified Specified
Eye Width with Sample Size of 106 UI TTXA in Rev 1.1  Specified Not Specified
Jitter Eye Opening at BER 10–12 TTXA in Rev 2.0  Specified Specified
Maximum Median-Max Jitter Outlier with Sample Size of 106 UI JTXA-MEDIAN-to-MAX-JITTER Specified Not Specified
Total Jitter at BER 10–12 TJ at BER 10–12 Not Specified Specified
Deterministic Jitter at BER 10–12 Max DJ Not Specified Specified
System board transmitter path measurements
Parameter Symbol(s) 2.5 GT/s Rev 1.1/2.0  5 GT/s Rev 2.0
Clock Recovery NA Specified Specified
Unit Interval UI Specified Specified
Eye Height of Transition Bits VTXS Specified Specified
Eye Height of Nontransition Bits VTXS_d Specified Specified
Eye Width with Sample Size of 106 UI TTXS in Rev 1.1  Specified Not Specified
Jitter Eye Opening at BER 10–12 TTXS in Rev 2.0  Specified Specified
Maximum Median-Max Jitter Outlier with Sample Size of 106 UI JTXA-MEDIAN-to-MAX-JITTER Specified Not Specified
Total Jitter at BER 10–12 TJ at BER 10–12 Not Specified Specified
Deterministic Jitter at BER 10–12 Max DJ Not Specified Specified
Reference clock measurements
Parameter Symbol 2.5 Gt/s Rev 1.1/2.0
Reference Clock Phase Jitter at BER 10–6 NA Specified
PCI ExpressModule™ measurements
ExpressModule Add-in Card transmitter path measurements
Parameter Symbol Rev 1.0
Clock Recovery NA Specified
Unit Interval UI Specified
Eye Height of Transition Bits VTXA Specified
Eye Height of Nontransition Bits VTXA_d Specified
Eye Width with Sample Size of 106 UI TTXAin Rev 1.1  Specified
Jitter Eye Opening at BER 10–12 NA Specified
Maximum Median-Max Jitter Outlier with Sample Size of 106 UI JTXA-MEDIAN-to-MAX-JITTER Specified
ExpressModule system board transmitter path measurements
Parameter Symbol Gen1 Rev 1.0
Clock Recovery NA Specified
Unit Interval UI Specified
Eye Height of Transition Bits VTXS Specified
Eye Height of Nontransition Bits VTXS_d Specified
Eye Width with Sample Size of 106 UI TTXS Specified
Jitter Eye Opening at BER 10–12 NA Specified
Maximum Median-Max Jitter Outlier with Sample Size of 106 UI JTXA-MEDIAN-to-MAX-JITTER Specified
PCI Express external cabling measurements
External cabling transmitter path measurements
Parameter Symbol Rev 1.0
Clock Recovery NA Specified
Unit Interval UI Specified
Eye Height of Transition Bits VTXA Specified
Eye Height of Nontransition Bits VTXA_d Specified
Jitter Eye Opening at BER 10–12 TrxA at BER 10–12 Specified
Eye Width with Sample Size of 106 UI TrxA at 106 Samples Specified
External cabling receiver path measurements
Parameter Symbol Gen1 Rev 1.0
Clock Recovery NA Specified
Unit Interval UI Specified
Eye Height of Transition Bits VRXA Specified
Eye Height of Nontransition Bits VRXA_d Specified
Jitter Eye Opening at BER 10–12 TrxA at BER 10–12 Specified
Eye Width with Sample Size of 106 UI TrxA at 106 Samples Specified
PCMCIA ExpressCard™ measurements
ExpressCard - Module transmitter path measurements
Parameter Symbol Release 1.0
Clock Recovery NA Specified
Unit Interval UI Specified
Eye Height of Transition Bits VTXA Specified
Eye Height of Nontransition Bits VTXA_d Specified
Eye Width across any 250 UIs TTXA Specified
ExpressCard™ - Host system transmitter path measurements
Parameter Symbol Release 1.0
Clock Recovery NA Specified
Unit Interval UI Specified
Eye Height of Transition Bits VtxS Specified
Eye Height of Nontransition Bits VtxS_d Specified
Eye Width across any 250 UIs TTxS Specified
MXM measurements
PCI Express measurements1
Parameter Symbol Release 1.1
Eye Height of Transition Bits VTXS Specified
Eye Height of Nontransition Bits VTXS_d Specified
Width at BER TTXS Specified
Deterministic Jitter DJ Specified
Total Jitter TJ Specified

1All de-emphasis levels supported

Ordering information

PCE1
PCI Gen 1/2 DPOJET Measurements Software
New instrument orders
Option PCE
Product upgrades
DPO-UP Option PCE
Floating licenses
DPOFL-PCE

1Requires Option DJA (DPOJET Jitter and Eye Diagram Analysis) and Option SDLA64 (Serial Data Link Analysis Visualizer). Option DJA is standard on MSO70000 Series oscilloscopes, and can be ordered for DPO70000 Series oscilloscopes.

PCE31
PCI Express Gen1/2/3 TekExpress Compliance/Debug Automation with DPOJet Measurements Software
New instrument orders
Option PCE3
Product upgrades
DPO-UP Option PCE3
Floating licenses
DPOFL-PCE3

1Requires Option DJA (DPOJET Jitter and Eye Diagram Analysis) and Option SDLA64 (Serial Data Link Analysis Visualizer). Option DJA is standard on MSO70000 Series oscilloscopes, and can be ordered for DPO70000 Series oscilloscopes.

PCE41
PCI Express Gen1/2/3/4 TekExpress Compliance/Debug Automation with DPOJet Measurements Software
New instrument orders
Option PCE4
Product upgrades
DPO-UP Option PCE4
Floating licenses
DPOFL-PCE4

1Requires Option DJA (DPOJET Jitter and Eye Diagram Analysis) and Option SDLA64 (Serial Data Link Analysis Visualizer). Option DJA is standard on MSO70000 Series oscilloscopes, and can be ordered for DPO70000 Series oscilloscopes.

SWX-PCE1
Switch configurator for PCIe Gen 1/2/3
New instrument orders
Option SWX-PCE
Floating licenses
DPOFL-SWX-PCE

1Requires Option PCE, PCE3, or PCE4.

Recommended DPO/MSO70000 Series Oscilloscopes
2.5 Gb/s (PCI Express 1.0/1.1)
DPO/MSO70000 Series (6 GHz or higher bandwidth models required for compliance testing. 4 GHz bandwidth models can be used for debug only.)
5.0 Gb/s (PCI Express 2.0)
DPO/MSO70000 Series (12.5 GHz or higher bandwidth models)
8.0 Gb/s (PCI Express 3.0)
DPO/MSO70000 Series (16 GHz or higher bandwidth models, minimum of 12.5 GHz is recommended)
16.0 Gb/s (PCI Express 4.0)
DPO/MSO70000 Series (25 GHz or higher bandwidth models 1)

1The PCIe Gen4 standard specifies a minimum bandwidth of 25 GHz with a minimum sample rate of 80 GS/s for PCIe4 transmitter measurements and receiver calibration. However, some users may decide to use a lower min BW (for example 23 GHz) for measurements with lower loss characteristics (for example Base silicon measurements).

Support for DPO/MSO70000 SX Series oscilloscopes
Supported DPO70000 Series configurations
Model Description

Option

PCE

Option

PCE3

Option

PCE4

DPO71254C 12.5 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO71604C 16 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO72004C 20 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DSA71254C 12.5 GHz DSA; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DSA71604C 16 GHz DSA; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DSA72004C 20 GHz DSA; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
MSO71254C 12.5 GHz MSO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
MSO71604C 16 GHz MSO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
MSO72004C 20 GHz MSO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO72504D 25 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO73304D 33 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DSA72504D 25 GHz DSA; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DSA73304D 33 GHz DSA; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO72304DX 23 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO72504DX 25 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO73304DX 33 GHz DPO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
MSO72304DX 23 GHz MSO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
MSO72504DX 23 GHz MSO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
MSO73304DX 33 GHz MSO; 2 Ch, 100 GS/s or 4 Ch, 50 GS/s
DPO77002SX 70 GHz ATI; 1 Ch, 70 GHz, 200 GS/s or 2 Ch, 33 GHz, 100 GS/s
DPS77004SX 70 GHz ATI System; 2 Ch: 70 GHz: 200 GS/s or 4 Ch: 33 GHz: 100 GS/s
DPO75902SX 59 GHz ATI; 1 Ch, 59 GHz, 200 GS/s or 2 Ch, 33 GHz, 100 GS/s
DPS75904SX 59 GHz ATI System; 2 Ch: 59 GHz: 200 GS/s or 4 Ch: 33 GHz: 100 GS/s
DPO75002SX 50 GHz ATI; 1 Ch, 50 GHz, 200 GS/s or 2 Ch, 33 GHz, 100 GS/s
DPS75004SX 50 GHz ATI System; 2 Ch: 50 GHz: 200 GS/s or 4 Ch: 33 GHz: 100 GS/s
DPO73304SX 33 GHz DPO; 2 Ch, 33 GHz, 100 GS/s or 4 Ch, 23 GHz, 50 GS/s
DPS73308SX 33 GHz DPO System; 4 Ch: 33 GHz: 100 GS/s or 4 Ch: 23 GHz: 50 GS/s
DPO72304SX 23 GHz DPO; 4 Ch: 23 GHz: 50 GS/s or 2 Ch: 23 GHz: 100 GS/s
Accessories
Recommended accessories
P75xx, P76xx, and P77xx Series (TriMode™ Differential Probes)

P7513, P7513A, P7516, P7520A, P7625, P7630, P7633, P7713, P7716, P7720 with respective tips

PCI Express
Speed Minimum oscilloscope bandwidth

TCA-SMA

(Max 18 GHz)

TCA-292D

(Max 33 GHz)

P7500

(Max 20 GHz)

P7700

(Max 20 GHz)

P7600

(Max 33 GHz)

2.5 GT/s 6 GHz
5.0 GT/s 12.5 GHz
8.0 GT/s 16 GHz
16.0 GT/s 25 GHz
100 MHz RefClk 5 GHz
Option SDLA64
Serial Data Link Analysis Visualizer
Option SR-PCIe
Bus decode support for PCI Express serial busses
Recommended for automated DUT control
RF Switch
Keithley System S46T RF Microwave Switch for X12 PCIe

Gigatronics RF Switch 26 GHz (8902-L-48TS26) for x16 PCIe

Tektronix AFG3252
Arbitrary Function Generator
Tektronix AFG3252C
Arbitrary Function Generator
AWG5002B/C
Arbitrary Waveform Generator
AWG5012B/C
Arbitrary Waveform Generator
AWG5014B/C
Arbitrary Waveform Generator
AWG7082B/C
Arbitrary Waveform Generator
AWG7122B/C
Arbitrary Function Generator
AWG70001A
Arbitrary Waveform Generator
AWG70002A
Arbitrary Waveform Generator
Recommended test fixtures, cables, and tools
Description Image
Description: PCI Express Compliance Base Board (CBB) test fixture, revision 3.0. For testing PCI Express add-in cards, x1/x4/x8/x16 PCIe connectors on PCIe devices/add-in cards. Vendor: PCI-SIG
www.pcisig.com/specifications/order_form
Vendor PN: CBB3
Tektronix PN: Only available from PCI-SIG
Quantity: 1

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: PCI Express Compliance Load Board (CLB3) test fixture, revision 3.0. For testing PCI Express Platforms, x1 & x16 PCIe connectors on PCIe systems/mother boards. Vendor: PCI-SIG
www.pcisig.com/specifications/order_form
Vendor PN: x1/x16 CLB3
Tektronix PN: Only available from PCI-SIG
Quantity: 1

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: PCI Express Compliance Load Board (CLB3), Revision 3.0. For testing PCI Express Platforms, x4 & x8 PCIe connectors on PCIe systems/mother boards. Vendor: PCI-SIG
www.pcisig.com/specifications/order_form
Vendor PN: x4/x8 CLB3
Tektronix PN: Only available from PCI-SIG
Quantity: 1

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: PCI Express Compliance Load Board (U.2 CLB3) test fixture, revision 3.0. For testing PCI Express Platforms, x1 & x4 PCIe connectors on PCIe devices/add-in cards. Vendor: PCI-SIG
www.pcisig.com/specifications/order_form
Vendor PN: U.2 CLB3
Tektronix PN: Only available from PCI-SIG
Quantity: 1
Note: U.2 was formally known as SFF-8639.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: PCI Express Compliance Load Board (U.2 CLB3), Revision 3.0. For testing PCI Express Platforms, x1 & x4 PCIe connectors on PCIe systems/mother boards. Vendor: PCI-SIG
www.pcisig.com/specifications/order_form
Vendor PN: U.2 CLB3
Tektronix PN: Only available from PCI-SIG
Quantity: 1
Note: U.2 was formally known as SFF-8639.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: Any ATX PC power supply Vendor: Tektronix recommends "PC Power & Cooling 750 W Silencer MK III Series" or similar.
Quantity: 1


DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: SMP terminator, 50 Ω, limited detent. Vendor: Fairview Microwave
www.fairviewmicrowave.com/rf-load-0.25-watts-26.5-ghz-smp-female-st2645-p.aspx
Vendor PN: ST2645
Tektronix PN: 131-9399-xx
Quantity needed per PCIe DUT link width:
  • x1: 0
  • x4: 6
  • x8: 14
  • x16: 30

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: SMA Female to BNC Male adapter. Vendor: Tektronix
Tektronix PN: 015-0572-xx
www.tek.com
Quantity: 2

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: DC Block, SMA, 26 GHz Vendor: Tektronix
www.tek.com
Tektronix PN: PSPL5500A, PSPL5501A, or PSPL5508
Quantity: 2
Note: This is an optional accessory and not shown in any of connection diagrams, but can be used if DC offset is encountered in any signal path.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: USB2.0 Cable, Type A Male to Type B Male, 6 foot Vendor: Tektronix
Tektronix PN: 174-6053-xx
www.tek.com
Quantity: 1

DPO-MSO70000-Option-PCE3-PCE4-Datasheet
Description: SMA-to-SMA, H+S SF104E Phase Kit (#84077556), Straight, 1 m, 1.5 ps phase-matched. Vendor: Tektronix
www.tek.com
Tektronix PN: PMCABLE1M
Quantity: 1 cable pair per lane


DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: SMA-to-SMP right-angle cable pair, 102 mm, 1 ps phase-matched. Vendor: Rosenberger
www.rosenberger.com/us_en
Vendor PN: 71L-19K2-32K1-00102B
Tektronix PN: 174-6657-xx
Quantity: 1 cable pair
DPO-MSO70000-Option-PCE3-PCE4-Datasheet
Description: SMA-to-SMP right-angle cable pair, 1 m, 1 ps phase-matched (one for AFG to Rx Lane0, one for 100 MHz RefClk for Ch3+4 for System Testing) Vendor: Rosenberger
www.rosenberger.com/us_en
Vendor PN: 71M-19K2-32S1-01000D
Tektronix PN: 174-6659-xx
Quantity: 1 cable pair

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: SMP to SMP right-angle cable pair, 305 mm, 2.5 ps phase-matched set. Vendor: Rosenberger
www.rosenberger.com/us_en
Vendor PN: 71L-19K2-19K2-00305C
Tektronix PN: 174-6658-xx
Quantity: 1 cable pair

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: SMA torque wrench, 8.0 in-lbs. Vendor: Fairview Microwave
www.fairviewmicrowave.com/sma-fixed-torque-wrench-click-st-sma3-p.aspx
Vendor PN: ST-SMA3
Tektronix PN: 003-1940-xx
Quantity: 1

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: SMP right-angle cable extraction tool. Vendor: Fairview Microwave
www.fairviewmicrowave.com/undefined-mmtl2682-p.aspx
Vendor PN: MMTL2682
Tektronix PN: 003-1941-xx
Quantity: 1

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Description: SMP terminator installation/extraction tool. Vendor: Fairview Microwave
www.fairviewmicrowave.com/undefined-mmtl4991-p.aspx
Vendor PN: MMTL4991
Tektronix PN: 003-1939-xx
Quantity: 1

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

Additional information
PCI Express receiver testing

A complete PCI Express receiver testing solution from Tektronix. Includes stressed pattern generation as required by PCI-SIG test specifications and support for automated clock multiplication and eye opening measurements. Automated DUT loopback control simplifies the testing process and reduces time to test results. The receiver testing solution also supports adding pre-emphasis to the stress pattern, common-mode interference testing, and PLL loop BW testing.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet

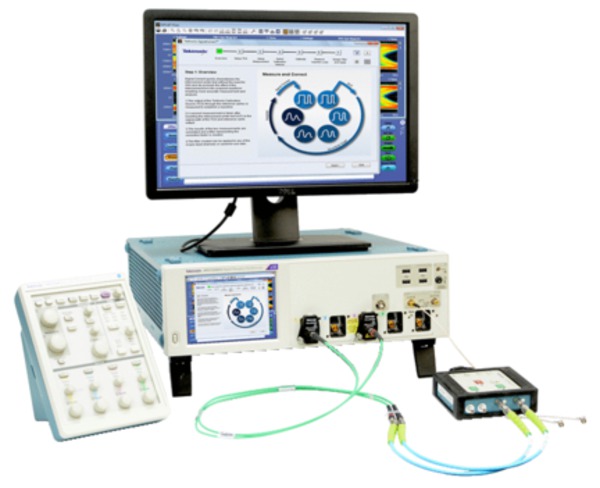

PCIe receiver test setup



The Receiver testing solution consists of the following components:

  • BSX240 for Pattern Generation, stressed eye sources, and Error Detection
  • New BSXPCI4BSE and BSXPCI4CEM SW for Auto calibration, link training, and testing
  • MSO/DPO70000 or DPS75004SX Series Real-Time Oscilloscope for calibration



TLA7SA00 Series Protocol Analyzers

The TLA7SA00 Series logic protocol analyzer modules provide an innovative approach to PCI Express validation that spans all layers of the protocol from the physical layer to the transaction layer.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet



TLA7SA00 series instrument



Feature rich software provides improved information density for viewing statistical summary and protocol analysis using innovative Transaction and Summary Profile windows.

DPO-MSO70000-Option-PCE3-PCE4-Datasheet



TLA7SA00 data views



Hardware capabilities including hardware acceleration, OpenEYE, ScopePHY, and FastSYNC provide fast access to data and helps shorten the time it takes to build confidence in the test system. Powerful trigger and filtering capabilities provide the ability to quickly focus on the data of interest. Provides a complete suite of probing solutions targeted for various form factors and applications.

Last Modified: 2018-05-25 05:00:00
Downloads
Download

Download Manuals, Datasheets, Software and more:

Go to top
