RSA7100A Real-Time Spectrum Analyzer

RSA7100A Real-Time Spectrum Analyzer

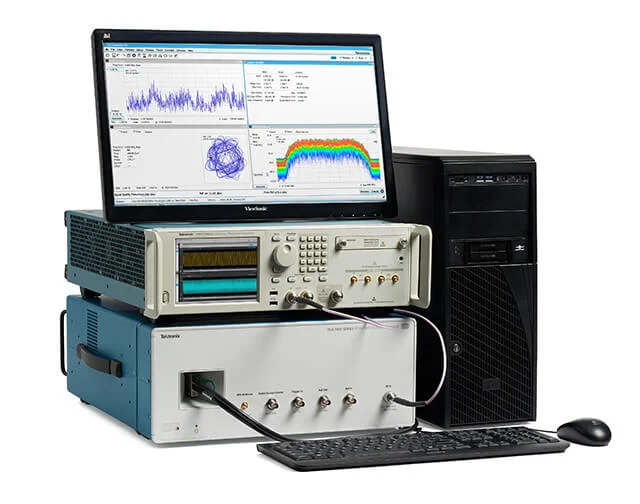

The RSA7100A wideband signal analyzer offers real-time spectrum analysis up to 800 MHz bandwidth and streaming storage of up to 2 hours of seamless data at full bandwidth in one solution.

  • 16 kHz to 14/26.5 GHz frequency range covers a broad range of analysis needs including modulation, pulse, WLAN and frequency/phase settling measurements with SignalVu-PC
  • Streaming capture to internal RAID of up to 2 hours at full 800 MHz bandwidth enables environment recording and analysis of long event sequences
  • Find and mark events of interest hiding within terabytes of stored data quickly with DataVu-PC
Event Duration

700 ns

Bandwidth

320/800 MHz

SFDR

65 dBc

Frequency Range

Up to 14/26.5 GHz



Features

Benefits

16 kHz-26.5 GHz frequency range Covers most commonly used communication and radar bands
50/320/800 MHz acquisition bandwidths Enables analysis of wideband designs, and real-time monitoring of wideband signals
Real-time spectrum analysis standard over the full acquisition bandwidth, even while recording Monitors recording sessions in real-time and captures difficult to see transients in wideband signals taken during field or laboratory tests
High performance spectrum analysis specifications for accuracy, dynamic range, noise floor Performs in-depth and high value wideband and classical spectrum analysis
Streaming acquisition to RAID of up to 2 hours at full acquisition bandwidth Enables long recordings during extensive field and lab testing
Optional GPS receiver Correlates GPS location and time with other measurements  and other tools for collection of data at multiple sites
Full set of SignalVu-PC application licenses including pulse analysis, GP modulation analysis, settling time, commercial standards (WLAN, Bluetooth, LTE), Signal Classification, and more Grows existing and future analysis capabilities with software updates and plug-ins
DataVu software performs search and mark on signals of interest from recordings.  Areas of interest can be exported to SignalVu-PC and other analysis tools. Saves time with automated search, and enables multiple offline users to access the data.



Models

Model Frequency Range Real-Time Bandwidth Minimum Event Duration for 100% POI SFDR (typical) List Price
RSA7100A 16 kHz – 14/26.5 GHz 320/800 MHz 700 ns 65 dBc Configure & Quote
ModelRSA7100A
Frequency RangeReal-Time BandwidthMinimum Event Duration for 100% POI
16 kHz – 14/26.5 GHz 320/800 MHz700 ns
SFDR (typical)
65 dBc
Model Frequency Range Real-Time Bandwidth Minimum Event Duration for 100% POI SFDR (typical) List Price
RSA7100A 16 kHz – 14/26.5 GHz 320/800 MHz 700 ns 65 dBc Configure & Quote
ModelRSA7100A
Frequency RangeReal-Time BandwidthMinimum Event Duration for 100% POI
16 kHz – 14/26.5 GHz 320/800 MHz700 ns
SFDR (typical)
65 dBc

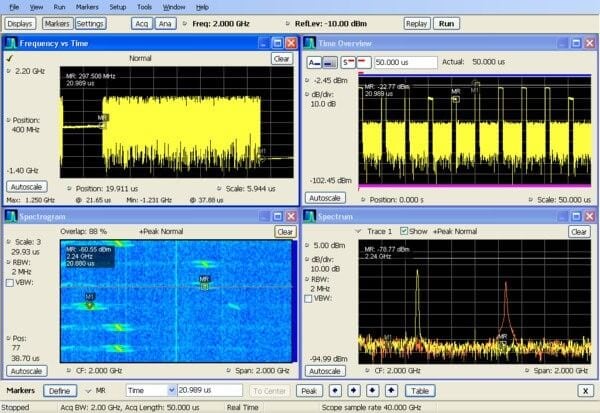

SignalVu-PC brings power and versatility to the new 7100 Series.

The base version ships free with the product. Options may be added for pulse analysis, GP modulation analysis, settling time, commercial standards (WLAN, Bluetooth, LTE), Signal Classification, and more to configure the software for your application.



Learn More About SignalVu-PC

Find signals of interest amongst massive data streams with DataVu-PC

DataVu-PC software performs search and mark on signals of interest from recordings captured by Tektronix RSAs. Areas of interest can be exported to SignalVu-PC and other analysis tools for deeper analysis. Save time with automated search of large files and enable multiple offline users to access the data with Datavu-PC.

Learn More About DataVu-PC

TitleTypeDate
SignalVu-PC Vector Signal Analysis Software - V3.13.0087
SignalVu-PC VSA software brings the analysis engine of the Tektronix Real-Time Signal Analyzer (RTSA) to your computer, enabling you to analyze live signals from RSA306, RSA500, RSA600, RSA7100A Spectrum Analyzers and MDO4000B/C Series oscilloscopes, and…
Part number: 066143418
Application 30 Apr 2018
China RoHS Supplemental, 071354601 Product Information Sheet for the People‚s Republic of China
This sheet contains supplemental product information for the People‚s Republic of China.
Part number: 071354601
User 11 Apr 2018
DataVu-PC Recorded Signal Analysis Software - V1.1.39
DataVu-PC analysis software for recordings makes short work of searching through large datasets for signals of interest. You can measure pulses and mark signals for export to other analysis programs, reducing time spent in post-capture analysis.
Part number: 066190102
Application 09 Apr 2018
Electrostatic discharge notice for the RSA7100AReal-Time-Spectrum Analyzers
This document provides ESD information for the RSA7100A Real-Time Spectrum Analyzer.
Part number: 071358800
User 02 Apr 2018
SignalVu-PC Vector Signal Analysis Software - V3.13.0072
SignalVu-PC VSA software brings the analysis engine of the Tektronix Real-Time Signal Analyzer (RTSA) to your computer, enabling you to analyze live signals from RSA306, RSA500, RSA600, RSA7100A Spectrum Analyzers and MDO4000B/C Series oscilloscopes, and…
Part number: 066143417
Application 27 Mar 2018
RSA7100A Real-Time Spectrum Analyzer
This document contains installation and basic operation instructions for the RSA7100A Real-Time Spectrum Analyzer. This analyzer offers real time spectrum analysis up to 800 MHz bandwidth, a 14 GHz frequency range (26.5 GHz optional), and streaming…
Part number: 071350403
Primary User 01 Dec 2017
RSA7100A Real-Time Spectrum AnalyzerSpecifications and Performance Verification
This document lists product specifications and performance verification procedures for the RSA7100A Real-Time Spectrum Analyzer.
Part number: 077129901
Performance Verification 21 Sep 2017
RSA Map Mapping Software
This help provides in-depth information on how to use the RSA Map mapping software. This PDF version of the application Help contains the most complete descriptions of how to use this mapping software used by the RSA306B, RSA500 Series, RSA600 Series,…
Part number: 077075802
Online Help 21 Sep 2017
CTRL7100UP X-RAID-B and X-RAID-C Option B.10 1-TB drives and
Option C.16 2-TB drives for use with
RSA7100A Series Real-Time Spectrum Analyzers
…This document describes how to install the CTRL7100UP-X-RAID-B and X-RAID-C options in the CTRL7100A controller for the RSA7100A Real Time Spectrum Analyzer.
Part number: 071355300
Field Install Instructions 08 Sep 2017
RSA7100A
RSA7100A Spectrum Analyzer Datasheet The RSA7100A wideband signal analyzer offers real time spectrum analysis up to 800 MHz bandwidth, and streaming storage of up to 2 hours of seamless data at full bandwidth.
Literature number: 37W-60971-3
Datasheet 07 Sep 2017
